2011 FORD F550 mirror

Introduction 5
Instrument Cluster 14Warning lights and chimes 14
Gauges 21
Message center 22
Entertainment Systems 59AM/FM stereo 59
AM/FM stereo with CD 61
Auxiliary input jack 68
USB port 70
Satellite radio information 73
Navigation system 76
SYNC  76
Climate Controls 77Manual heating and air conditioning 77
Dual electronic automatic temperature control 80
Rear window defroster 84
Lights 86Headlamps 86
Turn signal control 90
Bulb replacement 91
Driver Controls 97Windshield wiper/washer control 97
Steering wheel adjustment 98
Power windows 102
Mirrors 103
Speed control 109
Upfitter controls 112Table of Contents
1
2011 F-250/350/450/550 (f23)
Owners Guide, 4th Printing
USA (fus)

SINGLE ZONE CLIMATE CONTROL
1. Defrost: Distributes outside air through the windshield defroster
vents and de-mister vents. Can be used to clear the windshield of fog
and thin ice. The system will automatically provide outside air to reduce
window fogging. Press this button again to return to the previous air flow
selection.
2. A. R
Rear defroster (if equipped): Press to activate/deactivate the
rear window defroster. Refer to Rear window defroster later in this
chapter for more information. If your vehicle is equipped with both rear
defroster and heated mirrors, the same button will activate both.
2. B. Heated mirrors (if equipped): Press to activate/deactivate.
This feature will remove ice and snow from the side view mirrors.
3. Multifunction control: Press repeatedly to cycle through the
settings to choose:
• : Distributes air through the windshield defroster vents, de-mister
vents, floor vents and rear seat floor vents. The system will
automatically provide outside air to reduce window fogging.
• : Distributes air through the instrument panel vents.
• : Distributes air through the instrument panel vents, floor vents,
rear seat floor vents and de-mister vents.
• : Distributes air through the floor vents and rear seat floor vents.
4. A/C (if equipped): Press to activate/deactivate air conditioning. Use
with recirculated air to improve cooling performance and efficiency. A/C
engages automatically in MAX A/C, (defrost) and
(floor/defrost). Climate Controls
77
2011 F-250/350/450/550 (f23)
Owners Guide, 4th Printing
USA (fus)

DUAL ZONE AUTOMATIC TEMPERATURE CONTROL
(IF EQUIPPED)
Temperature conversion: To switch between Fahrenheit and Celsius,
refer to Optional or Standard message center in the Instrument
Cluster chapter.
1. –/+ Fan speed control: Press to decrease/increase the fan
speed.
2. A. R
Rear defroster (if equipped): Press to activate/deactivate the
rear window defroster. Refer to Rear window defroster later in this
chapter for more information. If your vehicle is equipped with both rear
defroster and heated mirrors, the same button will activate both.
2. B. Heated mirrors (if equipped): Press to activate/deactivate.
This feature will remove ice and snow from the side view mirrors.
3. Defrost: Distributes outside air through the windshield defroster
vents and de-mister vents. Can be used to clear the windshield of fog
and thin ice. The system will automatically provide outside air to reduce
window fogging. Press this button again to return to the previous air flow
selection. A/C
A/C
R
+
- A/C AUTO
DUAL
EXT MAX A/C
1 6 8
17
16
15 9
10
1143 5 72B2A
14 13 12Climate Controls
80
2011 F-250/350/450/550 (f23)
Owners Guide, 4th Printing
USA (fus)

REAR WINDOW DEFROSTER (IF EQUIPPED) R
The rear defroster control is located on the climate control panel and
works to defrost your rear window from fog and thin ice. If equipped, it
also operates the heated mirror to remove snow and thin ice from the
side mirrors.
Ensure that the ignition on. Press to turn the defroster on/off. The
indicator light will illuminate when activated. For vehicles with a sliding
rear window– the defroster will be disabled when the window is opened.
Do not use razor blades or other sharp objects to clean the inside
of the rear window or to remove decals from the inside of the
rear window. This may cause damage to the heated grid lines and
will not be covered by your warranty.
REMOTE START CLIMATE OPERATION (IF EQUIPPED)
The climate control system will condition the cabin temperature during
remote start based on the outside temperature. Engine idle may increase
to help with adjusting the cabin temperature.
Note: No climate control adjustments will be recognized during remote
start operation. Once the ignition is cycled to the on position, the climate
control system will return to the previous settings (last ignition-on cycle)
and adjustments can be made normally. If the previous setting was off,
the climate control system will turn off.
Manual climate control
For hot weather conditions:
• The climate control system will be set to MAX A/C.
For cold weather conditions:
• The climate control system will be set to provide maximum heating
in (floor/defrost) mode.
• Rear defrost/heated mirrors (if equipped) will be activated.
For moderate weather conditions:
• The interior cabin will be heated, cooled or off, based upon the
previous operating state (last ignition-on cycle).
• Rear defrost/heated mirrors (if equipped) will be deactivated.Climate Controls
84
2011 F-250/350/450/550 (f23)
Owners Guide, 4th Printing
USA (fus)

Automatic climate control
For hot weather conditions:
• The interior cabin will be cooled to 72°F (22°C).
• The cooled seats (if equipped) will be set to high.
For cold weather conditions:
• The interior cabin will be heated to 72°F (22°C).
• The heated seats (if equipped) will be set to high.
• Rear defrost/heated mirrors (if equipped) will be activated.
For moderate weather conditions:
• The interior cabin will be heated, cooled, or off, based upon the
previous operating state (last ignition-on cycle).
• Heated/cooled seats (if equipped) will be deactivated.
• Rear defrost/heated mirrors (if equipped) will be deactivated. Climate Controls
85
2011 F-250/350/450/550 (f23)
Owners Guide, 4th Printing
USA (fus)

Replacing exterior bulbs
Check the operation of all the bulbs frequently.
Function Number
of bulbs Trade number
Headlamps 2 H13/9008
Park/Turn lamp 2 3157NA
Sidemarker 2 W5W
Tail/stop/turn/sidemarker (pick-up only) 2 3157
Tail/stop/turn/sidemarker (chassis cabs
only; if equipped) 2 3157
Back-up (pick-ups only) 2 921
Back-up (chassis cabs only) 2 3157
High-mount stoplamp 1 922
Fog lamp 2 9145
License plate lamp 2 194
Cargo lamp 2 906
Map lamp 2 12V6W
Dome/reading lamps 3 578
Interior visor lamp (if equipped) 4 194
Mirror turn signal 2 2825
Mirror clearance lamp 2 2825
*Front clearance lamps (2) and front
identification lamps (3) 5 194
*Rear fender clearance 4 LED**
*Rear identification 3 193**
To replace all instrument panel lights - see your authorized dealer
* Dual rear wheels, or if equipped.
** See your authorized dealer to replace the lamp assembly.Lights
92
2011 F-250/350/450/550 (f23)
Owners Guide, 4th Printing
USA (fus)

TILT/TELESCOPE STEERING WHEEL
To adjust the steering wheel:
1. Pull the lever down to unlock the
steering column.
2. While the lever is in the down
position, move the steering wheel
up or down and in or out until you
find the desired position.
3. While holding the steering wheel
in place, pull the lever up to its
original position to lock the steering
column.
WARNING: Never adjust the steering wheel when the vehicle is
moving.
ILLUMINATED VISOR MIRROR (IF EQUIPPED)
Lift the mirror cover to turn on the
visor mirror lamp.
OVERHEAD CONSOLE (IF EQUIPPED)
The appearance of your vehicle’s overhead console will vary according to
your option package.Driver Controls
98
2011 F-250/350/450/550 (f23)
Owners Guide, 4th Printing
USA (fus)

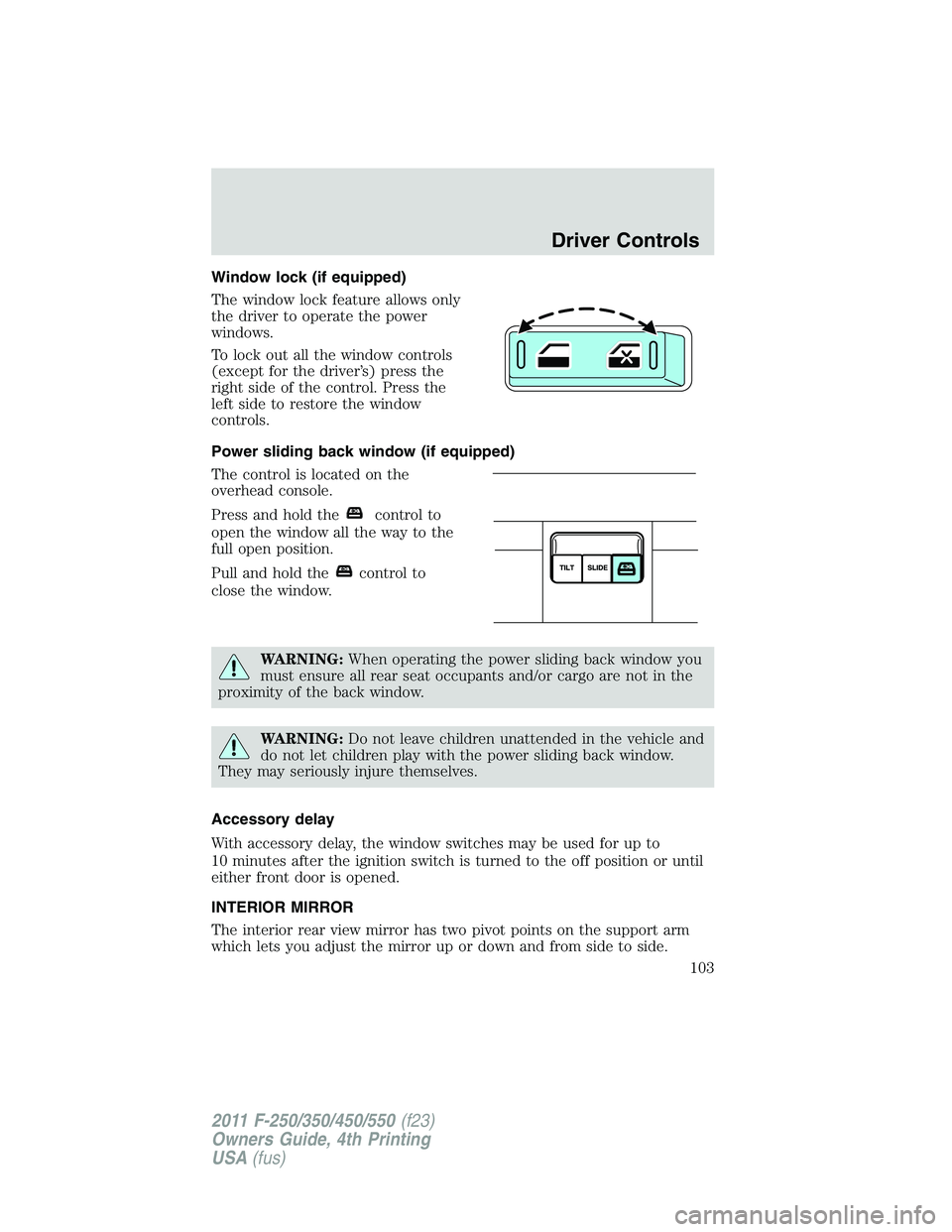

Window lock (if equipped)
The window lock feature allows only
the driver to operate the power
windows.
To lock out all the window controls
(except for the driver’s) press the
right side of the control. Press the
left side to restore the window
controls.
Power sliding back window (if equipped)
The control is located on the
overhead console.
Press and hold the control to
open the window all the way to the
full open position.
Pull and hold the control to
close the window.
WARNING: When operating the power sliding back window you
must ensure all rear seat occupants and/or cargo are not in the
proximity of the back window.
WARNING: Do not leave children unattended in the vehicle and
do not let children play with the power sliding back window.
They may seriously injure themselves.
Accessory delay
With accessory delay, the window switches may be used for up to
10 minutes after the ignition switch is turned to the off position or until
either front door is opened.
INTERIOR MIRROR
The interior rear view mirror has two pivot points on the support arm
which lets you adjust the mirror up or down and from side to side. Driver Controls
103
2011 F-250/350/450/550 (f23)
Owners Guide, 4th Printing
USA (fus)
