You can disable or enable the remote start system through the message
center. Refer to Message center in the Instrument Cluster chapter.
SECURICODE™ KEYLESS ENTRY SYSTEM (IF EQUIPPED)
You can use the keyless entry
keypad to lock or unlock the doors
without using a key.
The keypad can be operated with
the factory set 5–digit entry code;
this code is located on the owner’s wallet card in the glove box, is
marked on the computer module, and is available from your authorized
dealer. You can also create your own 5–digit personal entry code.
When pressing the controls on the keypad, press the middle of the
controls to ensure a good activation.
Programming a personal entry code and keypad association to
memory feature
To create your own personal entry code:
1. Enter the factory set code.
2. Within five seconds press the 1 • 2 on the keypad.
3. Enter your personal 5-digit code. Each number must be entered
within five seconds of each other.
4. To associate the entry code with a memory setting, enter a sixth digit
to indicate which driver should be set in a memory recalled by the
personal entry code:
• Pressing 1 • 2 recalls Driver 1 settings.
• Pressing 3 • 4 recalls Driver 2 settings.
• Pressing other keypad buttons or not pressing a keypad button as a
sixth digit does not set a driver and will not recall a memory setting.
Note: The factory-set code cannot be associated with a memory
setting.
5. The doors will again lock then unlock to confirm that your personal
entry code has been programmed to the module.
Tips:
• Do not set a code that uses five of the same number.
• Do not use five numbers in sequential order.
• The factory set code will work even if you have set your own personal
code.Locks and Security
146
2011 F-250/350/450/550 (f23)
Owners Guide, 4th Printing
USA (fus)

Erasing personal code
1. Enter the factory set 5–digit code.
2. Within five seconds, press the 1 • 2 on the keypad and release.
3. Press and hold the 1 • 2 for two seconds. This must be done within
five seconds of completing Step 2.
Your personal code is now erased and only the factory set 5–digit code
will work.
Anti-scan feature
If an incorrect code has been entered seven times (35 consecutive
button presses), the keypad will go into an anti-scan mode. This mode
disables the keypad for one minute and the keypad lamp will flash during
this time.
The anti-scan feature will turn off after:
• one minute of keypad inactivity.
• pressing the control on the remote entry transmitter.
• the ignition is turned to the on position.
Unlocking and locking the doors using keyless entry
To unlock the driver’s door, enter the factory set 5-digit code or your
personal code. Each number must be pressed within five seconds of each
other. The interior lamps will illuminate after entering a valid keypad
entry code.
To unlock all doors, press the 3 • 4 control within five seconds.
To lock all doors, press the 7 • 8 and the 9 • 0 at the same time. You
do not need to enter the keypad code first. Note: The interior lamps
will turn off.
SECURILOCK  PASSIVE ANTI-THEFT SYSTEM (IF EQUIPPED)
SecuriLock  passive anti-theft system is an engine immobilization
system. This system is designed to help prevent the engine from being
started unless a coded key programmed to your vehicle is used. The
use of the wrong type of coded key may lead to a “no-start” condition.
The message center will display: STARTING SYSTEM FAULT .
Your vehicle comes with two coded keys; additional coded keys may be
purchased from your authorized dealer. The authorized dealer can
program your spare keys to your vehicle or you can program the keys
yourself. Refer to Programming spare keys for instructions on how to
program the coded key. Locks and Security
147
2011 F-250/350/450/550 (f23)
Owners Guide, 4th Printing
USA (fus)

Note: The SecuriLock  passive anti-theft system is not compatible with
non-Ford aftermarket remote start systems. Use of these systems may
result in vehicle starting problems and a loss of security protection.
Note: Large metallic objects, electronic devices that are used to
purchase gasoline or similar items, or a second coded key on the same
key chain may cause vehicle starting issues. You need to prevent these
objects from touching the coded key while starting the engine. These
objects will not cause damage to the coded key, but may cause a
momentary issue if they are too close to the key when starting the
engine. If a problem occurs, turn the ignition off, remove all objects on
the key chain away from the coded key and restart the engine.
Note: Do not leave a duplicate coded key in the vehicle. Always
take your keys and lock all doors when leaving the vehicle.
Automatic arming
The vehicle is armed immediately after turning the ignition off.
Automatic disarming
Switching the ignition on with a coded key disarms the vehicle.
Replacement keys
If your keys are lost or stolen and you don’t have an extra coded key,
you will need to have your vehicle towed to an authorized dealer. The
key codes need to be erased from your vehicle and new coded keys will
need to be programmed.
Replacing coded keys can be very costly. Store an extra programmed key
away from the vehicle in a safe place to help prevent any
inconveniences. Please visit an authorized dealer to purchase additional
spare or replacement keys.
Programming spare keys
A maximum of eight keys can be coded to your vehicle. Only
SecuriLock  keys can be used. To program a coded key yourself, you
will need two previously programmed coded keys (keys that already
operate your vehicle’s engine) and the new unprogrammed key(s) readily
accessible for timely implementation of each step in the procedure.
If two previously programmed coded keys are not available, you must
bring your vehicle to your authorized dealer to have the spare coded
key(s) programmed.
Please read and understand the entire procedure before you begin.Locks and Security
148
2011 F-250/350/450/550 (f23)
Owners Guide, 4th Printing
USA (fus)

1. Insert the first previously
programmed coded key into the
ignition and turn the ignition from
the 1 (off) position to the 3 (on)
position (maintain ignition in the 3
(on) position for at least one
second, but no more than
10 seconds).
2. Turn ignition from the 3 (on)
position back to the 1 (off) position
in order to remove the first coded
key from the ignition.
3. After three seconds but within 10 seconds of removing the first coded
key, insert the second previously programmed coded key into the
ignition and turn the ignition from the 1 (off) position to the 3 (on)
position (maintain ignition in the 3 (on) position for at least one second
but no more than 10 seconds).
4. Turn the ignition from the 3 (on) position back to the 1 (off) position
in order to remove the second coded key from the ignition.
5. After three seconds but within 10 seconds of removing the second
coded key, insert the new unprogrammed key (new key/valet key) into
the ignition and turn the ignition from the 1 (off) position to the 3 (on)
position (maintain ignition in the 3 (on) position for at least one second,
but no more than 10 seconds). This step will program your new key to a
coded key.
6. To program additional new unprogrammed key(s), repeat Steps 1
through 5.
If successful, the new coded key(s) will start the vehicle’s engine.
If not successful, the new coded key(s) will not start the vehicle’s engine
and you may repeat Steps 1 through 5. If failure repeats, bring your
vehicle to your authorized dealer to have the new spare key(s)
programmed.
PERIMETER ALARM SYSTEM (IF EQUIPPED)
The perimeter anti-theft system will warn you in the event of an
unauthorized entry to your vehicle.
If there is any potential perimeter anti-theft problem with your vehicle,
ensure ALL remote entry transmitters are taken to the authorized
dealer to aid in troubleshooting. Locks and Security
149
2011 F-250/350/450/550 (f23)
Owners Guide, 4th Printing
USA (fus)

WARNING: When mounting replacement tires and wheels, you
should not exceed the maximum pressure indicated on the
sidewall of the tire to set the beads without additional precautions
listed below. If the beads do not seat at the maximum pressure
indicated, re-lubricate and try again.
When inflating the tire for mounting pressures up to 20 psi (138 kPa)
greater than the maximum pressure on the tire sidewall, the following
precautions must be taken to protect the person mounting the tire:
1. Make sure that you have the correct tire and wheel size.
2. Lubricate the tire bead and wheel bead seat area again.
3. Stand at a minimum of 12 ft (3.66 m) away from the tire wheel
assembly.
4. Use both eye and ear protection.
For a mounting pressure more than 20 psi (138 kPa) greater than the
maximum pressure, an authorized dealer or other tire service
professional should do the mounting.
Always inflate steel carcass tires with a remote air fill with the person
inflating standing at a minimum of 12 ft (3.66 m) away from the tire
wheel assembly.
Important: Remember to replace the wheel valve stems when the road
tires are replaced on your vehicle.
It is recommended that the two front tires or two rear tires generally be
replaced as a pair.
The tire pressure sensors mounted in the wheels are not designed to be
used in aftermarket wheels.
The use of wheels or tires not recommended by Ford Motor Company
may affect the operation of your tire pressure monitoring system.
If the TPMS indicator is flashing, your TPMS is malfunctioning. Your
replacement tire might be incompatible with your TPMS, or some
component of the TPMS may be damaged.
Safety practices
Driving habits have a great deal to do with your tire mileage and safety.
• Observe posted speed limits
• Avoid fast starts, stops and turns
• Avoid potholes and objects on the road Tires, Wheels and Loading
225
2011 F-250/350/450/550 (f23)
Owners Guide, 4th Printing
USA (fus)

Your vehicle may have remote start capability. Refer to Remote entry
system in the Locks and Security chapter.
Cold weather starting (flexible fuel vehicles only)
The starting characteristics of all grades of E 85
ethanol make it
unsuitable for use when ambient temperatures fall below 0°F (-18°C).
Consult your fuel distributor for the availability of winter grade ethanol.
As the outside temperature approaches freezing, ethanol fuel distributors
should supply winter grade ethanol (same as with unleaded gasoline). If
summer grade ethanol is used in cold weather conditions, 0°F to 32°F
(-18°C to 0°C), you may experience increased cranking times, rough idle
or hesitation until the engine has warmed up.
You may experience a decrease in peak performance when the engine is
cold when operating on E 85
ethanol.
Do not crank the engine for more than 10 seconds at a time as starter
damage may occur. If the engine fails to start, turn the key to off and
wait 30 seconds before trying again.
Do not use starting fluid such as ether in the air intake system. Such
fluid could cause immediate explosive damage to the engine and possible
personal injury.
If you should experience cold weather starting problems on E 85
ethanol,
and neither an alternative brand of E 85
ethanol nor an engine block
heater is available, the addition of unleaded gasoline to your tank will
improve cold starting performance. Your vehicle is designed to operate
on E 85
ethanol alone, unleaded gasoline alone, or any mixture of the two.
See Choosing the right fuel in the Maintenance and Specifications
chapter for more information on ethanol.
If the engine fails to start using the preceding instructions (flexible
fuel vehicles only)
1. Press and hold down the accelerator 1/3 to 1/2 way to floor, then
crank the engine.
2. When the engine starts, release the key, then gradually release the
accelerator pedal as the engine speeds up. If the engine still fails to start,
repeat Step 1.
Guarding against exhaust fumes
Carbon monoxide is present in exhaust fumes. Take precautions to avoid
its dangerous effects. Driving
265
2011 F-250/350/450/550 (f23)
Owners Guide, 4th Printing
USA (fus)

Lifestyle
• Ash cup / smoker’s package • Racks and carriers*
• Bedliners and bedmats • Truck bed camping tent*
• Subwoofer* • Sportliner cargo liner*
• Towing mirrors • Trailer hitch balls*
• Navigation* • Rear seat entertainment*
• Tonneau covers*
• Trailer hitches, wiring harnesses and accessories
Peace of mind
• Keyless entry keypad • Back up camera*
• Remote start • Back up alarm*
• Vehicle security systems • Cable lock*
• Wheel locks • Bed hooks*
• Vehicle tracking and recovery* • Tool/Cargo boxes*
• Protective seat covers*
• Bumper and hitch mounted parking sensors*
Not all accessories are available for all models.
*Ford Licensed Accessories (FLA) are warranted by the accessory
manufacturer’s warranty. Ford Licensed Accessories are fully designed
and developed by the accessory manufacturer and have not been
designed or tested to Ford Motor Company engineering requirements.
Contact your Ford dealer for details regarding the manufacturer’s limited
warranty and/or a copy of the FLA product limited warranty offered by
the accessory manufacturer.
For maximum vehicle performance, keep the following information in
mind when adding accessories or equipment to your vehicle:
• When adding accessories, equipment, passengers and luggage to your
vehicle, do not exceed the total weight capacity of the vehicle or of
the front or rear axle (GVWR or GAWR as indicated on the Safety
Compliance Certification Label). Consult your authorized dealer for
specific weight information.Accessories
416
2011 F-250/350/450/550 (f23)
Owners Guide, 4th Printing
USA (fus)

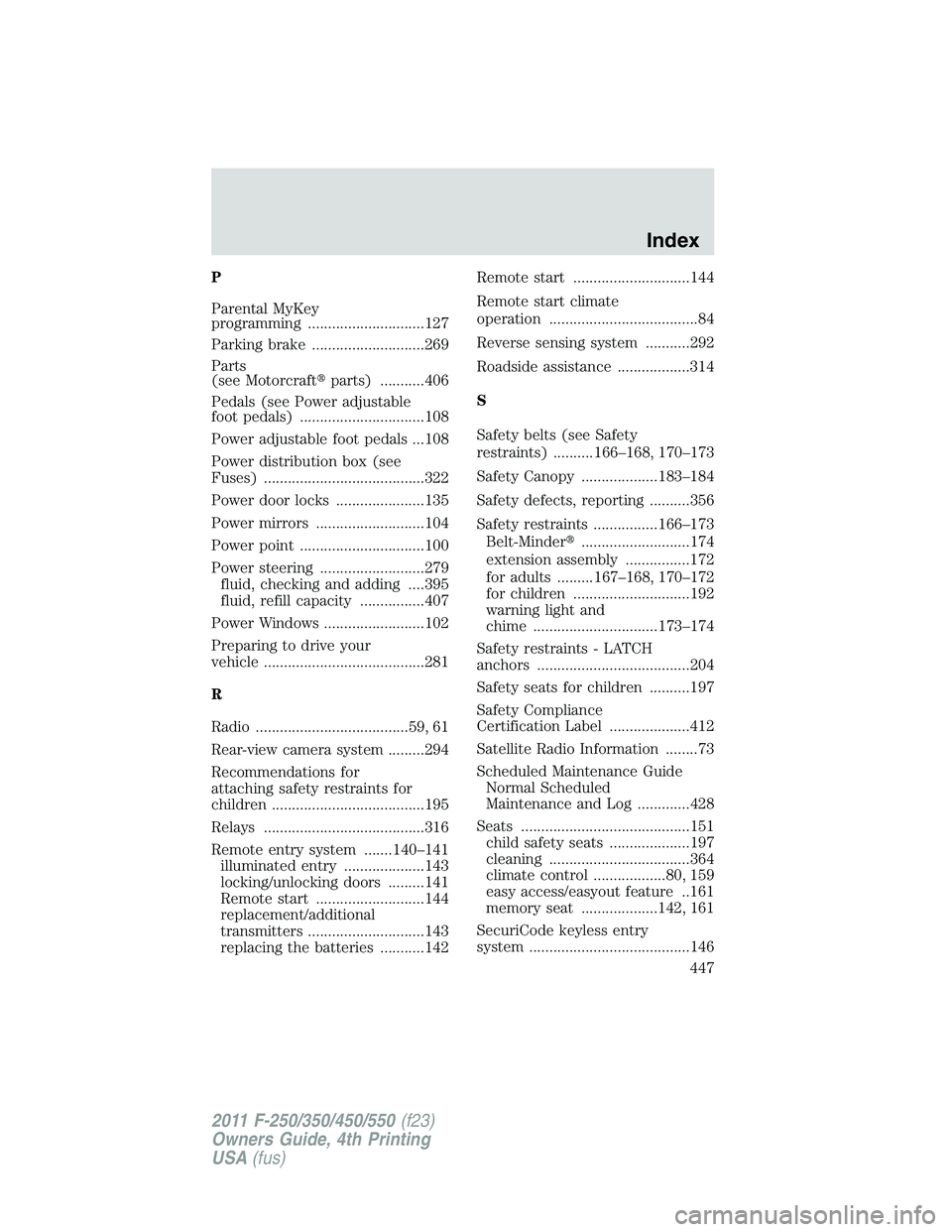

P
Parental MyKey
programming .............................127
Parking brake ............................269
Parts
(see Motorcraft  parts) ...........406
Pedals (see Power adjustable
foot pedals) ...............................108
Power adjustable foot pedals ...108
Power distribution box (see
Fuses) ........................................322
Power door locks ......................135
Power mirrors ...........................104
Power point ...............................100
Power steering ..........................279
fluid, checking and adding ....395
fluid, refill capacity ................407
Power Windows .........................102
Preparing to drive your
vehicle ........................................281
R
Radio ......................................59, 61
Rear-view camera system .........294
Recommendations for
attaching safety restraints for
children ......................................195
Relays ........................................316
Remote entry system .......140–141
illuminated entry ....................143
locking/unlocking doors .........141
Remote start ...........................144
replacement/additional
transmitters .............................143
replacing the batteries ...........142 Remote start .............................144
Remote start climate
operation .....................................84
Reverse sensing system ...........292
Roadside assistance ..................314
S
Safety belts (see Safety
restraints) ..........166–168, 170–173
Safety Canopy ...................183–184
Safety defects, reporting ..........356
Safety restraints ................166–173
Belt-Minder  ...........................174
extension assembly ................172
for adults .........167–168, 170–172
for children .............................192
warning light and
chime ...............................173–174
Safety restraints - LATCH
anchors ......................................204
Safety seats for children ..........197
Safety Compliance
Certification Label ....................412
Satellite Radio Information ........73
Scheduled Maintenance Guide
Normal Scheduled
Maintenance and Log .............428
Seats ..........................................151
child safety seats ....................197
cleaning ...................................364
climate control ..................80, 159
easy access/easyout feature ..161
memory seat ...................142, 161
SecuriCode keyless entry
system ........................................146 Index
447
2011 F-250/350/450/550 (f23)
Owners Guide, 4th Printing
USA (fus)
