Roadside Emergencies 314Getting roadside assistance 314
Hazard flasher control 315
Fuel pump shut-off 316
Fuses and relays 316
Changing tires 326
Wheel lug nut torque 342
Jump starting 343
Wrecker towing 347
Customer Assistance 349Reporting safety defects (U.S. only) 356
Reporting safety defects (Canada only) 356
Cleaning 357
Maintenance and Specifications 366Engine compartment 367
Engine oil 371
Battery 373
Engine coolant 375
Fuel information 382
Air filter(s) 401
Part numbers 406
Maintenance product specifications and capacities 407
Engine data 411
Accessories 415
Ford Extended Service Plan 418Table of Contents
3
2011 F-250/350/450/550 (f23)
Owners Guide, 4th Printing
USA (fus)

Vehicle Symbol Glossary
Power Windows
Front/Rear Power Window Lockout
Child Safety Door
Lock/Unlock Interior Luggage
Compartment Release
Panic Alarm Engine Oil
Engine Coolant Engine Coolant
Temperature
Do Not Open When Hot Battery
Avoid Smoking, Flames,
or Sparks Battery Acid
Explosive Gas Fan Warning
Power Steering Fluid Maintain Correct Fluid
Level MAX
MIN
Service Engine Soon Engine Air Filter
Passenger Compartment
Air Filter Jack
Check Fuel Cap Low Tire Pressure
WarningIntroduction
13
2011 F-250/350/450/550 (f23)
Owners Guide, 4th Printing
USA (fus)

Note: Do not do the following:
• Place heavy objects on the seat
• Operate the seat heater if water or any other liquid is spilled on the
seat. Allow the seat to dry thoroughly.
The heated seats will only function when the engine is running.
To operate the heated seats:
Press the heated seat button/symbol
to cycle through the various heat
settings and off. Warmer settings are
indicated by more indicator lights.
Cooled seats
The cooled seats will only function when the engine is running.
To operate the cooled seats:
Press the cooled seat button/symbol
to cycle through the various cooling
settings and off. Cooler settings are
indicated by more indicator lights.
If the engine falls below 350 rpm while the cooled seats are on, the
feature will turn itself off and will need to be reactivated.
Climate controlled seats air filter replacement (if equipped)
The heated and cooled seat system includes air filters that must be
replaced periodically. Refer to Scheduled maintenance information.
• There is a filter located under
each front seat.
• The filter can be accessed from the 2nd row foot-well area. Move the
front seats all the way to the full front and full up positions to ease
access. A/CSeating and Safety Restraints
159
2011 F-250/350/450/550 (f23)
Owners Guide, 4th Printing
USA (fus)

To remove an air filter:
1. Turn the vehicle off.
2. Push up on the outside rigid edge
of the filter until the tabs are
released, then rotate the air filter
toward the front of the vehicle.
3. Remove filter.
To install a filter:
1. First, position the filter in its
housing making sure that the far
forward end is all the way up in the
housing.
2. Push in on the center of the
outside edge of the filter and rotate
up into the housing until it clips into
position.Seating and Safety Restraints
160
2011 F-250/350/450/550 (f23)
Owners Guide, 4th Printing
USA (fus)

6.2L V8 gasoline engine
1. Windshield washer fluid reservoir
2. Engine oil dipstick
3. Automatic transmission fluid dipstick
4. Brake fluid reservoir
5. Engine coolant reservoir
6. Power distribution box
7. Air filter assembly
8. Power steering fluid reservoir
9. Engine oil filler cap
10. Battery 1 2 3 4 5 6
10
9
8 7Maintenance and Specifications
368
2011 F-250/350/450/550 (f23)
Owners Guide, 4th Printing
USA (fus)

6.8L V10 gasoline engine
1. Windshield washer fluid reservoir
2. Battery
3. Automatic transmission fluid dipstick
4. Engine oil filler cap
5. Engine oil dipstick
6. Power steering fluid reservoir
7. Brake fluid reservoir
8. Engine coolant reservoir
9. Air filter assembly
10. Power distribution box 1 2
3 5
6 7
8 9 10
4
Maintenance and Specifications
369
2011 F-250/350/450/550 (f23)
Owners Guide, 4th Printing
USA (fus)

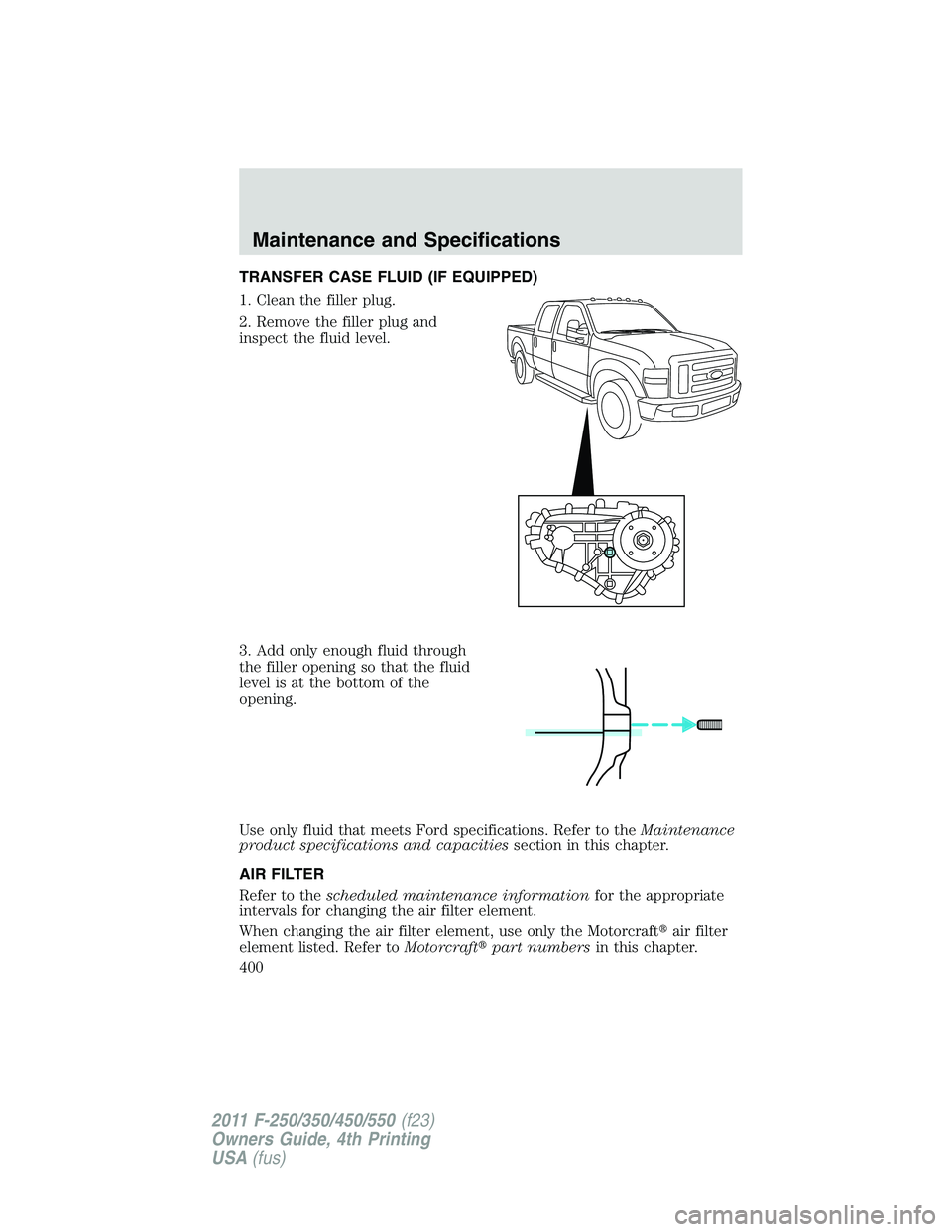

TRANSFER CASE FLUID (IF EQUIPPED)
1. Clean the filler plug.
2. Remove the filler plug and
inspect the fluid level.
3. Add only enough fluid through
the filler opening so that the fluid
level is at the bottom of the
opening.
Use only fluid that meets Ford specifications. Refer to the Maintenance
product specifications and capacities section in this chapter.
AIR FILTER
Refer to the scheduled maintenance information for the appropriate
intervals for changing the air filter element.
When changing the air filter element, use only the Motorcraft  air filter
element listed. Refer to Motorcraft  part numbers in this chapter.Maintenance and Specifications
400
2011 F-250/350/450/550 (f23)
Owners Guide, 4th Printing
USA (fus)

The following procedure is for vehicles equipped with a gasoline engine.
If your vehicle is equipped with a diesel engine, refer to the diesel
supplement.
Note: Do not start your engine with the air cleaner removed and do not
remove it while the engine is running.
Changing the air filter element
1. Locate the mass air flow sensor
electrical connector on the air outlet
tube. This connector will need to be
unplugged.
2. Reposition the locking clip on the
connector (connector shown from
below for clarity), squeeze the
connector and pull it off of the air
outlet tube.
3. Clean the area around the air
tube to air cover connection to
prevent debris from entering the
system and then loosen the bolt on
the air tube clamp so the clamp is
no longer snug to the air tube. It is
not necessary to completely remove
the clamp.
4. Pull the air tube off from the air
cleaner housing. Maintenance and Specifications
401
2011 F-250/350/450/550 (f23)
Owners Guide, 4th Printing
USA (fus)
