2011 FORD F150 airbag disable

Reasons given... Consider...
“I have an airbag” Airbags offer greater protection when
used with safety belts. Frontal airbags
are not designed to inflate in rear and
side crashes or rollovers.
“I’d rather be thrown clear” Not a good idea.Peoplewho are
ejected are 40 times more likely
to DIE.Safety belts help prevent
ejection, WE CAN’T “PICK OUR
CRASH”.
WARNING:Do not sit on top of a buckled safety belt or insert a
latchplate into the buckle to avoid the Belt-Minderchime. To
do so may adversely affect the performance of the vehicle’s airbag
system.
Deactivating/activating the Belt-Minderfeature
The driver and front passenger Belt-Minderare
deactivated/activated independently. When deactivating/activating
one seating position, do not buckle the other position as this will
terminate the process.
Read Steps1-4thoroughly before proceeding with the
deactivation/activation programming procedure.
Note:If you are using MyKey™, the Belt-Mindercannot be disabled.
Also, if the Belt-Minderhas been previously disabled, it will be
re-enabled after the use of MyKey™. Refer toMyKey™in theLocks
and securitychapter.
The driver and front passenger Belt-Minderfeatures can be
deactivated/activated by performing the following procedure:
Before following the procedure, make sure that:
•The parking brake is set
•The gearshift is in P (Park)
•The ignition switch is in the off position
•The driver and front passenger safety belts are unbuckled
WARNING:While the design allows you to deactivate your
Belt-Minder, this system is designed to improve your chances of
being safely belted and surviving an accident. We recommend you
leave the Belt-Mindersystem activated for yourself and others who
may use the vehicle. To reduce the risk of injury, do not
deactivate/activate the Belt-Minderfeature while driving the vehicle.
Seating and Safety Restraints
187
2011 F-150(f12)
Owners Guide, 1st Printing
USA(fus)

1. Turn the ignition switch to the on position. DO NOT START THE
ENGINE.
2. Wait until the safety belt warning light turns off. (Approximately one
minute)
•Step 3 must be completed within 30 seconds after the safety belt
warning light turns off.
3. For the seating position being disabled, buckle then unbuckle the
safety belt three times, ending in the unbuckled state.
•After Step 3, the restraint system warning light (airbag light) will be
turned on for three seconds.
4. Within approximately seven seconds of the light turning off, buckle
then unbuckle the safety belt.
•This will disable the Belt-Minderfeature for that seating position if it
is currently enabled. As confirmation, the restraint system warning
light will flash four times per second for three seconds.
•This will enable the Belt-Minderfeature for that seating position if it
is currently disabled. As confirmation, the restraint system warning
light will flash four times per second for three seconds, followed by
three seconds with the light off, then followed by the restraint system
warning light flashing four times per second for three seconds again.
Safety belt extension assembly
If the safety belt is too short when fully extended, there is an 8 inch
(20 cm) safety belt extension assembly that can be added (part number
611C22). This assembly can be obtained from an authorized dealer.
Use only extensions manufactured by the same supplier as the safety
belt. Manufacturer identification is located at the end of the webbing on
the label. Also, use the safety belt extension only if the safety belt is too
short for you when fully extended.
WARNING:Do not use extensions to change the fit of the
shoulder belt across the torso.
Seating and Safety Restraints
188
2011 F-150(f12)
Owners Guide, 1st Printing
USA(fus)

internal injuries, particularly to occupants who are not properly
restrained or are otherwise out of position at the time of airbag
deployment. Thus, it is extremely important that occupants be properly
restrained as far away from the airbag cover as possible while
maintaining vehicle control.
WARNING:Several airbag system components get hot after
inflation. Do not touch them after inflation.
WARNING:If the airbag has deployed,the airbag will not
function again and must be replaced immediately.If the
airbag is not replaced, the unrepaired area will increase the risk of
injury in a collision.
Front passenger sensing system
The front passenger sensing system is designed to meet the regulatory
requirements of Federal Motor Vehicle Safety Standard (FMVSS) 208
and is designed to disable (will not inflate) the front passenger’s frontal
airbag under certain conditions.
The front passenger sensing system works with sensors that are part of
the front passenger’s seat and safety belt. The sensors are designed to
detect the presence of a properly seated occupant and determine if the
front passenger’s frontal airbag should be enabled (may inflate) or
disabled (will not inflate).
The front passenger sensing system will disable (will not inflate) the
front passenger’s frontal airbag if:
•the front passenger seat is unoccupied, or has small/medium objects in
the front seat,
•the system determines that an infant is present in a rear-facing infant
seat that is installed according to the manufacturer’s instructions,
•the system determines that a small child is present in a forward-facing
child restraint that is installed according to the manufacturer’s
instructions,
•the system determines that a small child is present in a booster seat,
•a front passenger takes his/her weight off of the seat for a period of
time,
•a child or a small person occupies the front passenger seat.
Note:When the passenger airbag off light is illuminated, the passenger
(seat mounted) side airbag may be disabled to avoid the risk of airbag
deployment injuries.
Seating and Safety Restraints
193
2011 F-150(f12)
Owners Guide, 1st Printing
USA(fus)

The front passenger sensing system
uses apassenger airbag offor
pass airbag offindicator which will
illuminate and stay lit to remind you
that the front passenger frontal
airbag is disabled. The indicator
lamp is located in the center stack
of the instrument panel just above the radio.
Note: The indicator lamp will illuminate for a short period of time when
the ignition is turned to the on position to confirm it is functional.
When the front passenger seat is not occupied (empty seat) or in the
event that the front passenger frontal airbag is enabled (may inflate), the
indicator lamp will be unlit.
The front passenger sensing system is designed to disable (will not
inflate) the front passenger’s frontal airbag when a rear facing infant
seat, a forward-facing child restraint, or a booster seat is detected.
•When the front passenger sensing system disables (will not inflate)
the front passenger frontal airbag, the indicator lamp will illuminate
and stay lit to remind you that the front passenger frontal airbag is
disabled.
•If the child restraint has been installed and the indicator lamp is not
lit, then turn the vehicle off, remove the child restraint from the
vehicle and reinstall the restraint following the child restraint
manufacturer’s instructions.
The front passenger sensing system is designed to enable (may inflate)
the front passenger’s frontal airbag anytime the system senses that a
person of adult size is sitting properly in the front passenger seat.
•When the front passenger sensing system enables the front passenger
frontal airbag (may inflate), the indicator will be unlit and stay unlit.
If a person of adult size is sitting in the front passenger’s seat, but the
passenger airbag offorpass airbag offindicator lamp is lit, it is
possible that the person isn’t sitting properly in the seat. If this happens:
•Turn the vehicle off and ask the person to place the seatback in the
full upright position.
•Have the person sit upright in the seat, centered on the seat cushion,
with the person’s legs comfortably extended.
•Restart the vehicle and have the person remain in this position for
about two minutes. This will allow the system to detect that person
and enable the passenger’s frontal airbag.
Seating and Safety Restraints
194
2011 F-150(f12)
Owners Guide, 1st Printing
USA(fus)

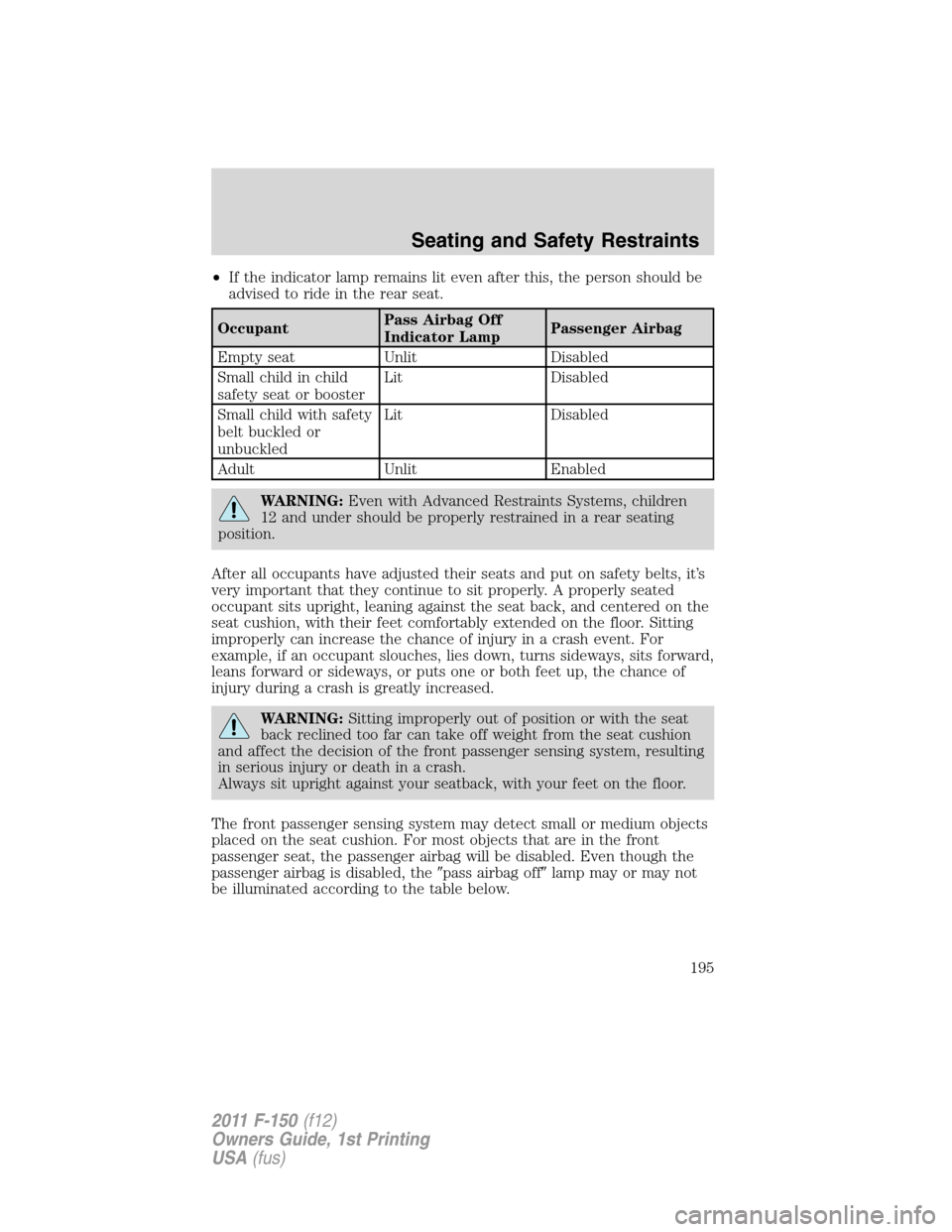

•If the indicator lamp remains lit even after this, the person should be
advised to ride in the rear seat.
OccupantPass Airbag Off
Indicator LampPassenger Airbag
Empty seat Unlit Disabled
Small child in child
safety seat or boosterLit Disabled
Small child with safety
belt buckled or
unbuckledLit Disabled
Adult Unlit Enabled
WARNING:Even with Advanced Restraints Systems, children
12 and under should be properly restrained in a rear seating
position.
After all occupants have adjusted their seats and put on safety belts, it’s
very important that they continue to sit properly. A properly seated
occupant sits upright, leaning against the seat back, and centered on the
seat cushion, with their feet comfortably extended on the floor. Sitting
improperly can increase the chance of injury in a crash event. For
example, if an occupant slouches, lies down, turns sideways, sits forward,
leans forward or sideways, or puts one or both feet up, the chance of
injury during a crash is greatly increased.
WARNING:Sitting improperly out of position or with the seat
back reclined too far can take off weight from the seat cushion
and affect the decision of the front passenger sensing system, resulting
in serious injury or death in a crash.
Always sit upright against your seatback, with your feet on the floor.
The front passenger sensing system may detect small or medium objects
placed on the seat cushion. For most objects that are in the front
passenger seat, the passenger airbag will be disabled. Even though the
passenger airbag is disabled, thepass airbag offlamp may or may not
be illuminated according to the table below.
Seating and Safety Restraints
195
2011 F-150(f12)
Owners Guide, 1st Printing
USA(fus)

ObjectsPass Airbag Off
Indicator LampPassenger Airbag
Small (i.e. three-ring
binder, small purse,
bottled water)Unlit Disabled
Medium (i.e. heavy
briefcase, fully packed
luggage)Lit Disabled
Empty seat, or small
to medium object with
safety belt buckledLit Disabled
In case there is a problem with the
front passenger sensing system, the
airbag readiness lamp in the
instrument cluster will stay lit.
DO NOT attempt to repair or service the system; take your vehicle
immediately to an authorized dealer.
WARNING:The front passenger airbag is not designed to offer
protection to an occupant in the center seating position.
WARNING:An out of position front center occupant could
affect the decision of the front passenger sensing system.
If it is necessary to modify an advanced front airbag system to
accommodate a person with disabilities, contact the Ford Customer
Relationship Center at the phone number shown in theCustomer
Assistancechapter of thisOwner’s Guide.
WARNING:Any alteration/modification to the front passenger
seat may affect the performance of the front passenger sensing
system.
Determining if the system is operational
The SRS uses readiness lights in the instrument cluster or a tone to
indicate the condition of the system. Refer toAirbag readinessin the
Instrument Clusterchapter. Routine maintenance of the airbag is not
required.
Seating and Safety Restraints
196
2011 F-150(f12)
Owners Guide, 1st Printing
USA(fus)

A
Accessory delay ........................103
AdvanceTrac ..............................280
Airbag supplemental restraint
system ................189–190, 197, 200
and child safety seats ............191
description ..............190, 197, 200
disposal ....................................203
driver airbag ....190, 192, 198, 201
indicator light .........196, 199, 202
operation .........190, 192, 198, 201
passenger airbag ............190, 192,
198, 201
side airbag ...............................197
Air cleaner filter ...............404, 409
Air conditioning ........66, 69, 71, 74
manual heating and air
conditioning system .................66
Ambient mood/lighting ...............85
Ambulance packages ....................6
AM/FM .........................................49
Antifreeze
(see Engine coolant) ................381
Anti-lock brake system
(see Brakes) ......................278–279
Anti-theft system ..............153, 155
arming the system ..........153, 155
disarming a triggered
system .....................................156
triggering .................................156
Armrests ....................................160
Audio system (see Radio) ...47, 49Automatic transmission
driving an automatic
overdrive .................................293
fluid, adding ............................403
fluid, checking ........................403
fluid, refill capacities ..............410
fluid, specification ..................410
Selectshift (SST) ....................295
Auxiliary input jack (Line in) ....57
Axle
lubricant specifications ..........410
refill capacities ........................410
B
Battery .......................................378
acid, treating emergencies .....378
jumping a disabled battery ....341
maintenance-free ....................378
replacement, specifications ...409
servicing ..................................378
Bed extender ............................124
Belt-Minder.............................184
deactivating/activating the
Belt-Minder...........................187
Blind spot mirror ......................305
Booster seats .............................222
Brakes ........................................278
anti-lock ...........................278–279
anti-lock brake system (ABS)
warning light ...........................279
fluid, checking and adding ....402
fluid, refill capacities ..............410
fluid, specifications .................410
lubricant specifications ..........410
parking ....................................279
shift interlock ..................289, 291
trailer .......................................265
Bulbs ............................................86
Index
455
2011 F-150(f12)
Owners Guide, 1st Printing
USA(fus)
