2011 FORD EXPLORER warning

MYFORD TOUCH™ AND MYLINCOLN TOUCH™ SYSTEMS
(IF EQUIPPED)
WARNING:Driving while distracted can result in loss of vehicle
control, accident and injury. Ford strongly recommends that
drivers use extreme caution when using any device or feature that may
take their focus off the road. Your primary responsibility is the safe
operation of the vehicle. We recommend against the use of any
handheld device while driving and that you comply with all applicable
laws.
This system uses a four corner strategy and dynamic menu listings to
provide quick access to vehicle features and settings.
Using the four corners
The system is comprised of these main sections:
1.
Navigation (if equipped):Press this area to set a destination or
access map mode. These screens will appear with a green tone. Refer to
theNavigation featureschapter in this supplement.Note:If your
vehicle is not equipped with navigation, the information section (
)
will appear in this corner instead of at the bottom of the screen.
2.
Climate control:Press this area to access the touchscreen
climate control features. These screens will appear with a blue tone.
Refer toTouchscreen featuresin theClimate Controlschapter of your
Owner’s Guidefor more information.
1
23
4
Introduction
3SeeEnd User License Agreementat the end of this book
2011 HMI-2 Gen 2(ln1)
Supplement, 1st Printing
USA(fus)

To access help using the voice commands:
1. Press
.
2. After the tone, say, “Help”. The system will provide voice commands
that can be used in the current mode.
Cleaning your touchscreen display
Clean the display with a clean, soft cloth such as one used for cleaning
glasses. If dirt or finger prints are still visible, apply a small amount of
alcohol to the cloth. Do not pour/spray alcohol onto the display. Do not
use detergent or any type of solvent to clean the display.
Safety information
WARNING:Driving while distracted can result in loss of vehicle
control, accident and injury. Ford strongly recommends that
drivers use extreme caution when using any device that may take their
focus off the road. Your primary responsibility is the safe operation of
the vehicle. We recommend against the use of any handheld device
while driving and that you comply with all applicable laws.
•Do not attempt to service or repair the system. See your authorized
dealer.
•Do not operate playing devices if the power cords and/or cables are
broken, split or damaged. Carefully place cords and/or cables where
they will not be stepped on or interfere with the operation of pedals,
seats and/or compartments, or safe driving abilities.
•Do not leave playing devices in the vehicle in extreme conditions as it
could cause damage to your device. Refer to your device’s user guide
for further information.
•For your safety, some functions are speed dependent and cannot be
performed when the vehicle is traveling at speeds greater than 5 mph
(8 km/h).
•Ensure that you review your device’s user guide before using with the
system.
Introduction
10SeeEnd User License Agreementat the end of this book
2011 HMI-2 Gen 2(ln1)
Supplement, 1st Printing
USA(fus)

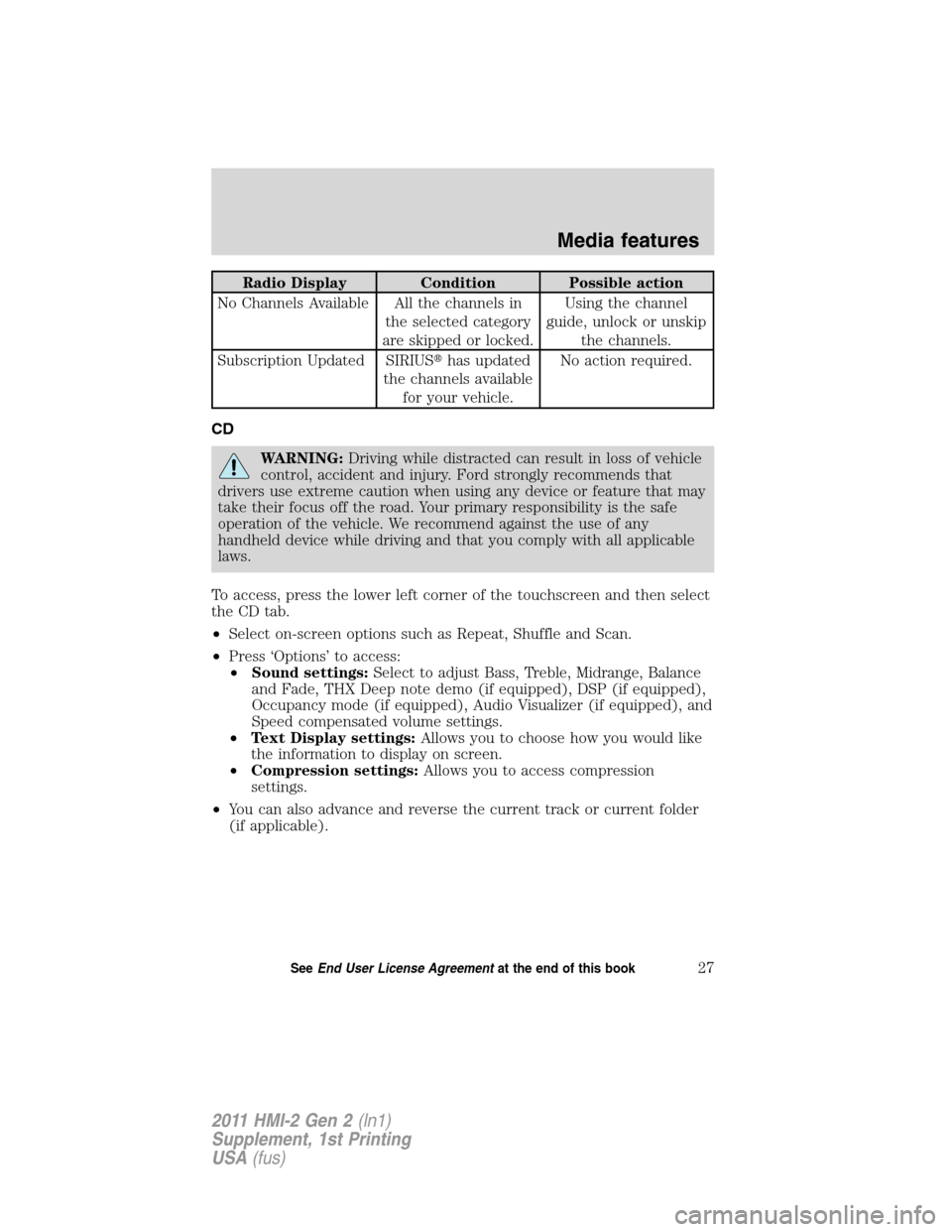

Radio Display Condition Possible action
No Channels Available All the channels in
the selected category
are skipped or locked.Using the channel
guide, unlock or unskip
the channels.
Subscription Updated SIRIUShas updated
the channels available
for your vehicle.No action required.
CD
WARNING:Driving while distracted can result in loss of vehicle
control, accident and injury. Ford strongly recommends that
drivers use extreme caution when using any device or feature that may
take their focus off the road. Your primary responsibility is the safe
operation of the vehicle. We recommend against the use of any
handheld device while driving and that you comply with all applicable
laws.
To access, press the lower left corner of the touchscreen and then select
theCDtab.
•Select on-screen options such as Repeat, Shuffle and Scan.
•Press ‘Options’ to access:
•Sound settings:Select to adjust Bass, Treble, Midrange, Balance
and Fade, THX Deep note demo (if equipped), DSP (if equipped),
Occupancy mode (if equipped), Audio Visualizer (if equipped), and
Speed compensated volume settings.
•Text Display settings:Allows you to choose how you would like
the information to display on screen.
•Compression settings:Allows you to access compression
settings.
•You can also advance and reverse the current track or current folder
(if applicable).
Media features
27SeeEnd User License Agreementat the end of this book
2011 HMI-2 Gen 2(ln1)
Supplement, 1st Printing
USA(fus)

Disc voice commands
While listening to a disc, press
on the steering wheel controls and
when prompted, you may say any of the following commands:
•Play•Pause
•Repeat•Repeat Off
•Shuffle•Shuffle CD (WMA or MP3 only)
•Shuffle Folder (WMA or MP3
only)•Shuffle Off
•Repeat Folder (WMA or MP3
only)•Repeat Track
•Play previous track•Play next track
•Play track <1–512>•Help
Note:If you are not listening to a CD, press
on the steering wheel
controls and when prompted, say any of the above commands.
SD CARD
WARNING:Driving while distracted can result in loss of vehicle
control, accident and injury. Ford strongly recommends that
drivers use extreme caution when using any device or feature that may
take their focus off the road. Your primary responsibility is the safe
operation of the vehicle. We recommend against the use of any
handheld device while driving and that you comply with all applicable
laws.
Your vehicle is equipped with an SD card slot which can be used for your
SD navigation card (if equipped) or for putting in your SD card which
contains music. Your SD card slot is either located in the center console
or behind a small access door in your instrument panel.
Note:In order for the navigation features to work (if equipped), the SD
navigation card MUST be in this slot. To re-order navigation SD cards,
contact your authorized dealer.
Note:Your SD card slot is spring loaded. To remove the SD card, simply
press the card in and the system will eject the card. Do not attempt to
pull the card to remove it as this could cause damage.
To access and play music from your SD card slot:
1. Press the lower left corner of the touchscreen.
Media features
28SeeEnd User License Agreementat the end of this book
2011 HMI-2 Gen 2(ln1)
Supplement, 1st Printing
USA(fus)

•Media Device Information:Displays descriptive information about
the device, if connected.
•Text Display:Allows you to choose how you would like the
information to display on screen.
To view song informationsuch as Title, Artist, File, Folder, Album,
and Genre, touch the on-screen album art. This will take you to another
screen where you can view this information.
You can also pressWhat’s Playingto hear how the system pronounces
the current band and song. This can be helpful when using voice
commands to ensure that the system correctly plays your request.
Voice commands for your SD card
For a complete listing of available voice commands, please refer toVoice
commands for USB and SD cardin the followingUSBsection.
SD logo is a trademark of SD-3C,
LLC.
USB
WARNING:Driving while distracted can result in loss of vehicle
control, accident and injury. Ford strongly recommends that
drivers use extreme caution when using any device or feature that may
take their focus off the road. Your primary responsibility is the safe
operation of the vehicle. We recommend against the use of any
handheld device while driving and that you comply with all applicable
laws.
This feature allows you to plug in
media playing devices, memory
sticks, flash/thumb drives and also
charge devices if they support this
feature. Your USB ports are either
located in your center console or
behind a small access door in your
instrument panel.
Media features
30SeeEnd User License Agreementat the end of this book
2011 HMI-2 Gen 2(ln1)
Supplement, 1st Printing
USA(fus)

•Podcast •All Podcasts
•Folder •All Folders
A/V INPUTS
WARNING:Driving while distracted can result in loss of vehicle
control, accident and injury. Ford strongly recommends that
drivers use extreme caution when using any device or feature that may
take their focus off the road. Your primary responsibility is the safe
operation of the vehicle. We recommend against the use of any
handheld device while driving and that you comply with all applicable
laws.
Your A/V inputs allow you to connect an auxiliary audio/video source
(game systems, personal camcorders, etc.) by connecting RCA cords
(not included) to these input jacks. The jacks are yellow, red and white
and are located behind a small access door on the instrument panel or in
your center console.
You can also use the A/V inputs as
an auxiliary input jack (AIJ) to play
music from your portable music
player over the vehicle speakers.
Simply plug in your 1/8 in. (3.5mm)
RCA adapter into the two left A/V
input jacks (red and white).
To access,
1. Press the lower left corner of the touchscreen.
2. Then, selectA/V inputs.
To use the auxiliary input jack feature:Ensure that your portable
music player is designed to be used with headphones and that it is fully
charged. You will also need an audio extension cable with stereo male
1/8 in. (3.5 mm) connectors at one end and a RCA jack at the other.
1. Begin with the vehicle parked and the radio and portable device are
turned off.
2. Attach one end of the audio extension cable to the headphone output
of your player and the other end into the adaptor in one of the two left
A/V input jacks (white or red) inside the center console.
3. Press the lower left corner on the touchscreen. Select either a tuned
station from the FM tab or the CD tab (if there is a CD already loaded
into the system.) Adjust the volume to a comfortable listening level.
Media features
35SeeEnd User License Agreementat the end of this book
2011 HMI-2 Gen 2(ln1)
Supplement, 1st Printing
USA(fus)

PHONE DEPENDENT FEATURES
While SYNCsupports a variety of features, many are dependent upon
the functionality of your cell phone withBluetoothwireless technology.
At a minimum, most cellular phones withBluetoothwireless technology
support the following functions:
•Answering an incoming call
•Ending a call
•Using privacy mode
•Dial a number
•Redial
•Call waiting notification
•Caller ID
•Phonebook / Caller ID photos
Other features, such as text messaging viaBluetooth, and automatic
phone book download are phone dependent features. To ensure that you
have a compatible cellular phone, refer to your phone’s user manual and
visit www.SyncMyRide.com or www.syncmaroute.ca.
PAIRING YOUR PHONE FOR THE FIRST TIME
WARNING:Driving while distracted can result in loss of vehicle
control, accident and injury. Ford strongly recommends that
drivers use extreme caution when using any device or feature that may
take their focus off the road. Your primary responsibility is the safe
operation of the vehicle. We recommend against the use of any
handheld device while driving and that you comply with all applicable
laws.
The first thing you must do to use the phone features of SYNCis to
pair yourBluetoothenabled cellular phone with SYNC. This allows you
to use your phone in a hands-free manner.
1. Touch ‘Add Phone’ in the upper left corner of the touchscreen.
2. When prompted, select ‘Add’.
3. Select ‘Add Device’.
4. Ensure thatBluetoothis set to ON and that your cellular phone is in
the proper mode. (Refer to your cellular phone’s user guide for more
information).
Phone features
37SeeEnd User License Agreementat the end of this book
2011 HMI-2 Gen 2(ln1)
Supplement, 1st Printing
USA(fus)

911 ASSIST™ (IF EQUIPPED)
For 911 Assist™ to function properly, the vehicle must have
battery power after the crash, the cell phone must be previously
paired, connected to SYNC, and continue to function properly
with the ability to make and maintain a 911 call, and the 911
Assist™ feature must be previously enabled (set to ON).
WARNING:Do not wait for 911 Assist™ to initiate an
emergency call if you are capable yourself. Dial emergency
services immediately to avoid delayed response time, which could
increase the risk of serious injury or death after a crash. If you do not
hear 911 Assist™ within 5 seconds after the crash, the system or
phone may be damaged or nonfunctional.
The cell phone or 911 Assist™ hardware may become damaged in
a crash, the vehicle may lose battery power, or the cell phone may
be thrown from the vehicle, which could prevent operation.
Additionally, every cell phone operates differently. While SYNC
911 Assist™ works with most cell phones, some may have trouble
using this feature. Finally, not all crashes deploy an airbag or, in
certain vehicles, activate the fuel pump shut-off which are the
criteria to initiate 911 Assist™.
Airbags generally deploy in certain frontal, near frontal, side and rollover
crashes, and the deployment of any airbag is intended to act as a 911
Assist™ trigger if those events occur. For more information about airbag
deployment, see theSeating and Safety Restraintschapter of your
Owner Guide. The fuel pump shut-off, in certain vehicles, is intended to
act as a trigger for 911 Assist™ in rear-end crashes, in which airbags
generally do not deploy. To determine if your vehicle has this trigger,
check theRoadside Emergencychapter in yourOwner’s Guide.If your
Owner Guide describes a “Fuel Pump Shut-off”, it will trigger 911
Assist™. If your Owner Guide describes a “Fuel Pump Shut-offSwitch”,
it will not trigger 911 Assist™.
WARNING:Always place cell phone in a secure location to
prevent it from becoming a projectile or becoming damaged in
the event of a collision. Failure to do so may cause serious injury or
damage the phone which could prevent 911 Assist from functioning
properly.
SYNCServices and Apps
44SeeEnd User License Agreementat the end of this book
2011 HMI-2 Gen 2(ln1)
Supplement, 1st Printing
USA(fus)
