Page 8 of 89

FORD EXPLORER 2011 5.G MyFord Touch Supplement Manual Depending on your vehicle and option package, you may also have
some of the following controls on your bezel:
•
(Power):Press to turn the media (or climate features) on/off.
•VOL:Use to increase/d

Page 15 of 89

FORD EXPLORER 2011 5.G MyFord Touch Supplement Manual •You can interrupt the system at any time while it is speaking by
pressing
. The system will respond with a tone and allow you to
speak your command.
What can I say?
To access the available voice co

Page 17 of 89

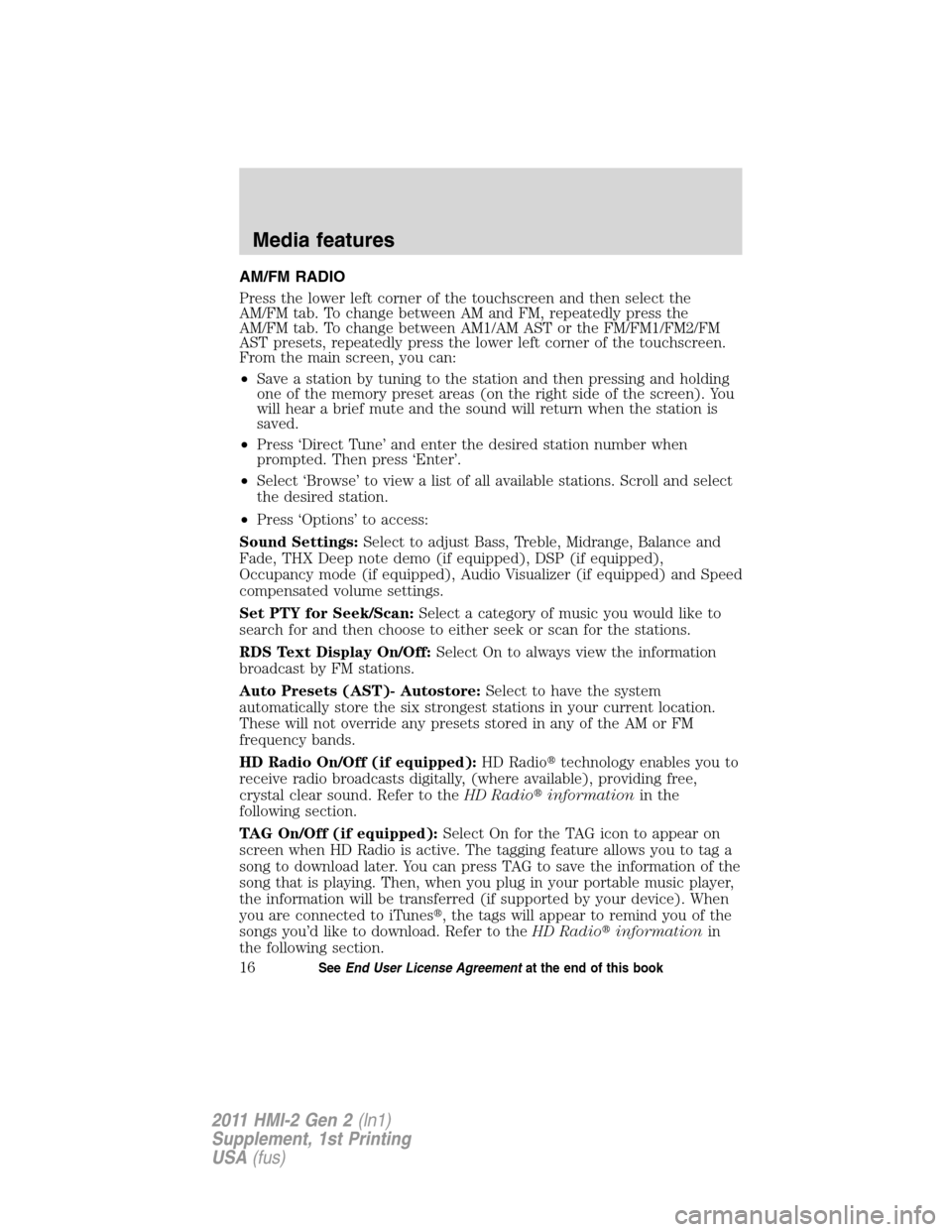

FORD EXPLORER 2011 5.G MyFord Touch Supplement Manual AM/FM RADIO
Press the lower left corner of the touchscreen and then select the
AM/FM tab. To change between AM and FM, repeatedly press the
AM/FM tab. To change between AM1/AM AST or the FM/FM1/FM2/FM

AM/FM RADIO
Press the lower left corner of the touchscreen and then select the
AM/FM tab. To change between AM and FM, repeatedly press the
AM/FM tab. To change between AM1/AM AST or the FM/FM1/FM2/FM
AST presets, repeatedly press the lower left corner of the touchscreen.
From the main screen, you can:
•Save a station by tuning to the station and then pressing and holding
one of the memory preset areas (on the right side of the screen). You
will hear a brief mute and the sound will return when the station is
saved.
•Press ‘Direct Tune’ and enter the desired station number when
prompted. Then press ‘Enter’.
•Select ‘Browse’ to view a list of all available stations. Scroll and select
the desired station.
•Press ‘Options’ to access:
Sound Settings:Select to adjust Bass, Treble, Midrange, Balance and
Fade, THX Deep note demo (if equipped), DSP (if equipped),
Occupancy mode (if equipped), Audio Visualizer (if equipped) and Speed
compensated volume settings.
Set PTY for Seek/Scan:Select a category of music you would like to
search for and then choose to either seek or scan for the stations.
RDS Text Display On/Off:Select On to always view the information
broadcast by FM stations.
Auto Presets (AST)- Autostore:Select to have the system
automatically store the six strongest stations in your current location.
These will not override any presets stored in any of the AM or FM
frequency bands.
HD Radio On/Off (if equipped):HD Radiotechnology enables you to
receive radio broadcasts digitally, (where available), providing free,
crystal clear sound. Refer to theHD Radioinformationin the
following section.
TAG On/Off (if equipped):Select On for the TAG icon to appear on
screen when HD Radio is active. The tagging feature allows you to tag a
song to download later. You can press TAG to save the information of the
song that is playing. Then, when you plug in your portable music player,
the information will be transferred (if supported by your device). When
you are connected to iTunes, the tags will appear to remind you of the
songs you’d like to download. Refer to theHD Radioinformationin
the following section.
Media features
16SeeEnd User License Agreementat the end of this book
2011 HMI-2 Gen 2(ln1)
Supplement, 1st Printing
USA(fus)

Page 18 of 89

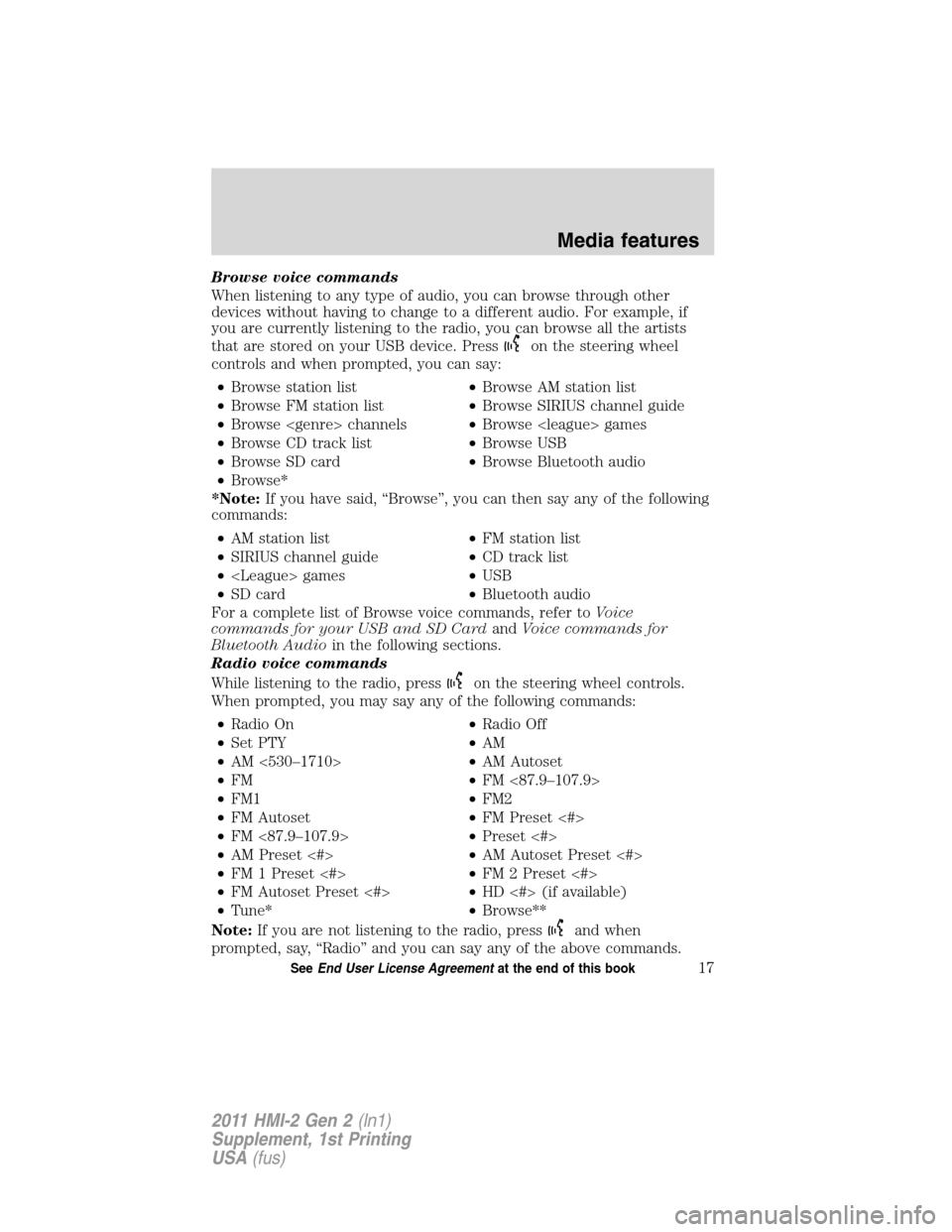

FORD EXPLORER 2011 5.G MyFord Touch Supplement Manual Browse voice commands
When listening to any type of audio, you can browse through other
devices without having to change to a different audio. For example, if
you are currently listening to the radio,

Page 19 of 89

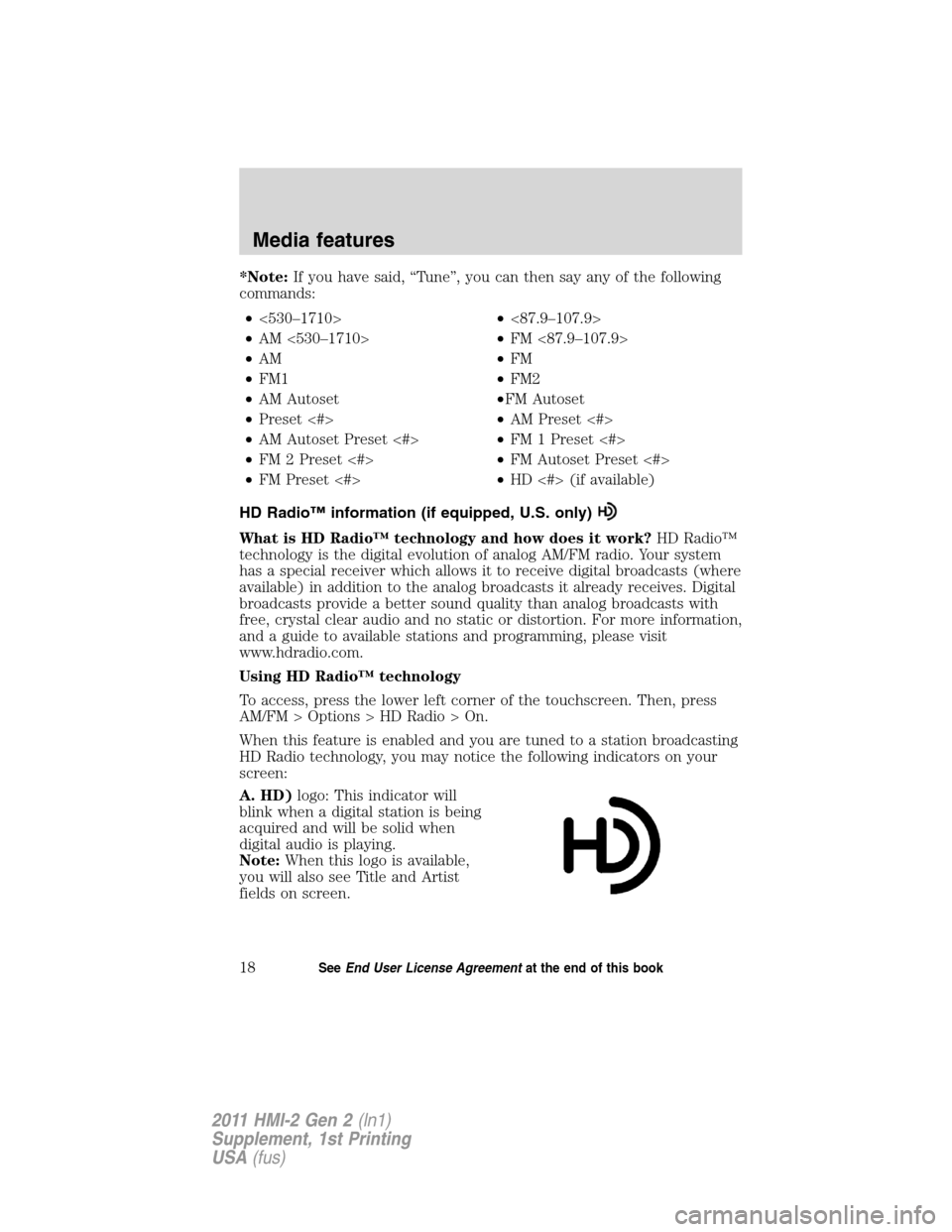

FORD EXPLORER 2011 5.G MyFord Touch Supplement Manual *Note:If you have said, “Tune”, you can then say any of the following
commands:
•<530–1710>•<87.9–107.9>
•AM <530–1710>•FM <87.9–107.9>
•AM•FM
•FM1•FM2
•AM Autoset•FM A

Page 21 of 89

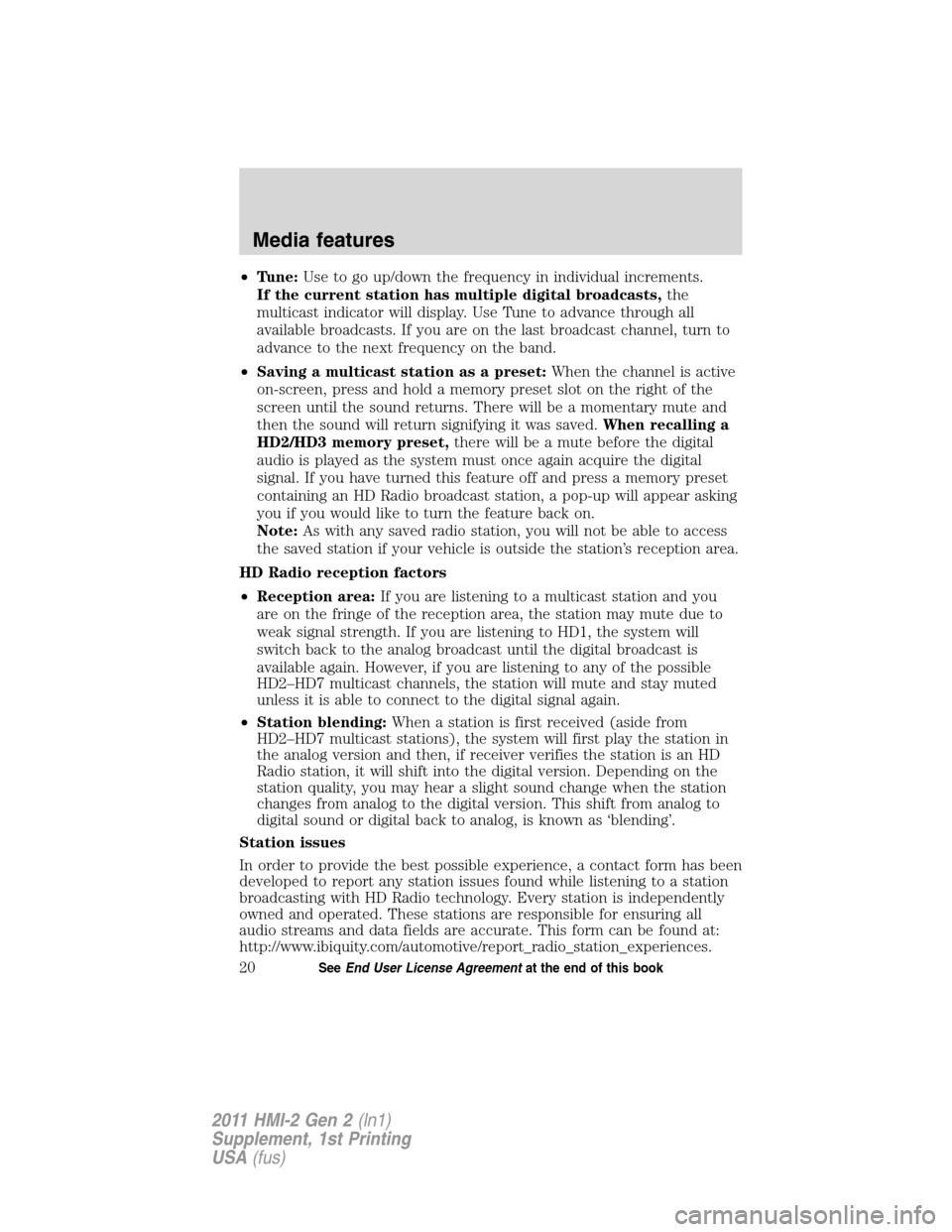

FORD EXPLORER 2011 5.G MyFord Touch Supplement Manual •Tune:Use to go up/down the frequency in individual increments.
If the current station has multiple digital broadcasts,the
multicast indicator will display. Use Tune to advance through all
available

•Tune:Use to go up/down the frequency in individual increments.
If the current station has multiple digital broadcasts,the
multicast indicator will display. Use Tune to advance through all
available broadcasts. If you are on the last broadcast channel, turn to
advance to the next frequency on the band.
•Saving a multicast station as a preset:When the channel is active
on-screen, press and hold a memory preset slot on the right of the
screen until the sound returns. There will be a momentary mute and
then the sound will return signifying it was saved.When recalling a
HD2/HD3 memory preset,there will be a mute before the digital
audio is played as the system must once again acquire the digital
signal. If you have turned this feature off and press a memory preset
containing an HD Radio broadcast station, a pop-up will appear asking
you if you would like to turn the feature back on.
Note:As with any saved radio station, you will not be able to access
the saved station if your vehicle is outside the station’s reception area.
HD Radio reception factors
•Reception area:If you are listening to a multicast station and you
are on the fringe of the reception area, the station may mute due to
weak signal strength. If you are listening to HD1, the system will
switch back to the analog broadcast until the digital broadcast is
available again. However, if you are listening to any of the possible
HD2–HD7 multicast channels, the station will mute and stay muted
unless it is able to connect to the digital signal again.
•Station blending:When a station is first received (aside from
HD2–HD7 multicast stations), the system will first play the station in
the analog version and then, if receiver verifies the station is an HD
Radio station, it will shift into the digital version. Depending on the
station quality, you may hear a slight sound change when the station
changes from analog to the digital version. This shift from analog to
digital sound or digital back to analog, is known as ‘blending’.
Station issues
In order to provide the best possible experience, a contact form has been
developed to report any station issues found while listening to a station
broadcasting with HD Radio technology. Every station is independently
owned and operated. These stations are responsible for ensuring all
audio streams and data fields are accurate. This form can be found at:
http://www.ibiquity.com/automotive/report_radio_station_experiences.
Media features
20SeeEnd User License Agreementat the end of this book
2011 HMI-2 Gen 2(ln1)
Supplement, 1st Printing
USA(fus)

Page 22 of 89

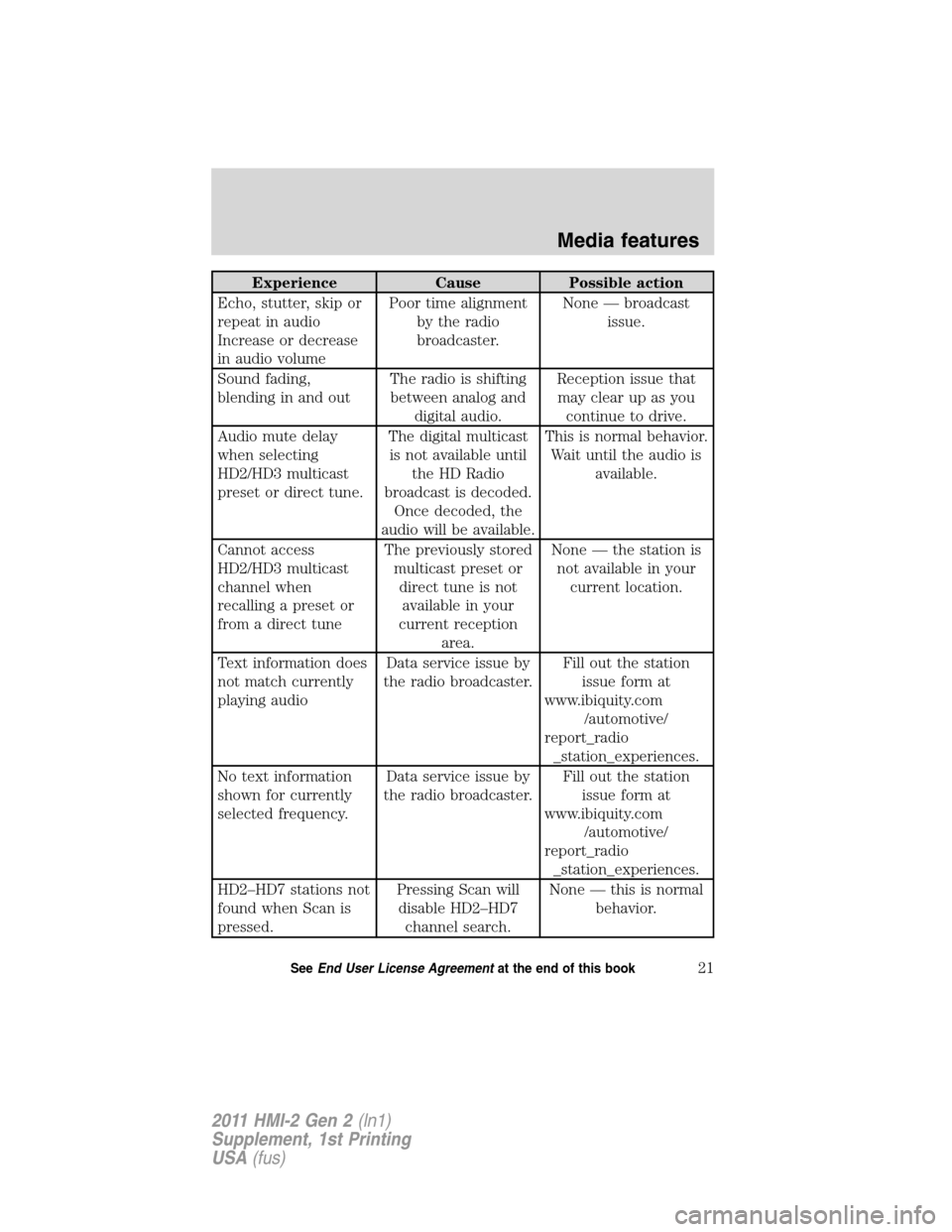

FORD EXPLORER 2011 5.G MyFord Touch Supplement Manual Experience Cause Possible action
Echo, stutter, skip or
repeat in audio
Increase or decrease
in audio volumePoor time alignment
by the radio
broadcaster.None — broadcast
issue.
Sound fading,
blendin

Page 24 of 89

FORD EXPLORER 2011 5.G MyFord Touch Supplement Manual •Select the ‘Replay’ soft key to replay audio on the current channel.
You can replay approximately 45 minutes of audio as long as you have
remained tuned to the current station. If you change st
