Disc voice commands
While listening to a disc, press
on the steering wheel controls and
when prompted, you may say any of the following commands:
•Play•Pause
•Repeat•Repeat Off
•Shuffle•Shuffle CD (WMA or MP3 only)
•Shuffle Folder (WMA or MP3
only)•Shuffle Off
•Repeat Folder (WMA or MP3
only)•Repeat Track
•Play previous track•Play next track
•Play track <1–512>•Help
Note:If you are not listening to a CD, press
on the steering wheel
controls and when prompted, say any of the above commands.
SD CARD
WARNING:Driving while distracted can result in loss of vehicle
control, accident and injury. Ford strongly recommends that
drivers use extreme caution when using any device or feature that may
take their focus off the road. Your primary responsibility is the safe
operation of the vehicle. We recommend against the use of any
handheld device while driving and that you comply with all applicable
laws.
Your vehicle is equipped with an SD card slot which can be used for your
SD navigation card (if equipped) or for putting in your SD card which
contains music. Your SD card slot is either located in the center console
or behind a small access door in your instrument panel.
Note:In order for the navigation features to work (if equipped), the SD
navigation card MUST be in this slot. To re-order navigation SD cards,
contact your authorized dealer.
Note:Your SD card slot is spring loaded. To remove the SD card, simply
press the card in and the system will eject the card. Do not attempt to
pull the card to remove it as this could cause damage.
To access and play music from your SD card slot:
1. Press the lower left corner of the touchscreen.
Media features
28SeeEnd User License Agreementat the end of this book
2011 HMI-2 Gen 2(ln1)
Supplement, 1st Printing
USA(fus)

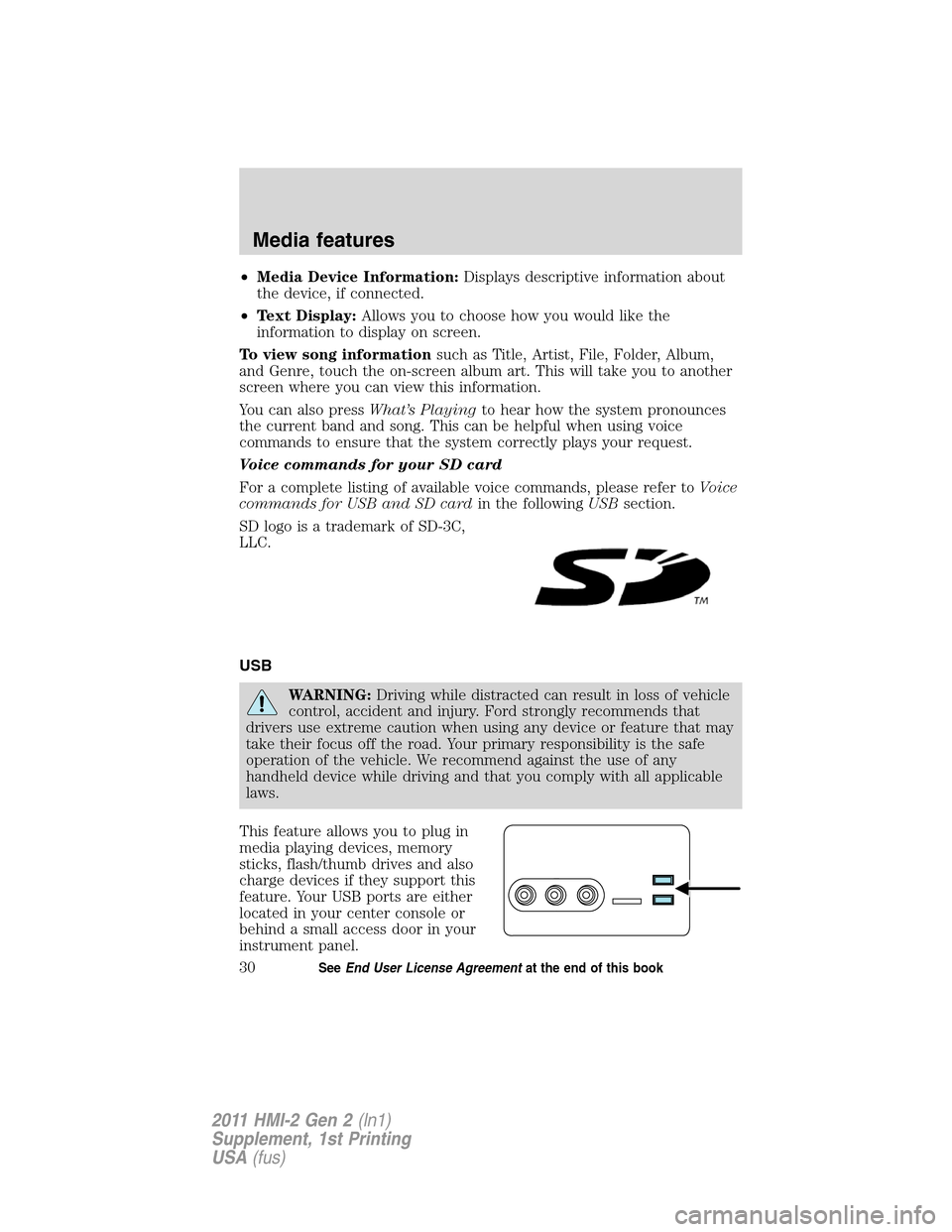

•Media Device Information:Displays descriptive information about
the device, if connected.
•Text Display:Allows you to choose how you would like the
information to display on screen.
To view song informationsuch as Title, Artist, File, Folder, Album,
and Genre, touch the on-screen album art. This will take you to another
screen where you can view this information.
You can also pressWhat’s Playingto hear how the system pronounces
the current band and song. This can be helpful when using voice
commands to ensure that the system correctly plays your request.
Voice commands for your SD card
For a complete listing of available voice commands, please refer toVoice
commands for USB and SD cardin the followingUSBsection.
SD logo is a trademark of SD-3C,
LLC.
USB
WARNING:Driving while distracted can result in loss of vehicle
control, accident and injury. Ford strongly recommends that
drivers use extreme caution when using any device or feature that may
take their focus off the road. Your primary responsibility is the safe
operation of the vehicle. We recommend against the use of any
handheld device while driving and that you comply with all applicable
laws.
This feature allows you to plug in
media playing devices, memory
sticks, flash/thumb drives and also
charge devices if they support this
feature. Your USB ports are either
located in your center console or
behind a small access door in your
instrument panel.
Media features
30SeeEnd User License Agreementat the end of this book
2011 HMI-2 Gen 2(ln1)
Supplement, 1st Printing
USA(fus)

•Podcast •All Podcasts
•Folder •All Folders
A/V INPUTS
WARNING:Driving while distracted can result in loss of vehicle
control, accident and injury. Ford strongly recommends that
drivers use extreme caution when using any device or feature that may
take their focus off the road. Your primary responsibility is the safe
operation of the vehicle. We recommend against the use of any
handheld device while driving and that you comply with all applicable
laws.
Your A/V inputs allow you to connect an auxiliary audio/video source
(game systems, personal camcorders, etc.) by connecting RCA cords
(not included) to these input jacks. The jacks are yellow, red and white
and are located behind a small access door on the instrument panel or in
your center console.
You can also use the A/V inputs as
an auxiliary input jack (AIJ) to play
music from your portable music
player over the vehicle speakers.
Simply plug in your 1/8 in. (3.5mm)
RCA adapter into the two left A/V
input jacks (red and white).
To access,
1. Press the lower left corner of the touchscreen.
2. Then, selectA/V inputs.
To use the auxiliary input jack feature:Ensure that your portable
music player is designed to be used with headphones and that it is fully
charged. You will also need an audio extension cable with stereo male
1/8 in. (3.5 mm) connectors at one end and a RCA jack at the other.
1. Begin with the vehicle parked and the radio and portable device are
turned off.
2. Attach one end of the audio extension cable to the headphone output
of your player and the other end into the adaptor in one of the two left
A/V input jacks (white or red) inside the center console.
3. Press the lower left corner on the touchscreen. Select either a tuned
station from the FM tab or the CD tab (if there is a CD already loaded
into the system.) Adjust the volume to a comfortable listening level.
Media features
35SeeEnd User License Agreementat the end of this book
2011 HMI-2 Gen 2(ln1)
Supplement, 1st Printing
USA(fus)

4. Turn the portable music player on and adjust the volume to 1/2 the
volume.
5. Press the lower left corner on the touchscreen. Select the A/V in tab.
(You should hear audio from your portable music player although it may
be low.)
6. Adjust the sound on your portable music player until it reaches the
level of the FM station or CD by switching back and forth between the
controls.
Troubleshooting:
•Do not connect the audio input jack to a line level output. The AIJ will
only work correctly with devices that have a headphone output with a
volume control.
•Do not set the portable music player’s volume level higher than is
necessary to match the volume of the CD or FM radio as this will
cause distortion and will reduce sound quality.
•If the music sounds distorted at lower listening levels, turn the
portable music player volume down. If the problems persists, replace
or recharge the batteries in the portable music player.
•The portable music player must be controlled in the same manner
when it is used with headphones as the AIJ does not provide control
(play, pause, etc.) over the attached portable music player.
•For safety reasons, connecting or adjusting the settings on your
portable music player should not be attempted while the vehicle is
moving. Also, the portable music player should be stored in a secure
location, such as the center console or the glove box, when the vehicle
is in motion. The audio extension cable must be long enough to allow
the portable music player to be safely stored while the vehicle is in
motion.
