Downloaded from www.Manualslib.com manuals search engine 1. Pull the strap and lift the cushion.
2. Lift the lever and push the seatback
down until it locks.
Easy entry position WARNING
Do not use the seat when it is in the
easy entry position.
Note:
You can move the outboard seats
forwards to allow access to the third row
seats. 1. Either pull the lever on the side of the
seat cushion or pull the strap at the
rear of the seat. The seat will move
forward.
2. Fold the seatback forward.
Third row seats - Grand C-MAX
Note: Remove the luggage cover. See
Luggage Covers (page 163).
Note: When not in use, the seat belts
should be placed in the clips on the
outboard trim. See Fastening the seat
belts (page 29).
Folding the seats flat CAUTIONS
When transporting a load with the
seats folded flat, fold the relevant
carpet forwards to cover the folded
seat back. Do not place heavy objects in the area
marked on the carpet.
119
SeatsE129298 E129296

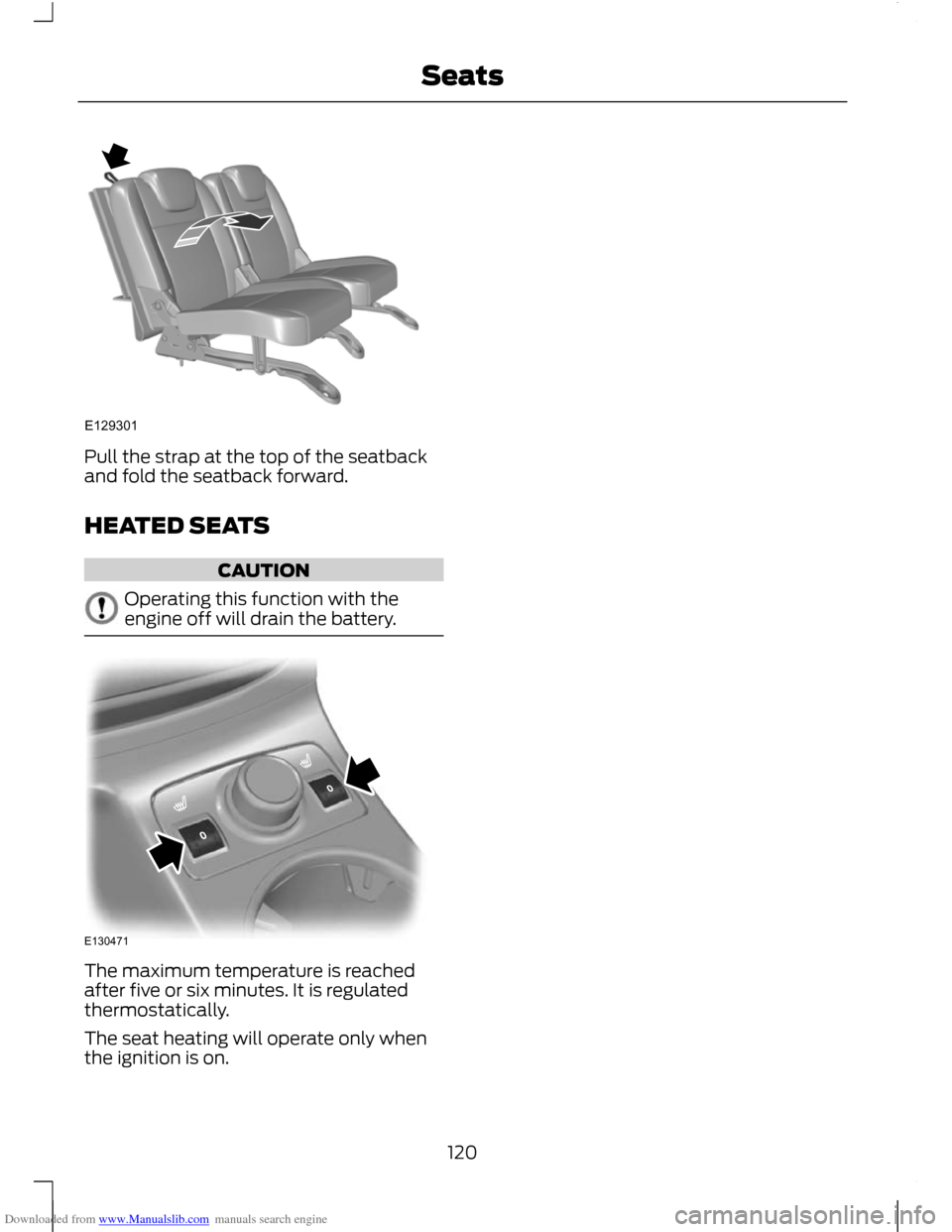

Downloaded from www.Manualslib.com manuals search engine Pull the strap at the top of the seatback
and fold the seatback forward.
HEATED SEATS
CAUTION
Operating this function with the
engine off will drain the battery.
The maximum temperature is reached
after five or six minutes. It is regulated
thermostatically.
The seat heating will operate only when
the ignition is on.
120
SeatsE129301 E130471

Downloaded from www.Manualslib.com manuals search engine SUN SHADES
Side windows
Pull the blind up and attach it to the hooks
(A).
Roof
WARNING
Do not operate the sun blind unless
it is free from obstruction.
Note:
If you operate the switch often during
a short period of time, the system might
become inoperable for a certain time to
prevent damage due to overheating.
Note: The sun blind can only be operated
when the ignition is on. The sun blind is operated by a switch
located between the sun visors.
Opening and closing the sun blind
Press to close
A
Press to open
B
Opening and closing the sun blind
manually
Press and hold the switch to the first action
point. Release it to stop the blind.
121
Convenience featuresE74809AA E125025 E125146AB

Downloaded from www.Manualslib.com manuals search engine Opening and closing the sun blind
automatically
Press the switch to the second action point
and release it. Press it again to stop the
blind.
Note:
If this does not operate correctly,
follow the relearning procedure below.
Anti-trap function WARNINGS
The anti-trap function is deactivated
until the memory has been reset by
the relearning procedure.
Careless closing of the blind can
override the anti-trap function and
cause injuries.
The sun blind will stop automatically while
opening or closing and reverse some
distance if there is an obstacle in the way.
Sun blind relearning
WARNING
The anti-trap function is not active
during this procedure. Make sure that
there are no obstacles in the way of
the moving blind. Note:
The relearning process must be
started no later than 30 seconds after
turning the ignition on.
In case the blind no longer opens or closes
properly, follow this relearning procedure:
1. Press switch B to the first action point twice and release it within two
seconds.
2. Press switch A to the first action point twice and release it within two
seconds. 3. Press and hold switch B to the first
action point, until the blind fully opens.
4. Press and hold switch A to the first action point, until the blind fully closes.
If step 2 is not completed within 15 seconds
of step 1, the relearning function will be
interrupted. Turn the ignition off, wait for
another 30 seconds and then turn the
ignition back on again. Start the procedure
once more from the beginning.
Confirm that relearning has been
completed by using automatic opening
and closing.
INSTRUMENT LIGHTING
DIMMER CLOCK
See Information Displays (page 83).
CIGAR LIGHTER
CAUTIONS
If you use the socket when the engine
is not running, the battery may
discharge.
Do not hold the cigar lighter element
pressed in.
122
Convenience featuresE70723

Downloaded from www.Manualslib.com manuals search engine Note:
You can use the socket to power 12
volt appliances that have a maximum
current rating of 15 Amperes. Use only Ford
accessory connectors or connectors
specified for use with SAE standard sockets. Press the element in to use the cigar
lighter. It will pop out automatically.
AUXILIARY POWER POINTS
CAUTION
If you use the socket when the engine
is not running, the battery may
discharge.
Note:
You can use the socket to power 12
volt appliances that have a maximum
current rating of 10 Amperes. Use only Ford
accessory connectors or connectors
specified for use with SAE standard sockets. Auxiliary power sockets are located in the
centre console and in the luggage
compartment. Power inverter CAUTIONS
If you use the socket when the engine
is not running, the battery may
discharge.
If the LED flashes continuously,
re-insert the plug or switch the ignition
off and then on again.
It will switch off if the temperature is
above 85°C (185°F). The LED will
flash once. When it has cooled down
it will switch back on automatically. Do not exceed the maximum power
output. If you do, the LED will flash
twice. Remove the plug and re-insert
it. If the LED flashes three or four times,
have the system checked by a
properly trained technician.
Note:
You can use the socket to power 230
volt appliances that have a maximum rating
of 150 watts. CUP HOLDERS
WARNING
Do not place hot drinks in the cup
holders when the vehicle is moving.
123
Convenience featuresE103382 E78056 E98199

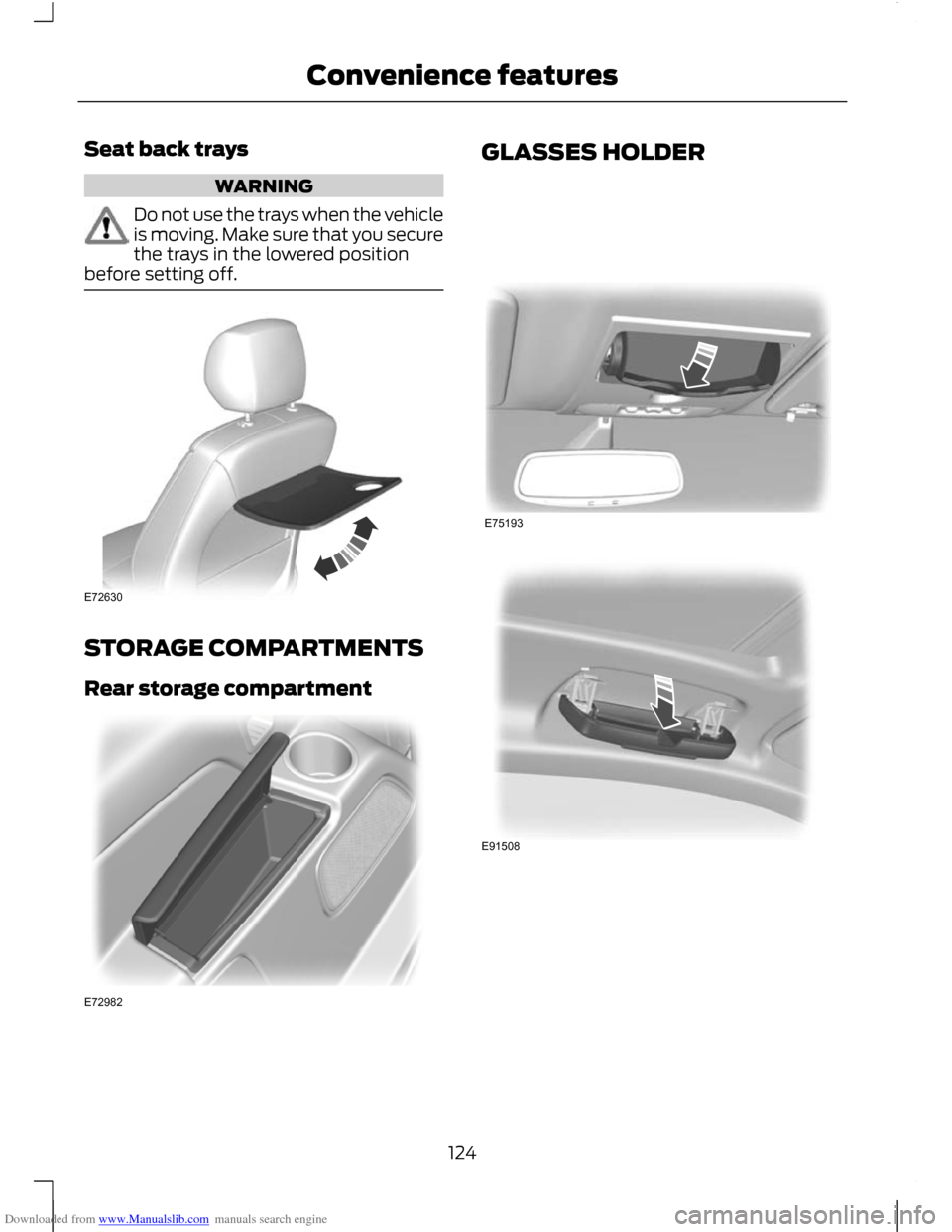

Downloaded from www.Manualslib.com manuals search engine Seat back trays
WARNING
Do not use the trays when the vehicle
is moving. Make sure that you secure
the trays in the lowered position
before setting off. STORAGE COMPARTMENTS
Rear storage compartment GLASSES HOLDER
124
Convenience featuresE72630 E72982 E75193 E91508

Downloaded from www.Manualslib.com manuals search engine CHILDMINDER MIRROR
AUXILIARY INPUT (AUX IN)
SOCKET See Auxiliary input (AUX IN) socket
(page 235).
USB PORT
125
Convenience featuresE75192 E91511 E130068 E91511

Downloaded from www.Manualslib.com manuals search engine See Connectivity (page 257).
SATELLITE NAVIGATION UNIT
HOLDER
Adjusting the holder
1. Unlock. 2. Adjust the holder to the desired
position.
3. Lock.
Note: Make sure that the navigation unit
holder is locked in position.
FLOOR MATS WARNING
When using the floor mats, always
make sure the floor mat is properly
secured using the appropriate fixings
and positioned so that it does not interfere
with the operation of the pedals. 126
