The driver always has ultimate
responsibility for parking and other
dangerous manoeuvres. While manoeuvring,
always make sure that no-one is in the area
concerned (especially children) or animals.
The parking sensors are designed to assist
drivers: in any case, you must always pay the
utmost attention during potentially dangerous
manoeuvres, even when carried out at low
speed.
WARNINGFor correct operation, sensors must
always be clean from mud, dirt, snow or
ice. Be careful not to scratch or damage
the sensors while cleaning them. Avoid using dry,
rough or hard cloths. The sensors should be
washed with clean water, possibly with some car
shampoo.
GENERAL WARNINGS
❒When parking, take the utmost care over obstacles
that may be above or below the sensors.
❒Objects close to the vehicle, in certain
circumstances are not detected and could therefore
cause damage to the vehicle or be damaged.
The following conditions may influence the performance
of the parking sensor system:
❒Reduced sensor sensitivity and a reduction in the
parking assistance system performance could be due
to the presence on the surface of the sensor of: ice,
snow, mud, thick paint.

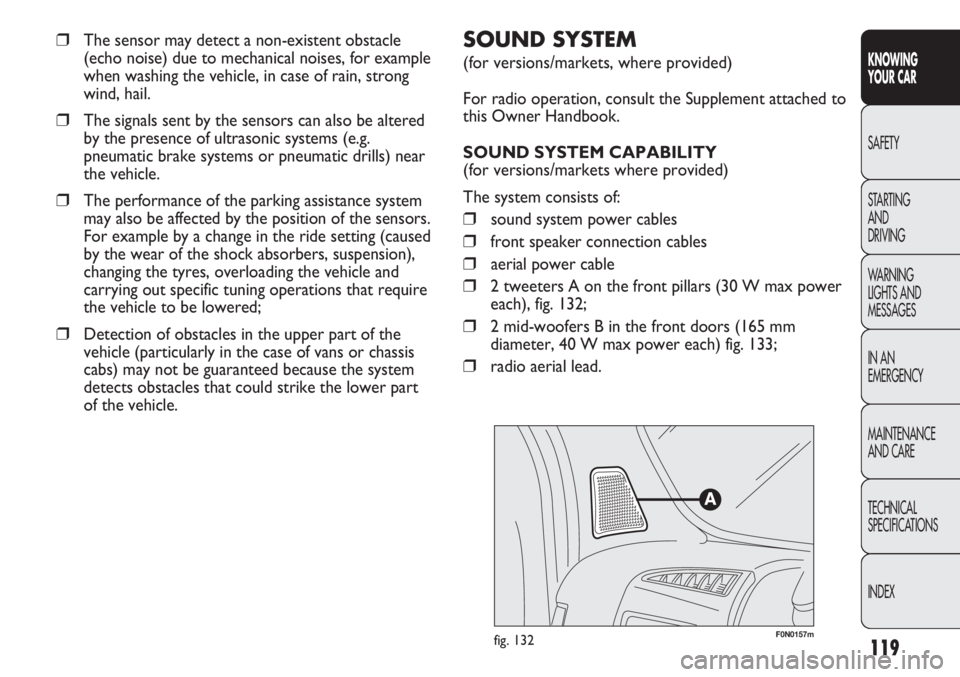

119
KNOWING
YOUR CAR
SAFETY
STARTING
AND
DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICATIONS
INDEX
F0N0157mfig. 132
SOUND SYSTEM
(for versions/markets, where provided)
For radio operation, consult the Supplement attached to
this Owner Handbook.
SOUND SYSTEM CAPABILITY
(for versions/markets where provided)
The system consists of:
❒sound system power cables
❒front speaker connection cables
❒aerial power cable
❒2 tweeters A on the front pillars (30 W max power
each), fig. 132;
❒2 mid-woofers B in the front doors (165 mm
diameter, 40 W max power each) fig. 133;
❒radio aerial lead.
❒The sensor may detect a non-existent obstacle
(echo noise) due to mechanical noises, for example
when washing the vehicle, in case of rain, strong
wind, hail.
❒The signals sent by the sensors can also be altered
by the presence of ultrasonic systems (e.g.
pneumatic brake systems or pneumatic drills) near
the vehicle.
❒The performance of the parking assistance system
may also be affected by the position of the sensors.
For example by a change in the ride setting (caused
by the wear of the shock absorbers, suspension),
changing the tyres, overloading the vehicle and
carrying out specific tuning operations that require
the vehicle to be lowered;
❒Detection of obstacles in the upper part of the
vehicle (particularly in the case of vans or chassis
cabs) may not be guaranteed because the system
detects obstacles that could strike the lower part
of the vehicle.

152
KNOWING
YOUR CAR
SAFETY
STARTING
AND
DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICATIONS
INDEX
IMPORTANT The engine must be running to use the
electric brake or a winch.
In addition to the electrical branches, the vehicle’s
electric system can only be connected to the supply
cable for an electric brake and to the cable for an
internal light, though not above 15 W. For connections
use the preset control unit with battery cable no less
than 2.5 mm
2.
IMPORTANT The trailer tow hook contributes to the
length of the vehicle. When installing on long wheelbase
versions, it is only possible to install removable tow
hooks because the total vehicle length limit of 6 metres
is exceeded.
If no trailer is fitted, the hook must be removed from
the attachment base and it must not exceed the
vehicle’s original length.IMPORTANT If you wish to leave the tow hook fitted
without towing a trailer, it is advisable to contact a Fiat
Dealership for the relevant system update operations
because the tow hook could be detected as an obstacle
by the central sensors.

164
KNOWING
YOUR CAR
SAFETY
STARTING
AND
DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICATIONS
INDEX
EXTERNAL LIGHT FAILURE
(amber)
(for versions/markets, where provided)
The warning light will come on (some versions
only) when a failure to one of the following lights is
detected:
– side lights
– brake lights
– rear fog lights
– direction indicators
– reversing lights.
The failure relating to these lights could be: one or
more blown bulbs, a blown protection fuse or a break
in the electrical connection.
On some versions the display shows the dedicated
message.
W
REAR FOG LIGHTS (amber)
The warning light comes on when the rear fog
lights are turned on.
4
GENERIC FAILURE INDICATION
(amber)
The warning light turns on in the following
circumstances.
Engine oil pressure sensor failure
The warning light turns on when failure is detected in
engine oil pressure sensor. Contact a Fiat Dealership to
have the failure fixed as soon as possible.
Fuel cut-off switch tripped
The warning light comes on when the inertial fuel
cut-off switch is triggered.
The display will show the dedicated message.
Parking sensor fault
The warning light comes on when a rain sensor failure is
detected. Go to a Fiat Dealership.
The display shows the dedicated message.
Rain sensor fault
See what is described for warning light
t.
Daylight failure (with multifunction display)
The warning light comes on when a daylight failure is
detected.
The display shows the dedicated message.
è

166
KNOWING
YOUR CAR
SAFETY
STARTING
AND
DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICATIONS
INDEX
WORN BRAKE PADS
(amber)
The warning light on the dial turns on if the
front brake pads are worn; in this case have
them changed as soon as possible.
On certain versions the dedicated message is displayed.
d
Hill Holder failure
The warning light will turn on when the Hill Holder
system is faulty. In this case, contact a Fiat Dealership as
soon as possible.
On certain versions the dedicated message is displayed.
PARKING SENSOR FAILURE (amber)
(for versions/markets, where provided)
The warning light turns on when failure is
detected in the parking sensors.
On some versions warning light
èturns on as an
alternative.
Contact a Fiat Dealership.
On certain versions the dedicated message is displayed.
t
FRONT FOG LIGHTS (green)
The warning light turns on when the front fog
lights are turned on.
5
LEFT-HAND DIRECTION
INDICATOR (green – blinking)
The warning light turns on when the direction
indicator control lever is moved downwards or,
together with the right indicator, when the hazard
warning light button is pressed.
F
DIPPED LOW HEADLAMPS (green)
FOLLOW ME HOME (green)
Dipped beam headlights
The warning light switches on when the dipped beams
are turned on.
Follow me home
The warning light will turn on when this device is active
(see “Follow me home” in section “Dashboard and
controls”).
The display will show a dedicated message.
3

198
KNOWING
YOUR CAR
SAFETY
STARTING
AND
DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICATIONS
INDEX
FUSE SUMMARY TABLE
Dashboard fuse box fig. 205-206
USERSFUSE AMPERE
Right dipped headlamp F12 7.5
Left dipped headlamp F13 7.5
Engine compartment control unit relay, instrument panel control unit relay (+key) F31 5
Lighting of roof lights in the passenger compartment (+battery) F32 7.5
Battery monitoring sensor for Start&Stop versions (+battery) F33 20
Minibus interior lights (emergency) F34 20
Radio, A/C control, alarm, tachograph, F36 10
Battery disconnecting unit, Webasto timer (+battery)
Brake light control (main), third brake light, instrument panel (+key) F37 7.5
Door lock (+battery) F38 20
ABS, ASR, ESP, brake light control (secondary) (+key) F42 5
Windscreen washer (+key) F43 20
Driver's side electric window F47 20
Passenger side electric window F48 20
Parking sensor control unit, radio, controls on the steering wheel, F49 5
centre dashboard, left dashboard, auxiliary dashboard,
battery disconnecting unit (+key)
Airbag (+key) F50 7.5
Climate control system, power steering control unit, reversing lights, F51 5
water in diesel filter sensor, flow meter, tachograph (+key)

217
KNOWING
YOUR CAR
SAFETY
STARTING
AND
DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICATIONS
INDEX
F0N0253mfig. 224F0N0254mfig. 225
When the setting is reached the indicator is triggered
B-fig. 225 and changes to red, even with the engine off.
To reset the indicator, clean/replace the cartridge as on
normal versions and then reset the indicator by pressing
the button C-fig. 225.
WARNING To clean the filter, use an air jet, do not use
water or liquid detergents.
Because this filter is specific to versions designed for
dusty areas, it is advisable to contact a Fiat Dealership
to change the filter.
POLLEN FILTER
Have the pollen filter replaced by a Fiat Dealership.AIR FILTER/POLLEN FILTER
Have the air filter replaced by a Fiat Dealership.
AIR FILTER – DUSTY ROADS
(for versions/markets, where provided)
The air filter for dusty areas is equipped with a visual
filter block indication device A-fig. 224. Check the
reading of the filter block sensor at intervals (refer to
“Scheduled Servicing Plan” in the “Maintenance and
care” section).

275
KNOWING
YOUR CAR
SAFETY
STARTING
AND
DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICATIONS
INDEX
– jump starting ....................... 169
– maintenance ........................ 218
– recharging ............................ 202
– replacement ........................ 218
– tips for extending life ........ 219
Body (marking) ......................... 228
Body
– maintenance ........................ 224
– version code ....................... 229
Bonnet ........................................ 104
Brake Assist (emergency
braking assistance) ................. 110
Brakes
– fluid level .............................. 215
– technical specifications ...... 232
Bulb replacement ..................... 181
– bulb types ....................182-183
– external bulb
replacement ............................ 184
– general information ........... 181
– internal bulb replacement .. 193Cab glove compartment
(Capucine) ............................... 91
Carrying children safely .......... 130
Carrying children safely .......... 130
– “Universal Isofix” child
restraint assembly setup ...... 134
– child seats ............................ 130
– positioning of child seats on
seats ..............................133-136
Ceiling lights .............................. 76
– bulb replacement ....... 193-194
Central door
locking/unlocking system ..... 96
Chassis (marking) .................... 229
Checking the levels ................. 209
Checking the levels ................. 209
– brake fluid ............................ 215
– brake fluid ............................ 216
– engine coolant .................... 213
– engine oil ............................. 211ABS 108
Accessories purchased
by the owner .......................... 121
Additional heater ..................... 60
Additional rear heating ........... 66
Additional independent
heater ....................................... 61
Additional rear air
conditioning ............................ 67
Air filter ..................................... 217
Arm rests.................................... 33
Ashtray ........................................ 88
ASR .............................................. 112
Automatic climate control ..... 54
Automatic headlight sensor
(dusk sensor) .......................... 70
Battery
– battery disconnection
function (disconnector) .... 80
INDEX
............................
...........
......
