2011 DODGE NITRO rear view mirror

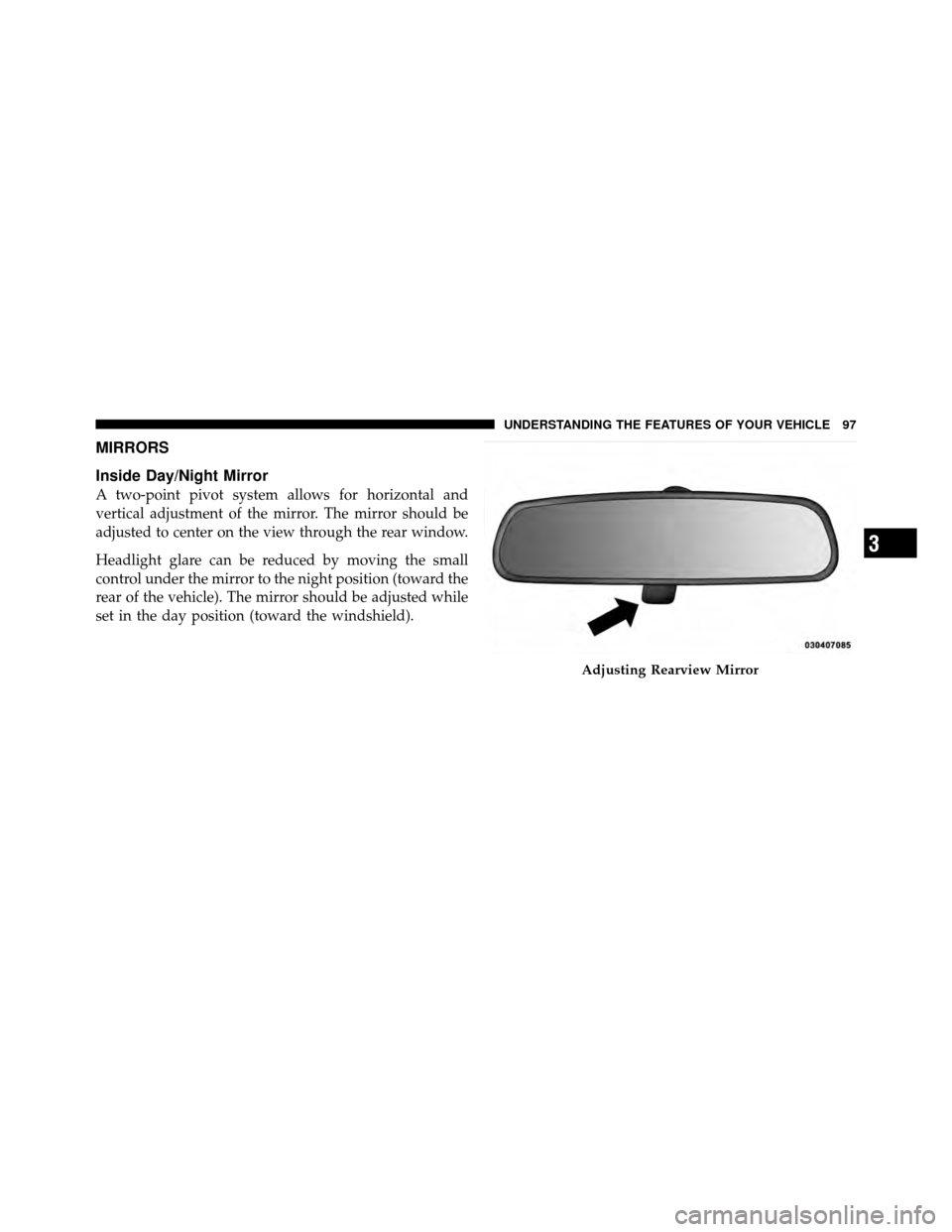

MIRRORS
Inside Day/Night Mirror
A two-point pivot system allows for horizontal and
vertical adjustment of the mirror. The mirror should be
adjusted to center on the view through the rear window.
Headlight glare can be reduced by moving the small
control under the mirror to the night position (toward the
rear of the vehicle). The mirror should be adjusted while
set in the day position (toward the windshield).
Adjusting Rearview Mirror
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 97

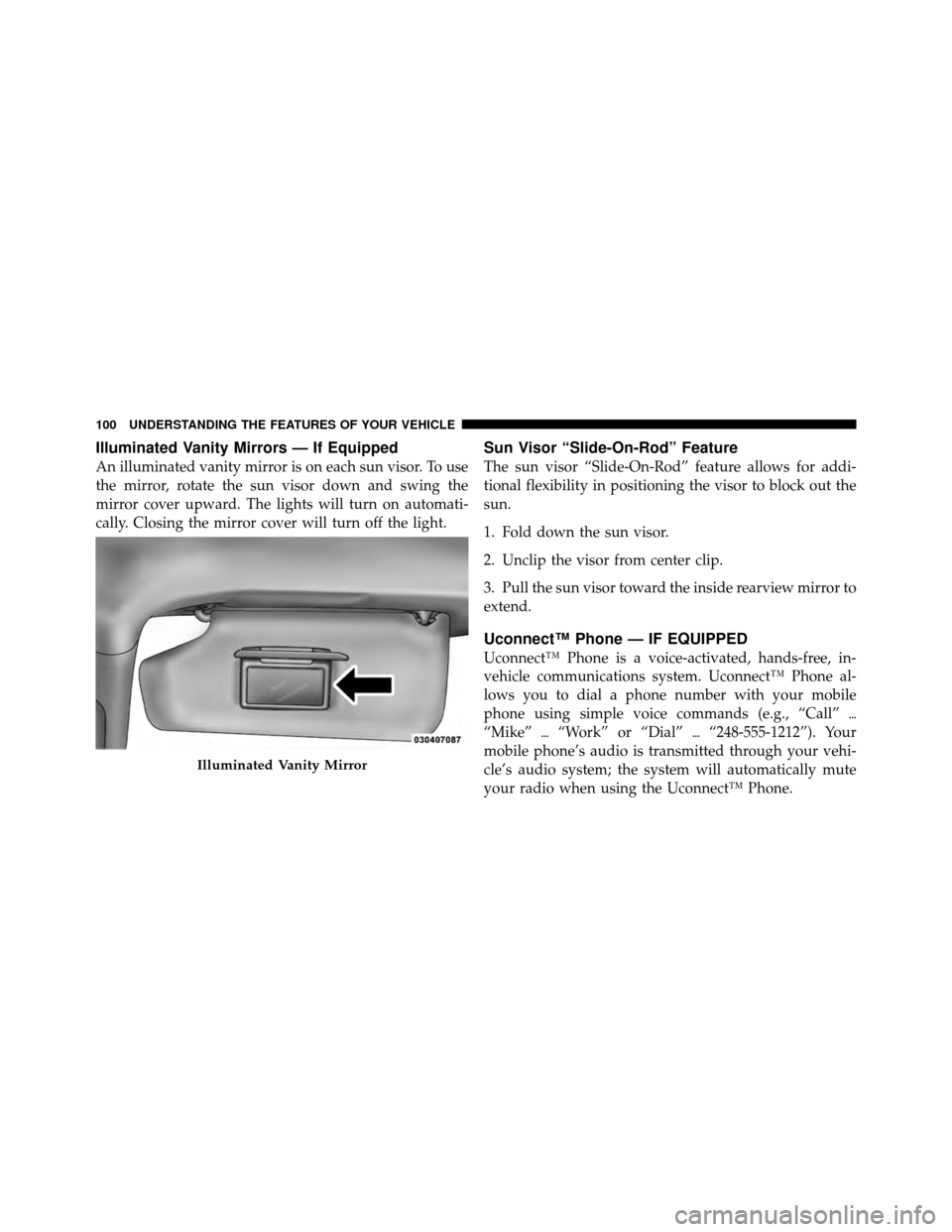

Illuminated Vanity Mirrors — If Equipped
An illuminated vanity mirror is on each sun visor. To use
the mirror, rotate the sun visor down and swing the
mirror cover upward. The lights will turn on automati-
cally. Closing the mirror cover will turn off the light.
Sun Visor “Slide-On-Rod” Feature
The sun visor “Slide-On-Rod” feature allows for addi-
tional flexibility in positioning the visor to block out the
sun.
1. Fold down the sun visor.
2. Unclip the visor from center clip.
3. Pull the sun visor toward the inside rearview mirror to
extend.
Uconnect™ Phone — IF EQUIPPED
Uconnect™ Phone is a voice-activated, hands-free, in-
vehicle communications system. Uconnect™ Phone al-
lows you to dial a phone number with your mobile
phone using simple voice commands (e.g., “Call”\b
“Mike” \b“Work” or “Dial” \b“248-555-1212”). Your
mobile phone’s audio is transmitted through your vehi-
cle’s audio system; the system will automatically mute
your radio when using the Uconnect™ Phone.
Illuminated Vanity Mirror
100 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

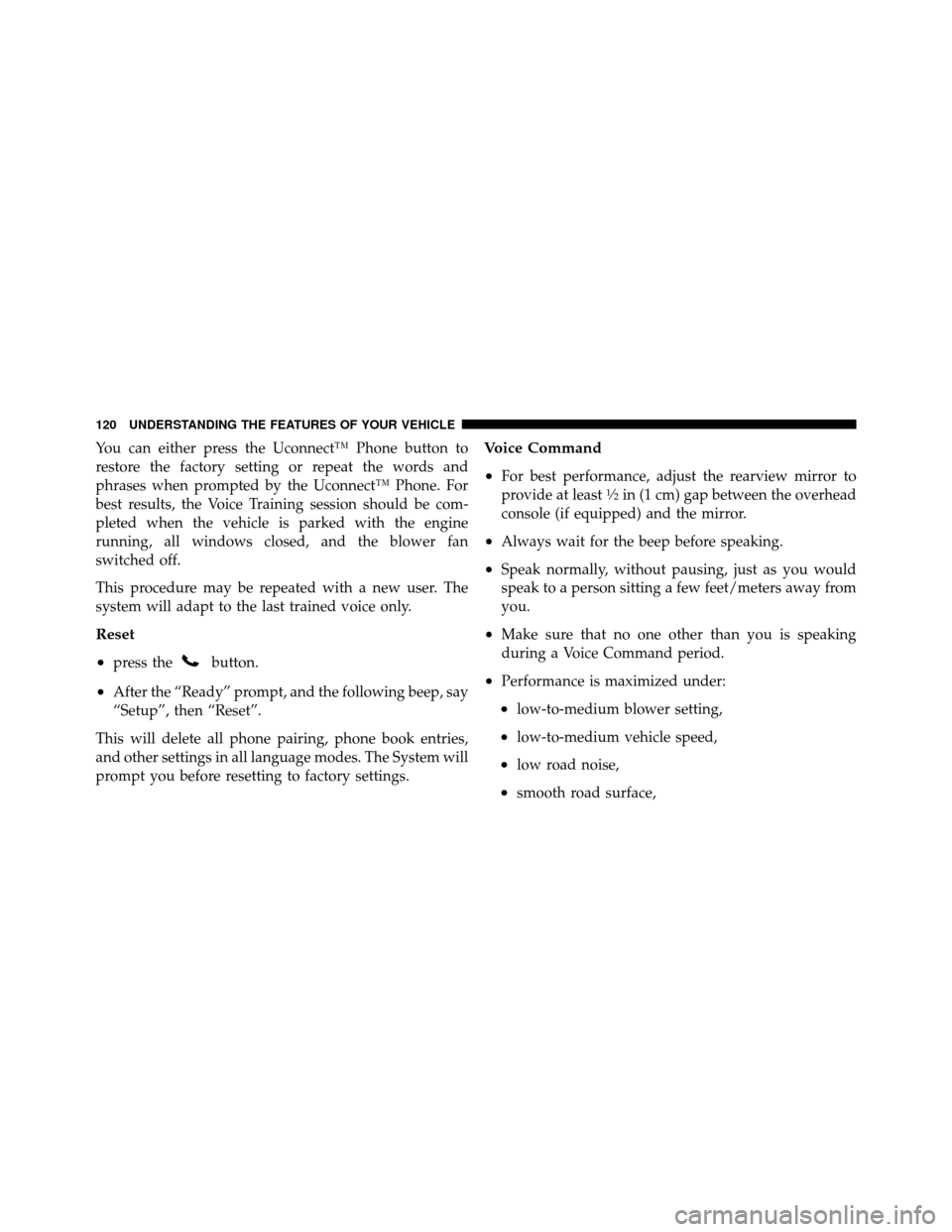

You can either press the Uconnect™ Phone button to
restore the factory setting or repeat the words and
phrases when prompted by the Uconnect™ Phone. For
best results, the Voice Training session should be com-
pleted when the vehicle is parked with the engine
running, all windows closed, and the blower fan
switched off.
This procedure may be repeated with a new user. The
system will adapt to the last trained voice only.
Reset
•
press thebutton.
•After the “Ready” prompt, and the following beep, say
“Setup”, then “Reset”.
This will delete all phone pairing, phone book entries,
and other settings in all language modes. The System will
prompt you before resetting to factory settings.
Voice Command
•
For best performance, adjust the rearview mirror to
provide at least12in (1 cm) gap between the overhead
console (if equipped) and the mirror.
•Always wait for the beep before speaking.
•Speak normally, without pausing, just as you would
speak to a person sitting a few feet/meters away from
you.
•Make sure that no one other than you is speaking
during a Voice Command period.
•Performance is maximized under:
•low-to-medium blower setting,
•low-to-medium vehicle speed,
•low road noise,
•smooth road surface,
120 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

The warning display contains two sets of yellow and red
LEDs, one set to warn of obstacles behind the left rear of
the vehicle and the other set to warn of obstacles behind
the right rear of the vehicle. The driver can view the LEDs
either through the rear view mirror or by looking at the
display above the rear window.
When the ignition is turned to the ON position, and the
system is enabled, the warning display will turn on all of
its LEDs for approximately one second. Then, the system
dimly illuminates the two inner most LEDs when it is
detecting no obstacles.ParkSense
is active when the ignition is in the ON
position, and the system is enabled, and the driver shifts
the transmission into the REVERSE position, and the
vehicle speed is less than 11 mph (18 km/h). The
following chart shows the warning display operation
when the system is detecting an obstacle:
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 167

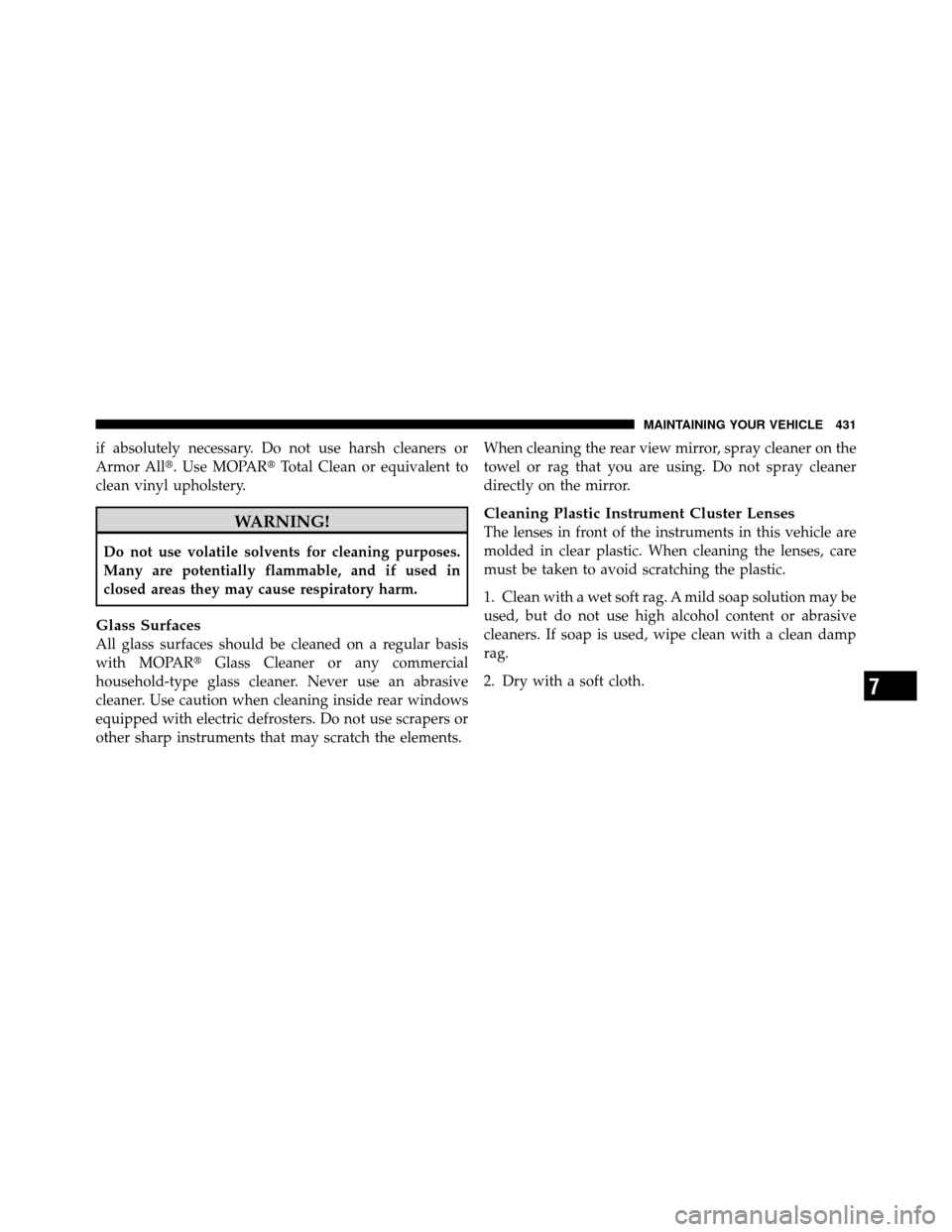

if absolutely necessary. Do not use harsh cleaners or
Armor All. Use MOPARTotal Clean or equivalent to
clean vinyl upholstery.
WARNING!
Do not use volatile solvents for cleaning purposes.
Many are potentially flammable, and if used in
closed areas they may cause respiratory harm.
Glass Surfaces
All glass surfaces should be cleaned on a regular basis
with MOPAR Glass Cleaner or any commercial
household-type glass cleaner. Never use an abrasive
cleaner. Use caution when cleaning inside rear windows
equipped with electric defrosters. Do not use scrapers or
other sharp instruments that may scratch the elements. When cleaning the rear view mirror, spray cleaner on the
towel or rag that you are using. Do not spray cleaner
directly on the mirror.
Cleaning Plastic Instrument Cluster Lenses
The lenses in front of the instruments in this vehicle are
molded in clear plastic. When cleaning the lenses, care
must be taken to avoid scratching the plastic.
1. Clean with a wet soft rag. A mild soap solution may be
used, but do not use high alcohol content or abrasive
cleaners. If soap is used, wipe clean with a clean damp
rag.
2. Dry with a soft cloth.
7
MAINTAINING YOUR VEHICLE 431

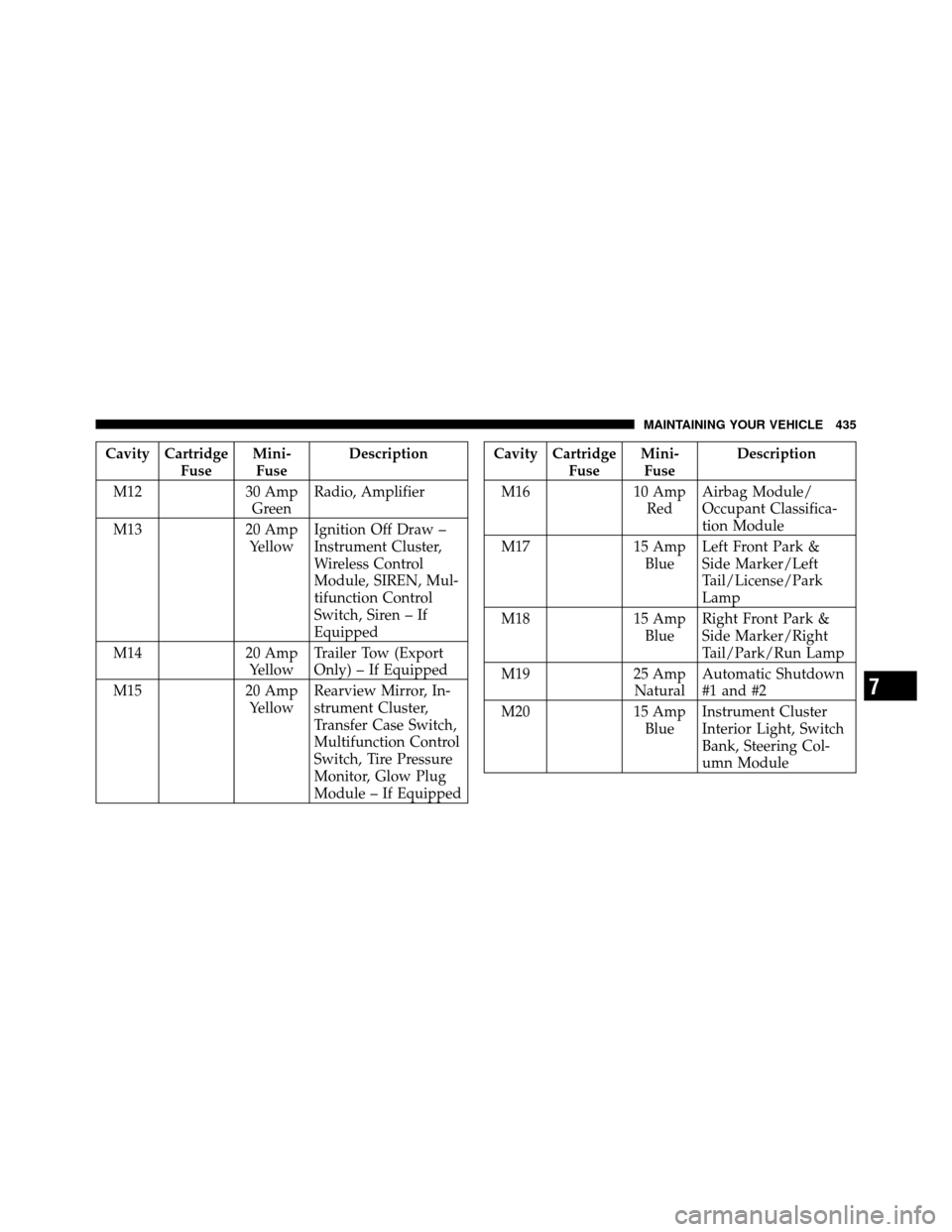

Cavity CartridgeFuseMini-
Fuse Description
M12 30 Amp
Green Radio, Amplifier
M13 20 Amp
Yellow Ignition Off Draw –
Instrument Cluster,
Wireless Control
Module, SIREN, Mul-
tifunction Control
Switch, Siren – If
Equipped
M14 20 Amp
Yellow Trailer Tow (Export
Only) – If Equipped
M15 20 Amp
Yellow Rearview Mirror, In-
strument Cluster,
Transfer Case Switch,
Multifunction Control
Switch, Tire Pressure
Monitor, Glow Plug
Module – If EquippedCavity Cartridge
FuseMini-
Fuse Description
M16 10 Amp
Red Airbag Module/
Occupant Classifica-
tion Module
M17 15 Amp
Blue Left Front Park &
Side Marker/Left
Tail/License/Park
Lamp
M18 15 Amp
Blue Right Front Park &
Side Marker/Right
Tail/Park/Run Lamp
M19 25 Amp
Natural Automatic Shutdown
#1 and #2
M20 15 Amp
Blue Instrument Cluster
Interior Light, Switch
Bank, Steering Col-
umn Module
7
MAINTAINING YOUR VEHICLE 435

HomeLink® (Garage Door Opener) Transmitter . . 169
Hood Release.......................... 149
Ignition ............................... 12
Key ............................... 12
Ignition Key Removal ..................... 12
Illuminated Entry ........................ 19
Immobilizer (Sentry Key) ................... 14
Infant Restraint ........................ 76,77
Information Center, Vehicle ................. 216
Inside Rearview Mirror .................... 97
Instrument Cluster .................... 197,198
Instrument Panel and Controls .............. 196
Instrument Panel Lens Cleaning ............. 431
Integrated Power Module (Fuses) ............ 432
Interior Appearance Care .................. 430
Interior Lights .......................... 155
Intermittent Wipers (Delay Wipers) ........... 158
Introduction ............................. 4 Jack Location
........................... 382
Jack Operation ....................... 381,384
Jacking Instructions ...................... 384
Jump Starting .......................... 388
Key-In Reminder ......................... 14
Key, Programming ........................ 16
Key, Replacement ........................ 15
Key, Sentry (Immobilizer) ................... 14
Keyless Entry System ...................... 20
Keys ................................. 12
Lane Change Assist ...................... 154
Lap/Shoulder Belts ....................... 43
LATCH
(Lower Anchors and Tether for CHildren) .....81,82
Latches ................................ 91
Lead Free Gasoline ...................... 351
Leaks, Fluid ............................ 91
10
INDEX 481

Outside............................ 99
Rearview ........................... 97
Vanity ............................ 100
Modifications/Alterations, Vehicle ............. 8
Monitor, Tire Pressure System ............... 341
Mopar Parts ......................... 405,468
MTBE/ETBE ........................... 352
Multi-Function Control Lever ............... 151
New Vehicle Break-In Period ................ 86
Occupant Restraints ....................... 39
Occupant Restraints (Sedan) ................. 62
Octane Rating, Gasoline (Fuel) ............351,352
Odometer Trip .............................. 211
Oil, Engine ......................... 407,444
Capacity ........................... 443
Dipstick ........................... 407 Filter
.......................... 410,444
Identification Logo ................... 408
Materials Added to ................... 409
Recommendation .................. 408,443
Synthetic .......................... 409
Viscosity ........................ 409,443
Onboard Diagnostic System ..............403,404
Opener, Garage Door (HomeLink®) ........... 169
Operator Manual (Owner’s Manual) ............ 5
Outside Rearview Mirrors .................. 99
Overdrive ....................... 206,298,302
Overdrive OFF Switch .................298,302
Overheating, Engine ................... 198,380
Owner’s Manual (Operator Manual) .........5,469
Paint Care ............................. 427
Paint Damage .......................... 427
Panic Alarm ............................ 24
Park Sense System, Rear ................... 163
