2011 DODGE NITRO Owners Manual

CAUTION! (Continued)
•Use care when washing the inside of the rear
window. Do not use abrasive window cleaners on
the interior surface of the window. Use a soft cloth
and a mild washing solution, wiping parallel to
the heating elements. Labels can be peeled off
after soaking with warm water.
•Do not use scrapers, sharp instruments, or abra-
sive window cleaners on the interior surface of the
window.
•Keep all objects a safe distance from the window.
ROOF TRIM APPLIQUE — NON FUNCTIONAL
The Roof Trim Applique as provided on the vehicle is
non functional. Metal side rails and crossbars can be
purchased from MOPARaccessories to provide a func-
tional roof rack system. The load carried on the roof, when equipped with a
luggage rack, must not exceed 150 lbs (68 kg), and it
should be uniformly distributed over the cargo area.
Check the straps frequently to be sure that the load
remains securely attached.
NOTE: Metal rails/crossbars
are offered by MOPAR
accessories. See your authorized dealer.
External racks do not increase the total load carrying
capacity of the vehicle. Be sure that the total occupant
and luggage load inside the vehicle, plus the load on the
luggage rack, do not exceed the maximum vehicle load
capacity.
190 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

CAUTION!
•To avoid damage to the roof rack and vehicle, do
not exceed the maximum roof rack load capacity.
Always distribute heavy loads as evenly as pos-
sible and secure the load appropriately.
•Long loads, which extend over the windshield,
such as wood panels or surfboards, should be
secured to both the front and rear of the vehicle.
•Place a blanket or other protection between the
surface of the roof and the load.
•Travel at reduced speeds and turn corners care-
fully when carrying large or heavy loads on the
roof rack. Wind forces, due to natural causes or
nearby truck traffic, can add sudden upward loads.
This is especially true on large flat loads and may
result in damage to the cargo or your vehicle.
WARNING!
Cargo must be securely tied before driving your
vehicle. Improperly secured loads can fly off the
vehicle, particularly at high speeds, resulting in per-
sonal injury or property damage. Follow the roof rack
Cautions when carrying cargo on your roof rack.
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 191

UNDERSTANDING YOUR INSTRUMENT PANEL
CONTENTS
Instrument Panel Features ............... 196
 Instrument Cluster .................... 197
 Instrument Cluster Descriptions ........... 198
 Compass And Trip Computer — If Equipped . . 212
▫ Control Buttons ..................... 212
▫ Trip Conditions ..................... 213
▫ Compass/Temperature Display .......... 214
Electronic Vehicle Information Center (EVIC) —
If Equipped .......................... 216
▫ Electronic Vehicle Information Center (EVIC)
Displays ........................... 217
▫ Oil Change Required .................. 219
▫ Trip Functions ...................... 219
▫ Compass Display / ECO
(Fuel Saver Mode) — If Equipped ........ 221
▫ Personal Settings
(Customer-Programmable Features) ....... 224
4

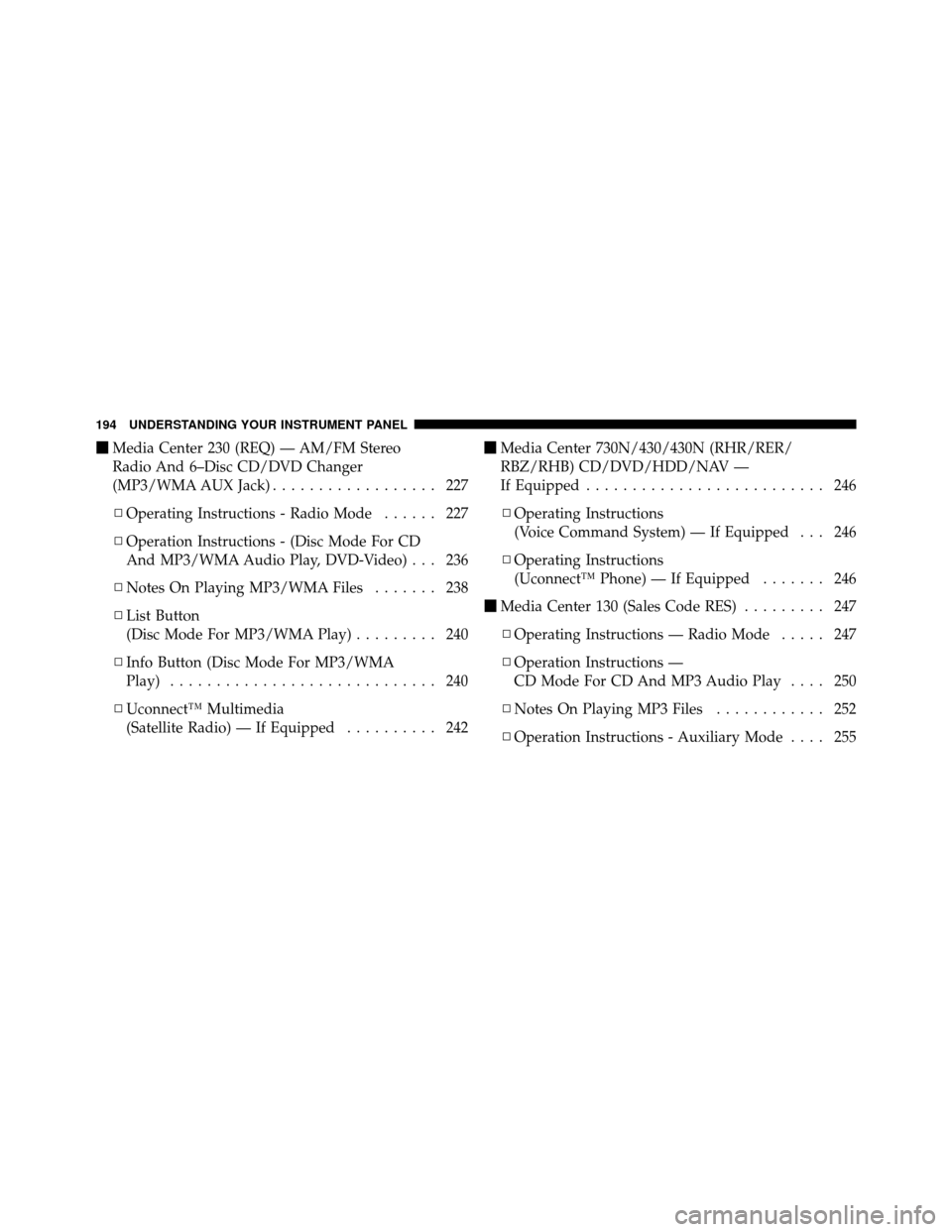

Media Center 230 (REQ) — AM/FM Stereo
Radio And 6–Disc CD/DVD Changer
(MP3/WMA AUX Jack) .................. 227
▫ Operating Instructions - Radio Mode ...... 227
▫ Operation Instructions - (Disc Mode For CD
And MP3/WMA Audio Play, DVD-Video) . . . 236
▫ Notes On Playing MP3/WMA Files ....... 238
▫ List Button
(Disc Mode For MP3/WMA Play) ......... 240
▫ Info Button (Disc Mode For MP3/WMA
Play) ............................. 240
▫ Uconnect™ Multimedia
(Satellite Radio) — If Equipped .......... 242
Media Center 730N/430/430N (RHR/RER/
RBZ/RHB) CD/DVD/HDD/NAV —
If Equipped .......................... 246
▫ Operating Instructions
(Voice Command System) — If Equipped . . . 246
▫ Operating Instructions
(Uconnect™ Phone) — If Equipped ....... 246
 Media Center 130 (Sales Code RES) ......... 247
▫ Operating Instructions — Radio Mode ..... 247
▫ Operation Instructions —
CD Mode For CD And MP3 Audio Play .... 250
▫ Notes On Playing MP3 Files ............ 252
▫ Operation Instructions - Auxiliary Mode .... 255
194 UNDERSTANDING YOUR INSTRUMENT PANEL

Media Center 130 With Satellite Radio
(Sales Code RES+RSC) ................... 255
▫ Operating Instructions — Radio Mode ..... 256
▫ Operation Instructions — CD Mode For CD
And MP3 Audio Play ................. 261
▫ Notes On Playing MP3 Files ............ 263
▫ List Button (CD Mode For MP3 Play) ...... 266
▫ Info Button (CD Mode For MP3 Play) ...... 266
▫ Uconnect™ Multimedia (Satellite Radio) —
If Equipped ........................ 267
Steering Wheel Audio Controls —
If Equipped .......................... 271
▫ Radio Operation ..................... 272
▫ CD Player ......................... 272
 CD/DVD Disc Maintenance .............. 273
 Radio Operation And Mobile Phones ....... 273
 Climate Controls ...................... 273
▫ Manual Heating And Air Conditioning ..... 274
▫ Automatic Temperature Control (ATC) —
If Equipped ........................ 278
▫ Operating Tips ...................... 283
4
UNDERSTANDING YOUR INSTRUMENT PANEL 195

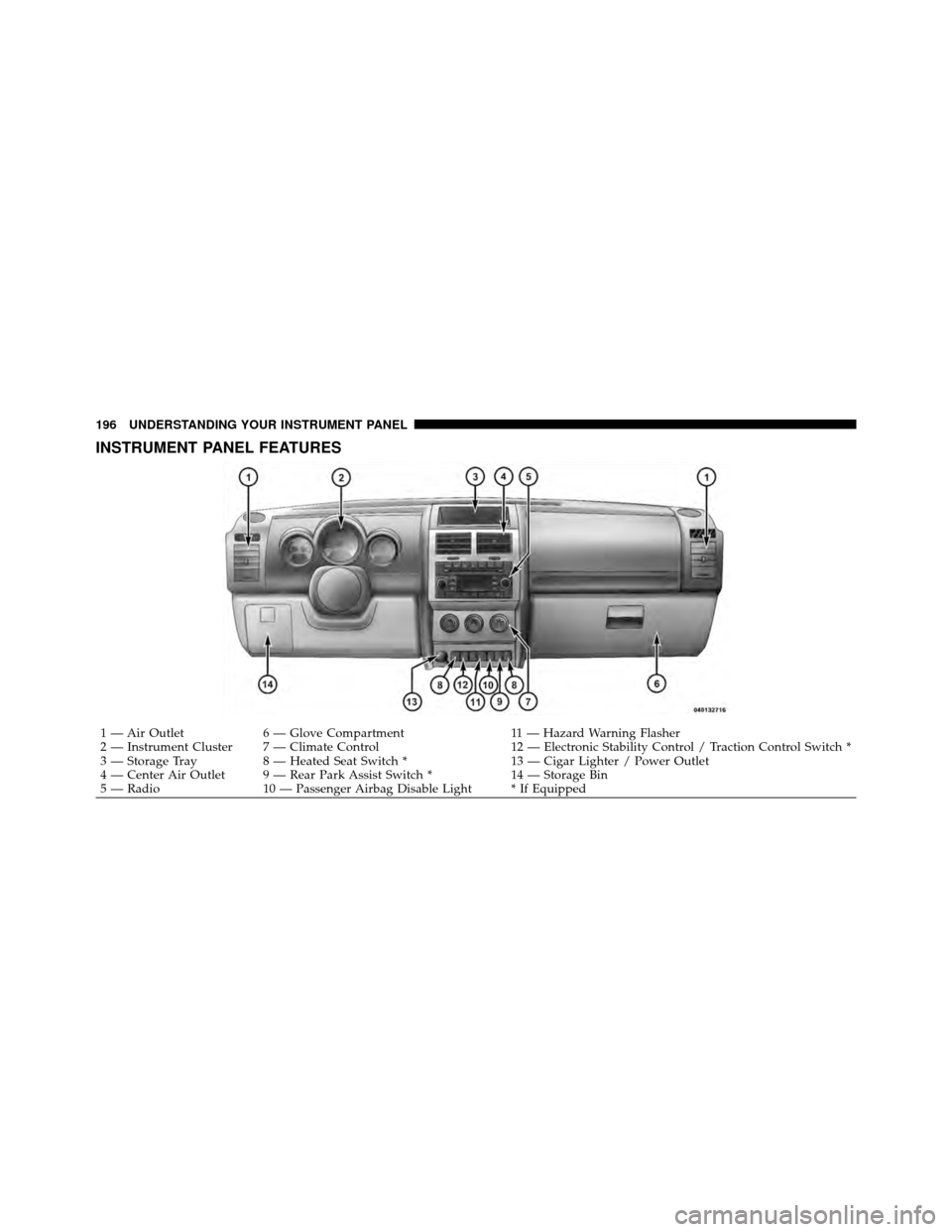

INSTRUMENT PANEL FEATURES
1 — Air Outlet6 — Glove Compartment 11 — Hazard Warning Flasher
2 — Instrument Cluster 7 — Climate Control 12 — Electronic Stability Control / Traction Control Switch *
3 — Storage Tray 8 — Heated Seat Switch * 13 — Cigar Lighter / Power Outlet
4 — Center Air Outlet 9 — Rear Park Assist Switch * 14 — Storage Bin
5 — Radio 10 — Passenger Airbag Disable Light * If Equipped
196 UNDERSTANDING YOUR INSTRUMENT PANEL

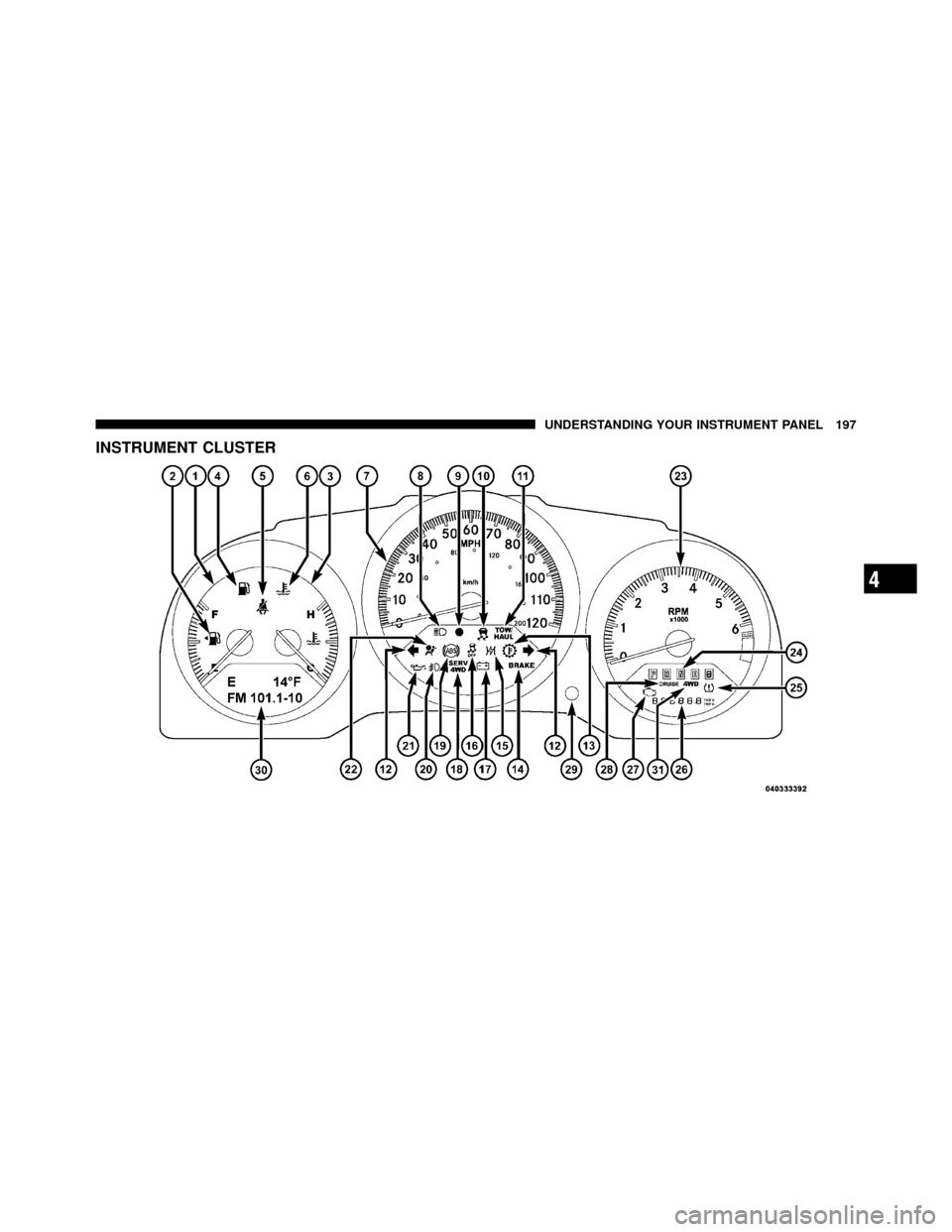

INSTRUMENT CLUSTER
4
UNDERSTANDING YOUR INSTRUMENT PANEL 197
