2011 CITROEN JUMPER Owners Manual

9
TECHNI
CAL DAT
A

160
Dimensions

161
9
TECHNI
CAL DAT
A


Dimensions
DIMENSIONS

Your vehicle is available in 4 lengths (L1..) and 3 heights (H1..), refer to the tables:






Va n






L1
L2
L3
L4





H1
H1
H2
H2
H3
H2
H3

L Overall length
4 963
5 413
5 998
6 363

H Overall height
2 254
2 254
2 524
2 524
2 764
2 524
2 764

A Wheelbase
3 000
3 450
4 035

B Front overhang

948

C Rear overhang
1 015
1 380

D Overall width (excluding mirrors)
2 050

E Width of front track
1 810

F Width of rear track
1 790

G Height of load floor
535 to 565

I Length of interior floor
2 670
3 120
3 705
4 070

J Maximum interior load height
1 662
1 662
1 932
1 932
2 172
1 932
2 172

K Maximum interior width
1 870

M Interior width between wheel arches
1 422





Volume (m3)

8


10


11.5


13


15


15


17

162
Dimensions

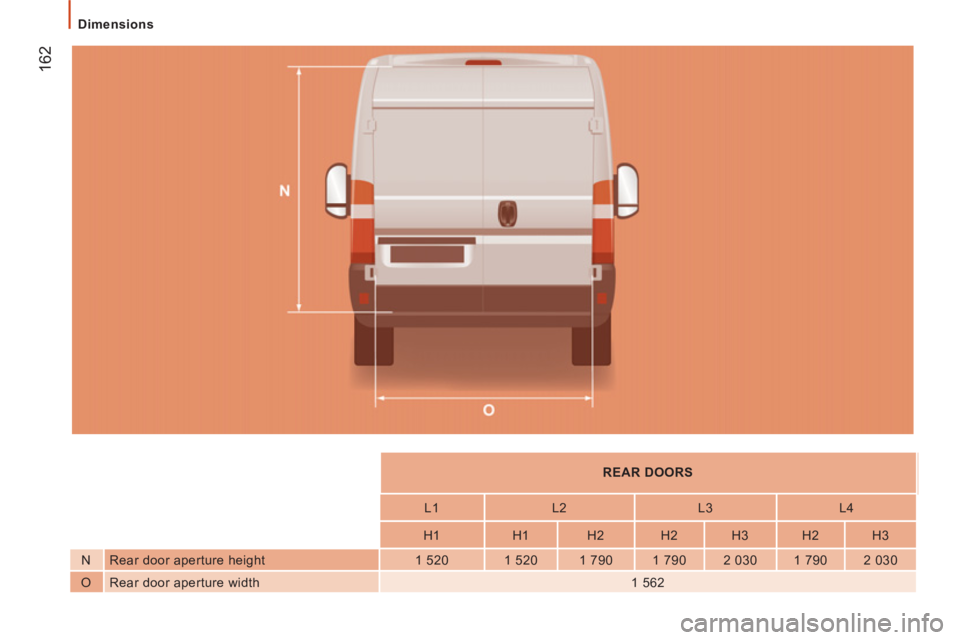

REAR DOORS






L1
L2
L3
L4





H1
H1
H2
H2
H3
H2
H3

N Rear door aperture height
1 520
1 520
1 790
1 790
2 030
1 790
2 030

O Rear door aperture width
1 562

163
9
TECHNI
CAL DAT
A


Dimensions

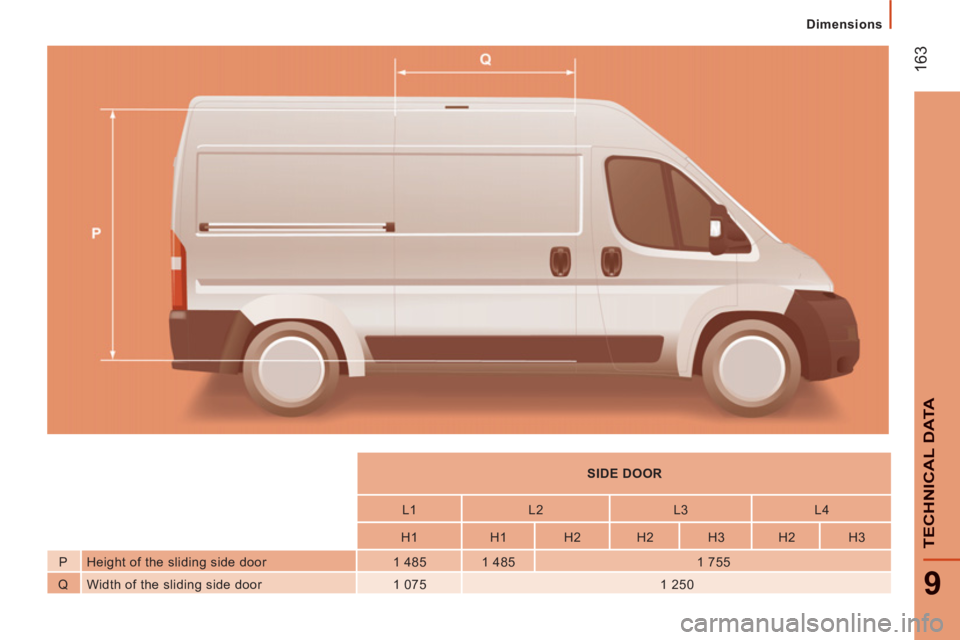

SIDE DOOR







L1
L2
L3
L4






H1
H1
H2
H2
H3
H2
H3

P Height of the sliding side door
1 485
1 485
1 755

Q Width of the sliding side door
1 075
1 250

164
Dimensions

9
TECHNI
CAL DAT
A


Dimensions

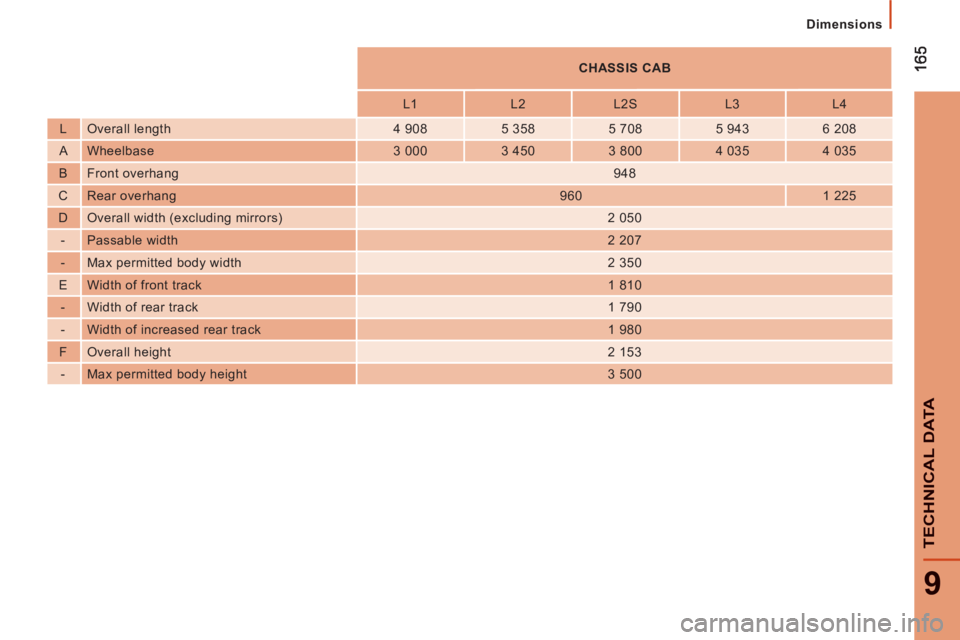

CHASSIS CAB






L1
L2
L2S
L3
L4

L Overall length
4 908
5 358
5 708
5 943
6 208

A Wheelbase
3 000
3 450
3 800
4 035
4 035

B Front overhang

948

C Rear overhang
960
1 225

D Overall width (excluding mirrors)
2 050

- Passable width

2 207

- Max permitted body width
2 350

E Width of front track
1 810

- Width of rear track
1 790

- Width of increased rear track
1 980

F Overall height

2 153

- Max permitted body height
3 500

166
Dimensions



L1H1


L2H2



A

751
872
1 201
1 322


B

1 201
1 743
1 651
2 193


C

-
860
-
860
