Page 105 of 396
103Access
)
Press the closed padlock on the remote
control.
This will switch on the cour tesy lamps and the
direction indicators will flash for a few seconds.
Locating your vehicle
This function allows you to identify
your vehicle from a distance,
par ticularly in poor light. Your vehicle
must be locked.
Anti-theft protection
Electronic engine immobiliser
The key contains an electronic chip which has
a special code. When the ignition is switched
on, this code must be recognised in order for
star ting to be possible.
This electronic engine immobiliser locks the
engine management system a few minutes
after the ignition is switched off and prevents
star ting of the engine by anyone who does not
have the key.
In the event of a fault, you are
informed by illumination of this
warning lamp, an audible signal
and a message in the screen.
In this case, your vehicle will not start; contact
a CITROËN dealer as soon as possible.
Folding the key
)
First press this button to fold the key.
If you do not press the button when
folding the key, there is a risk of
damage to the mechanism.
Keep safely the label attached to the
keys given to you on acquisition of the
vehicle.
Page 108 of 396
Do not throw the remote control
batteries away, they contain metals
which are harmful to the environment.
Take them to an approved collection
point.

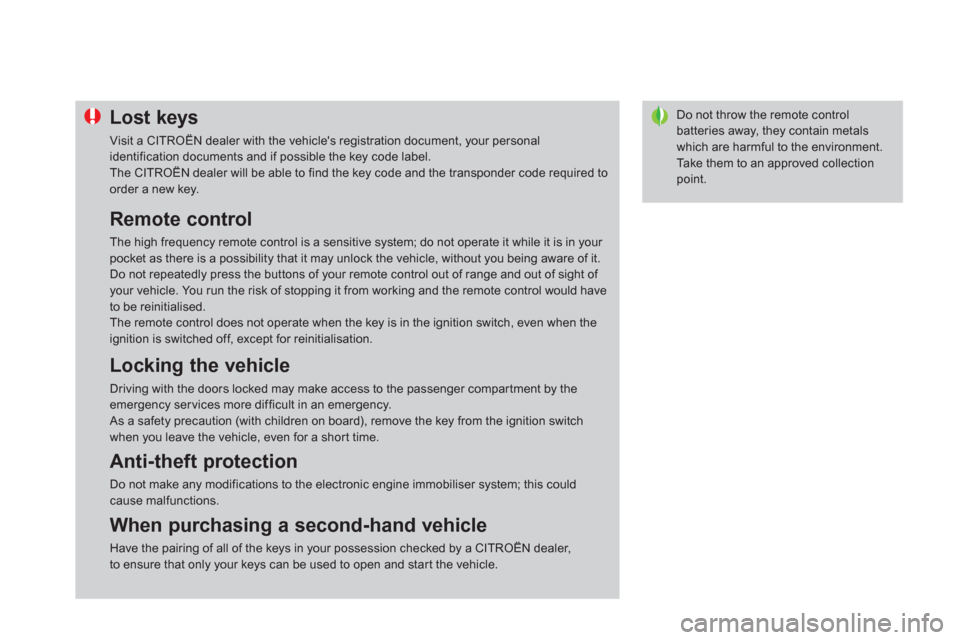

Lost keys
Visit a CITROËN dealer with the vehicle's registration document, your personal
identification documents and if possible the key code label.
The CITROËN dealer will be able to find the key code and the transponder code required to
order a new key.
Remote control
The high frequency remote control is a sensitive system; do not operate it while it is in your
pocket as there is a possibility that it may unlock the vehicle, without you being aware of it.
Do not repeatedly press the buttons of your remote control out of range and out of sight of
your vehicle. You run the risk of stopping it from working and the remote control would have
to be reinitialised.
The remote control does not operate when the key is in the ignition switch, even when the
ignition is switched off, except for reinitialisation.
Locking the vehicle
Driving with the doors locked may make access to the passenger compar tment by the
emergency services more difficult in an emergency.
As a safety precaution (with children on board), remove the key from the ignition switch
when you leave the vehicle, even for a shor t time.
Anti-theft protection
Do not make any modifications to the electronic engine immobiliser system; this could
cause malfunctions.
When purchasing a second-hand vehicle
Have the pairing of all of the keys in your possession checked by a CITROËN dealer,
to ensure that only your keys can be used to open and start the vehicle.
Page 272 of 396
)
Connect the red cable to the positive
terminal (+) of the flat battery A
, then to the
positive terminal (+) of the slave battery B
.
)
Connect one end of the green or black
cable to the negative terminal (-) of the
slave battery B
.
)
Connect the other end of the green or black
cable to the ear th point C
on the broken
down vehicle.
)
Operate the starter, let the engine run.
)
Wait until the engine returns to idle and
disconnect the cables.
Charging the battery using
a battery charger
The batteries contain harmful substances
such as sulphuric acid and lead. They must
be disposed of in accordance with regulations
and must not, in any circumstances,
be discarded with household waste.
Take used remote control batteries and
vehicle batteries to a special collection point.
)
Disconnect the battery from the vehicle.
)
Follow the instructions for use provided by
the manufacturer of the charger.
)
Reconnect starting with the negative
terminal (-).
)
Check that the terminals and connectors
are clean. If they are covered with sulphate
(whitish or greenish deposit), remove them
and clean them.
The Stop & Star t battery does not have
to be disconnected for charging.
It is advisable to disconnect the battery
if the vehicle is to be left unused for
more than one month.
Starting using another
battery
Page 382 of 396
Exterior
Remote control 100 -106
- opening/closing
- antitheft protection
- starting
- battery
Lighting c ontrols 12 2-126
Headlamp adjustment 128
Welcome lighting 127
Directional lighting systems 129 -130
Changing bulbs 256 -260
- front lamps
- front foglamps
- side repeaters
Wiper controls 131-135
Changing a wiper blade 273
Door mirrors 95-96
Blind spot sensors 216 -218
Doors 112-113
- opening/closing
- emergency control
Child lock 169
Electric windows 115 -116
Alarm 109-111
F u e l t a n k 117-11 8
Misfuel prevention 119
Accessories 278-279
Braking assistance 176-177
Trajectory control 177-178
Tyre under-inflation detection 174-175
Tyre pressures 248, 287
Boot 114
Temporary puncture repair kit 244-248
Changing a wheel 249 -255
- tools
- removing/refitting
Changing bulbs 261-263
- rear lamps
- 3rd brake lamp
- number plate lamp
Parking sensors 226 -227
Parking space sensors 224-225
Towbar 276-277
Towing 274-275
