Page 259 of 396
257Practical information
Model with xenon and directional
headlamps
1.
Directional dipped/main beam
headlamps (D1S-35W).
2.
Direction indicators (PY21W amber).
3.
Daytime running lamps (P21/5W XL).
4.
Sidelamps (LEDs).
5.
Foglamps (H11- 55W).
Model with halogen headlamps
1.
Direction indicators (H21 clear).
2.
Dipped beam headlamps (H7-55W).
3.
Main beam headlamps (H1-55W).
4.
Daytime running lamps (P21/5W XL).
5.
Sidelamps (LEDs).
6.
Foglamps (H11- 55W).
Access to bulbs
Depending on the engine and only on the left
hand side, you must first carry out the following
operations for access to the protective covers
on the bulbs.
)
Remove the air deflector by unclipping
each of its three attachment points.
)
Unclip the bonnet release cable at its two
fixings.
)
Move the cable down.
After changing the failed bulb, remember to
put everything back in place (cable and air
deflector).
Front lamps
Page 269 of 396
267Practical information
The fusebox is placed in the engine
compartment near the battery (left-hand side).
Access to the fuses
)
Unclip the cover.
)
Change the fuse (see corresponding
paragraph).
)
When you have finished, close the cover
carefully to ensure correct sealing of the
fusebox.
Engine compartment fuses
Page 271 of 396
269Practical information

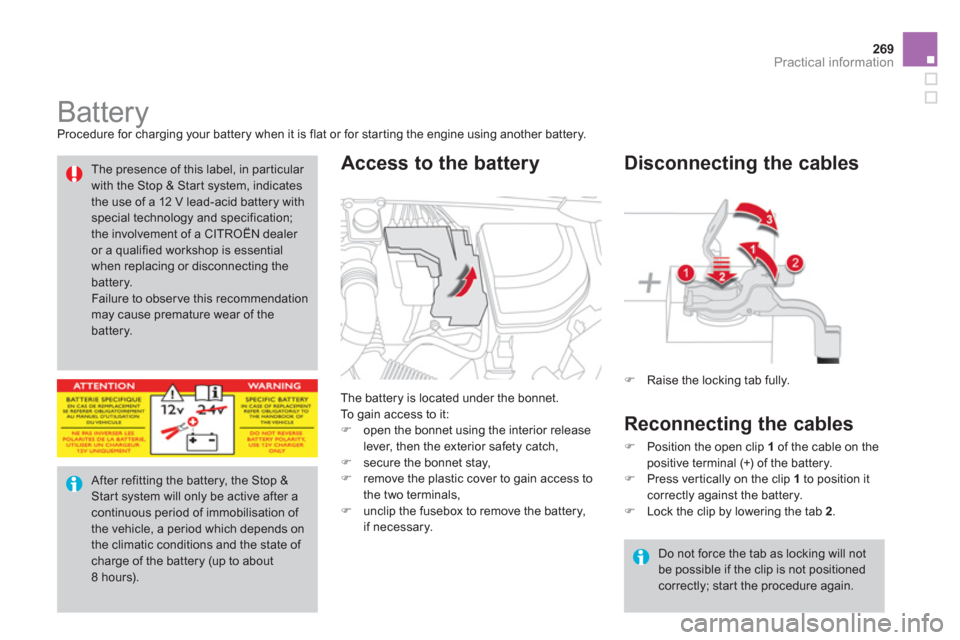

Battery
Procedure for charging your battery when it is flat or for starting the engine using another battery.
The battery is located under the bonnet.
To gain access to it:
)
open the bonnet using the interior release
lever, then the exterior safety catch,
)
secure the bonnet stay,
)
remove the plastic cover to gain access to
the two terminals,
)
unclip the fusebox to remove the battery,
if necessary.
Access to the battery
)
Raise the locking tab fully.
Disconnecting the cables
After refitting the battery, the Stop &
Star t system will only be active after a
continuous period of immobilisation of
the vehicle, a period which depends on
the climatic conditions and the state of
charge of the battery (up to about
8 hours).
The presence of this label, in particular
with the Stop & Star t system, indicates
the use of a 12 V lead-acid battery with
special technology and specification;
the involvement of a CITROËN dealer
or a qualified workshop is essential
when replacing or disconnecting the
battery.
Failure to obser ve this recommendation
may cause premature wear of the
battery.
Reconnecting the cables
)
Position the open clip 1
of the cable on the
positive terminal (+) of the battery.
)
Press ver tically on the clip 1
to position it
correctly against the battery.
)
Lock the clip by lowering the tab 2
.
Do not force the tab as locking will not
be possible if the clip is not positioned
correctly; start the procedure again.
Page 272 of 396
)
Connect the red cable to the positive
terminal (+) of the flat battery A
, then to the
positive terminal (+) of the slave battery B
.
)
Connect one end of the green or black
cable to the negative terminal (-) of the
slave battery B
.
)
Connect the other end of the green or black
cable to the ear th point C
on the broken
down vehicle.
)
Operate the starter, let the engine run.
)
Wait until the engine returns to idle and
disconnect the cables.
Charging the battery using
a battery charger
The batteries contain harmful substances
such as sulphuric acid and lead. They must
be disposed of in accordance with regulations
and must not, in any circumstances,
be discarded with household waste.
Take used remote control batteries and
vehicle batteries to a special collection point.
)
Disconnect the battery from the vehicle.
)
Follow the instructions for use provided by
the manufacturer of the charger.
)
Reconnect starting with the negative
terminal (-).
)
Check that the terminals and connectors
are clean. If they are covered with sulphate
(whitish or greenish deposit), remove them
and clean them.
The Stop & Star t battery does not have
to be disconnected for charging.
It is advisable to disconnect the battery
if the vehicle is to be left unused for
more than one month.
Starting using another
battery
Page 273 of 396
271Practical information
Load reduction mode
System which manages the use of cer tain
functions according to the level of charge
remaining in the battery.
When the vehicle is being driven, the load
reduction function temporarily deactivates
cer tain functions, such as the air conditioning,
the heated rear screen...
The deactivated functions are reactivated
automatically as soon as conditions permit. Do not disconnect the terminals while the engine is running.
Do not charge the batteries without disconnecting the terminals first.
Do not push the vehicle to star t the engine if it is fitted with the 6 -speed electronic
gearbox system.
Before disconnecting the
battery
Wait 2 minutes after switching off the
ignition before disconnecting the battery.
Close the windows and the doors before
disconnecting the battery.
Following reconnection
of the battery
Following reconnection of the battery,
switch on the ignition and wait 1 minute
before star ting to permit initialisation of the
electronic systems. However, if problems
are encountered following this operation,
contact a CITROËN dealer or a qualified
workshop.
Referring to the corresponding section,
you must yourself reinitialise:
- the remote control key,
- the GPS satellite navigation system.
Page 274 of 396
Energy economy mode
System which manages the period of use of cer tain functions to conser ve a sufficient level of charge in the battery.
After the engine has stopped, you can still use functions such as the audio equipment, windscreen wipers, dipped beam headlamps, cour tesy lamps,
etc. for a maximum combined period of thirty minutes.
This period may be greatly reduced if
the battery is not fully charged.
A flat battery prevents the engine from
starting (refer to the corresponding
paragraph). If the telephone is being used at the
same time on the navigation system,
it will be interrupted after 10 minutes.
Switching to economy mode
Once this period has elapsed, a message
appears in the screen indicating that the vehicle
has switched to economy mode and the active
functions are put on standby.
Exiting economy mode
These functions are reactivated automatically
the next time the vehicle is driven.
)
In order to resume the use of these
functions immediately, star t the engine and
let it run for a few minutes.
The time available to you will then be double
the period for which the engine is left running.
However, this period will always be between
five and thir ty minutes.
Page 276 of 396
Towing the vehicle
Procedure for having your vehicle towed or for towing another vehicle using a removable towing eye.
The towing eye is installed in the boot under
the floor.
To gain access to it:
)
open the boot,
)
raise the floor,
)
secure it by hooking its cord on the hook on
the rear parcel shelf suppor t,
)
remove the towing eye from the holder.
Access to the tools
General
recommendations
Obser ve the legislation in force in your
country.
Ensure that the weight of the towing
vehicle is higher than that of the towed
vehicle.
The driver must stay at the wheel of the
towed vehicle.
Driving on motor ways and fast roads is
prohibited when towing.
When towing a vehicle with all four
wheels on the ground, always use an
approved towing bar; rope and straps
are prohibited.
When towing a vehicle with the engine
off, there is no longer any power
assistance for braking or steering. In the following cases, you must always call
on a professional recovery ser vice:
- vehicle broken down on a motor way or
fast road,
- when it is not possible to put the gearbox
into neutral, unlock the steering, or release
the parking brake,
- towing with only two wheels on the
ground,
- where there is no approved towing bar
available...
Page 277 of 396
275Practical information
)
On the front bumper, unclip the cover by
pressing at the bottom.
)
Screw the towing eye in fully.
)
Install the towing bar.
)
On the rear bumper, unclip the cover by
pressing at the bottom.
)
Screw the towing eye in fully.
)
Install the towing bar.
)
Switch on the hazard warning lamps on
both vehicles.
)
Move off gently, drive slowly and for a short
distance.
Towing your vehicle
Towing another vehicle
)
Place the gear lever in neutral
(position N
on the electronic gearbox
system or automatic gearbox).
Failure to obser ve this instruction
could result in damage to
certain components (braking,
transmission...) and the absence of
braking assistance the next time the
engine is started.
)
Unlock the steering by turning the key
in the ignition one notch and release the
parking brake.
)
Switch on the hazard warning lamps on
both vehicles.
)
Move off gently, drive slowly and for a short
distance.
