2011 Citroen C6 RHD Owner's Manual

7.3
02
°
> COLOUR SCREEN
This displays the following information, via the audio control panel: - time,- date, - ambient temperature (if there is a risk of ice, you are warned by amessage),- audio source displays (radio, CD, jukebox, ...), - telematic system displays (telephone, services, ...),- check of openings (doors, boot, ...),- warning messages (e.g.: "Fuel level low") and vehicle function statusmessages (e.g.: "Auto lighting activated") displayed temporarily,- trip computer information,- GPS (Europe) satellite navigation system information.

New
The system uses the complete and detailed NAVTEQ maps installed directly on the equipment's hard disc. There is no need to keep a mapping CD in the CD player. Updates of the maps of France and of the other European countries, offered by our partner NAVTEQ, will be available from theCITROËN network. y

Screen confi guration: refer to the section - Display fl owcharts.
Telephone
Orange
Time:
Date:

7.4
02 GENERAL MENU

MAP:orientation, details, display.
AUDIO FUNCTIONS:radio, CD, Jukebox, options.
For maintenance of the display, the use of asoft, non-abrasive cloth(spectacles cloth) is recommended without anyadditional product.

TELEMATIC:telephone, directory, SMS.
CONFIGURATION:vehicle, display, time, languages, voice, auxiliarysocket (AUX) parameters.()p

VIDEO:activation, parameters.VEHICLE DIAGNOSTICS: warnings log.
NAVIGAT ION GUIDANCE: GPS, stages, options.
TRAFFIC INFORMATION:TMC information, messages.
AIR CONDITIONING:on/off and dual zone control (according to equipment).

7.5
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
02
1
1
SCREEN AND GENERAL MENU
Press the OK dial to access short-cutmenus according to the display on thescreen.
INTERNAL TELEPHONE:
call list
dial
phone book
voice mail
NAVIGATION (IF NAVIGATION IS IN PROGRESS):
resume/stop guidance
divert route
route type
consult traffi c info
zoom/scroll map

TRIP COMPUTER:
alert log
status of functions

BLUETOOTH TELEPHONE:
call list
call
phone book
private mode/hands-free mode
place call on hold/resume call


CD (MP3 OR AUDIO):
copy CD to JBX/stop copy
activate/deactivate Introscan
activate/deactivate random play
activate/deactivate repeat

RADIO:


enter a frequency


activate/deactivate RDS


activate/deactivate REG mode


hide/display "Radio Text"

JUKEBOX:


select playlist


activate/deactivate Introscan


activate/deactivate random play


activate/deactivate repeat
USB:


copy USB to JBX/stop copy


eject USB


activate/deactivate Introscan


activate/deactivate random play


activate/deactivate repeat


DISPLAY ACCORDING TO THE CONTEXT
IN "ZOOM/SCROLL" MODE:
position info
select as destination
select as stage
store this position
exit map mode
guidance option


AIR CONDITIONING:


activate/deactivate air conditioning


activate/deactivate L/R control

7.6
11
22
33
55
77
44
66
88
03

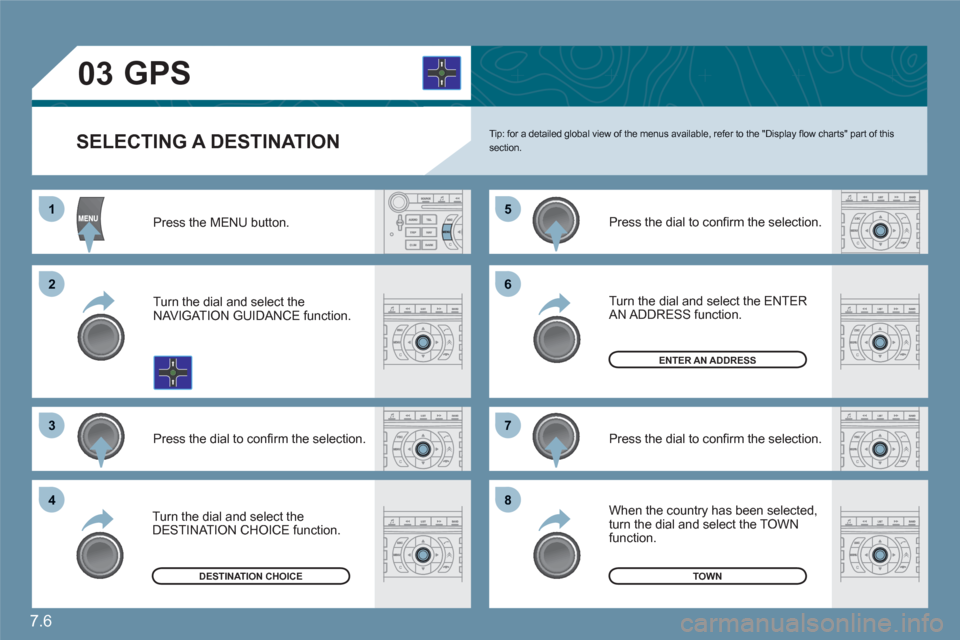

SELECTING A DESTINATION Tip: for a detailed global view of the menus available, refer to the "Display fl ow charts" part of thissection.
Press the MENU button.
Turn the dial and select theNAVIGAT ION GUIDANCE function.
Press the dial to confi rm the selection.

Turn the dial and select the DESTINATION CHOICE function.
Press the dial to confi rm the selection.
Press the dial to confi rm the selection.
Turn the dial and select the ENTER AN ADDRESS function.
When the country has been selected,turn the dial and select the TOWN function.
TOWN
ENTER AN ADDRESS
DESTINATION CHOICE
GPS

7.7
99
1111
1212
1313
1515
1010
1414
Press the dial to confi rm the selection.
Turn the dial and select the letters of the town one by one confi rming eachtime by pressing the dial.
Turn the dial and select OK.

Press the dial to confi rm the selection.

To speed up the process, the POST CODE can beentered instead of the name of the town. Use the alphanumeric keypad to enter the letters and digits and "*" to correct.
Press the dial to confi rm the selection.
Select OK on the ENTER ANADDRESS page.

Repeat steps 8 to 12 for the ROAD and N∞ functions.
OK
OK
Select the STORE function to record the address entered in adirectory record and press the dial to confi rm the selection.
The points of interest (POI) indicate all of the service locations in thevicinity (hotels, various businesses, airports, ...).
STORE
PARIS
POI

7.8
11
22
33
44
55
66
77
88
03
GUIDANCE OPTIONS
GPS
The route presented depends directly on the guidance options. Changing these options may completely change the route.
Press the MENU button.
Turn the dial and select theNAVIGAT ION GUIDANCE function.
Press the dial to confi rm the selection.
Turn the dial and select the GUIDANCE OPTIONS function.
Turn the dial and select the DEFINE CALCULATION CRITERIA function.
Press the dial to confi rm the selection.
Press the dial to confi rm the selection.
GUIDANCE OPTIONSDISTANCE/TIME
DEFINE CALCULATION CRITERIA
Turn the dial and select, for example, the DISTA NCE/TIME function.

7.9
99
1010
1111
1212
22
11
33
Turn the dial and select the TRAFFICINFO function if you wish to receivethe TRAFFIC INFO announcements.

Press the dial to confi rm the selection.
Select OK and press the dial to confi rm.
TRAFFIC INFO

Press the dial to confi rm the selection.
Tick this box for optimum operation of the traffi c information,diversions will be suggested.
OK

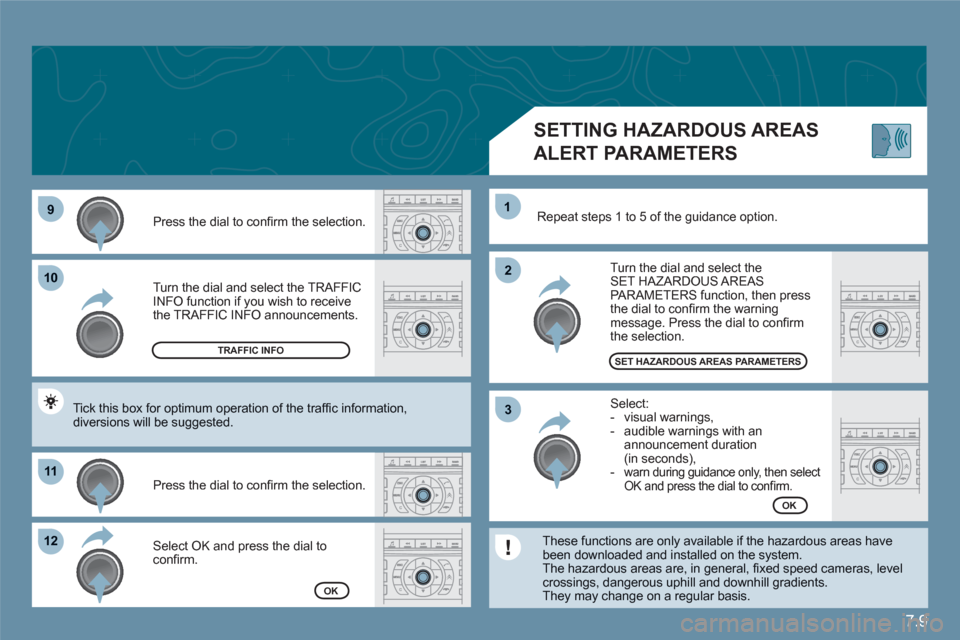

SETTING HAZARDOUS AREAS
ALERT PARAMETERS
Turn the dial and select the SET HAZARDOUS AREAS PARAMETERS function, then press the dial to confi rm the warningmessage. Press the dial to confi rm the selection.
Select: - visual warnings,- audible warnings with an announcement duration(in seconds), -warn during guidance only, then selectOK and press the dial to confi rm.

These functions are only available if the hazardous areas havebeen downloaded and installed on the system.
The hazardous areas are, in general, fi xed speed cameras, level crossings, dangerous uphill and downhill gradients. They may change on a regular basis.

Repeat steps 1 to 5 of the guidance option.
SET HAZARDOUS AREAS PARAMETERS
OK

7.10
03
66
88
77
55
11
22
33
44
GPS

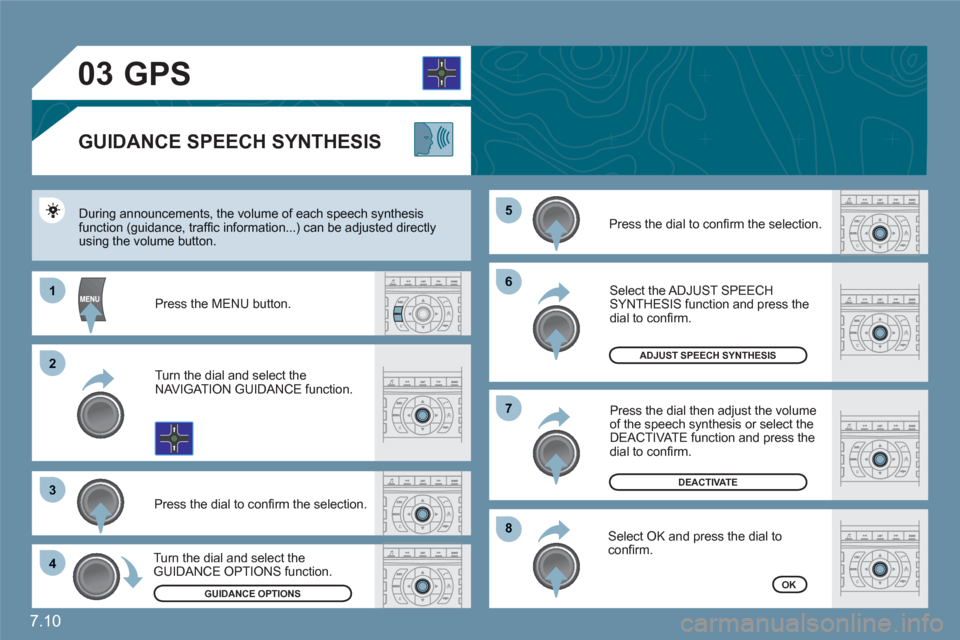

GUIDANCE SPEECH SYNTHESIS
Press the dial to confi rm the selection.
During announcements, the volume of each speech synthesis function (guidance, traffi c information...) can be adjusted directly using the volume button.
Select the ADJUST SPEECHSYNTHESIS function and press thedial to confi rm.

Press the dial then adjust the volume of the speech synthesis or select the DEACTIVATE function and press thedial to confi rm.
Select OK and press the dial toconfi rm.
Press the MENU button.
Turn the dial and select the NAVIGAT ION GUIDANCE function.

Press the dial to confi rm the selection.
Turn the dial and select theGUIDANCE OPTIONS function.
GUIDANCE OPTIONS
ADJUST SPEECH SYNTHESIS
DEACTIVATE
OK
