Page 4 of 244
2
CONTENTS
Ventilation 44Automatic air conditioning 46Front seats 50Rear seats 53Rear bench seat 58Mirrors 61Steering wheel adjustment 63Front fi ttings 64Rear fi ttings 69Boot fi ttings 70
„ „ „ „ „ „ „ „ „ „
II - COMFORT 44 Î72
Remote control key 73Electric windows 77Doors 79Tailgate 80Lower tailgate 81Sunroof 82Fuel tank 84
„ „ „ „ „ „ „
III - ACCESS 73 Î 85
Lighting stalk 86Daytime running lamps 88Automatic illumination of
headlamps 88Headlamp adjustment 89Wiper controls 90Automatic rain sensitive wipers 91Courtesy lamps 92
„ „ „
„ „ „ „
IV - VISIBILITY 86 Î 93
Child seats 94ISOFIX mountings 98Child lock 101
„ „ „
V - CHILD SAFETY 94 Î 101
Direction indicators 102Hazard warning lamps 102Horn 102Braking assistance systems 103Trajectory control systems 104Front seat belts 105Airbags 108
„ „ „ „ „ „ „
VI - SAFETY 102 Î111
Instrument panel 21Warning lamps 22Instrument panel displays 25Information in the instrument
panel screen 31Distance recorders 32Service indicator 33Trip computer 34Setting menu 35Monochrome screen 39Colour screen 41Lighting rheostat 43
„ „ „ „
„ „ „ „ „ „ „
FAMILIARISATION 4 Î 20
I - MONITORING 21 Î 43
Page 7 of 244
5
FAMILIARI
S
AT I
ON
Fuel tank
A.Opening the fuel fi ller fl ap.
B.Removing the fuel fi ller cap.
84 1
.Locking the vehicle.
2.Unlocking the vehicle.
Remote control key
A.
Unfolding/folding the key.
B.
Unlocking the vehicle.
C
. Locking the vehicle.
73
Manual central locking
79
OPENING
When refi tting the cap, insert the upper part fi rst turning it to the right.
Capacity of the tank: approximately60 litres.
Page 8 of 244
!
6
FAMILIARI
S
AT I
ON
Opening
)
After unlocking the vehicle using the
remote control or the key, press thehandle Aand raise the tailgate.
Tailgate Lower tailgate
Opening
)
Push the handle C
to the right and
tilt the tailgate Dgently.
The maximum authorised weighton the lower tailgate when openis 200 kg.
Spare wheel and tools
Access to the spare wheel
)Remove the plastic cover E
to gain
access to the spare wheel fi xingsystem.
80
OPENING
81
132
Closing
)
Pull the handle B
downwards.
Closing
)Raise the tailgate D
, push it to close it, then check that it is latched correctly.
Access to the tools
The tools are stored in the stora
ge com-partment Fin the boot right-hand trim.
Page 63 of 244
II
!
COMFORT
61
DOOR MIRRORS
Adjustment
The mirrors can be adjusted when the
ignition switch is in the "ON" or "ACC"
position.
)
Move control A
to the right or to the left
to select the corresponding mirror.
)
Direct control B
in all four directions
to adjust the mirror.
When adjustment is complete, return
control A
to the central position.
Electric folding/unfolding
- from inside, with the ignition switch
in the "ON" or "ACC" position
)
by pressing the control C
.
- from inside, with the ignition switch
in the "LOCK" position:
)
by pressing the control C, within
30 seconds.
- from outside using the remote control:
)
by pressing the "closed pad-
lock button briefl y 3 times to fold
them,
)
by pressing the "open padlock"
button briefl y 3 times to unfold
them.
The folding and unfolding of the door
mirrors can be confi gured via the co-
lour screen "Equipment" menu or de-
activated by a CITROËN dealer or a
qualifi ed workshop. The mirrors can also be folded
manually.
If you have folded the mirrors using
the control C
, you must use this con-
trol to unfold them, otherwise the mir-
rors will not be lock in place correctly.
If you switch the engine off then re-
start it with the mirrors folded, they
will unfold automatically when the
vehicle reaches 20 mph (30 km/h).
If the mirrors have been folded man-
ually or electrically after starting the
engine, they are not unfolded auto-
matically.
In this case:
)
Press the control C
to unfold
them.
Page 75 of 244
III
73
Unfolding the key
)
First press button A
to unfold the
key.
Unlocking the vehicle
)
Press the open padlock to
unlock the vehicle.
Unlocking using the remote control
REMOTE CONTROL KEY
System which permits central unlock-
ing or locking of the vehicle using the
lock or from a distance. It also folds and
unfolds the mirrors, closes the electric
windows and starts the vehicle, as well
as providing protection against theft.
Locking the vehicle
Unlocking using the key
)
Turn the key to the right in the driver's
door
lock to unlock the vehicle.
)
Press the closed padlock
to lock the vehicle.
If one of the doors or the tailgate is
still open, the central locking will not
take place. Unlocking is confi rmed by the interior
lighting which comes on for approxi-
mately 15 seconds and the direction
indicators which fl ash twice
.
If you press the open padlock twice in
succession
within 30 seconds after
unlocking the vehicle, the door mirrors
unfold.
Normal locking using the key
)
Turn the key to the left in the driver's
door
lock to lock the vehicle. Locking is confi rmed by the direction in-
dicators which come on once
.
If you press the closed padlock twice
in succession
within 30 seconds af-
ter locking the vehicle, the door mirrors
fold.
An extended press
on the closed pad-
lock within 30 seconds after locking the
vehicle closes the windows automati-
cally.
Normal locking using the remote
control
Page 78 of 244
III
!
ACCESS
76
Do not throw the remote control batteries away, they contain metals which are harmful to the environment.
Take them to an approved collection point.
Keys
Make a careful note of the number of each key. This number is coded on the label attached to the key.
If the keys are lost, a CITROËN dealer can supply you with new keys.
Remote control
The high frequency remote control is a sensitive system; do not operate it while it is in your pocket as there is a possibility
that it may unlock the vehicle, without you being aware of it.
Do not repeatedly press the buttons of your remote control out of range and out of sight of your vehicle. You run the risk
of stopping it from working.
The remote control does not operate when the key is in the ignition, even when the ignition is switched off.
Locking the vehicle
Driving with the doors locked may make access to the passenger compartment by the emergency services more diffi cult
in an emergency.
As a safety precaution (with children on board), remove the key from the ignition when you leave the vehicle, even for a
short time.
Anti-theft protection
Do not make any modifi cations to the electronic engine immobiliser system, this could cause malfunctions.
When purchasing a second-hand vehicle
Have the key codes memorised by a CITROËN dealer, to ensure that the keys in your possession are the only ones which
can start the vehicle.
Page 81 of 244
III
ACCESS
79

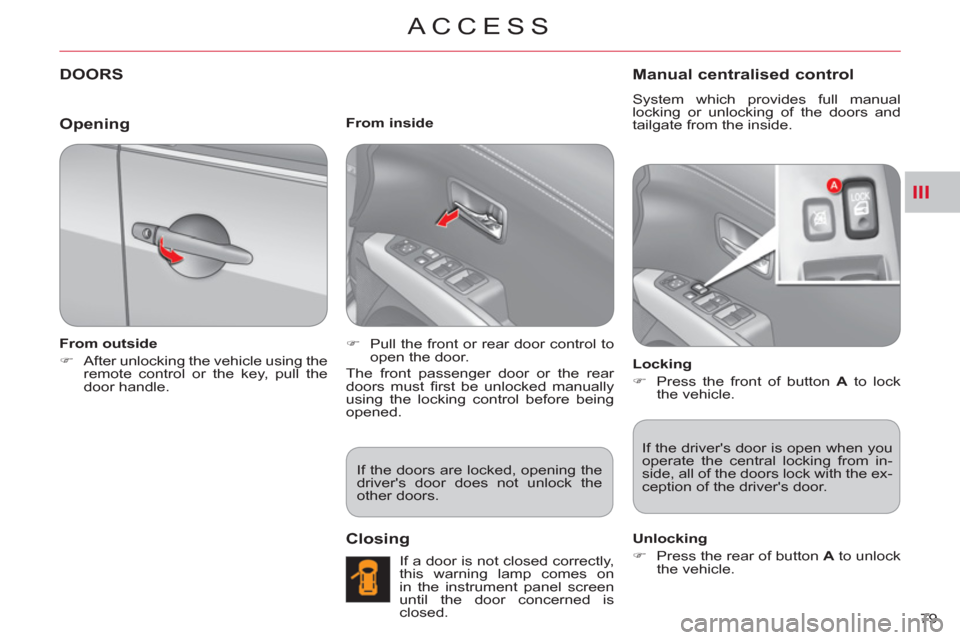

DOORS
From outside
)
After unlocking the vehicle using the
remote control or the key, pull the
door handle.
From inside
)
Pull the front or rear door control to
open the door.
The front passenger door or the rear
doors must fi rst be unlocked manually
using the locking control before being
opened.
Closing
If a door is not closed correctly,
this warning lamp comes on
in the instrument panel screen
until the door concerned is
closed.
Manual centralised control
System which provides full manual
locking or unlocking of the doors and
tailgate from the inside.
Locking
)
Press the front of button A
to lock
the vehicle.
If the driver's door is open when you
operate the central locking from in-
side, all of the doors lock with the ex-
ception of the driver's door.
Unlocking
)
Press the rear of button A
to unlock
the vehicle.
Opening
If the doors are locked, opening the
driver's door does not unlock the
other doors.
Page 82 of 244
III
ACCESS
80
Opening
)
After unlocking the vehicle using the
remote control or the key, press the
handle A
and raise the tailgate.
TAILGATE
Closin
g
)
Pull the handle B
downwards to
guide the tailgate,
)
release the handle and press the ex-
terior surface of the tailgate gently to
close it.
Emergency control
System which locks or unlocks mechan-
ically the driver's door only in the event
of a malfunction of the central locking.
Locking the driver's door
)
Insert the key in the lock, then turn it
to the left.
Unlocking the driver's door
)
Insert the key in the lock, then turn it
to the right.
Unlocking the front and rear doors
(from inside)
)
Tilt the interior control B
rearwards.
Using the key
Locking the front passenger door
and the rear doors (from inside)
)
Tilt the interior control B
forwards.
The other doors are not unlocked.
