2011 Citroen C CROSSER headlamp

2
CONTENTS
Ventilation 44Automatic air conditioning 46Front seats 50Rear seats 53Rear bench seat 58Mirrors 61Steering wheel adjustment 63Front fi ttings 64Rear fi ttings 69Boot fi ttings 70
„„„„„„„„„„
II - COMFORT 44 Î72
Remote control key 73Electric windows 77Doors 79Tailgate 80Lower tailgate 81Sunroof 82Fuel tank 84
„„„„„„„
III - ACCESS 73 Î 85
Lighting stalk 86Daytime running lamps 88Automatic illumination of
headlamps 88Headlamp adjustment 89Wiper controls 90Automatic rain sensitive wipers 91Courtesy lamps 92
„„„
„„„„
IV - VISIBILITY 86 Î 93
Child seats 94ISOFIX mountings 98Child lock 101
„„„
V - CHILD SAFETY 94 Î 101
Direction indicators 102Hazard warning lamps 102Horn 102Braking assistance systems 103Trajectory control systems 104Front seat belts 105Airbags 108
„„„„„„„
VI - SAFETY 102Î111
Instrument panel 21Warning lamps 22Instrument panel displays 25Information in the instrument
panel screen 31Distance recorders 32Service indicator 33Trip computer 34Setting menu 35Monochrome screen 39Colour screen 41Lighting rheostat 43
„„„„
„„„„„„„
FAMILIARISATION 4Î 20
I - MONITORING 21 Î 43

9
FAMILIARI
S
AT I
ON

INSTRUMENTS AND CONTROLS
1.
Audio system controls.
2.
Telephone controls.
3.
Steering wheel adjustment control.
4.
Front and rear wipers/screenwash control stalk.
5
. Instrument panel.
6
. Driver’s airbag.
H
orn.
7. Cruise control switches.
8.
Gear lever.
9.
Parking brake.
10.
Bonnet release lever.
11.Enclosed storage compartment.
12.
Headlamp height adjustment.
Deactivation of the ASC s
ystem.
Deactivation of the audible parkin
gsensors.
13. Cup holder.
14.
Side adjustable air vent.
15.
Information button.
16.
Window demisting/defrosting vent.
17.
Windscreen demisting/defrostingvent.

10
FAMILIARI
S
AT I
ON

INSTRUMENTS AND CONTROLS
1.
Steering lock and ignition.
2.
Door mirror controls.
Electric window and rear electric
window deactivation controls.
3. Lighting and direction indicator control stalk. Headlamp wash control.
4.
Central adjustable air vents.
5
. Sunshine sensor.
6
. Cooled upper glove box.
7
. Lockable lower glove box.
Passenger’s airbag deactivation.
F
usebox.
8. Heated seat controls.
9.
Armrest with storage compartments.
12 volt socket
(120 W max).
10. Cup holder.
11.Four wheel drive system position selector.
12.
Removable ashtray/
12 volt socket
(120 W max).
13. Automatic air conditioning controls.
14.
Temperature sensor.
15.
Hazard warning lamps switch.
16.
Colour screen/Audio system.

14
FAMILIARI
S
AT I
ON
SEEING CLEARLY

Li
ghting


Ring A

Ring B
Windscreen wipers
Wipers


Rear wiper
Front
foglamps and rear foglamps.
86

90
91

Li
ghting off.
A
utomatic illumination of headlamps.
Sidelamps.
Di
pped or main beam head-
lamps. Sin
gle wipe.
P
ark.
Intermittent
(speed adjustable manually).
Slow.
F
ast. P
ark.
Intermittent wipe.
Wiping with screen wash.
or
A
utomatic rain sensitive (speed adjustable manually).

19
ECO-DRIVING
Eco-driving is a range of everyday practices that allow the motorist to optimise their fuel consumption and CO2emis-sions.
Optimise the use of your gearbox
With a manual gearbox, move off gen-tly, change up without waiting and drive by changing up quite soon. If your vehicle has the system, the gear shift indicator invites you to change up; it is displayed in the instrument panel, follow its instructions.
With an automatic or electronic gearbox, stay in Drive "D"
or Auto "A", according to the type of gearbox, without pressing the accelerator pedal heavily or sud-denly.
Drive smoothly
Maintain a safe distance between ve-hicles, use engine braking rather than the brake pedal, and press the accel-erator progressively. These practices contribute towards a reduction in fuel consumption and CO2 emissions and also helps reduce the background traf-22
fi c noise.
If your vehicle has cruise control, make use of the system at speeds above 25 mph (40 km/h) when the traffi c is fl owing well.



Control the use of your electrical equipment


Before moving off, if the passenger compartment is too warm, ventilate itby opening the windows and air ventsbefore using the air conditioning.
Above 30 mph (50 km/h), close thewindows and leave the air ventsopen.

Remember to make use of equipmentthat can help keep the temperaturein the passenger compartment down(sun roof and window blinds...).

Switch off the air conditioning, unlessit has automatic digital regulation, assoon as the desired temperature is at-tained.
Switch off the demisting and defrost-ing controls, if not automatic.
Switch off the heated seat as soon aspossible.


Switch off the headlamps and frontfoglamps when the level of light doesnot require their use.

Avoid running the engine before mov-ing off, particularly in winter; your ve-hicle will warm up much faster whiledriving.

As a passenger, if you avoid connect-ing your multimedia devices (fi lm, mu-sic, video game...), you will contributetowards limiting the consumption of electrical energy, and so of fuel.
Disconnect your portable devices be-fore leaving the vehicle.

I
22
INSTRUMENT PANEL WARNING LAMPS


Warning lamp



is on



Cause



Actions/

Observations



Left-hand
direction
indicator
Flashing
with
audible
warning This fl ashes when you
press the lighting stalk
down. If this indicator lamp fl ashes abnormally quickly, this
could indicate that the bulb of one of the direction
indicators has blown. Change the bulb or contact a
CITROËN dealer or a qualifi ed workshop.

Right-hand
direction
indicator
Flashing
with
audible
warning This fl ashes when you
push the lighting stalk up. If this indicator lamp fl ashes abnormally quickly, this
could indicate that the bulb of one of the direction
indicators has blown. Change the bulb or contact a
CITROËN dealer or a qualifi ed workshop.

Main beam
headlamps
Fixed This comes on when
you pull the lighting stalk
towards you. Pull the stalk to return to dipped beam
headlamps.

Sidelamps
Fixed This comes on when the
lighting stalk is in the
"Sidelamps" or "Dipped
beam headlamps"
position. Turn the stalk to the desired position.

Front foglamps
Fixed This comes on when you
use the front foglamps. Turn the ring on the stalk forwards to switch on
the foglamps.

Rear foglamps
Fixed This comes on when you
use the rear foglamps. Turn the ring on the stalk forwards to switch on
the foglamps.

Cruise control
Fixed This comes on when the
mode is active. Press the "ON/OFF" button to activate/
deactivate the mode.

I
MONITORING
28

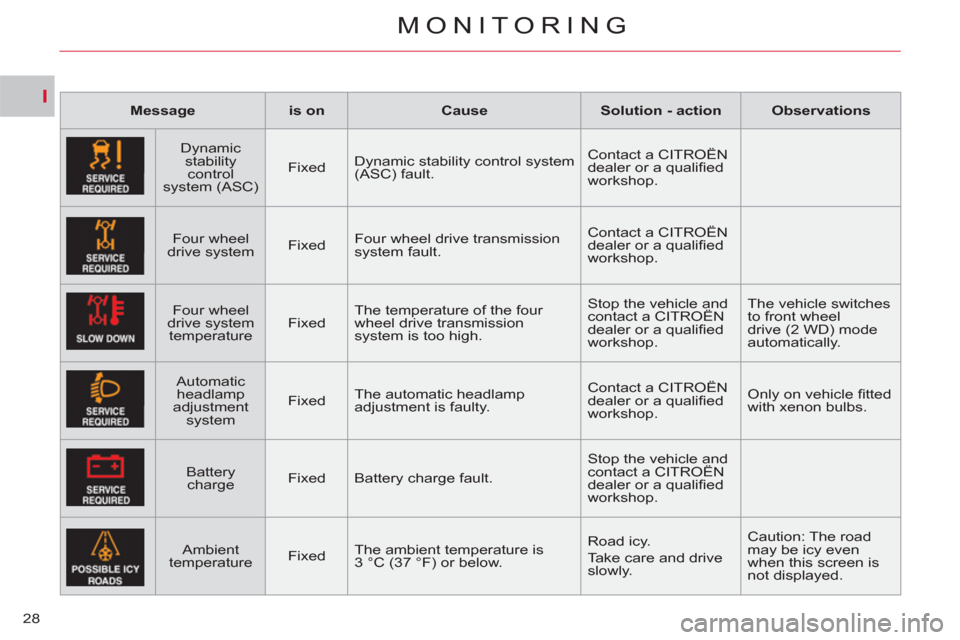

Message



is on



Cause



Solution - action



Observations



Dynamic
stability
control
system (ASC)
Fixed Dynamic stability control system
(ASC) fault. Contact a CITROËN
dealer or a qualifi ed
workshop.

Four wheel
drive system
Fixed Four wheel drive transmission
system fault. Contact a CITROËN
dealer or a qualifi ed
workshop.

Four wheel
drive system
temperature
Fixed The temperature of the four
wheel drive transmission
system is too high. Stop the vehicle and
contact a CITROËN
dealer or a qualifi ed
workshop. The vehicle switches
to front wheel
drive (2 WD) mode
automatically.

Automatic
headlamp
adjustment
system
Fixed The automatic headlamp
adjustment is faulty. Contact a CITROËN
dealer or a qualifi ed
workshop. Only on vehicle fi tted
with xenon bulbs.

Battery
charge
Fixed Battery charge fault. Stop the vehicle and
contact a CITROËN
dealer or a qualifi ed
workshop.

Ambient
temperature
Fixed The ambient temperature is
3 °C (37 °F) or below. Road icy.
Take care and drive
slowly. Caution: The road
may be icy even
when this screen is
not displayed.

II
COMFORT
62
REAR VIEW MIRROR

Adjust the mirror by moving it up or
down and/or to the left or right.
The rear view mirror has two positions:


- day (normal),

- night (anti-dazzle).
To change from one to the other, push
or pull the lever on the lower edge of
the mirror.

AUTOMATIC REAR VIEW
MIRROR *
AUTOMATIC REAR VIEW
MIRROR WITH REVERSING
CAMERA*


This automatically and gradually chang-
es between the day and night positions.
To prevent dazzling, the glass of the
mirror darkens automatically depend-
ing on the intensity of the light from be-
hind. It clears as the light (headlamps of
following vehicles, sunlight) decreases,
ensuring maximum visibility.
You can deactivate automatic mode by
pressing the " AUTO
" button.
Combined with a camera fi tted at the
rear of the vehicle, this mirror allows the
driver to see what there is behind the
vehicle when reversing.
With reverse engaged, is screen is dis-
played automatically in the mirror glass.
A warning message appears suggesting
that you check around your vehicle.
The screen disappears when another
gear is engaged.
You can deactivate automatic mode by
pressing the " AUTO
" button.

*
According to country of sale.
