2011 CHEVROLET VOLT key

Black plate (21,1)Chevrolet Volt Owner Manual - 2011
Infotainment System 7-21
Playing an Audio and
Video DVD
To view the DVD video, the vehicle
must be in P (Park) or the parking
brake must be engaged.
After the DVD is loaded, the menu
options display on the DVD screen.
The menu options time out and
a full screen appears after about
10 seconds. Press anywhere on
the navigation system screen or
press the FAV, HDD/DVD/AUX,
or
}BACK button to view the
menu screen again.
Use the preset keys or press screen
buttons to operate the DVD options. There are two pages of DVD
options. Press the arrow screen
button, in the bottom right corner
of the screen, to access the other
page. Only the highlighted functions
are available for use. Some menu
options are only available when the
disc is not playing.
DVD Options
Full Screen:
1. Press to hide the DVD options
and display the full video image.
2. Press anywhere on the navigation system screen or
press the FAV, HDD/DVD/AUX,
or
}BACK button to display the
source screen buttons over the
video image.
Cursor: Press this button
to access the Cursor menu.
The arrows and other cursor
options allow navigation of the
DVD menu options. The Cursor
menu options are only available
if a DVD has a menu.
q,Q,r,R(Arrow Buttons):
Use these arrow screen buttons to
navigate through the DVD menu.
k(Play/Pause): Use to start,
pause, or resume play.
SEEK
[:
1. Press to seek to the next chapter.
2. Press more than once to continue moving forward through
the disc.
3. Press and hold to fast forward through a disc. When fast
forward is active, press again
to change the speed. Elapsed
time displays.
4. Press
kto resume playing.

Black plate (22,1)Chevrolet Volt Owner Manual - 2011
7-22 Infotainment System
rSEEK:
1. Press to seek to the beginning of the current or previous chapter.
If the chapter has played for
less than five seconds, it goes
to the previous chapter. If the
chapter has played longer than
five seconds, the current chapter
is restarted. More than one
press continues moving back
through the disc.
2. Press and hold to fast reverse through a disc. When fast
reverse is active, press again
to change the speed. Elapsed
time displays.
3. Press
kto resume playing.
TUNE/MENU: Press
rSEEK/
SEEK
[to go to the next or
previous chapter. You can also
change chapters by turning the
TUNE/MENU knob after touching
the screen. Stop:
1. Press on the display screen
to show the available buttons.
Press the stop button to stop
the DVD.
2. To resume playing the DVD from where it stopped, press
k.
3. Press
ktwice to start the DVD
from the beginning.
Z(Shuffle):
1. Press to play the tracks randomly rather than in
sequence.
2. Press again to play sequentially. This button is available for DVD
audio discs.
Top Menu: Press to display the
first menu of the DVD. Availability
of this feature is dependent on
the DVD. Menu:
Press to display the menu
for the part of the DVD currently
playing. Availability of this feature
is dependent on the DVD and is
not available for audio DVDs.
Keypad: Press to display and
search through the chapter, track,
or menu number screen. On the
keypad, enter the title/chapter
number or the group/track number.
Search: Press to perform a title
search.
Angle: Press to adjust the viewing
angle of the DVD, depending on
the DVD, while the DVD is playing.
Continue pressing to cycle through
the viewing angles.
Audio: Press to change the audio
stream and the audio language
heard, while the DVD is playing.
Continue pressing to cycle through
the available audio streams or
languages, depending on the DVD.

Black plate (42,1)Chevrolet Volt Owner Manual - 2011
7-42 Infotainment System
Touch Screen Buttons
Touch screen buttons are on the
screen and are highlighted when a
feature is available. Some screen
buttons highlight when active and
grey out when inactive.
Alpha-Numeric Keyboard
Letters of the alphabet, symbols,
punctuation, and numbers, when
available, display on the navigation
screen as an alpha or numeric
keyboard. The alpha keyboard
displays when data needs to be
entered.
All characters are touch screen
buttons. Touch to select.
À-Ý (Accent Alphabet):To select
letters with accent symbols. A-Z (Alphabet):
To select letters
from the alphabet.
Symbols: To select symbols.
U(Space):To enter a space
between characters or the words
of a name.
q(Backspace): To delete an
incorrect character that has been
selected.
To make name selection easier,
the system highlights only
characters that are available after
the previously entered one.
If a name does not display after
entry, try entering it differently.
The map database may not contain
all information.
Navigation Settings
The Config Menu screen accesses
the navigation system settings.
To access:
1. Press the CONFIG button to display the Setup menu.
2. Turn the TUNE/MENU knob to scroll through the available
setup features. Press the TUNE/
MENU knob or press the Nav
screen button to display other
options within that feature.
3. Select the navigation setting to change.

Black plate (56,1)Chevrolet Volt Owner Manual - 2011
7-56 Infotainment System
3. Select the destination fromthe list.
4. Press Go on the confirmation screen if the information is
correct. The route calculates.
5. Select the route preference for Fastest, Shortest, or Easiest.
See “Entering an Address and
Point of Interest, and Storing
Preset Destinations” under
Overview on page 7‑3 for
more information.
6. Press the Start Guidance screen button and start the route.
Pick From Map
Select a destination by scrolling on
the map.
1. Press the DEST button.
2. Press the Pick From Map screenbutton. A map screen with a
scroll symbol displays. 3. Press the Zoom in/out arrow
key on the screen and press the
map to locate the destination to
select. Press and hold a finger
on the map to activate fast
scrolling.
4. Press Go on the confirmation screen if the information is
correct. The route calculates.
5. Select the route preference for Fastest, Shortest, or Easiest.
See “Entering an Address and
Point of Interest, and Storing
Preset Destinations” under
Overview on page 7‑3 for
more information.
6. Press the Start Guidance screen button and start the route.
Lat/Long Coordinates
Choose a destination based
on latitudinal and longitudinal
coordinates.
Enter the location as coordinates,
latitude and longitude.
1. Press the DEST button.
2. Press the Lat/Long screenbutton.

Black plate (61,1)Chevrolet Volt Owner Manual - 2011
Infotainment System 7-61
5. Press Change Icon.
6. Select an icon from the list.
7. Press the OK screen button tosave the changes.
To edit the name of an
address book:
1. Press the DEST button.
2. Press the Address Book screen button. A list displays
the address book entries.
3. Select the address book entry to be changed.
4. Press Edit, located on the bottom of the screen. 5. Press the Change Name option.
6. Use the alpha keyboard to enter
the name.
7. Press the OK screen button to save the changes.
To add or change the phone number
of an address book entry:
1. Press the DEST button.
2. Press the Address Book screen button. A list of address book
entries displays.
3. Select the address book entry to be changed.
4. Press Edit, located on the bottom of the screen.
5. Press the Change Phone Number option.
6. Use the numeric keyboard to enter or change the phone
number.
7. Press the OK screen button to save the changes. To add a voice tag to an address
book entry:
1. Press the DEST button.
2. Press the Address Book screen
button. A list displays the
address book entries.
3. Select the address book entry to be changed.
4. Press Edit, located on the bottom of the screen.
5. Press the Add Voice Tag screen button.
6. Speak the name after the beep and within four seconds.
The name is repeated back.
To delete an address book entry:
1. Press the DEST button.
2. Press the Address Book screen button. A list displays the
address book entries.

Black plate (62,1)Chevrolet Volt Owner Manual - 2011
7-62 Infotainment System
3. Select the address book entry tobe deleted.
4. Press the Delete Entry screen button. A confirmation message
displays.
To add a preset destination from the
address book:
1. Press the DEST button.
2. Press the Address Book screen button.
3. Select the address book entry to add as a preset. The Address
Book Information screen
displays.
4. Press Edit, located on the bottom of the screen.
5. Press and hold one of the six screen buttons at the bottom
of the screen until the text within
the button changes.
6. The name appears in that preset destination screen button and
can be selected from the Select
Destination screen.Favorite Route
1. After the route has beenplanned, press the NAV button
until the full map screen is
shown.
2. Press the TUNE/MENU knob. A menu displays.
3. Scroll down and select Whole Route. The whole route map
screen displays.
4. Press the Add Route screen button. The route is stored as
a favorite.
To change the route name, add a
voice tag, or delete a favorite route:
1. Press the DEST button.
2. Press the Fav Route screen button.
3. Select the route.
4. Press Edit, located on the bottom of the screen.
5. Select from: Change Route Name, Add Voice Tag, or Delete
Favorite Route. To change the route name:
1. Select Change Route Name.
2. Using the keypad, enter
the name.
3. Select the Favorite Route entry to be edited.
4. Press the OK screen button. The new name will be in the
Favorite Route Menu.
To add a voice tag:
1. Press the Add Voice Tag screen button.
2. Speak the name after the beep within four seconds. The name is
repeated back.
To delete a favorite route:
1. Press Delete Favorite Route. The confirmation screen
displays.
2. Press the Yes screen button to delete the route or press No to
cancel from deleting the route.

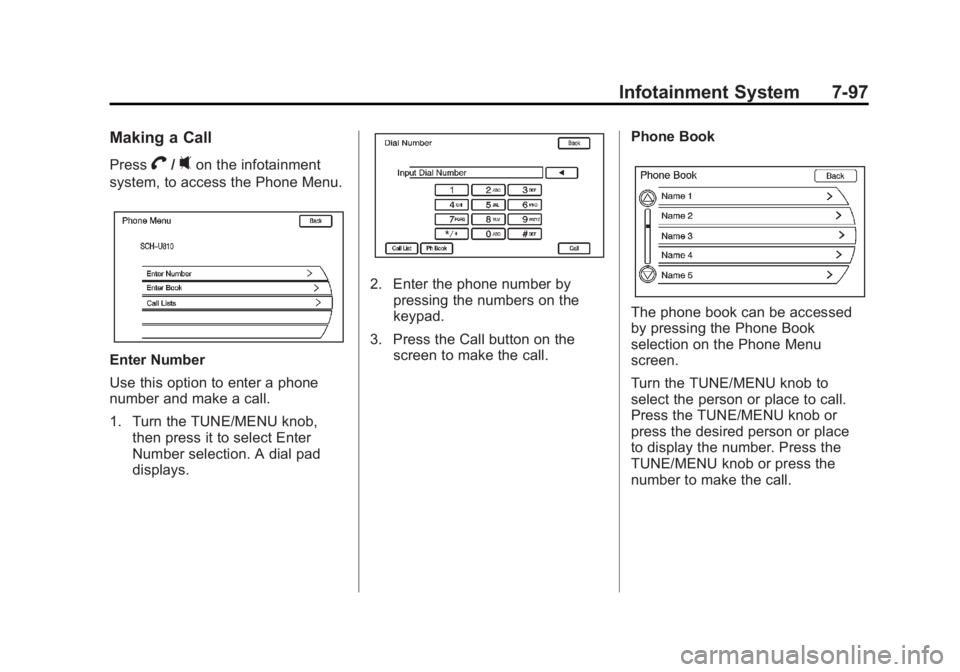

Black plate (97,1)Chevrolet Volt Owner Manual - 2011
Infotainment System 7-97
Making a Call
PressV/0on the infotainment
system, to access the Phone Menu.
Enter Number
Use this option to enter a phone
number and make a call.
1. Turn the TUNE/MENU knob, then press it to select Enter
Number selection. A dial pad
displays.
2. Enter the phone number bypressing the numbers on the
keypad.
3. Press the Call button on the screen to make the call. Phone Book
The phone book can be accessed
by pressing the Phone Book
selection on the Phone Menu
screen.
Turn the TUNE/MENU knob to
select the person or place to call.
Press the TUNE/MENU knob or
press the desired person or place
to display the number. Press the
TUNE/MENU knob or press the
number to make the call.

Black plate (8,1)Chevrolet Volt Owner Manual - 2011
8-8 Climate Controls
Rear Window Defogger
=(Rear Window Defogger):
Press to turn the rear window
defogger on or off.
The rear window defogger
turns off automatically after about
five minutes. If turned on again,
it runs for about five minutes
before turning off. The defogger
can also be turned off by turning
the vehicle off.
For vehicles with heated outside
rearview mirrors, they turn on when
the rear window defogger button
is on and help to clear fog or frost
from the surface of the mirror.
See Heated Mirrors on page 2‑16. Notice:
Do not try to clear frost
or other material from the inside
of the front windshield and rear
window with a razor blade or
anything else that is sharp.
This may damage the rear
window defogger grid and affect
the radio's ability to pick up
stations clearly. The repairs
wouldn't be covered by the
vehicle warranty.
Remote Start: For vehicles with
this feature, the climate control
system may be started by using
the Remote Keyless Entry (RKE)
transmitter. The climate control
system will default to an appropriate
heating or cooling mode.
See Remote Start on page 2‑8.
The rear window defogger turns on
if it is cold outside.
Compressor
The vehicle has an electric powered
air conditioning compressor.
This allows for continuous air
conditioning and/or high voltage
battery cooling operation, without
running the engine.
The compressor operating speed
is not tied to the engine speed, so
some noise may be heard from the
compressor, especially when air
conditioning use is high and the
engine has turned off. This is
normal.
