2011 CHEVROLET MALIBU Owners Manual

Black plate (9,1)Chevrolet Malibu Owner Manual - 2011
Service and Maintenance 11-9
Maintenance Records
After the scheduled services are performed, record the date, odometer reading, who performed the service, and the
type of services performed in the boxes provided. Retain all maintenance receipts.
Maintenance Record
DateOdometer
Reading Serviced By Services Performed

Black plate (10,1)Chevrolet Malibu Owner Manual - 2011
11-10 Service and Maintenance

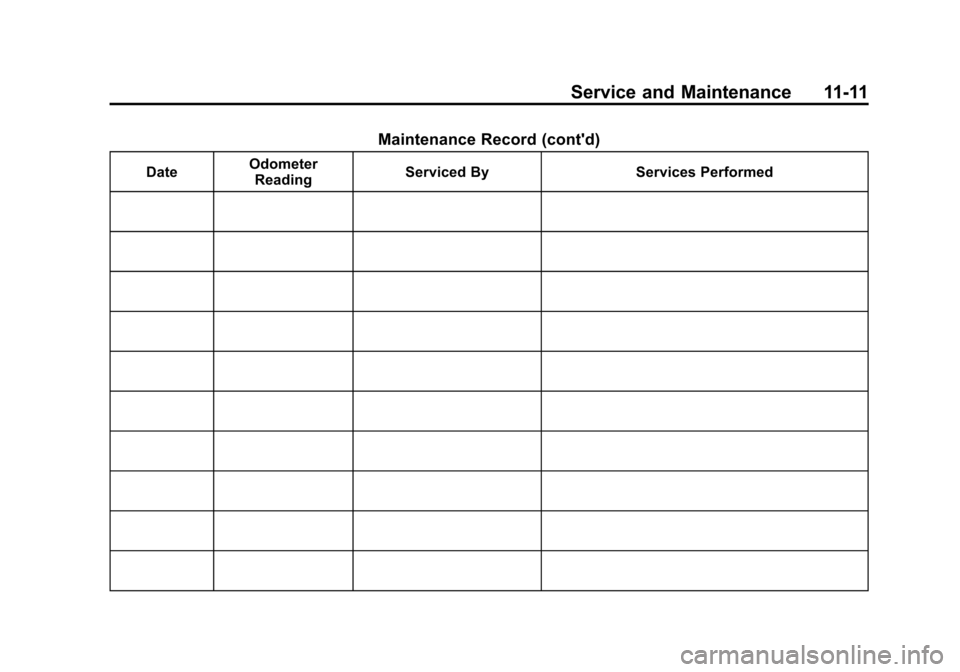

Maintenance Record (cont'd)
DateOdometer
Reading Serviced By Services Performed

Black plate (11,1)Chevrolet Malibu Owner Manual - 2011
Service and Maintenance 11-11

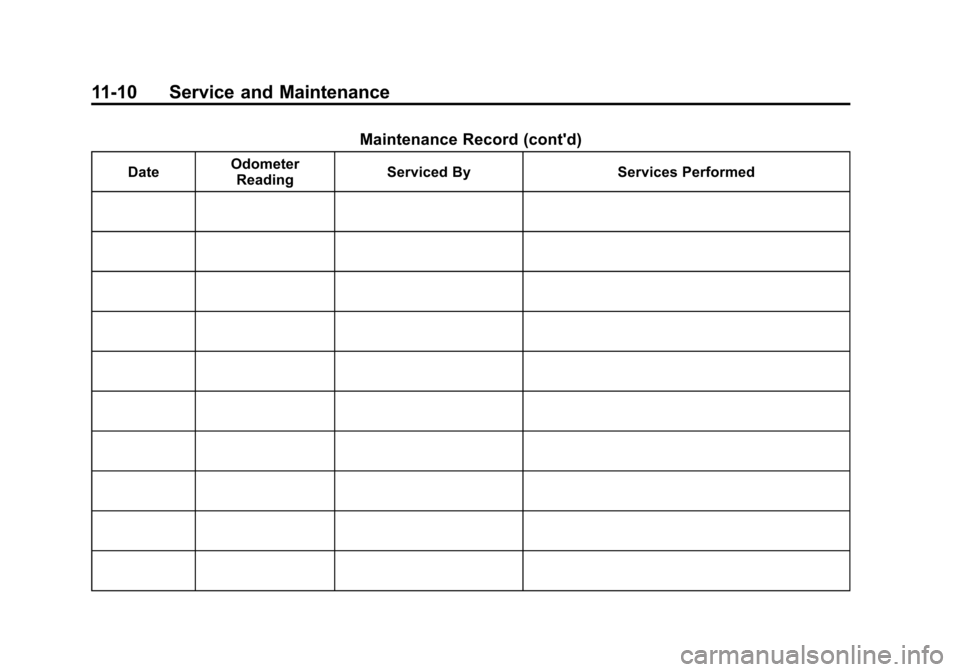

Maintenance Record (cont'd)
DateOdometer
Reading Serviced By Services Performed

Black plate (12,1)Chevrolet Malibu Owner Manual - 2011
11-12 Service and Maintenance
Maintenance Record (cont'd)
DateOdometer
Reading Serviced By Services Performed

Black plate (1,1)Chevrolet Malibu Owner Manual - 2011
Technical Data 12-1
Technical Data
Vehicle Identification
Vehicle IdentificationNumber (VIN) . . . . . . . . . . . . . . 12-1
Service Parts Identification Label . . . . . . . . . . . . . . . . . . . . . . . 12-1
Vehicle Data
Capacities andSpecifications . . . . . . . . . . . . . . 12-2
Engine Drive Belt Routing . . . 12-4
Vehicle Identification
Vehicle Identification
Number (VIN)
This legal identifier is in the front
corner of the instrument panel, on
the left side of the vehicle. It can be
seen through the windshield from
outside. The VIN also appears on
the Vehicle Certification and Service
Parts labels and certificates of title
and registration.
Engine Identification
The eighth character in the VIN is
the engine code. This code
identifies the vehicle's engine,
specifications, and replacement
parts. See “Engine Specifications”
under Capacities and Specifications
on page 12‑2for the vehicle's
engine code.
Service Parts
Identification Label
This label, on the inside of the glove
box, has the following information:
.Vehicle Identification
Number (VIN)
.Model designation
.Paint information
.Production options and special
equipment
Do not remove this label from the
vehicle.

Black plate (2,1)Chevrolet Malibu Owner Manual - 2011
12-2 Technical Data
Vehicle Data
Capacities and Specifications
ApplicationCapacities
Metric English
Air Conditioning Refrigerant R134a For the air conditioning system refrigerant charge
amount, see the refrigerant label located under the hood. See your dealer for more information.
Engine Cooling System 2.4L L4 Engine 7.1 L 7.5 qt
3.6L V6 Engines 9.4 L 9.9 qt
Engine Oil with Filter
2.4L L4 Engine 4.7 L 5.0 qt
3.6L V6 Engine 5.2 L 5.5 qt
Fuel Tank 61.7 L 16.3 gal

Black plate (3,1)Chevrolet Malibu Owner Manual - 2011
Technical Data 12-3
ApplicationCapacities
Metric English
Transmission Fluid*
6— Speed Automatic Transmission X23F —(Drain and
Refill) 5.0 L 5.3 qt
6 — Speed Automatic Transmission 6T70 —(Drain and
Refill) 6.0 L 6.3 qt
Wheel Nut Torque 140 Y100 ft lb
*See Automatic Transmission Fluid
on page 10‑13for information on checking fluid level.
All capacities are approximate. When adding, be sure to fill to the approximate level, as recommended in this
manual. Recheck fluid level after filling.

Black plate (4,1)Chevrolet Malibu Owner Manual - 2011
12-4 Technical Data
Engine Specifications
EngineVIN CodeTransmission Spark Plug Gap
2.4L L4 Engine UAutomatic 1.01 mm (0.040 in)
2.4L L4 Engine 1Automatic 1.01 mm (0.040 in)
3.6L V6 Engine 7Automatic 1.10 mm (0.044 in)
Engine Drive Belt Routing
2.4L L4 Engine
3.6L V6 Engine
