2011 CHEVROLET CRUZE Owners Manual

Black plate (3,1)Chevrolet Cruze Owner Manual - 2011
In Brief 1-3
A.Exterior Lamp Controls on
page 6‑1.
Front Fog Lamps on page 6‑4
(If Equipped).
Instrument Panel Illumination
Control on page 6‑5.
B. Air Vents on page 8‑6.
C. Headlamps High-Low Beam. See Headlamps High-Low
Beam on page 6‑2.
Turn and Lane‐Change Lever.
See Turn and Lane-Change
Signals on page 6‑4.
Driver Information Center (DIC)
Buttons. See Driver Information
Center (DIC) on page 5‑24.
D. Instrument Cluster on page 5‑8.
E. Horn on page 5‑3.
F. Driver Information Center (DIC)
on page 5‑24.
G. Steering Wheel Controls on
page 5‑2. H.
Windshield Wiper/Washer on
page 5‑3.
I. Infotainment on page 7‑1.
Satellite Radio on page 7‑13
(If Equipped).
J. Infotainment Display Screen.
K. Light Sensor. See Automatic
Headlamp System on page 6‑3.
L. Passenger Airbag. See Where
Are the Airbags? on page 3‑27.
M. Hood Release. See Hood on
page 10‑4.
N. Data Link Connector (DLC). See Malfunction Indicator Lamp
on page 5‑13.
O. Instrument Panel Fuse Block on
page 10‑41.
P. Cruise Control on page 9‑36. Q.
Steering Wheel Adjustment on
page 5‑2.
R. Driver Airbag. See Where Are
the Airbags? on page 3‑27.
S. Ignition Switch. See Ignition
Positions on page 9‑18.
T. Driver Knee Airbag. See Where
Are the Airbags? on page 3‑27.
U. Power Door Locks on page 2‑7.
V. Hazard Warning Flashers on
page 6‑3.
W. Shift Lever. See Automatic
Transmission on page 9‑26 or
Manual Transmission on
page 9‑29.
X. Traction Control System (TCS)
on page 9‑33.
StabiliTrak
®System on
page 9‑34.

Black plate (4,1)Chevrolet Cruze Owner Manual - 2011
1-4 In Brief
Y.Climate Control Systems on
page 8‑1 (If Equipped).
Automatic Climate Control
System on page 8‑3 (If
Equipped).
Heated Front Seats on page 3‑7
(If Equipped).
Z. Passenger Airbag Status
Indicator on page 5‑12.
AA. Glove Box on page 4‑1.
AB. Passenger Knee Airbag. See Where Are the Airbags? on

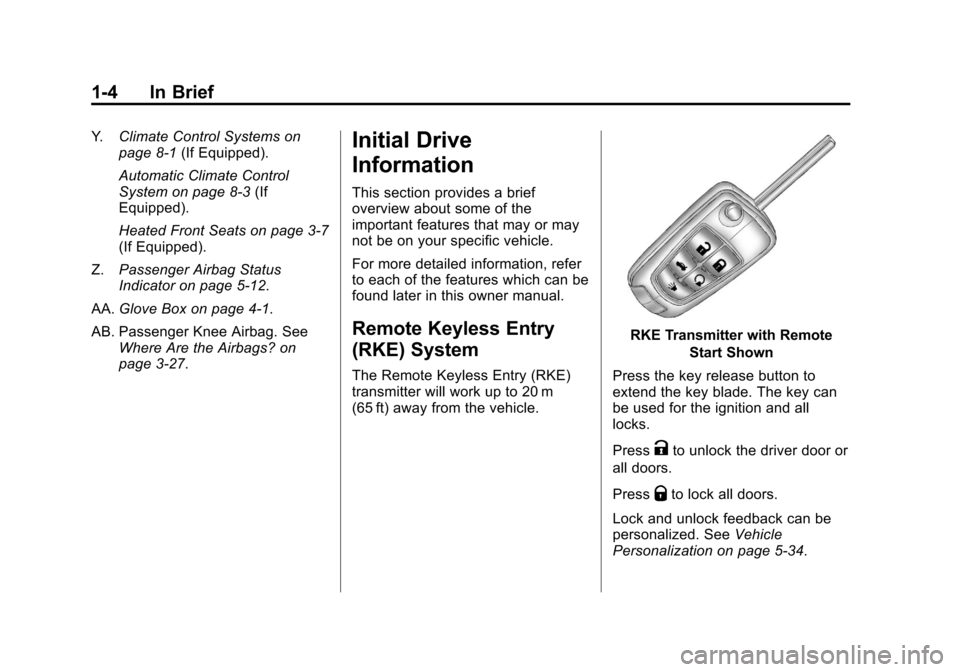

page 3‑27.Initial Drive
Information
This section provides a brief
overview about some of the
important features that may or may
not be on your specific vehicle.
For more detailed information, refer
to each of the features which can be
found later in this owner manual.
Remote Keyless Entry
(RKE) System
The Remote Keyless Entry (RKE)
transmitter will work up to 20 m
(65 ft) away from the vehicle.
RKE Transmitter with Remote
Start Shown
Press the key release button to
extend the key blade. The key can
be used for the ignition and all
locks.
Press
Kto unlock the driver door or
all doors.
Press
Qto lock all doors.
Lock and unlock feedback can be
personalized. See Vehicle
Personalization on page 5‑34.

Black plate (5,1)Chevrolet Cruze Owner Manual - 2011
In Brief 1-5
Press and holdVbriefly to open
the trunk.
Press and hold
7briefly to locate
the vehicle.
Press and hold
7for at least
two seconds to sound the panic
alarm.
Press
7again to cancel the panic
alarm.
See Keys on page 2‑2 andRemote
Keyless Entry (RKE) System
Operation on page 2‑3.
Remote Vehicle Start
For vehicles with this feature, the
engine can be started from outside
of the vehicle.
Starting the Vehicle
1. Aim the Remote Keyless Entry transmitter at the vehicle.
2. Press
Q. 3. Immediately after completing
Step 2, press and hold
/until
the turn signal lamps flash, or for
about 2 seconds if the vehicle is
not in view.
When the vehicle starts, the parking
lamps will turn on and remain on as
long as the engine is running. The
doors will be locked and the climate
control system may come on.
The engine will continue to run for
10 minutes. Repeat the steps for a
10-minute time extension. Remote
start can be extended only once.
Canceling a Remote Start
To cancel a remote start:
.Aim the RKE transmitter at the
vehicle and press and hold
/
until the parking lamps turn off.
.Turn on the hazard warning
flashers.
.Turn the vehicle on and then off.
See Remote Vehicle Start on
page 2‑5.
Door Locks
To lock or unlock a door from
outside the vehicle, use the Remote
Keyless Entry (RKE) transmitter.
From inside the vehicle, use the
power door lock switch.
See Door Locks on page 2‑6.
Power Door Locks
The power door lock switches are
located on the instrument panel.
K:Press to unlock the doors.
Q:Press to lock the doors.
See Power Door Locks on page 2‑7.
Safety Locks
Safety locks will lock the rear
windows and not allow the rear
doors to be opened from the inside.

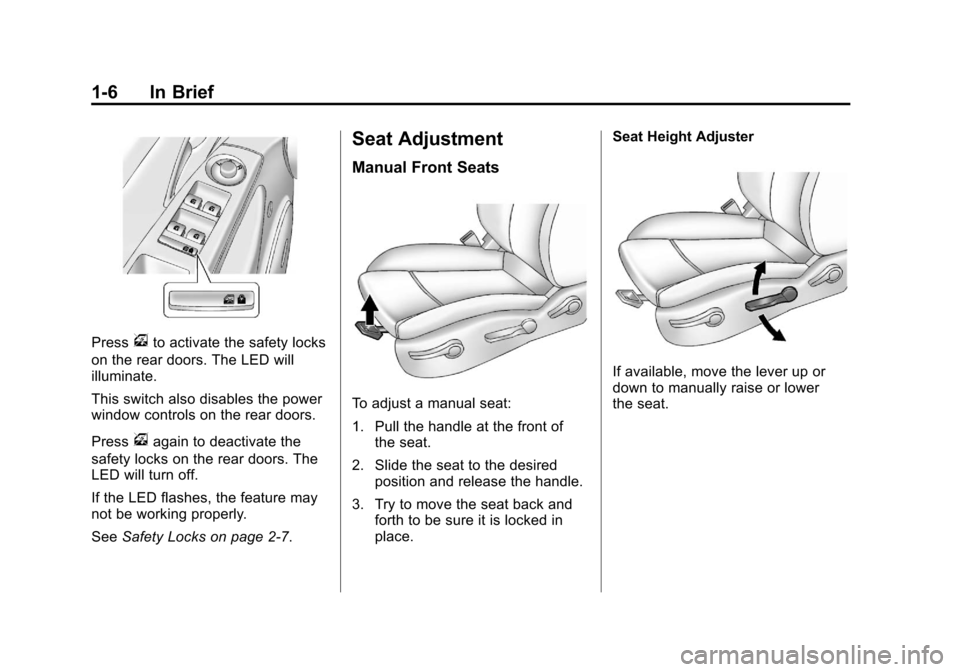

Black plate (6,1)Chevrolet Cruze Owner Manual - 2011
1-6 In Brief
Pressvto activate the safety locks
on the rear doors. The LED will
illuminate.
This switch also disables the power
window controls on the rear doors.
Press
vagain to deactivate the
safety locks on the rear doors. The
LED will turn off.
If the LED flashes, the feature may
not be working properly.
See Safety Locks on page 2‑7.
Seat Adjustment
Manual Front Seats
To adjust a manual seat:
1. Pull the handle at the front of
the seat.
2. Slide the seat to the desired position and release the handle.
3. Try to move the seat back and forth to be sure it is locked in
place. Seat Height Adjuster
If available, move the lever up or
down to manually raise or lower
the seat.

Black plate (7,1)Chevrolet Cruze Owner Manual - 2011
In Brief 1-7
Seat Cushion Tilt Feature
If available, move the lever up or
down to raise or lower the front of
the seat cushion.
SeeSeat Adjustment on page 3‑3. Reclining SeatbacksTo recline the seatback:
1. Lift the lever.
2. Move the seatback to the
desired position, then release
the lever to lock the seatback in
place.
3. Push and pull on the seatback to make sure it is locked. To return the seatback to an upright
position:
1. Lift the lever fully without
applying pressure to the
seatback, and the seatback
returns to the upright position.
2. Push and pull on the seatback to make sure it is locked.
See Reclining Seatbacks on
page 3‑5.

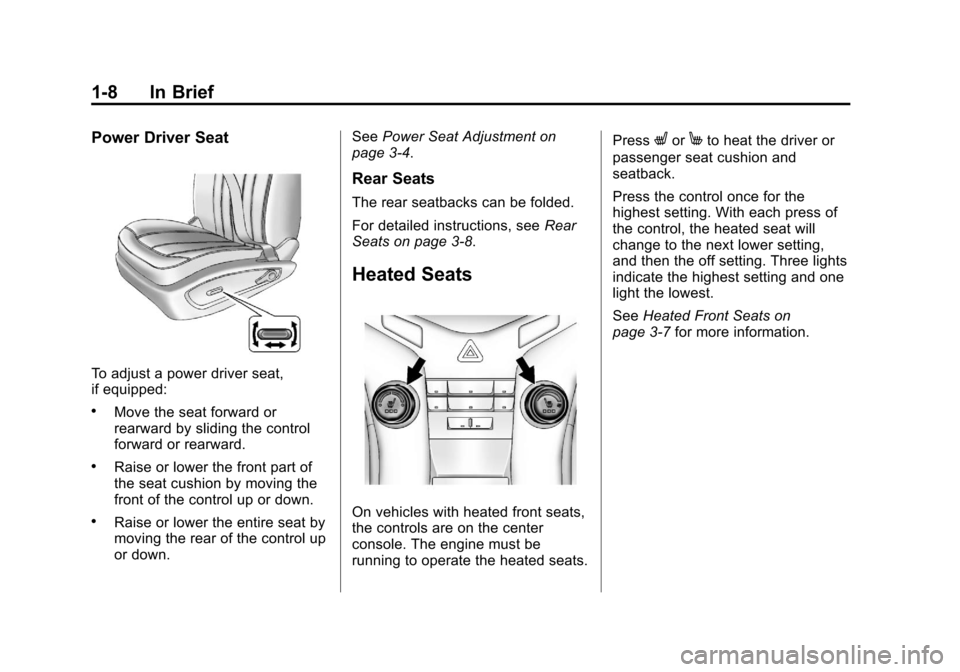

Black plate (8,1)Chevrolet Cruze Owner Manual - 2011
1-8 In Brief
Power Driver Seat
To adjust a power driver seat,
if equipped:
.Move the seat forward or
rearward by sliding the control
forward or rearward.
.Raise or lower the front part of
the seat cushion by moving the
front of the control up or down.
.Raise or lower the entire seat by
moving the rear of the control up
or down.See
Power Seat Adjustment on
page 3‑4.
Rear Seats
The rear seatbacks can be folded.
For detailed instructions, see Rear
Seats on page 3‑8.
Heated Seats
On vehicles with heated front seats,
the controls are on the center
console. The engine must be
running to operate the heated seats. Press
LorMto heat the driver or
passenger seat cushion and
seatback.
Press the control once for the
highest setting. With each press of
the control, the heated seat will
change to the next lower setting,
and then the off setting. Three lights
indicate the highest setting and one
light the lowest.
See Heated Front Seats on
page 3‑7 for more information.

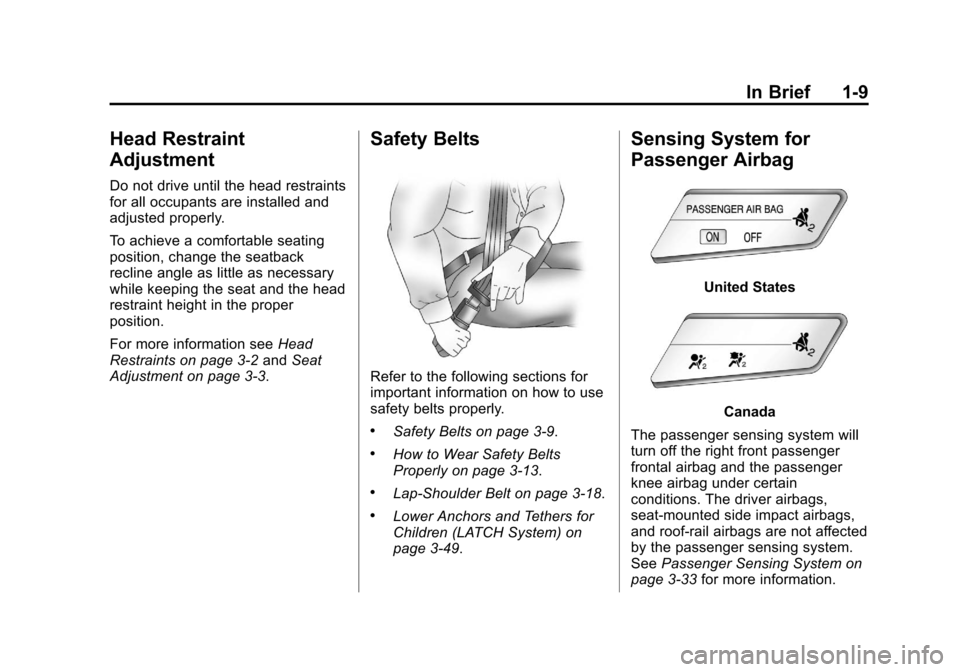

Black plate (9,1)Chevrolet Cruze Owner Manual - 2011
In Brief 1-9
Head Restraint
Adjustment
Do not drive until the head restraints
for all occupants are installed and
adjusted properly.
To achieve a comfortable seating
position, change the seatback
recline angle as little as necessary
while keeping the seat and the head
restraint height in the proper
position.
For more information seeHead
Restraints on page 3‑2 andSeat
Adjustment on page 3‑3.
Safety Belts
Refer to the following sections for
important information on how to use
safety belts properly.
.Safety Belts on page 3‑9.
.How to Wear Safety Belts
Properly on page 3‑13.
.Lap-Shoulder Belt on page 3‑18.
.Lower Anchors and Tethers for
Children (LATCH System) on
page 3‑49.
Sensing System for
Passenger Airbag
United States
Canada
The passenger sensing system will
turn off the right front passenger
frontal airbag and the passenger
knee airbag under certain
conditions. The driver airbags,
seat‐mounted side impact airbags,
and roof‐rail airbags are not affected
by the passenger sensing system.
See Passenger Sensing System on
page 3‑33 for more information.

Black plate (10,1)Chevrolet Cruze Owner Manual - 2011
1-10 In Brief
The passenger airbag status
indicator will be visible on the
instrument panel when the vehicle is
started. SeePassenger Airbag
Status Indicator on page 5‑12.
Mirror Adjustment
Exterior
Controls for the outside power
mirrors are on the driver door.
1. Turn the selector switch to L (left) or R (right) to choose the
driver or passenger mirror. 2. Move the control to adjust the
mirror.
3. Turn the selector switch to the O position to deselect the mirror.
See Power Mirrors on page 2‑12.
If the vehicle has heated mirrors,
see Heated Mirrors on page 2‑12.Vehicles with a manual mirror
adjustment have controls next to
each mirror.
See Manual Mirrors on page 2‑11.
Interior
Adjust the inside rearview mirror by
moving it up and down or side to
side. Adjust the mirror to avoid glare
from the headlamps behind you.
Push the tab forward for daytime
use and pull it for nighttime use.
SeeManual Rearview Mirror on
page 2‑12.
The vehicle may have an automatic
dimming inside rearview mirror.
Automatic dimming reduces the
glare of lights from behind the
vehicle. The dimming feature and
indicator light come on each time
the vehicle is started.
See Automatic Dimming Rearview
Mirror on page 2‑13.
