Black plate (1,1)Cadillac SRX Owner Manual - 2011
Technical Data 12-1
Technical Data
Vehicle Identification
Vehicle IdentificationNumber (VIN) . . . . . . . . . . . . . . 12-1
Service Parts Identification Label . . . . . . . . . . . . . . . . . . . . . . . 12-1
Vehicle Data
Capacities andSpecifications . . . . . . . . . . . . . . 12-2
Engine Drive Belt Routing . . . 12-4
Vehicle Identification
Vehicle Identification
Number (VIN)
This legal identifier is in the front
corner of the instrument panel, on
the left side of the vehicle. It can be
seen through the windshield from
outside. The VIN also appears on
the Vehicle Certification and Service
Parts labels and certificates of title
and registration.
Engine Identification
The eighth character in the VIN
is the engine code. This code
identifies the vehicle engine,
specifications, and replacement
parts. See “Engine Specifications”
under Capacities and Specifications
on page 12‑2 for the vehicle
engine code.
Service Parts
Identification Label
This label, on the inside of the rear
side cargo management cover, has
the following information:
.Vehicle Identification
Number (VIN)
.Model designation
.Paint information
.Production options and special
equipment
Do not remove this label from the
vehicle.

Black plate (2,1)Cadillac SRX Owner Manual - 2011
12-2 Technical Data
Vehicle Data
Capacities and Specifications
ApplicationCapacities
Metric English
Air Conditioning Refrigerant R134a For the air conditioning system refrigerant charge
amount, see the refrigerant label located under the hood. See your dealer for more information.
Engine Cooling System 2.8L V6 Engine 12.4 L 13.1 qt
3.0L V6 Engine 11.9 L 12.6 qt
Engine Oil with Filter 2.8L V6 Engine 5.7 L 6.0 qt
3.0L V6 Engine 5.7 L 6.0 qt
Fuel Tank 79.5 L 21.0 gal

Black plate (3,1)Cadillac SRX Owner Manual - 2011
Technical Data 12-3

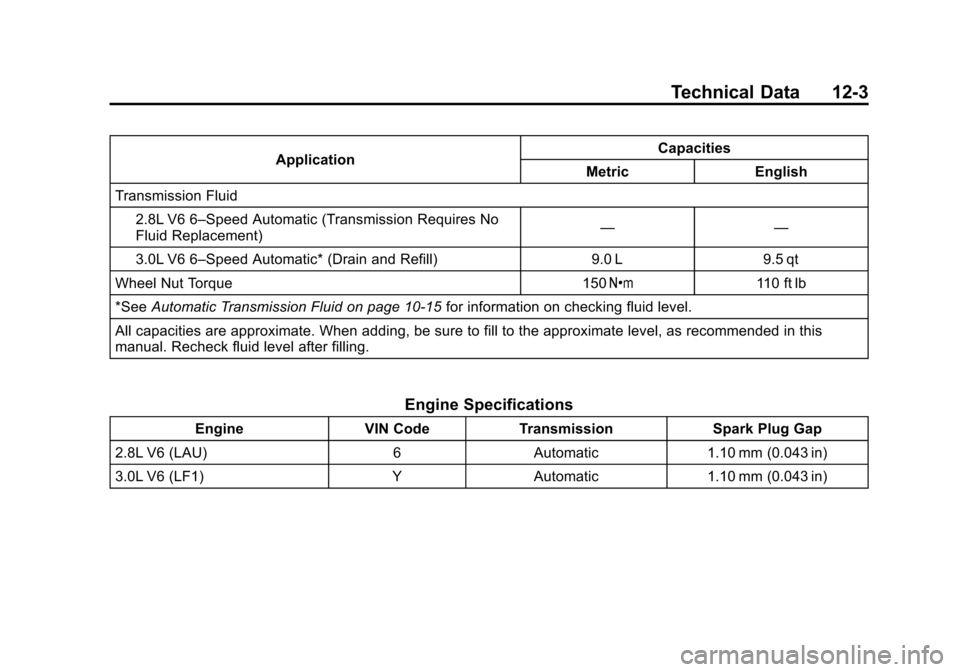

ApplicationCapacities
Metric English
Transmission Fluid
2.8L V6 6–Speed Automatic (Transmission Requires No
Fluid Replacement) — —
3.0L V6 6–Speed Automatic* (Drain and Refill) 9.0 L 9.5 qt
Wheel Nut Torque 150 Y110 ft lb
*See Automatic Transmission Fluid on page 10‑15 for information on checking fluid level.
All capacities are approximate. When adding, be sure to fill to the approximate level, as recommended in this
manual. Recheck fluid level after filling.
Engine Specifications
Engine VIN CodeTransmission Spark Plug Gap
2.8L V6 (LAU) 6Automatic 1.10 mm (0.043 in)
3.0L V6 (LF1) YAutomatic 1.10 mm (0.043 in)
