{WARNING
Changing a tire can be
dangerous. The vehicle can slip
off the jack and roll over or fall on
you or other people. You and they
could be badly injured or even
killed. Find a level place to
change your tire. To help prevent
the vehicle from moving:1. Set the parking brake firmly.
2. Put an automatic transmission shift lever in
P (Park), or shift a manual
transmission to 1 (First) or
R (Reverse).
3. Turn off the engine and do not restart while the vehicle
is raised.
4. Do not allow passengers to remain in the vehicle.
(Continued)
WARNING (Continued)
To be certain the vehicle will not
move, put blocks at the front and
rear of the tire farthest away from
the one being changed. That
would be the tire on the other
side, at the opposite end of the
vehicle.
This vehicle may come with a jack
and spare tire or a tire sealant and
compressor kit. To use the jacking
equipment to change a spare tire
safely, follow the instructions below.
Then see Tire Changing
on
page 10‑102. To use the tire sealant
and compressor kit, see Tire
Sealant and Compressor Kit
on
page 10‑92. When the vehicle has a flat tire (B),
use the following example as a
guide to assist you in the placement
of wheel blocks (A).
A. Wheel Block
B. Flat Tire
The following information explains
how to repair or change a tire.

Black plate (103,1)Cadillac CTS/CTS-V Owner Manual - 2011
Vehicle Care 10-103
To access the spare tire and jacking
equipment:
1. Remove the spare tire cover.
2. Remove the stow rod cap bypulling it straight up off of
the rod.
3. Turn the wing nut (A) on the compact spare tire (B)
counterclockwise to remove.
4. Remove the spare tire and place it next to the flat tire.
5. The tools you will be using next include the jack (C), wheel

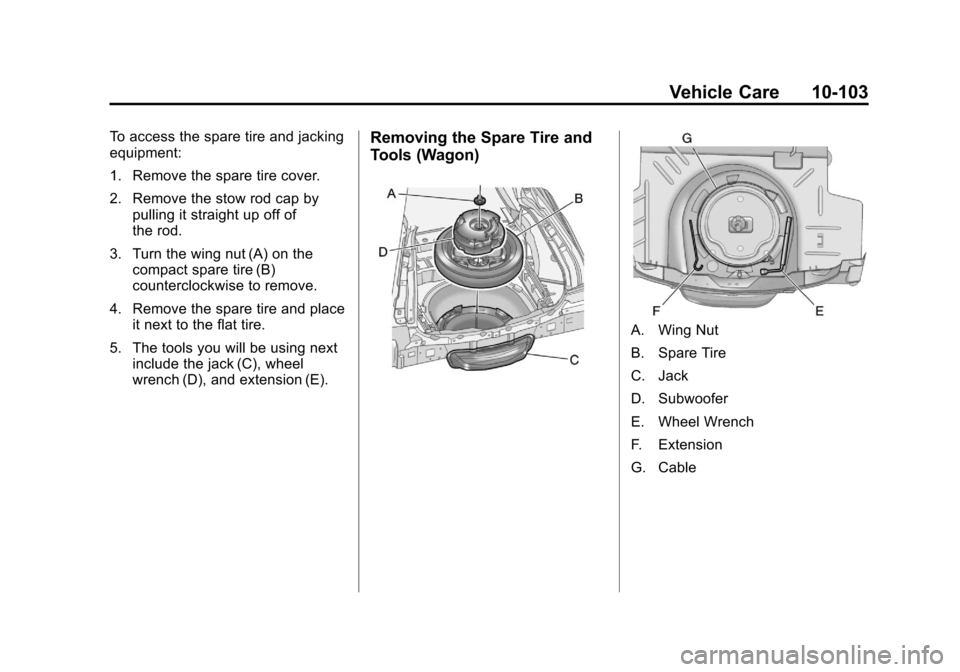

wrench (D), and extension (E).Removing the Spare Tire and
Tools (Wagon)
A. Wing Nut
B. Spare Tire
C. Jack
D. Subwoofer
E. Wheel Wrench
F. Extension
G. Cable

Black plate (104,1)Cadillac CTS/CTS-V Owner Manual - 2011
10-104 Vehicle Care
To access the spare tire and jacking
equipment:
1. Remove the spare tire cover.
2. Remove the subwoofer (D),if the vehicle has one.
To remove the subwoofer:
2.1. Turn the nut (A) counterclockwise to
remove.
2.2. Disconnect the connector wire.
2.3. Pull the subwoofer (D) up to remove it from the stow rod.
3. Remove the spare tire (B) and place it next to the flat tire.
4. Remove the jack (C), wheel wrench (E), and extension (F). To remove the jack:
1. Remove the retainer nut (A).
2. Remove the jack stowage
bracket (B).
3. Slide the jack (C) forward to remove it from the floor storage
bracket.
Removing the Flat Tire and
Installing the Spare Tire
1. Do a safety check beforeproceeding. See If a Tire Goes
Flat on page 10‑90
2. Loosen the wheel nuts, but do not remove them yet, using the
wheel wrench. Turn the handle
about 180 degrees, then return
the handle back to the starting
position. This avoids taking the
wrench off the lug nut for
each turn.

Black plate (105,1)Cadillac CTS/CTS-V Owner Manual - 2011
Vehicle Care 10-105
3. Find the jacking location usingthe diagram above and
corresponding V-shaped locating
notches located in the plastic
molding.4. Insert the hooked end of theextension handle through the
jack and the flat end through the
wheel wrench.
{WARNING
Getting under a vehicle when it is
jacked up is dangerous. If the
vehicle slips off the jack, you
could be badly injured or killed.
Never get under a vehicle when it
is supported only by a jack.
{WARNING
Lifting a vehicle and getting
under it to do maintenance or
repairs is dangerous without the
appropriate safety equipment and
training. If a jack is provided with
the vehicle, it is designed only for
changing a flat tire. If it is used for
anything else, you or others could
be badly injured or killed if the
vehicle slips off the jack. If a jack
is provided with the vehicle, only
use it for changing a flat tire.
{WARNING
Raising your vehicle with the jack
improperly positioned can
damage the vehicle and even
make the vehicle fall. To help
avoid personal injury and vehicle
damage, be sure to fit the jack lift
head into the proper location
before raising the vehicle.
