{WARNING:
Raising the vehicle with the jack improperly
positioned can damage the vehicle and even
make the vehicle fall. To help avoid personal
injury and vehicle damage, be sure to fit the jack
lift head into the proper location before raising the
vehicle.
Notice: If you position the jack under the rocker
molding and attempt to raise the vehicle, you could
break the molding and/or cause other damage to
your vehicle. Always position the jack so that when
the jack head is raised, it will fit firmly in the notch
located inboard from the rocker molding.

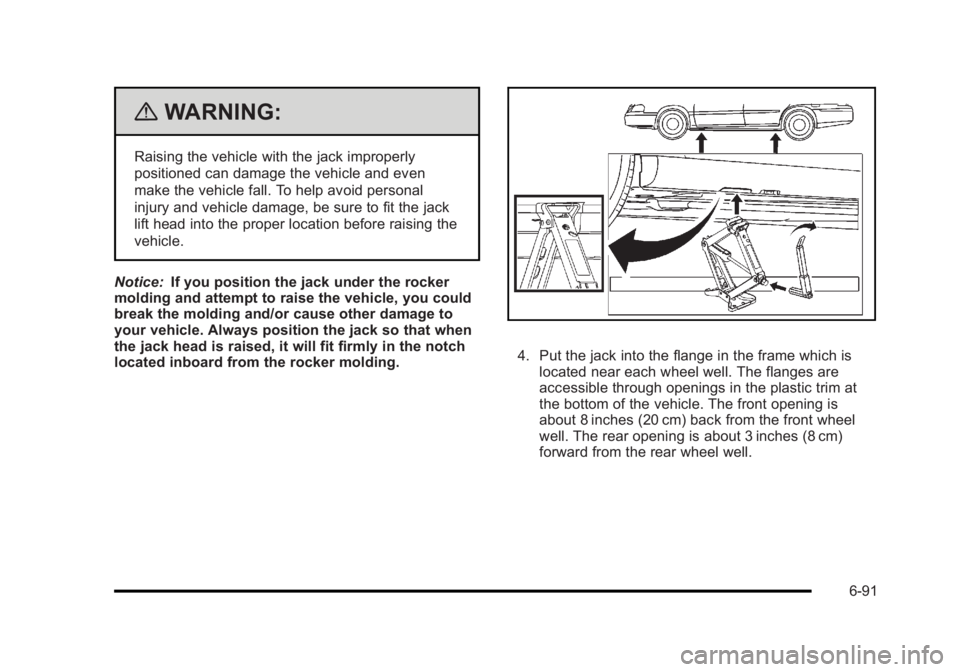

4. Put the jack into the flange in the frame which is located near each wheel well. The flanges are
accessible through openings in the plastic trim at
the bottom of the vehicle. The front opening is
about 8 inches (20 cm) back from the front wheel
well. The rear opening is about 3 inches (8 cm)
forward from the rear wheel well.
6-91

Black plate (92,1)Buick Lucerne Owner Manual - 2011
5. Position the jack and raise the jack head until it fitsfirmly on the ridge in the vehicle's frame nearest
the flat tire. Do not raise the vehicle yet.
6. Put the compact spare tire near the flat tire.
{WARNING:
Getting under a vehicle when it is jacked up is
dangerous. If the vehicle slips off the jack, you
could be badly injured or killed. Never get under a
vehicle when it is supported only by a jack.
7. Turn the jack handle clockwise to raise the vehicle. Raise the vehicle far enough off the ground for the
compact spare tire to fit under the vehicle.
6-92

Black plate (93,1)Buick Lucerne Owner Manual - 2011
8. Remove all wheelnuts and remove the
flat tire.
{WARNING:
Rust or dirt on a wheel, or on the parts to which it
is fastened, can make wheel nuts become loose
after time. The wheel could come off and cause
an accident. When changing a wheel, remove any
rust or dirt from places where the wheel attaches
to the vehicle. In an emergency, use a cloth or
a paper towel to do this; but be sure to use a
scraper or wire brush later, if needed, to get all
the rust or dirt off. See Changing a Flat Tire
on
page 6‑88
.
9. Remove any rust or dirt from the wheel bolts,
mounting surfaces and
spare wheel.
6-93

Black plate (94,1)Buick Lucerne Owner Manual - 2011
10. Install the compact spare tire.
{WARNING:
Never use oil or grease on bolts or nuts because
the nuts might come loose. The vehicle's wheel
could fall off, causing a crash.
11. Put the wheel nuts back on with the rounded end of the nuts toward the wheel. Turn each nut
clockwise by hand until the wheel is held against
the hub.
12. Lower the vehicle by turning the jack handle counterclockwise. Lower the jack completely.
6-94

Black plate (95,1)Buick Lucerne Owner Manual - 2011
{WARNING:
Wheel nuts that are improperly or incorrectly
tightened can cause the wheels to become
loose or come off. The wheel nuts should be
tightened with a torque wrench to the proper
torque specification after replacing. Follow the
torque specification supplied by the aftermarket
manufacturer when using accessory locking wheel
nuts. SeeCapacities and Specifications
on
page 6‑116
for original equipment wheel nut
torque specifications.
Notice: Improperly tightened wheel nuts can lead
to brake pulsation and rotor damage. To avoid
expensive brake repairs, evenly tighten the
wheel nuts in the proper sequence and to the
proper torque specification. See Capacities and
Specifications
on page 6‑116for the wheel nut
torque specification.
13. Tighten the wheel nuts
firmly in a crisscross
sequence as shown.
6-95

Black plate (96,1)Buick Lucerne Owner Manual - 2011
Storing a Flat or Spare Tire and
Tools
{WARNING:
Storing a jack, a tire, or other equipment in the
passenger compartment of the vehicle could
cause injury. In a sudden stop or collision, loose
equipment could strike someone. Store all these
in the proper place.
After you have put the compact spare tire on your
vehicle, you need to store the flat tire in your trunk.
Store the flat tire as far forward in the trunk as possible.
Store the jack and wheel wrench in their compartment
in the trunk. For storage, the jack lift head must be
raised until the screw end is even with the edge of the
compartment. To store the compact spare tire and tools:
6-96

Black plate (97,1)Buick Lucerne Owner Manual - 2011
A. Center Retainer
B. Compact SpareTire Cover
C. Retainer
D. Washer E. Jack Container F. Spare Tire
G. Wheel Wrench H. Jack
I. Foam Insert
J. Bolt
1. Open the trunk. See Trunk on page 3‑12.
2. Place the foam insert (I) in the trunk compartment.
3. Reinstall the compact spare tire (F) face down. Line up the wheel center hole with the bolt (J).
Then place it on the compartment floor.
4. Insert the jack container (E) into the spare tire (F).
5. Insert the wheel wrench (G) and jack (H) into the center of the compact spare tire making sure to
line up the wheel nut hole with the bolt (I) on the
compartment floor.
6. Secure the compact spare tire and the jack container (E) with the washer (D) and the
retainer (C).
7. Reinstall the compact spare tire cover (B).
8. Secure with the center retainer (A). The compact spare tire is for temporary use only.
Replace the compact spare tire with a full-size tire
as soon as you can. See
Compact Spare Tire
on
page 6‑97.
Compact Spare Tire
{WARNING:
Driving with more than one compact spare tire at
a time could result in loss of braking and handling.
This could lead to a crash and you or others could
be injured. Use only one compact spare tire at
a time.
If this vehicle has a compact spare tire it was fully
inflated when the vehicle was new, however, it can lose
air after a time. Check the inflation pressure regularly.
It should be 60 psi (420 kPa).
6-97

Black plate (98,1)Buick Lucerne Owner Manual - 2011
After installing the compact spare on the vehicle, stop
as soon as possible and make sure the spare tire is
correctly inflated. The compact spare is made to
perform well at speeds up to 65 mph (105 km/h) for
distances up to 3,000 miles (5 000 km), so you can
finish your trip and have the full-size tire repaired or
replaced at your convenience. Of course, it is best
to replace the spare with a full-size tire as soon as
possible. The spare tire will last longer and be in good
shape in case it is needed again.
Notice:When the compact spare is installed, do not
take the vehicle through an automatic car wash with
guide rails. The compact spare can get caught on
the rails which can damage the tire, wheel and other
parts of the vehicle.
Do not use the compact spare on other vehicles.
Do not mix the compact spare tire or wheel with other
wheels or tires. They will not fit. Keep the spare tire and
its wheel together.
Notice: Tire chains will not fit the compact spare.
Using them can damage the vehicle and can
damage the chains too. Do not use tire chains on
the compact spare.Appearance Care
Interior Cleaning
The interior will continue to look its best if it is cleaned
often. Although not always visible, dust and dirt can
accumulate on the upholstery. Dirt can damage
carpet, fabric, leather, and plastic surfaces. Regular
vacuuming is recommended to remove particles from
the upholstery. It is important to keep the upholstery
from becoming and remaining heavily soiled. Soils
should be removed as quickly as possible. The interior
may experience extremes of heat that could cause
stains to set rapidly.
Lighter colored interiors may require more frequent
cleaning. Use care because newspapers and garments
that transfer color to home furnishings may also transfer
color to the interior.
When cleaning the interior, only use cleaners
specifically designed for the surfaces being cleaned.
Permanent damage may result from using cleaners
on surfaces for which they were not intended. Use
glass cleaner only on glass. Remove any accidental
over-spray from other surfaces immediately. To prevent
over-spray, apply cleaner directly to the cleaning cloth.
