2011 AUDI A5 CABRIOLET technical data

(]] Tips
The system works above a speed of about 6 mph (10 km/h) .•
Emergency flashers ~
The emergency flashers makes other motorists aware
that you or your vehicle are in an emergency situation.
Fig. 70 Emergency
flasher switch
- Press the switch ~=> fig. 70 to turn the emergency
flashers on or off.
When the emergency flashers are on, all four turn signals blink at the
same time . The turn signal indicator lights¢¢ in the instrument
cluster, as well as the light in the emergency flasher switch~ blink
likewise . The emergency flashers also work when the ignition is
turned off.
The emergency flashers will turn on automatically if you are in an
accident where the airbag has deployed.
(]] Tips
You should turn on the emergency flashers when :
• you are the last vehicle standing in a traffic jam so that any other
vehicles coming can see you, or when
Con tro ls a nd e quip ­
m en t Vehicle
OP-eration
Clear vision
• your vehicle has broken down or you are in an emergency situa­
tion, or when
• your vehicle is being towed by a tow truck or if you are towing
another vehicle behind you .•
Turn signals -¢ Q and high beam gD lever
The lever on the le~ side of the steering column is used to
operate the turn signals and the high beam as well as the
headlight flasher.
Fig. 71 Turn signal
and high beam lever
The turn signal and high beam lever has the following func­
tions:
Turn signals¢¢ (D@
- Push the lever up as far as it can go to turn on the right
turn signal or down to turn on the left turn signal
=> fig. 71 .
- Move the lever briefly until you meet resistance and
release it to flash three times.
- Move the lever (up or down) until you meet resistance and
hold it there to determine the flashing time for the turn
signals. _.,
Vehicle care Do-it-yourselt service iTechnical data

The brightness of the lights is controlled automatically by a dimmer
when they are switched on and o ff. •
Rear interior lights
There are reading lights in the rear for the passengers .
...
-0 0 ,.;
"" a,
Fig. 73 Headliner :
R ea r r ead ing lig hts
The reading lights are switched on and off using the buttons ~~-•
Vision
Sun visors
Using the sun visors makes driving safer.
(·
Con tro ls a nd e quip ­
m en t
3
Fig . 74 Sun visor
Vehicle OP-eration
Clear vision
The sun visors for the driver and passenger can be pulled out of their
brackets in the center of t he veh icle and turned tow ards the the doors
=> fig. 74 (D .
Vanity m irror
The vanity mirrors on the sun visors are covered. When the lid is
opened @, the mir ror ligh t in the head line r tu rns o n automa tic ally.
It turns off when the lid is closed and the visor is folded up aga in .•
Wiper and washer system
Switching the windshield wipers on
Fig . 7S W inds hield
wip er lever
Move the wind shield w iper leve r to t he corresponding position :
@-Windshield wiper off
(D -Interval mode . To extend/shorten t he wiper intervals, move the
switch @to the left/r ight . In ve hicles with a rain sensor*, the w ind­
shield wipers are activated automat ically starting at a speed of 2 mph
(4 km/h) . The higher the sensitivity of the ra in se nsor* is set (sw itch
@ to the right), the earlier the winds hield wipers react to moisture
on the w indshield .
@ -Slow wiping
® -Fast wiping
Vehicle care Do-it-yourselt service iTechnical data

- Select: Function button I CAR]> Windshield wipers >
Service position.
• On -chang ing the w indshield w ipe r blades can on ly be done if you
bring the wiper arms to the service position=>
page 70, fig. 76. You
wi ll also avoid pa int damage to the hood when working on the w ipers
in this position.
• Off -the windshield wipers a re moved to their initia l position
agai n.
0 Note
Never ma neuve r yo ur vehicle with the front w indshield wipe r arms
ra ised since they will automatically be moved back to their basic posi­
t ion above a speed of 3 mp h (6 km/h) and can scratch the hood.
[I] Tips
• You c an also use the se rvice positio n, for example, if you want to
protect the w indshield from icing by using a cover.
• Th e se rvice position automatica lly swi tches to
Off w hen you
operate the windsh ield wiper lever, or speed exceeds 3 mph (6
km/h). •
Controls and equip ­
ment Safety first
Clear v
ision
Replacing windshield wiper blades
Wiper blades in good con dition help keep the windshield
clear .
~ 0 0 ci:
~
Fig. 77 Rem oving the
wi pe r b la de
Removing the wiper blade
- Bring the windshield wipers to the service position
=>
page 70.
- Lift the winds hie ld wiper arm up from the windshie ld.
- Press the locking knob ©=> fig. 77 on the wiper blade .
Hold the wiper blade firm ly .
- Remov e th e wi per b lad e in the di re ction of th e ar row.
Attaching the wiper blade
- Install the new w iper b lade in the retai ner on the wiper
arm @unti l you hear it click into place o n the wiper arm.
- Place the wiper arm back on the windsh ield .
& WARNING
• Clean your wiper blade s regularly with a wind sh ield wa she r
solution to prevent streak ing . If th e wiper blades are very dirty , .,
Vehicle care Technical data

headligh ts from rearward a pproachi ng veh icles). E ven in dimming
mod e, the mirr or s urf ac e tur ns b rig ht whe n:
• t he in ter ior light is swi tc he d o n
• reve rse gear i s eng ag ed.
& WARNING
Broken glass of automatic dimming mirror can cause electrolyte
fluid leakage. Electrolyte fluid can irritate skin, eyes, and respira­
tory system.
• Repeated or prolonged exposure to electrolyte can cause irrita ­
tion to the respiratory system, especially among people with asthma or other respiratory conditions. Get fresh air immediately
by leaving the vehicle or, if that is not possible , open windows and
doors all the way.
• If electrolyte gets into the eyes, flush them thoroughly with
large amounts of clean water for at least 15 minutes; medical
attention is recommended.
• If electrolyte contacts skin, flush affected area with clean
water for at least 15 minute s and then wash affected area with
soap and water; medical attention is recommended. Tho roughly
wash affected clothing and shoes before reuse.
• If swallowed and person is conscious, rinse mouth with water
for at least 15 minutes. Do not induce vomiting unless instructed
to do so by medical professional. Get medical attention immedi­ ately .
0 Note
Liquid elec tro ly te le aked from a b roken mirr or glass will d am age a ny
plas tic surfaces it comes in contact wi th . Clean up spi lled electro lyte
immediately wit h clear wate r and a spon ge.
Con tro ls a nd e quip ­
m en t Vehicle
OP-eration
Clear vision
(I) Tips
• If you switch off the automatic dimming function on the inside
mirror , automatic dimming of the outside mirrors will likewise be
disabled.
• Check to make sure there are no o bjects prevent ing lig ht from
reach ing the inside mirror.
• Do not attach any st ic kers to the w indshield in fro nt of t he lig ht
sensor, as thi s would interf ere with both the a utomatic operatio n of
the headlights a nd the automatic dimm ing of the inside mirror.•
Outside mirrors
Th e outside mirr ors are elec tricall y adju ste d (pow er
mirr ors)
Adjusting exterior mirrors
Fig. 79 Fo rward
section of driver 's
armrest : power mirror
controls
- R otate the knob to t he (0 pos ition (driver's exter ior
m irror) or t o the@ pos it io n (passenger's e xterior mi rror)
=> fi g. 79 .
- Rotate the k nob a nd th e mirror so t hat you ha ve a clear
v iew to the r ear. .,
Vehicle care Do-it-yourselt service iTechnical data

& WARNING (continued)
• If swallowed and person is conscious, rinse mouth with water
for at least 15 minutes. Do not induce vomiting unless instructed
to do so by medical professional. Get medical attention immedi­
ately .
0 Note
Liquid electrolyte leaked from a broken mirror glass will damage any
plast ic surfaces it comes in contact with. Clean up spilled electro lyte
immediately with clear water and a sponge.
[ i J Tips
• Switching off the dimming function of the inside rearview
mirror also deactivates the automatic dimming function of the
exterior mirrors.
• Automatic dimming for the mirror only operates properly if the
light striking the inside mirror is not hindered by other objects. •
Controls and equip­
ment Safety first
Clear vision
Digital compass
App
lies to veh icles: with digital compass
Activating or deactivating the compass
The direction is displayed on the interior rear view mirror.
Fig. 80 Inside rear
view mirror: digital
compass activated
- To activate or deactivate, hold the@button down until
the red display appears or disappears.
The digital compass only works with the ignition turned on. The direc­
tions are displayed as initials:
N (North), NE (Northeast), E (East), SE
(Southeast), S (South), SW (Southwest), W (West), NW (Northwest).
(I] Tips
To avoid inaccurat e directions, do not allow any remote controls ,
electrical systems, or metal parts close to the mirror. •
Vehicle care Technical data

Seats and storage
General recommendations
Why is your seat adjustment so important?
The safety belts and the airbag system can only provide
maximum protection if the front seats are correctly
adju sted.
Th ere a re various ways of adjusting t he front seats to provide safe and
comfortable support for the driver and the front passenger . Ad just
your seat properly so that :
• you can easily and quickly reach a ll the switc hes and contro ls in the
ins trumen t pa nel
• your body is properly supported thus reducing phys ica l stress and
fatigue
• the safety be lts and airbag system can offer maximum protection
=>
page 199 .
In the following sections, you w ill see exact ly how you can best ad just
your sea ts .
Th ere are special regulations a nd instr uctions for install ing a child
safety seat on the front passenger's sea t. Always follow the informa ­
tion regarding child safety p rovided in=>
page 221, "Child Safety ".
& WARNING
Incorrect seating posit ion of the dri ver and all other passengers
can result in seriou s personal injury.
• Always keep your feet on the floor when the vehicle is in
motion -never put your feet on top of the instrument panel, out
of the window o r on top of the seat cush ion. This applies especially
to the passengers.
If your seating po sition is incorrect, you
increase the ri sk of injury in the case of sudden braking or an acci-
Controls and equip ­
ment Safety first
Seats and storage
& WARNING
(con tinu ed)
dent . If the airbag inflates and the seating position is incorrect ,
this could result in per sonal injury or even death .
• It is important for both the dri ver and front passenger to keep
a distan ce of at least 10 inche s (25 cm) between themselves and
the steering wheel and /or instrument panel. If you 're sitting any
closer than this , the airbag system cannot protect you properly. In
addition, the front seats and head restraints must be adjusted to
your body height so that they can give you maximum protection .
• Always try to keep as much distance as possible between your­
self and the steering wheel or instrument panel.
• Do not adjust the driver's or front passenger 's seat while the
vehicle is moving. You r seat may move unexpectedly , causing
sudden loss of vehicle control and personal injury . If you adjust
your seat while the vehicle is moving , you are out of position. •
Driver's seat
The correct seat position is important for saf e and
re lax ed driving.
W e recomme nd that you a djust the drive r's sea t in the
f ollowing man ner :
- Ad just the seat in fore and aft direction so that you can
easily pus h the pedals to the floor w hile keeping your
knees slightly bent=>
& in "Why is yo ur seat a djus tme nt
so importa nt?" .
- Adjust the seatback so that when yo u sit with yo ur back
agai nst t he seatback , you can st ill grasp t he top of the
steering w heel. ..,
Vehicle care Technical data

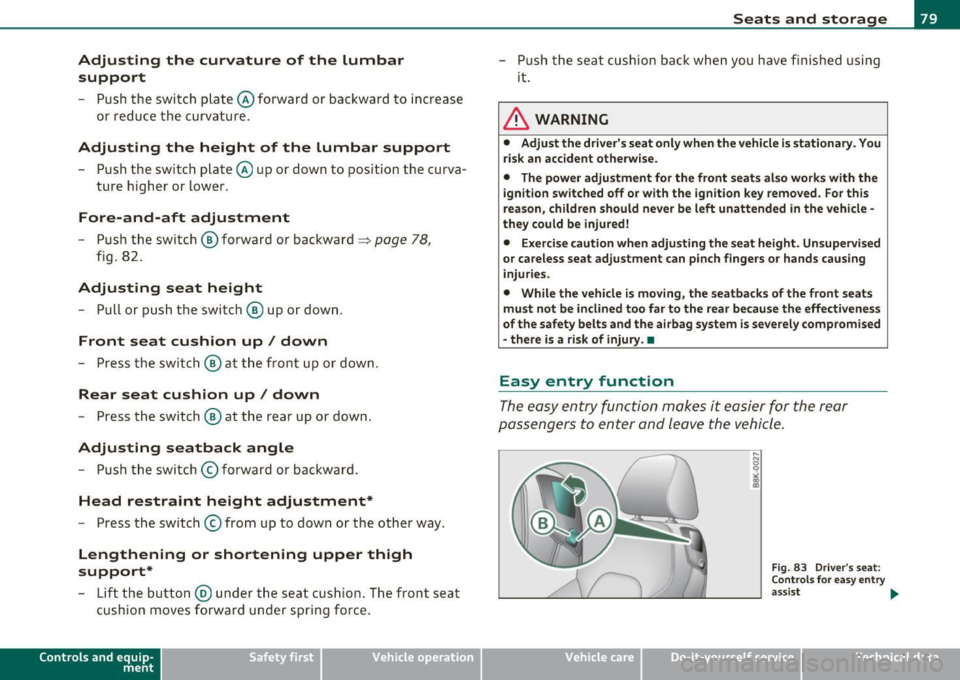

Adjusting the curvature of the lumbar support
- Push the switch p late @forward or backward to increase
or red uce the curvature .
Adjusting the height of the lumbar support
-Push the sw itch p late @ up or down to position the curva­
ture higher or lower.
Fore-and-aft adjustment
- Push th e switc h® forward or backward~ pag e 78,
fig . 82.
Adjusting seat height
- Pull or push the switch ® up or down.
Front seat cushion up/ down
-Press th e sw itch ® at the fr ont up or down .
Rear seat cushion up / down
- Press t he switch ® at the rear up or down.
Adjusting seatback angle
-Push th e switc h @ forwa rd or backwar d.
Head restraint height adjustment*
-Press the switch © from up to down or t he ot her way.
Lengthening or shortening upper thigh
support*
- Lift the button @ under the seat cus hion . The front sea t
cushion moves fo rward u nder spring force .
Control s and equ ip­
m ent Vehicle OP-eration
Seats and storage
-Push the seat c ushion back w hen you have f in ished using
i t.
& WARNING
• Adjust the driver 's seat only when the vehicle is stationary . You
risk an accident otherw ise.
• The power adjustment for the front seat s al so works with the
ignit ion switched off or with the ignition key removed. For this
reason, children should never be left unattended in the vehicle -
they could be injured!
• Exerci se caution when adjusting the seat height . Unsupervised
or careless seat adjustment can pi nch fingers or hands causing
injuries .
• While the vehicle is mo ving , the seatba cks of the front seats
mu st not b e inclined to o far to the rear bec ause the effectiveness
of the safety belts and the airbag system is se verely compromised
- there is a ris k of injury.•
Easy entry function
The easy entry function makes it easier for the rear
passengers to enter and leave the vehicle.
Vehicle care
... N 0
~
~
F ig . 83 Driv er 's se at:
C ont ro ls for e asy e ntry
assi st
~
Do-it-yourselt service iTechnical data

only going to be used temporarily by a driver whose settings are not
going to be stored. •
Applies to vehicles : w ith seat memory
Storing and recalling settings
Before you can store or recall your settings, the [ ON/OFF]
switch on the seat memory must be engaged (not raised).
Storing settings
- Adjust the driver's seat.
- Adjust the two exterior mirrors .
- Press the
I SETI button and hold it down. In addition, press
one of the memory buttons for at least one second .
- Release the buttons. The settings are now stored under
the corr esponding memory button .
Recalling settings
- If the driver's door is open, tap the corresponding memory
button briefly .
- If the driver's door is closed , press the appropriate
memory button unt il the stored position is reached .
Successful storage is confirmed audibly and by the light in the [SET)
button illuminat ing=> page 80, fig . 84.
When the vehicle is
loc ked , the current settings are stored and
ass igned to the remote contro l key. B ut the setti ngs sto red on
memory buttons 1 to 2 are not deleted. They can be reca lled at any
time. When the vehicle is
unlo ck ed , the settings stored on the
remote control key are restored.
If your vehicle is driven by other persons using your remote control
key , you should save your individua l seat position on one of the
Controls and equip ­
ment Safety first
S
eats and storage
memory buttons. You can recall your settings again simply and
conveniently by press ing the cor responding memory button. When
the vehicle is locked, these settings are automatically re-assigned to
the remote control key and stored.
& WARNING
• Fo r sa fe ty reaso ns, th e se at se tting can only b e recalled when
t h e ve hicl e is s tat ion ary -oth erwise yo u risk ha ving an acc ident .
• In an emer gency th e re ca ll pro ce du re can be cancelled b y
p ressing the [
ON/OFF) sw itch or by t appin g of the the memo ry
b utto ns. •
App lies to ve hicles: with seat memory
Activating remote control key memory
To be able to recall the stored settings with the remote
control key, the function has to be activated in the radio
or in the MM!*.
-Select : Function button I CAR]> Seat adjustment >
D river's se at > Key mem . profile > On .
(I) Tips
If you do not want another driver to store their settings on the
remote key, switch
off the Memory function using the radio or the
MMI* or the [OFF] button => page 80 . •
Vehicle care Technical data
