2011 Acura TSX engine coolant

247
Replacing Light Bulbs
Continued
Maintenance
When replacing, use the following bulbs.
High beam headlight: 60W (HB3)
Low beam headlight: 55W (H1 for halogen bulb Type)
35W (D2S for high voltage discharge type)
High Beam Headlight
6-cylinder models 1. Remove all the engine compartment
covers.
Engine Compartment Covers

P. 2 3 3
Passenger side
All models 2. Remove the engine coolant reservoir.
Headlight Bulbs NOTICE Halogen bulbs get very hot when lit.
Oil, perspiration, or a scratch on the glass can cause
the bulb to overheat and shatter.
The headlight aim is set by the factory, and typically
does not need to be adjusted. However, if you
regularly carry heavy items in the trunk or tow a
trailer, have the aiming readjusted at a dealer or by
a qualified technician.
The HB3 and H1 types are halogen bulbs.
When replacing a bulb, handle it by its base, and
protect the glass from contact with your skin or
hard objects. If you touch the glass, clean it with
denatured alcohol and a clean cloth.
Headlight Bulbs
Engine Coolant
ReservoirEngine Coolant
Reservoir
6-cylinder models 4-cylinder models

Cleaning
Exterior Care
274Maintenance
Applying Wax
A good coat of automotive body wax helps protect your vehicle’s paint from the
elements. Wax will wear off over time and expose your vehicle’s paint to the
elements, so reapply as necessary.
Maintaining the Bumpers and Other Resin Coated Parts
If you get gasoline, oil, engine coolant, or battery fluid on resin coated parts, they
may be stained or the coating may peel. Promptly wipe it away using a soft cloth
and clean water.
Cleaning the Window
Wipe using a glass cleaner.
Maintaining Aluminum Wheels
Aluminum is susceptible to deterioration caused by salt and other road
contaminants. Use a sponge and mild detergent to wipe away promptly.
Be careful not to use harsh chemicals (including some commercial wheel cleaners)
or a stiff brush. They can damage the clear coat of the aluminum alloy wheels that
helps keep the aluminum from corroding and tarnishing.
Applying Wax NOTICE Chemical solvents and strong cleaners can damage
the paint, metal, and plastic on your vehicle. Wipe
up spills immediately. Maintaining the Bumpers and Other Resin Coated Parts
Ask a dealer about the correct coating material
when you want to repair the painted surface of the
parts made of resin. Cleaning the Window
Wires are mounted to the inside of the rear window.
Wipe along the same direction as the wires with a
soft cloth so as not to damage them.

Overheating
How to Handle Overheating
289
Handling the Unexpected
Last thing to do
Once the engine has cooled sufficiently, restart it and check the temperature
gauge.
If the temperature gauge needle has gone down, resume driving. If it has not
gone down, contact a dealer for repairs.
How to Handle Overheating
If the coolant is leaking, contact a dealer for repairs.
Use water as an emergency/temporary measure
only. Have a dealer flush the system with proper
antifreeze as soon as possible.
Next thing to do
1. Check that the cooling fan is operating
and stop the engine once the temperature
gauge needle comes down.
If the cooling fan is not operating,
immediately stop the engine.
2. Once the engine has cooled down, inspect
the coolant level and check the cooling
system components for leaks. If the coolant level in the reserve tank
is low, add coolant until it reaches the
MA X mark. If there is no coolant in the reserve tank,
check that the radiator is cool. Cover
the radiator cap with a heavy cloth and
open the cap. If necessary, add coolant
up to the base of the filler neck, and put
the cap back on.
WARNING
Removing the radiator cap while the
engine is hot can cause the coolant to
spray out, seriously scalding you.
Always let the engine and radiator cool
down before removing the radiator cap.
Reserve Tank
MAX
MIN

303
Information
Specifications
4-cylinder models
O Brake/Clutch FluidSpecified Honda Heavy Duty Brake Fluid DOT 3O Transmission FluidSpecified
*1
Acura ATF DW-1
(automatic transmission
fluid)2.6 US qt
(2.5 ℓ)
(Change)
Specified
*2
Acura Manual
Transmission Fluid2.0 US qt
(1.9 ℓ)
(Change)
*1: Automatic transmission models
*2: Manual transmission models
O Engine OilRecommendedAcura
Genuine
Motor OilAPI Premium grade
0W-20
CapacityChange 4.0 US qt (3.8 ℓ)
Change
including
filter4.2 US qt (4.0 ℓ)O Engine CoolantSpecifiedHonda Long-Life Antifreeze/Coolant
Ty pe2
Ratio 50/50 with distilled water
Capacity
*1
1.64 US gal (6.2 ℓ)
(change including the remaining
0.196 US gal (0.74 ℓ) in the reserve tank)
Capacity
*2
1.66 US gal (6.3 ℓ)
(change including the remaining
0.196 US gal (0.74 ℓ) in the reserve tank)
*1: Automatic transmission models
*2: Manual transmission models
O TireRegularSize P225/50R17 93V
Pressure
psi (kPa[kgf/cm
2])33 (230 [2.3])
Compact
SpareSize T135/80D16 101M
Pressure
psi (kPa[kgf/cm2])60 (420 [4.2])
Wheel SizeRegular 17 x 7.5J
Compact Spare 16 x 4T

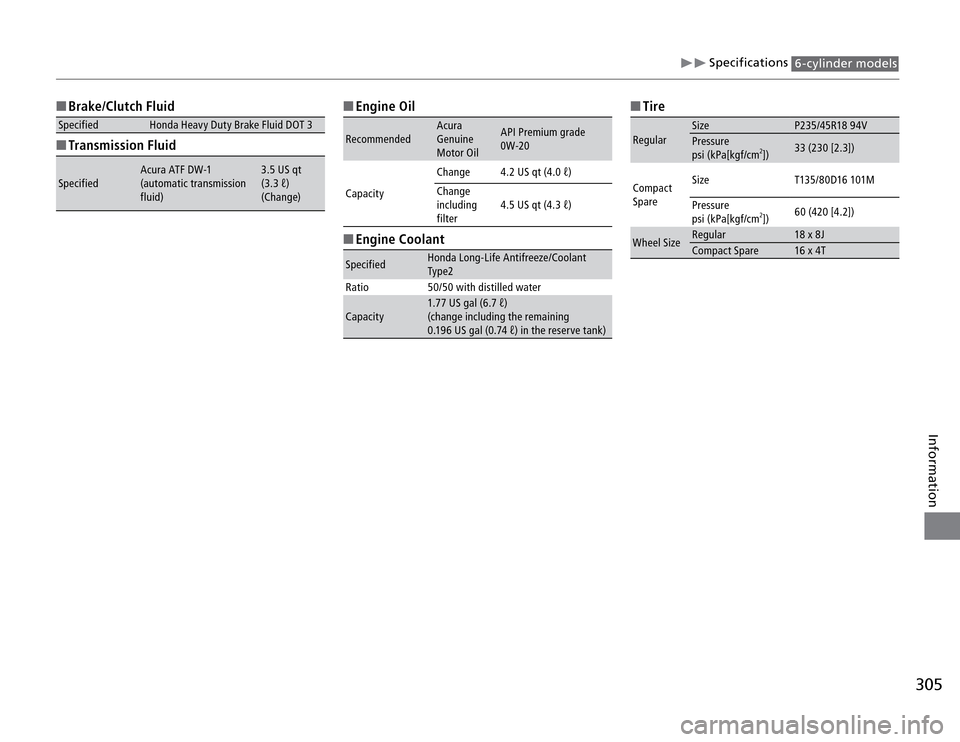

305
Information
Specifications
6-cylinder models
O Brake/Clutch FluidSpecified Honda Heavy Duty Brake Fluid DOT 3O Transmission FluidSpecifiedAcura ATF DW-1
(automatic transmission
fluid)3.5 US qt
(3.3 ℓ)
(Change)
O Engine OilRecommendedAcura
Genuine
Motor OilAPI Premium grade
0W-20
CapacityChange 4.2 US qt (4.0 ℓ)
Change
including
filter4.5 US qt (4.3 ℓ)O Engine CoolantSpecifiedHonda Long-Life Antifreeze/Coolant
Ty pe2
Ratio 50/50 with distilled water
Capacity1.77 US gal (6.7 ℓ)
(change including the remaining
0.196 US gal (0.74 ℓ) in the reserve tank)
O TireRegularSize P235/45R18 94V
Pressure
psi (kPa[kgf/cm
2])33 (230 [2.3])
Compact
SpareSize T135/80D16 101M
Pressure
psi (kPa[kgf/cm2])60 (420 [4.2])
Wheel SizeRegular 18 x 8J
Compact Spare 16 x 4T

315
Continued
Index
Index
A ABS (Anti-lock Brake System)
...........................
212
Accessories and Modifications
.........................
219
Accessory Power Sockets
......................................
12 9
Active Head Restraints
...........................................
12 2
Adding
................................................................................
237
Coolant
..........................................................................
240
Engine Oil
......................................................................
237
Washer
...........................................................................
246
Additives, Engine Oil
..............................................
234
Adjusting
..........................................................................
113
Armrest
...........................................................................
124
Front Seats
....................................................................
11 6
Head Restraints
..........................................................
11 8
Headlights
.....................................................................
247
Mirrors
............................................................................
114
Rear Seats
.....................................................................
12 3
Steering Wheel
...........................................................
113
Temperature
..................................................................
78
Airbags
.................................................................................
33
Advanced Airbags
......................................................
39
After a Collision
...........................................................
37
Airbag Care
....................................................................
47
Event Data Recorder
..................................................
19
Front Airbags (SRS)
....................................................
36
Indicator
.............................................................
44,67,70
Passenger Airbag Off Indicator
..........................
45
Sensors
..............................................................................
33
Side Airbag
.....................................................................
40
Side Airbag Cutoff System
....................................
42
Side Airbag Off Indicator
.......................................
42Side Curtain Airbag
...................................................
43
Air Conditioning System (Climate Control
System)
............................................................................
133
Changing the Mode
................................................
133
Defrosting the Windshield and Windows ..13 4
Dust and Pollen Filter
..............................................
270
Recirculation/Fresh Air Mode
............................
133
Sensors
............................................................................
13 6
Synchronized Mode
.................................................
135
Using Automatic Climate Control
...................
133
Air Pressure
................................................
260,303,305
AM/FM Audio
...............................................................
143
Anti-lock Brake System (ABS)
...........................
212
Indicator
...........................................................................
66
Armrest
..............................................................................
124
Auto Door Lock /Unlock
...........................................
94
Customize
................................................................
81,83
Automatic Lighting
..................................................
10 6
Audio System
................................................................
13 8
Adjusting the Sound
...............................................
142
Auxiliary Input Jack
..................................................
14 0
Error Messages
...........................................................
15 8
General Information
................................................
161
MP3/ WMA /AAC
.......................................................
153
Recommended Devices
.........................................
16 4
Recommended CDs
.................................................
162
Remote Controls
.......................................................
16 0
Security Code
..............................................................
14 0
Theft Protection
.........................................................
14 0
USB Adapter Cable
..................................................
13 9
USB Flash Drives
........................................................
16 4
Authorized Manual
..................................................
313
Automatic Transmission
........................................
19 4
Creeping
........................................................................
19 4
Fluid
..................................................................................
242
Kickdown
......................................................................
19 4
Operating the Shift Lever
.....................
13 ,19 5 ,19 6
Sequential Shift Mode
...........................................
197
Shifting
...........................................................................
195
Shift Lever Dose Not Move
.................................
287
Auxiliary Input Jack
..................................................
14 0
Average Fuel Economy
............................................
78
Average Speed
...............................................................
79
BBattery
...............................................................................
268
Charging System Indicator
..........................
65,290
Jump Starting
.............................................................
284
Maintenance (Checking the Battery)
............
268
Replacing
.......................................................................
269
Belts (Seat)
........................................................................
26
Beverage Holders
.......................................................
128
Bluetooth
® Audio
......................................................
15 6
Bluetooth
® HandsFreeLink
® ...............................
167
Booster Seats (For Children)
................................
59
Brake System
.................................................................
210
Anti-lock Brake System (ABS)
............................
212
Brake Assist System
.................................................
213
Fluid
.................................................................................
24 4
Foot Brake
.....................................................................
211
Indicator
.................................................................
64,292

316
Index
C to D
Index
Parking Brake
..............................................................
210
Brightness Control (Instrument Panel)
......
10 9
Bulb Replacement
.....................................................
247
Back-Up Lights
..........................................................
254
Brake, Taillight, Rear Turn Light and
Rear Side Marker Lights
......................................
253
Fog Lights
......................................................................
251
Front Turn/Parking/Side Marker Lights
.........
252
Headlights
.....................................................................
247
High-Mount Brake Light
......................................
256
License Plate
................................................................
255
Side Turn Signal/Emergency Indicator
Lights
.............................................................................
253
Bulb Specifications
.........................................
302,304
CCarbon Monoxide Hazard
.....................................
60
Cargo Hooks
..................................................................
13 0
Carrying Cargo
...................................................
183,185
Certification Label
...................................................
306
CD Player
..........................................................................
147
Changing Bulbs
............................................................
247
Charging System Indicator
..........................
65,290
Child Proof Door Locks
............................................
94
Child Safety
......................................................................
48
Emergency Trunk Opener
......................................
97
Child Seat
...........................................................................
48
Booster Seats
................................................................
59
Child Proof Door Locks
............................................
94
Child Seat for Infants
................................................
50Child Seat for Small Children
................................
51
Installing a Child Seat with a Lap/Shoulder
Seat Belt
........................................................................
55
Larger Children
............................................................
58
Rear Facing Child Seat
.............................................
50
Selecting a Child Seat
..............................................
52
Using Tether
...................................................................
57
Cleaning the Exterior
..............................................
273
Cleaning the Interior
...............................................
271
Client Service Information
..................................
314
Climate Control System
.........................................
133
Changing the Mode
................................................
133
Defrosting the Windshield and Windows ..13 4
Dust and Pollen Filter
..............................................
270
Recirculation/Fresh Air Mode
............................
133
Sensors
............................................................................
13 6
Synchronized Mode
.................................................
135
Using Automatic Climate Control
...................
133
Clock
......................................................................................
88
Clutch Fluid
.....................................................................
245
Coat Hooks
......................................................................
13 0
Compact Spare Tire
..............................
277,303,305
Compass
............................................................................
17 9
Console Compartment
...........................................
127
Controls
...............................................................................
87
Coolant (Engine)
........................................................
240
Adding to the Radiator
..........................................
241
Adding to the Reserve Tank
..............................
240
Overheating
................................................................
288
Temperature Gauge
..................................................
75
Creeping (Automatic Transmission)
.............
19 4
Cruise Control
...............................................................
201
Indicator
............................................................................
71
Cup Holder
......................................................................
128
Customized Features
.................................................
80
DDaytime Running Lights
.......................................
107
Dead Battery
................................................................
284
Defrosting the Windshield and
Windows
........................................................................
13 4
Detachable Shelf
........................................................
126
Dimming
Headlights
.....................................................................
105
Rear View Mirror
.......................................................
114
Dipstick (Engine Oil)
................................................
235
Directional Signals (Turn Signals)
..................
105
Door Mirrors
..................................................................
114
Doors
.....................................................................................
89
Auto Door Lock
...........................................................
94
Auto Door Unlock
......................................................
94
Door and Trunk Open Indicator
..................
25,68
Keys
....................................................................................
89
Locking/Unlocking the Doors from Inside
....
93
Locking/Unlocking the Doors from
Outside
............................................................................
91
Lockout Prevention System
...................................
92
DOT Tire Quality Grading
....................................
262
Driving
................................................................................
181
Automatic Transmission
........................................
19 4
Braking
............................................................................
210

317
Index
E to H
Continued
Index
Cruise Control
.............................................................
201
Shifting Gear
...............................................................
19 9
Starting the Engine
..................................................
191
Driving Position Memory System
..................
111
Dust and Pollen Filter
.............................................
270
EElapsed Time
....................................................................
79
Electric Power Steering System (EPS)
..68,292
Indicator
.................................................................
68,292
Electronic Stability Control (ESC)
..................
204
Emergency
......................................................................
298
Emergency Trunk Opener
.....................................
97
Emissions Testing (Readiness Codes)
..........
309
Engine
................................................................................
306
Coolant
..........................................................................
240
Jump Starting
.............................................................
284
Oil
.....................................................................................
234
Starting
...........................................................................
191
Switch Buzzer
..............................................................
10 4
Engine Coolant
...........................................................
240
Adding to the Radiator
..........................................
241
Adding to the Reserve Tank
..............................
240
Overheating
................................................................
288
Temperature Gauge
..................................................
75
Engine Oil
.......................................................................
234
Adding
............................................................................
237
Checking
........................................................................
235
Displaying Oil Life
.....................................................
225
Low Oil Pressure Indicator
...........................
64,290
Recommended Engine Oil
..................................
234
EPS (Electric Power Steering System)
..68,292
Exhaust Hazard (Carbon Monoxide) .............
60
Exterior Mirrors
...........................................................
114
Exterior Care (Cleaning)
.......................................
273
FFeatures
.............................................................................
137
Filters
Dust and Pollen
..........................................................
270
Oil
.....................................................................................
238
Flat Tire
..............................................................................
277
Floor Mats
........................................................................
272
Fluids
Automatic Transmission
........................................
242
Brake/Clutch
...............................................................
24 4
Engine Coolant
..........................................................
240
Manual Transmission
..............................................
243
Windshield Washer
.................................................
246
Fog Light Indicator
.....................................................
70
Folding Down the Rear Seats
...........................
12 3
Foot Brake
.......................................................................
211
Front Airbags (SRS)
.....................................................
36
Front Seats
.......................................................................
11 6
Adjusting
.......................................................................
11 6
Fuel
................................................................................
14 , 215
Economy
........................................................................
218
Gauge
................................................................................
75
Instant Fuel Economy
...............................................
78
Low Fuel Indicator
......................................................
66
Range
.................................................................................
78
Recommendation
.....................................................
215
Refueling
........................................................................
215
Fuel Economy
................................................................
218
Fuel Fill Cap
.............................................................
14 , 217
Message
.........................................................................
291
Fuel Fill Door
..........................................................
14 , 217
Unable to Unlock
...............................................
14 , 216
Fuses
....................................................................................
294
Inspecting and Changing
.....................................
297
Locations
..................................................
294,295,296
GGasoline (Fuel)
Economy
........................................................................
218
Gauge
................................................................................
75
Information
..................................................................
215
Instant Fuel Economy
...............................................
78
Low Fuel Indicator
......................................................
66
Refueling
........................................................................
215
Gauges
.................................................................................
75
Gear Shift Lever Positions
...................................
19 9
Automatic Transmission
........................................
195
Manual Transmission
..............................................
19 9
Glass (care)
......................................................................
274
Glove Box
.........................................................................
126
HHalogen Bulbs
..............................................................
247
