FAMILIARISATION
7
Familiarisation

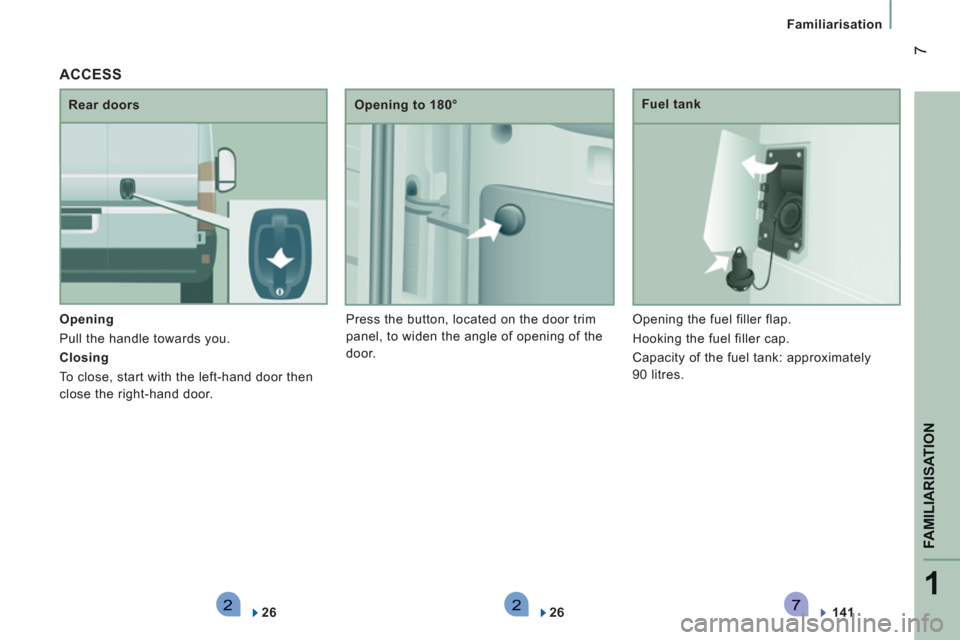

Opening
Pull the handle towards you.

Closing
To close, start with the left-hand door then
close the right-hand door.
Rear doors
Opening to 180°
Press the button, located on the door trim
panel, to widen the angle of opening of the
door.
Fuel tank
Opening the fuel filler flap.
Hooking the fuel filler cap.
Capacity of the fuel tank: approximately
90 litres.

26



ACCESS


26

141

8
Familiarisation

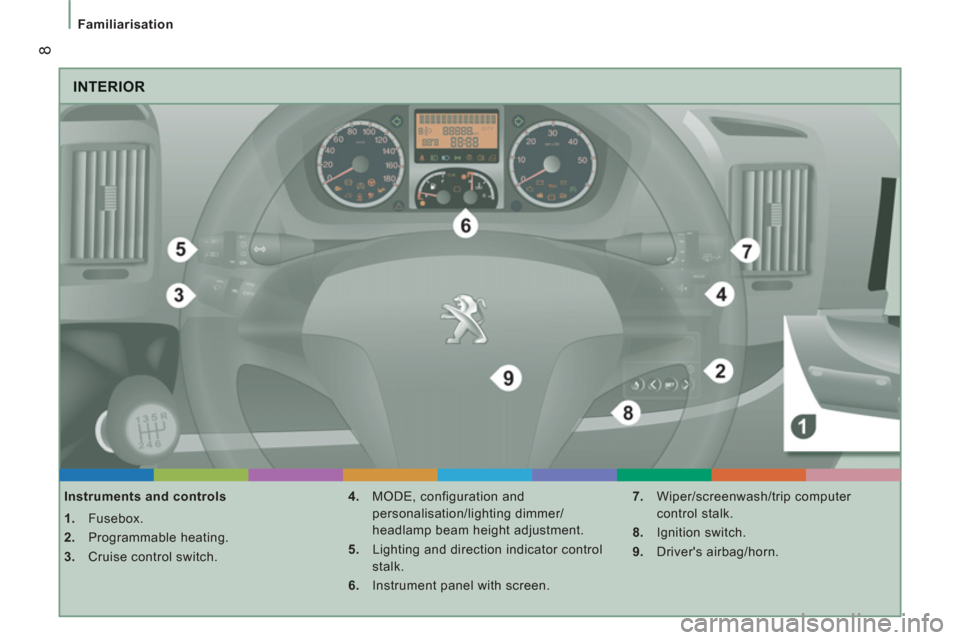

INTERIOR


Instruments and controls


1.
Fusebox.

2.
Programmable heating.

3.
Cruise control switch.
4.
MODE, configuration and
personalisation/lighting dimmer/
headlamp beam height adjustment.

5.
Lighting and direction indicator control
stalk.

6.
Instrument panel with screen.
7.
Wiper/screenwash/trip computer
control stalk.

8.
Ignition switch.

9.
Driver's airbag/horn.

1
FAMILIARISATION
9
Familiarisation

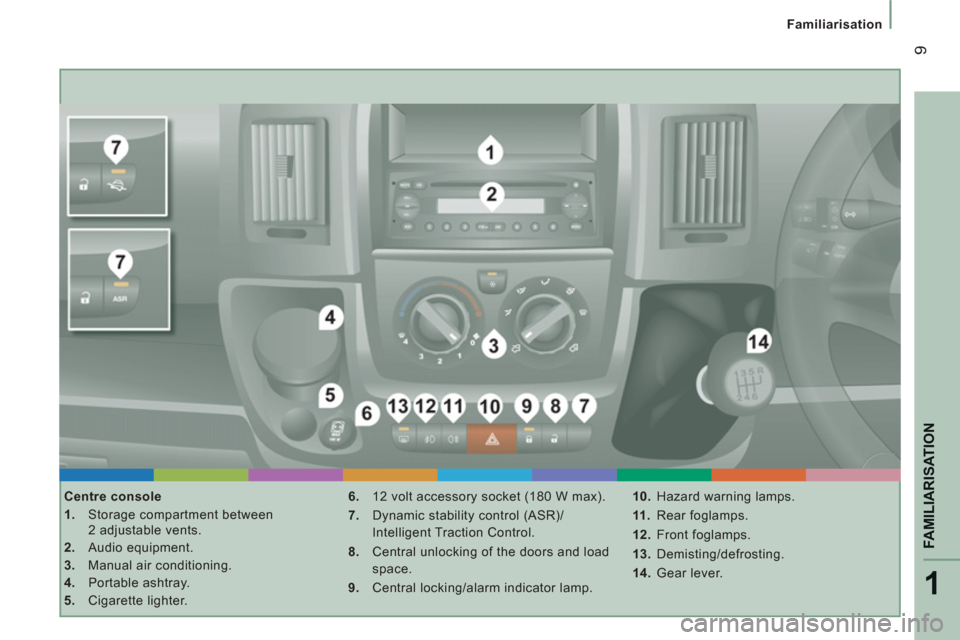

Centre console


1.
Storage compartment between
2 adjustable vents.

2.
Audio equipment.

3.
Manual air conditioning.

4.
Portable ashtray.

5.
Cigarette lighter.
6.
12 volt accessory socket (180 W max).

7.
Dynamic stability control (ASR)/
Intelligent Traction Control.

8.
Central unlocking of the doors and load
space.

9.
Central locking/alarm indicator lamp.
10.
Hazard warning lamps.

11 .
Rear foglamps.

12.
Front foglamps.

13.
Demisting/defrosting.

14.
Gear lever.

3
10
Familiarisation
SITTING COMFORTABLY

60

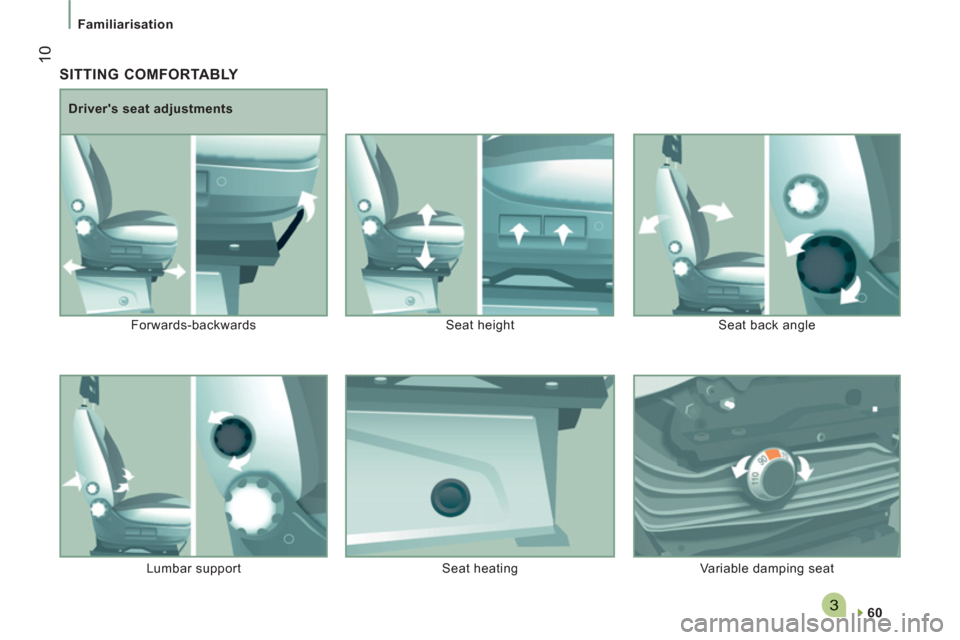

Driver's seat adjustments
Forwards-backwards Seat height Seat back angle
Lumbar support Seat heating Variable damping seat

523
5
1
FAMILIARISATION
11
Familiarisation
SITTING COMFORTABLY



1.
Unlocking the adjustment mechanism.

2.
Locking the adjustment mechanism.

3.
Adjustment of the reach of the steering
wheel.

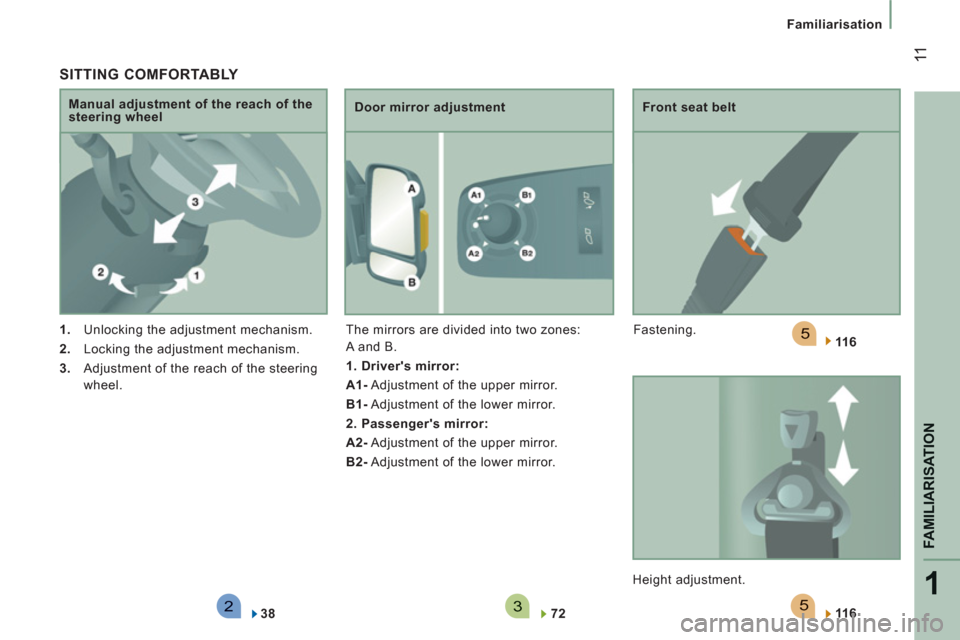

Manual adjustment of the reach of the
steering wheel
Door mirror adjustment
The mirrors are divided into two zones:
A and B.

1. Driver's mirror:

A1-
Adjustment of the upper mirror.

B1-
Adjustment of the lower mirror.

2. Passenger's mirror:

A2-
Adjustment of the upper mirror.

B2-
Adjustment of the lower mirror.

38

72

Front seat belt
Fastening.
Height adjustment.

11 6


11 6

233
12
Familiarisation
SEEING CLEARLY

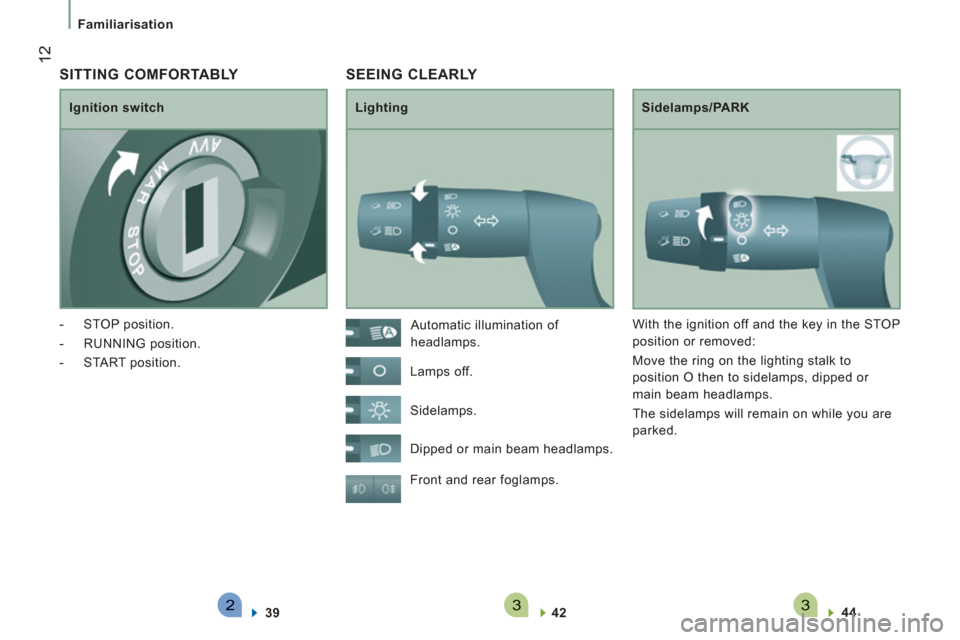

Lighting
Sidelamps/PARK
Front and rear foglamps.

42

44

Automatic illumination of
headlamps.
Lamps off.
Sidelamps.
Dipped or main beam headlamps. With the ignition off and the key in the STOP
position or removed:
Move the ring on the lighting stalk to
position O then to sidelamps, dipped or
main beam headlamps.
The sidelamps will remain on while you are
parked.
SITTING COMFORTABLY


Ignition switch


- STOP position.

- RUNNING position.

- START position.

39

3331
FAMILIARISATION
13
Familiarisation

45

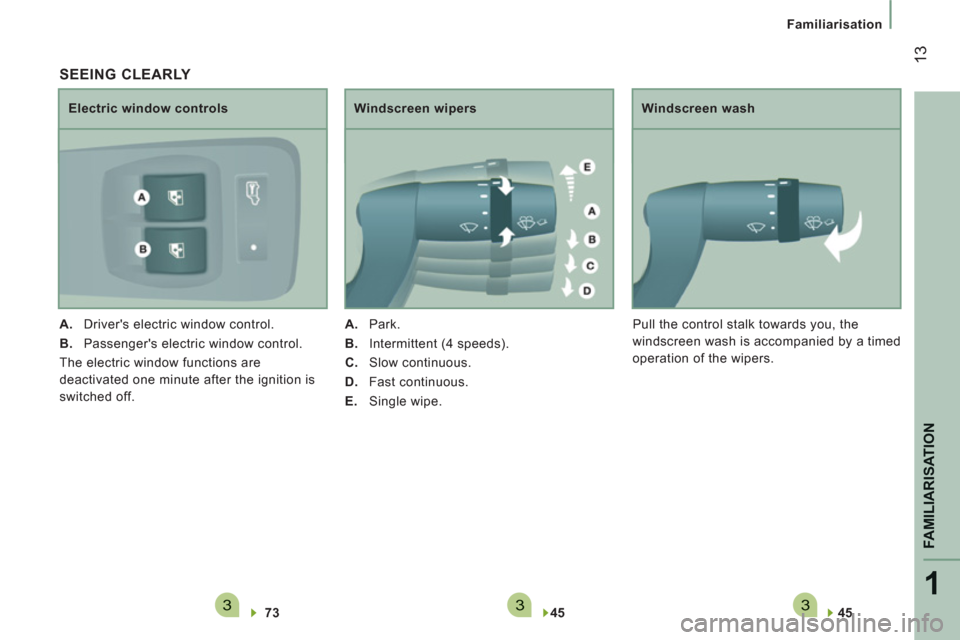

Windscreen wash
Pull the control stalk towards you, the
windscreen wash is accompanied by a timed
operation of the wipers.
SEEING CLEARLY


73

Electric window controls


A.
Driver's electric window control.

B.
Passenger's electric window control.
The electric window functions are
deactivated one minute after the ignition is
switched off.

45

Windscreen wipers


A.
Park.

B.
Intermittent (4 speeds).

C.
Slow continuous.

D.
Fast continuous.

E.
Single wipe.

14
Familiarisation
VENTILATION

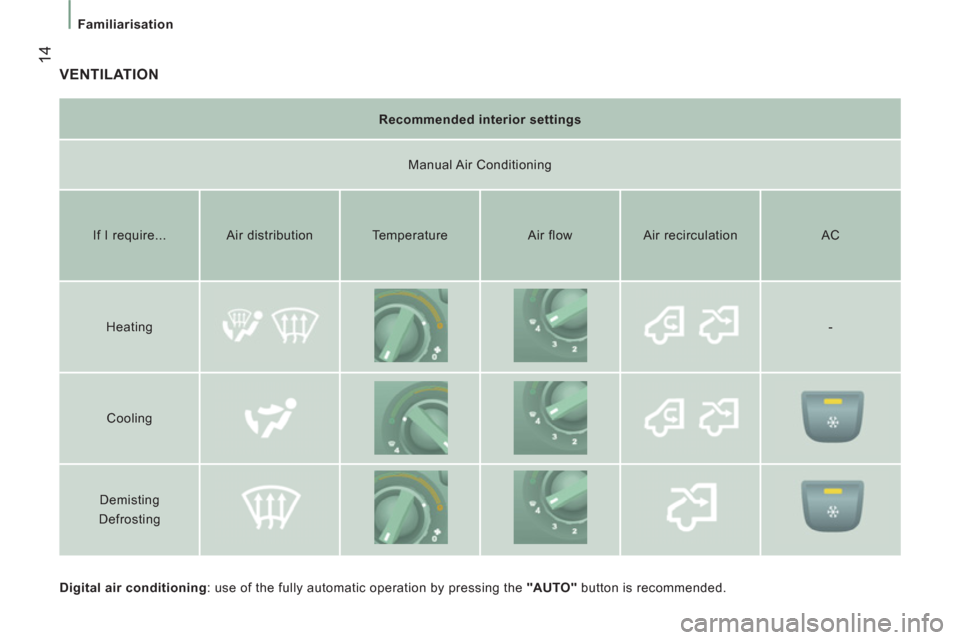

Digital air conditioning
: use of the fully automatic operation by pressing the "AUTO"
button is recommended.

Recommended interior settings

Manual Air Conditioning

If I require...
Air distribution
Temperature
Air flow
Air recirculation AC

Heating
-

Cooling


Demisting
Defrosting
