2011.5 Peugeot Boxer Owner's Manual - RHD (UK, Australia)

FM MUTE CD
AMAS
Audio equipment
87
4
TECHNOLOGY ON BOARD

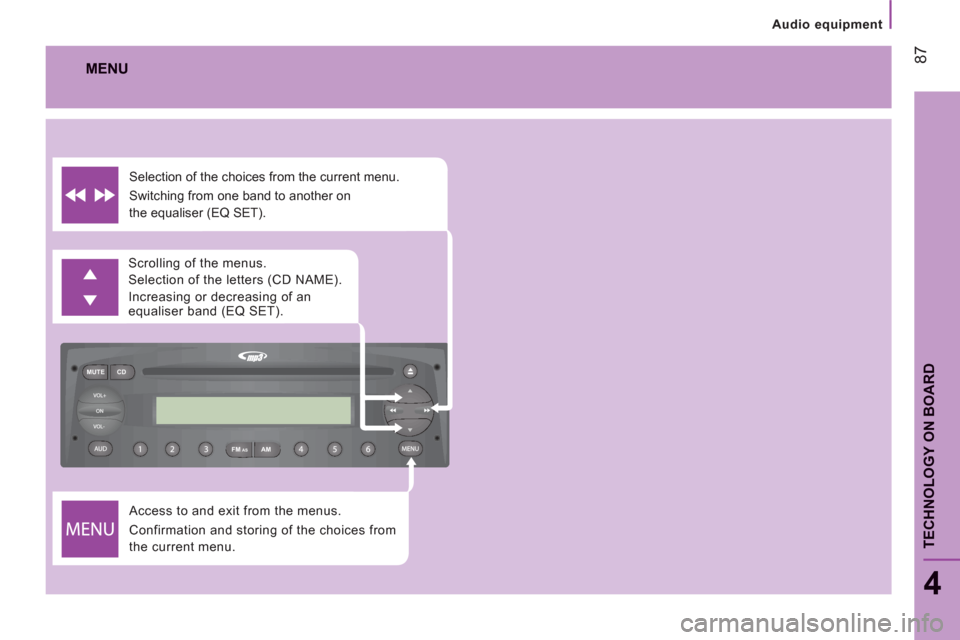

Access to and exit from the menus.
Confirmation and storing of the choices from
the current menu. Scrolling of the menus.
Selection of the letters (CD NAME).
Increasing or decreasing of an
equaliser band (EQ SET). Selection of the choices from the current menu.
Switching from one band to another on
the equaliser (EQ SET).
MENU

Audio equipment

88


Scroll
the display

Select

Display

Select

Display

Select

Display

Select

Display

Enables you
to…

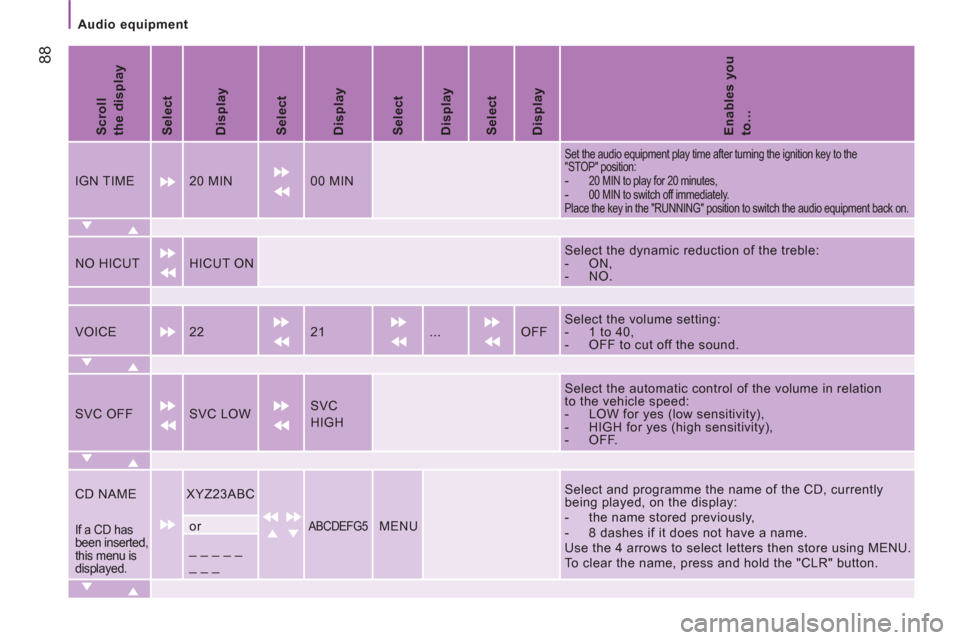

IGN TIME 20 MIN 00 MIN


Set the audio equipment play time after turning the ignition key to the
"STOP" position:


-
20 MIN to play for 20 minutes,
-
00 MIN to switch off immediately.
Place the key in the "RUNNING" position to switch the audio equipment back on.



NO HICUT HICUT ON

Select the dynamic reduction of the treble:


- ON,

- NO.



VOICE 22 21 ... OFF Select the volume setting:


- 1 to 40,

- OFF to cut off the sound.



SVC OFF SVC LOW SVC
HIGH

Select the automatic control of the volume in relation
to the vehicle speed:


- LOW for yes (low sensitivity),

- HIGH for yes (high sensitivity),

- OFF.



CD NAME



XYZ23ABC


ABCDEFG5
MENU


Select and programme the name of the CD, currently
being played, on the display:


- the name stored previously,

- 8 dashes if it does not have a name.
Use the 4 arrows to select letters then store using MENU.
To clear the name, press and hold the "CLR" button.

If a CD has
been inserted,
this menu is
displayed. or
_ _ _ _ _
_ _ _

Audio equipment
89
4
TECHNOLOGY ON BOARD

Scroll
the display

Select

Display

Select

Display

Select

Display

Select

Display

Enables you
to…

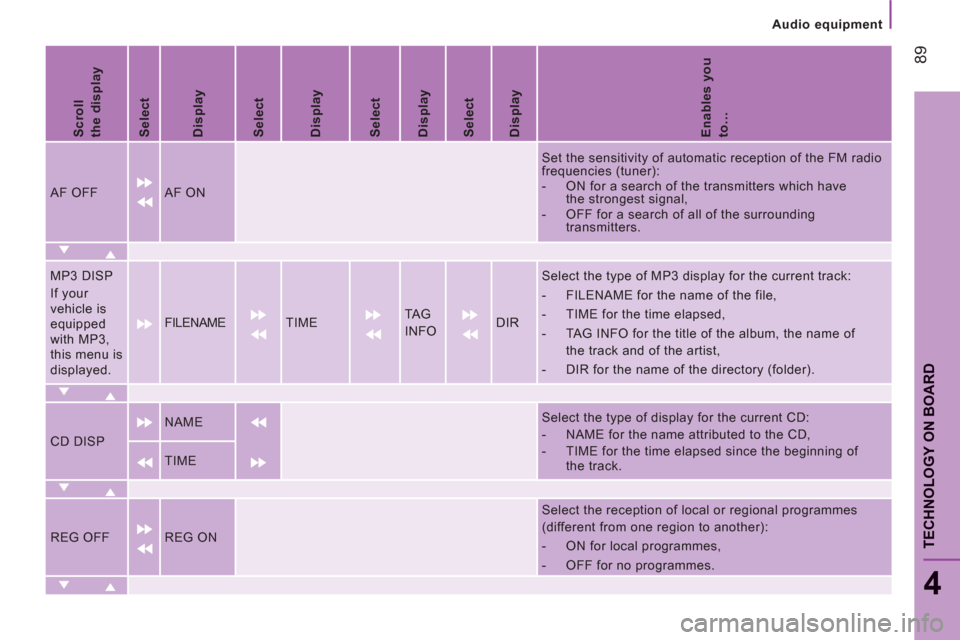

AF OFF AF ON Set the sensitivity of automatic reception of the FM radio
frequencies (tuner):


- ON for a search of the transmitters which have
the strongest signal,

- OFF for a search of all of the surrounding
transmitters.
MP3 DISP
If your
vehicle is
equipped
with MP3,
this menu is
displayed. FILENAME TIME TA G
INFO DIR Select the type of MP3 display for the current track:


- FILENAME for the name of the file,

- TIME for the time elapsed,

- TAG INFO for the title of the album, the name of
the track and of the artist,

- DIR for the name of the directory (folder).
CD DISP NAME Select the type of display for the current CD:


- NAME for the name attributed to the CD,

- TIME for the time elapsed since the beginning of
the track. TIME
REG OFF REG ON Select the reception of local or regional programmes
(different from one region to another):


- ON for local programmes,

- OFF for no programmes.

Audio equipment

90


Scroll
the display

Select

Display

Select

Display

Select

Display

Select

Display

Enables you
to…

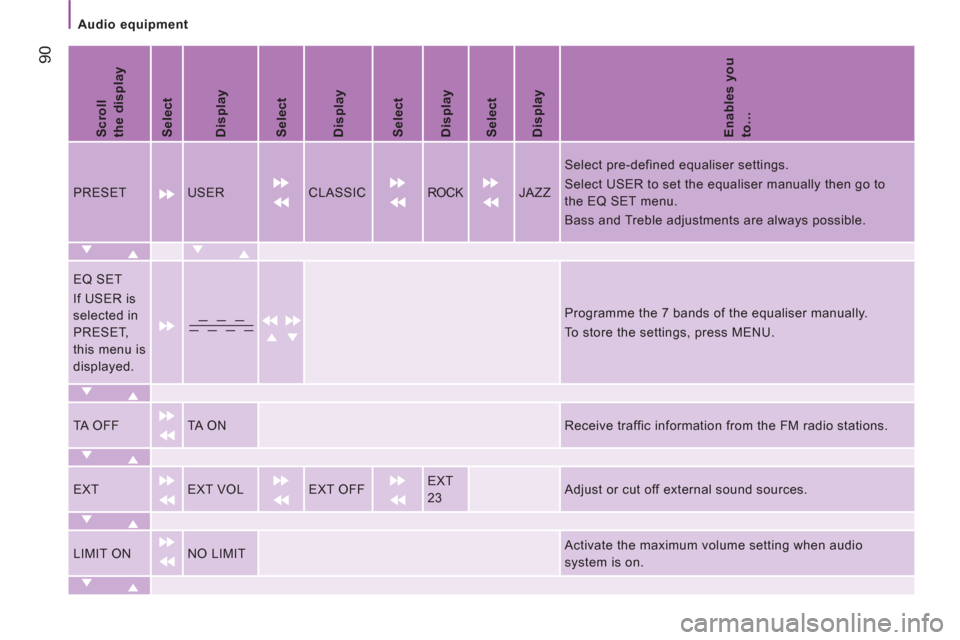

PRESET USER CLASSIC ROCK JAZZ Select pre-defined equaliser settings.
Select USER to set the equaliser manually then go to
the EQ SET menu.
Bass and Treble adjustments are always possible.



EQ SET
If USER is
selected in
PRESET,
this menu is
displayed.

Programme the 7 bands of the equaliser manually.
To store the settings, press MENU.



TA OFF TA ON

Receive traffic information from the FM radio stations.



EXT EXT VOL EXT OFF EXT
23 Adjust or cut off external sound sources.



LIMIT ON NO LIMIT

Activate the maximum volume setting when audio
system is on.

2
11
CDFFMAMAMASA
AM
FM MUTE CD
AMAS
Audio equipment
91
4
TECHNOLOGY ON BOARD

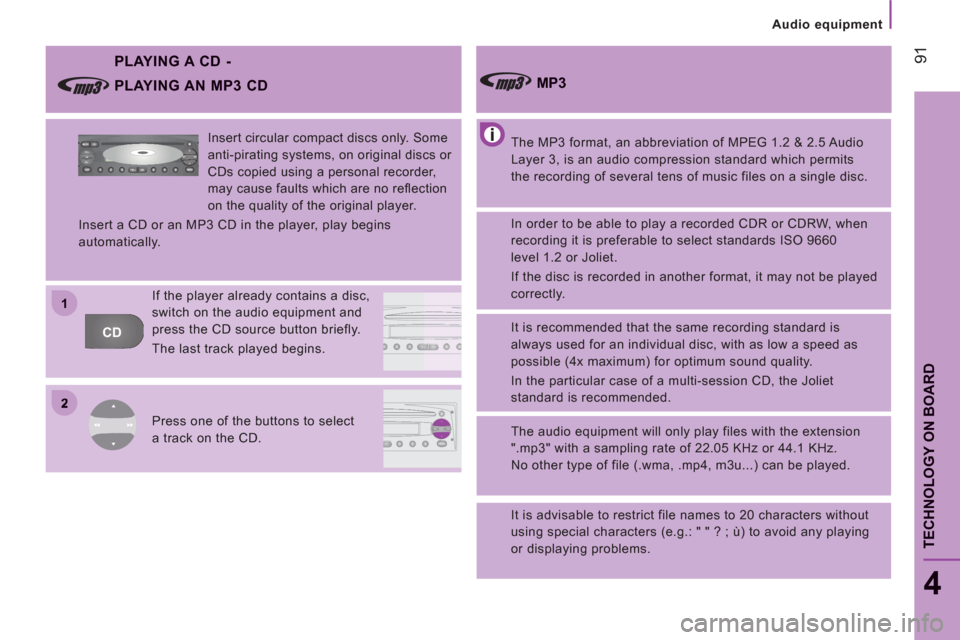

PLAYING A CD -

The MP3 format, an abbreviation of MPEG 1.2 & 2.5 Audio
Layer 3, is an audio compression standard which permits
the recording of several tens of music files on a single disc.
MP3

In order to be able to play a recorded CDR or CDRW, when
recording it is preferable to select standards ISO 9660
level 1.2 or Joliet.
If the disc is recorded in another format, it may not be played
correctly.
It is recommended that the same recording standard is
always used for an individual disc, with as low a speed as
possible (4x maximum) for optimum sound quality.
In the particular case of a multi-session CD, the Joliet
standard is recommended.
The audio equipment will only play files with the extension
".mp3" with a sampling rate of 22.05 KHz or 44.1 KHz.
No other type of file (.wma, .mp4, m3u...) can be played.
It is advisable to restrict file names to 20 characters without
using special characters (e.g.: " " ? ; ù) to avoid any playing
or displaying problems.
PLAYING AN MP3 CD

Insert circular compact discs only. Some
anti-pirating systems, on original discs or
CDs copied using a personal recorder,
may cause faults which are no refl ection
on the quality of the original player.
Insert a CD or an MP3 CD in the player, play begins
automatically.
If the player already contains a disc,
switch on the audio equipment and
press the CD source button briefly.
The last track played begins.
Press one of the buttons to select
a track on the CD.

93
TECHNOLOGY ON BOARD

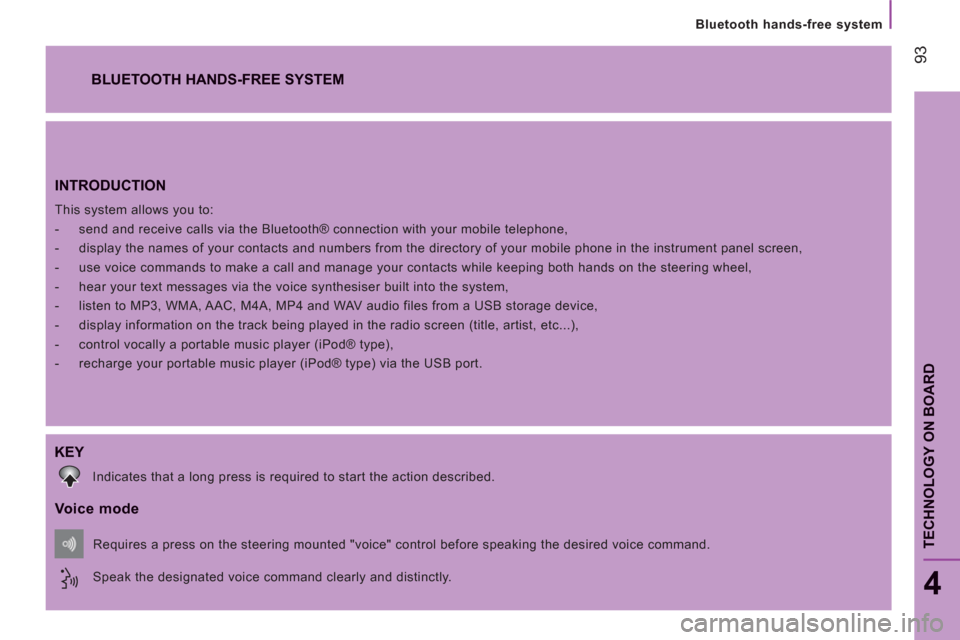

Bluetooth hands-free system
4
INTRODUCTION

This system allows you to:


- send and receive calls via the Bluetooth® connection with your mobile telephone,

- display the names of your contacts and numbers from the directory of your mobile phone in the instrument panel screen,

- use voice commands to make a call and manage your contacts while keeping both hands on the steering wheel,

- hear your text messages via the voice synthesiser built into the system,

- listen to MP3, WMA, AAC, M4A, MP4 and WAV audio files from a USB storage device,

- display information on the track being played in the radio screen (title, artist, etc...),

- control vocally a portable music player (iPod® type),

- recharge your portable music player (iPod® type) via the USB port.

BLUETOOTH HANDS-FREE SYSTEM


KEY

Indicates that a long press is required to start the action described.
Voice mode

Speak the designated voice command clearly and distinctly. Requires a press on the steering mounted "voice" control before speaking the desired voice command.

94

Bluetooth hands-free system

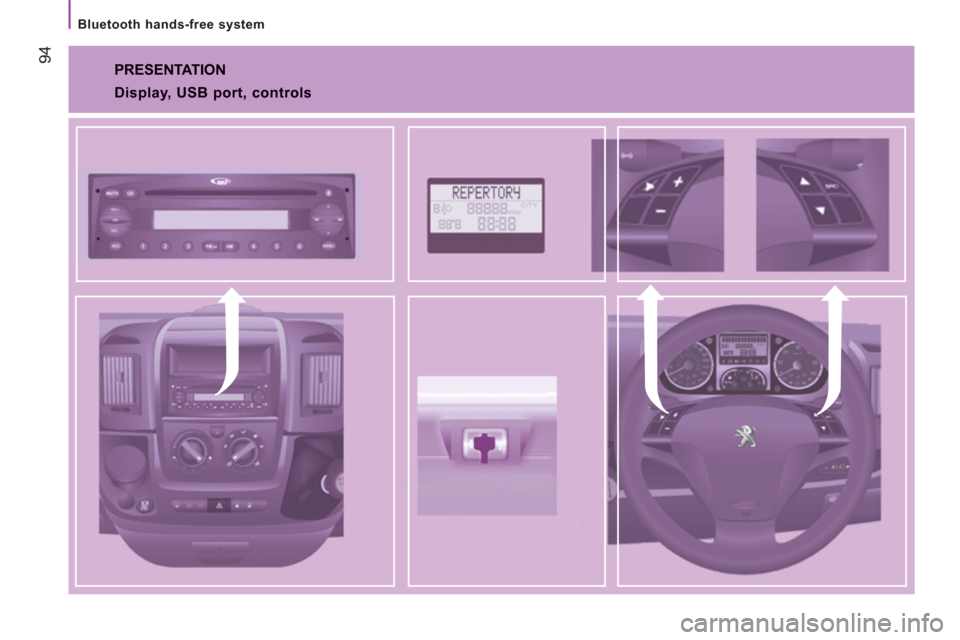

PRESENTATION


Display, USB port, controls
