4
FAMILIARISATION
EXTERIOR


Stop & Start

This system puts the engine tempo-
rarily into standby during stops in the
traffi c (red lights, traffi c jams, etc...).
The engine restarts automatically as
soon as you want to move off.
Stop & Start reduces fuel consump-
tion, exhaust emissions and noise
when stationary.

Lane departure warning system


This driving aid warns you when you
unwittingly cross a lane marking.

Parking sensors (visual and
audible)

This system warns you if an obstacle
is detected in front of or behind the
vehicle.
Tyre under-infl ation detection

This system checks the pressure
of the tyres automatically while
driving.
Xenon dual-function directional
headlamps

This system automatically provides
you with extra visibility on bends.
This lighting is linked with the cor-
nering lighting which maximises the
illuminated area at intersections and
when parking.



143


91



156


159


117
Panoramic sunroof (Tourer)

This roof provides you with perfect
brightness in the passenger com-
partment.

Sunroof (Saloon)

This also provides you with im-
proved ventilation in the passenger
compartment.



84-85

!!!
18
FAMILIARISATION

Electric parking brake

Never leave a child alone inside
the vehicle with the ignition
on, as they could release the
parking brake.

Hill start assist


Manual operation
The MANUAL application/release of
the parking brake is always possible
by pulling/pushing the control lever B
,
keeping your foot on the brake pedal.
Before leaving the ve-
hicle, check that warn-
ing lamp A (!)
(red) in
the instrument panel is
on fi xed (not fl ashing) and that warn-
ing lamp P
(red) in the control lever B

is on.
If you leave the vehicle with the
engine still running, apply the
parking brake manually. Do not leave the vehicle while
it is being held in the temporary
immobilisation hill start assist
phase.
To aid starting on a gradient, your vehicle is equipped with a system which keeps
it immobilised for a short time (about
2 seconds), the approximate time it
takes to move your foot from the brake
pedal to the accelerator pedal.
This system is only active when:


-
The vehicle is completely stationary,
with your foot on the brake pedal.

- In certain conditions on a gradient.

- With the driver’s door closed. Before leaving the ve-
hicle, check that warn-
ing lamp A (!)
(red) in
the instrument panel is
on fi xed (not fl ashing) and that warn-
ing lamp P
(red) in the control lever B

is on.
Automatic operation
The electric parking brake releases
automatically and progressively when
you press the accelerator. With the
vehicle stationary, the parking brake
is automatically applied when the
engine is switched off.

DRIVING




130



136



129

25

Limit the causes of excess
consumption

Spread loads throughout the vehicle;
place the heaviest items in the bottom
of the boot, as close as possible to the
rear seats.
Limit the loads carried in the vehicle
and reduce wind resistance (roof bars,
roof rack, bicycle carrier, trailer...). Use
a roof box in preference.
Remove roof bars and roof racks after
use.

At the end of winter, remove snow
tyres and refi t your summer tyres.



Observe the recommendations
on maintenance

Check the tyre pressures regularly,
when cold, referring to the label in the
door aperture, driver's side.
Carry out this check in particular:


- before a long journey,

- at each change of season,

- after a long period out of use.
Don't forget the spare wheel and the
tyres on any trailer or caravan.

Have your vehicle serviced regularly
(engine oil, oil fi lter, air fi lter...) and
observe the schedule of operations
recommended by the manufacturer.


When refuelling, do not continue after
the 3 rd cut-off of the nozzle to avoid
any overfl ow.

At the wheel of your new vehicle,
it is only after the fi rst 1 800 miles
(3 000 kilometres) that you will see
the fuel consumption settle down to a
consistent average.

I
26
MONITORING














INSTRUMENT PANELS - PETROL AND DIESEL - MANUAL AND AUTOMATIC GEARBOX

Panel grouping together the dials and vehicle operation indicator and warning lamps.


A.
Fuel gauge

B.
Indicator:


●
Coolant temperature

●
Cruise control/Speed limiter
information

C.
Speedometer

D.
Rev counter
E.
Indicator:


●
Engine oil temperature

●
Gear lever position and gear
engaged (Automatic gearbox)

F.
Controls:


●
Lighting dimmer

●
Resetting to zero of trip mile-
age computer and mainte-
nance indicator
G.
Instrument panel screen indicating:


●
Depending on the page
selected with the left-hand
thumb wheel on the steering
wheel:


- Digital speed repeater

- Trip computer

- Navigation (guidance) infor-
mation

- Display of message alerts

- Engine oil level check

- Service indicator

●
Permanently:


- Trip mileage recorder

- Total mileage recorder

I
34
MONITORING

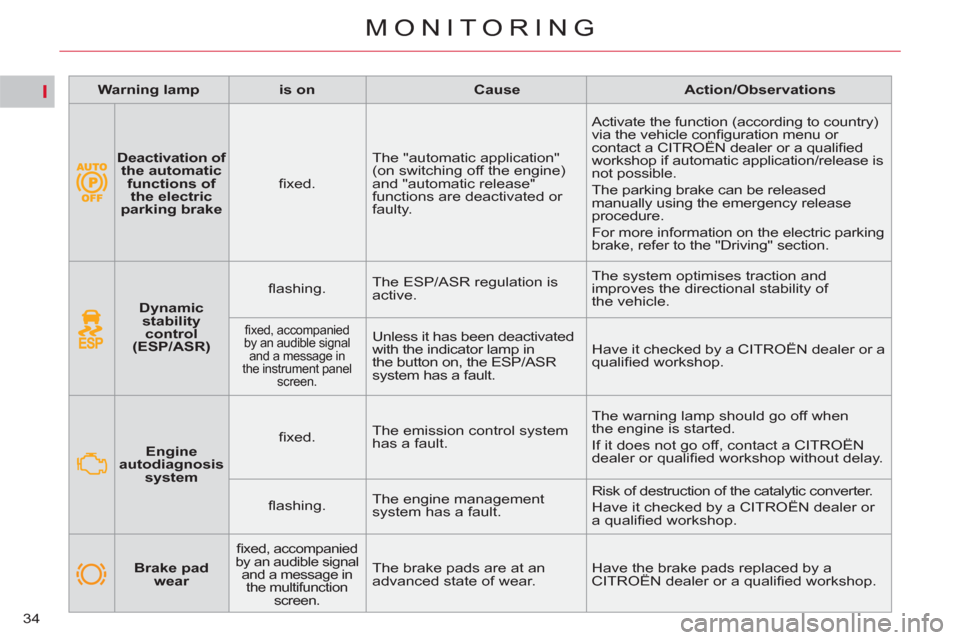

Dynamic
stability
control
(ESP/ASR)


fl ashing. The ESP/ASR regulation is
active. The system optimises traction and
improves the directional stability of
the vehicle.
fi xed, accompanied
by an audible signal
and a message in
the instrument panel
screen.
Unless it has been deactivated
with the indicator lamp in
the button on, the ESP/ASR
system has a fault. Have it checked by a CITROËN dealer or a
qualifi ed workshop.




Engine
autodiagnosis
system


fi xed. The emission control system
has a fault. The warning lamp should go off when
the engine is started.
If it does not go off, contact a CITROËN
dealer or qualifi ed workshop without delay.

fl ashing. The engine management
system has a fault. Risk of destruction of the catalytic converter.
Have it checked by a CITROËN dealer or
a qualifi ed workshop.

Warning lamp



is on



Cause



Action/Observations



Brake pad
wear


fi xed, accompanied
by an audible signal
and a message in
the multifunction
screen.
The brake pads are at an
advanced state of wear. Have the brake pads replaced by a
CITROËN dealer or a qualifi ed workshop.

Deactivation of
the automatic
functions of
the electric
parking brake


fi xed. The "automatic application"
(on switching off the engine)
and "automatic release"
functions are deactivated or
faulty. Activate the function (according to country)
via the vehicle confi guration menu or
contact a CITROËN dealer or a qualifi ed
workshop if automatic application/release is
not possible.
The parking brake can be released
manually using the emergency release
procedure.
For more information on the electric parking
brake, refer to the "Driving" section.

I
40
MONITORING













Service indicator zero reset
After each service, the service indi-
cator must be reset to zero.
The procedure for resetting to zero
is as follows:


)
switch off the ignition,

)
press and hold the trip distance
recorder zero reset button,

)
switch on the ignition; the dis-
tance recorder display begins a
countdown,

)
when the display indicates "=0"
,
release the button; the spanner
disappears.
Following this operation, if you wish
to disconnect the battery, lock the
vehicle and wait at least fi ve minutes
for the zero reset to be taken into
account.
















Engine oil level indicator

System which informs the driver
whether the engine oil level is correct
or not.
This information is indicated for a
few seconds when the ignition is
switched on, after the service infor-
mation.
The level read will only be correct if
the vehicle is on level ground and
the engine has been off for more
than 15 minutes.

Oil level correct

Oil level incorrect
This is indicated by displaying of the
message "Oil level incorrect".
If the low oil level is confi rmed by a
check using the dipstick, it is essen-
tial that the level is topped up to pre-
vent damage to the engine.
Oil level gauge fault
This is indicated by displaying of the
message "Oil level measurement in-
valid". Contact a CITROËN dealer
or a qualifi ed workshop.

I
41
MONITORING















Engine oil temperature gauge

Under normal operating conditions,
the bars should be within section 1
.
In severe operating conditions, the
bars may extend into section 2
.

In this event, slow down, and if neces-
sary, stop the engine and check the
levels (see corresponding section).


Coolant temperature gauge

Under normal operating conditions,
the bars should be within section 1
.

In severe operating conditions, the
bars may extend into section 2
, the
engine coolant temperature warning
lamp A
and the STOP
warning lamp
come on, stop as soon as it is safe
to do so
. Switch off the ignition. The
cooling fan may continue to oper-
ate for a certain time
.

Contact a CITROËN dealer or a
qualifi ed workshop.

If the SERVICE
warning lamp comes on, check the levels (see corre-
sponding chapter). On horizontal ground, illumination of
the fuel low warning lamp indicates
that you are at the reserve level.
An alert message is displayed in the
instrument panel.







Fuel gauge
