ECO-DRIVING 24 Î 25

VII
107
CHILD SAFETY

*
The rules for carrying children are
specifi c to each country. Refer to the
current legislation in your country.












GENERAL POINTS RELATING
TO CHILD SEATS
Although one of CITROËN’s main
criteria when designing your vehi-
cle, the safety of your children also
depends on you.
For maximum safety, please observe
the following recommendations:


- in accordance with European
regulations, all children under
the age of 12 or less than one
and a half metres tall must
travel in approved child seats
suited to their weight
, on seats
fi tted with a seat belt or ISOFIX
mountings * ,

- statistically, the safest seats in
your vehicle for carrying chil-
dren are the rear seats,


- a child weighing less than 9 kg
must travel in the "rearwards-
facing" position both in the
front and in the rear.



CITROËN recommends
that
children should travel in the rear
seats
of your vehicle:


- "rearwards-facing"
up to the
age of 2,

- "forwards-facing"
over the
age of 2.

CHILD SEAT IN THE FRONT


"Rearwards-facing"
When a "rearwards-facing" child
seat is installed on the front pas-
senger seat
, it is essential that the
passenger airbag is deactivated.
Otherwise, the child would risk
being seriously injured or killed if
the airbag were to infl ate
.
"Forwards-facing"
When a "forwards-facing" child seat
is installed on the front passenger
seat
, adjust the vehicle’s seat to the
intermediate longitudinal position
with the seat back upright and leave
the passenger airbag activated.

Intermediate longitudinal
position

VII
109
CHILD SAFETY
CHILD SEATS RECOMMENDED BY CITROËN

CITROËN offers a complete range of recommended child seats which are secured using a three point seat belt
:


Group 0+: from birth to 13 kg









L1

"RÖMER Baby-Safe Plus"
Installed in the rearwards-facing position.


Groups 2 and 3: from 15 to 36 kg








L3

"RECARO Start''






L4

"KLIPPAN Optima"
From the age of 6 years
(approximately 22 kg),
the booster is used on its own.







L5

"RÖMER KIDFIX"
Can be fi tted to the vehicle's ISOFIX mountings.
The child is restrained by the seat belt.

VII
111
CHILD SAFETY

















"ISOFIX" MOUNTINGS

Your vehicle has been approved in
accordance with the new ISOFIX
regulation

s
.
The outer rear seats are fi tted with
regulation ISOFIX mountings.

In the rear
This ISOFIX mounting system pro-
vides fast, reliable and safe fi tting
of the child seat in your vehicle.
The ISOFIX child seats
are fi tted
with two locks which are secured
easily on the two rings A
, following
installation of the guides (supplied
with the seat).
Some also have an upper strap

which is attached to the ring B
or C
.
To attach this strap in the rear, remove
the vehicle seat's head restraint and
stow it. Lift the cover on the rear shelf
(Saloon) or the roof (Tourer). Then
fi x the hook on the ring B
or C
and
tighten the upper strap.
The incorrect installation of a child
seat in a vehicle compromises the
child's protection in the event of an
accident.
For information regarding the
ISOFIX child seats which can be
installed in your vehicle, consult
the table of positions for fi tting
ISOFIX child seats.
Saloon
These are three rings for each outer
rear seat:


- two lower rings A
, located be-
tween the vehicle seat back and
cushion, indicated by a label,

- an upper ring B
, fi xed to the rear
shelf, concealed under a fl ap
with the logo TOP TETHER be-
hind the head restraint.


Tourer


- two lower rings A
, located be-
tween the vehicle seat back and
cushion, indicated by a label,

- an upper ring C
, fi xed to the
roof on the boot side, concealed
under a fl ap with the logo TOP
TETHER.

VII
11 3
CHILD SAFETY

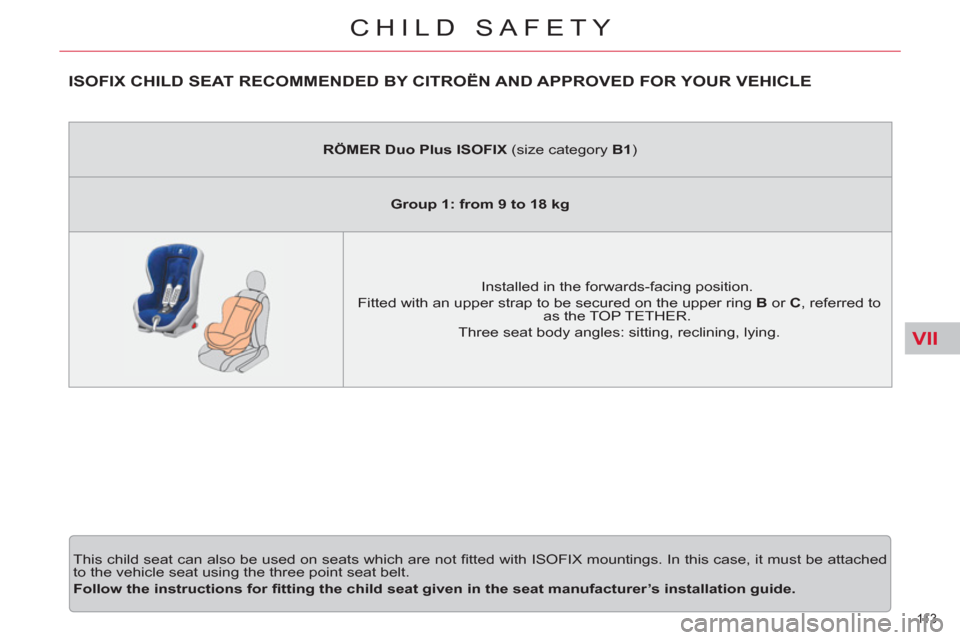

ISOFIX CHILD SEAT RECOMMENDED BY CITROËN AND APPROVED FOR YOUR VEHICLE

This child seat can also be used on seats which are not fi tted with ISOFIX mountings. In this case, it must be attached
to the vehicle seat using the three point seat belt.

Follow the instructions for fi tting the child seat given in the seat manufacturer’s installation guide.


RÖMER Duo Plus ISOFIX
(size category B1
)


Group 1: from 9 to 18 kg





Installed in the forwards-facing position.
Fitted with an upper strap to be secured on the upper ring B


or C
, referred to
as the TOP TETHER.
Three seat body angles: sitting, reclining, lying.

VII
114
CHILD SAFETY

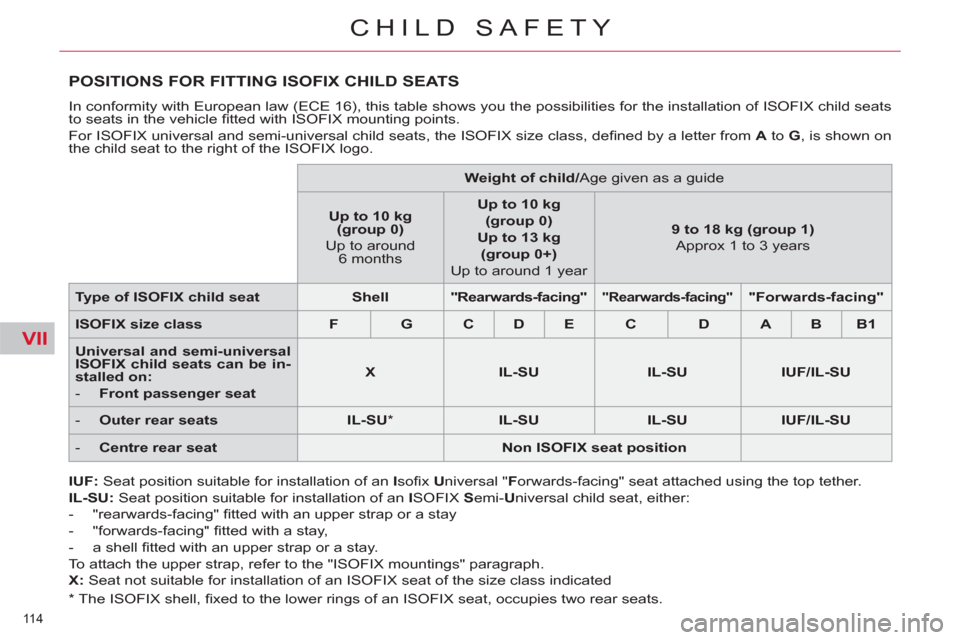

POSITIONS FOR FITTING ISOFIX CHILD SEATS

In conformity with European law (ECE 16), this table shows you the possibilities for the installation of ISOFIX child seats
to seats in the vehicle fi tted with ISOFIX mounting points.
For ISOFIX universal and semi-universal child seats, the ISOFIX size class, defi ned by a letter from A
to G
, is shown on
the child seat to the right of the ISOFIX logo.

IUF:
Seat position suitable for installation of an I
sofi x U
niversal " F
orwards-facing" seat attached using the top tether.

IL-SU:
Seat position suitable for installation of an I
SOFIX S
emi- U
niversal child seat, either:


- "rearwards-facing" fi tted with an upper strap or a stay

- "forwards-facing" fi tted with a stay,

- a shell fi tted with an upper strap or a stay.
To attach the upper strap, refer to the "ISOFIX mountings" paragraph.

X:
Seat not suitable for installation of an ISOFIX seat of the size class indicated







Weight of child/
Age given as a guide


Up to 10 kg
(group 0)

Up to around
6 months

Up to 10 kg
(group 0)


Up to 13 kg
(group 0+)

Up to around 1 year

9 to 18 kg (group 1)

Approx 1 to 3 years


Type of ISOFIX child seat



Shell



"Rearwards-facing"





"Rearwards-facing"




"Forwards-facing"




ISOFIX size class



F



G



C



D



E



C



D



A



B



B1




Universal and semi-universal
ISOFIX child seats can be in-
stalled on:



- Front passenger seat




X



IL-SU



IL-SU



IUF/IL-SU





- Outer rear seats




IL-SU

*


IL-SU



IL-SU



IUF/IL-SU





- Centre rear seat




Non ISOFIX seat position



*
The ISOFIX shell, fi xed to the lower rings of an ISOFIX seat, occupies two rear seats.

332
