2011.5 Citroen C5 RHD headlamp

V
90
VISIBILITY

*
According to country.







Daytime-running lamps

System which switches on special
lamps at the front, to make the ve-
hicle more visible by day.
They light up automatically and per-
manently, when the engine is run-
ning, if:


- The function is activated * in the
"Main Menu" of the instrument
panel screen.

- The lighting control is at position 0

or AUTO
.

- All the headlamps are off.
You can deactivate * this function
using the "Main Menu" of the instru-
ment panel screen.






Manual guide-me-home
lighting
Temporarily keeping the dipped
beam headlamps on after the vehi-
cle's ignition has been switched off
makes the driver's exit easier when
the light is poor.

Switching on


)
With the ignition off, "fl ash" the
headlamps using the lighting
stalk.

)
A further "headlamp fl ash"
switches the function off.


Switching off
The manual guide-me-home lighting
switches off automatically after a set
time.














Automatic illumination of
headlamps
The sidelamps and dipped beam
headlamps are switched on automati-
cally, without any action on the part of
the driver, when a low level of external
light is detected or in certain cases of
activation of the windscreen wipers.
As soon as the brightness returns to a
suffi cient level or after the windscreen
wipers are switched off, the lamps are
switched off automatically.

Activation



)
Turn ring A
to the "AUTO"
position. The automatic illumination of head-lamps is accompanied by a message in the instrument panel screen.



Deactivation


)
Turn ring A
to a position other
than "AUTO"
. Deactivation is
accompanied by a message in
the instrument panel screen.

V
91
VISIBILITY

Linked with the automatic
"Guide-me-home" lighting
The link with the automatic illumi-
nation of headlamps provides the
"guide-me-home" lighting with the
following additional options:


- selection of the duration of ligh-
ting for 15, 30 or 60 seconds in
the vehicle parameters on the in-
strument panel screen confi gu-
ration menu,

- automatic activation of "guide-
me-home" lighting when auto-
matic illumination of headlamps
is in operation.


Operating fault
In the event of a fault with the sun-
shine sensor, the lighting comes on
and a message appears in the instru-
ment panel screen, accompanied by
an audible signal.
Contact a CITROËN dealer or a
qualifi ed workshop.
In fog or snow, the sunshine sen-
sor may detect suffi cient light.
Therefore, the lighting will not
come on automatically.
Do not cover the sunshine sen-
sor, linked with the rain sensor and
located in the centre of the wind-
screen behind the rear view mirror;
the associated functions would no
longer operate.







MANUAL HEADLAMP
ADJUSTMENT
To avoid dazzling other road users,
the height of the halogen bulb head-
lamps must be adjusted according
to the load in the vehicle.

0.
1 or 2 people in the front seats.

-. 3 people.

1.
5 people.

-. Intermediate setting.

2.
5 people + maximum authorised
loads.

-. Intermediate setting.

3.
Driver + maximum authorised
loads.
Initial setting is position "0"
.












AUTOMATIC ADJUSTMENT
OF DIRECTIONAL
HEADLAMPS
Do not touch the xenon bulbs.
Contact a CITROËN dealer or a
qualifi ed workshop. If a fault occurs, this
warning lamp comes
on in the instrument
panel, accompanied by an audible signal and a
message in the instru-
ment panel screen.
The system then places your head-
lamps in the lowest position. To avoid causing a nuisance to other
road users, this system corrects
the height of the xenon headlamp
beams automatically and when sta-
tionary, depending on the load in the
vehicle.

V
92
VISIBILITY





DIRECTIONAL LIGHTING


without cornering lighting


with cornering lighting




"Cornering lighting" function

With dipped or main beams, this
function provides additional lighting
for the inside of a bend, when the
vehicle speed is below 25 mph
(approx 40 km/h).
This lighting is most useful when
travelling at low and medium speed
(urban driving, winding road, inter-
sections, parking manoeuvres...).

Activation
This function is activated:


- when the direction indicator is
activated,

- from a certain angle of rotation of
the steering wheel.
Deactivation
This function is deactivated:


- below a certain angle of rotation
of the steering wheel,

- when stationary or at very low
speed,

- when reverse gear is engaged,

- when the directional headlamps
are switched off.

V
93
VISIBILITY

Programming
The function is activated or deac-
tivated via the instrument panel
screen "Main Menu".
To do this, select "Vehicle parameters\
Lighting\Directional headlamps".

Operating fault
If a fault occurs, this warning
lamp fl ashes in the instru-
ment panel, accompanied
by a message in the multi-
function screen.
Contact a CITROËN dealer or a
qualifi ed workshop.
When stationary or moving at very
low speed or when reverse gear is
engaged, the function is inactive.
The status of the function remains
in the memory when the ignition is
switched off.

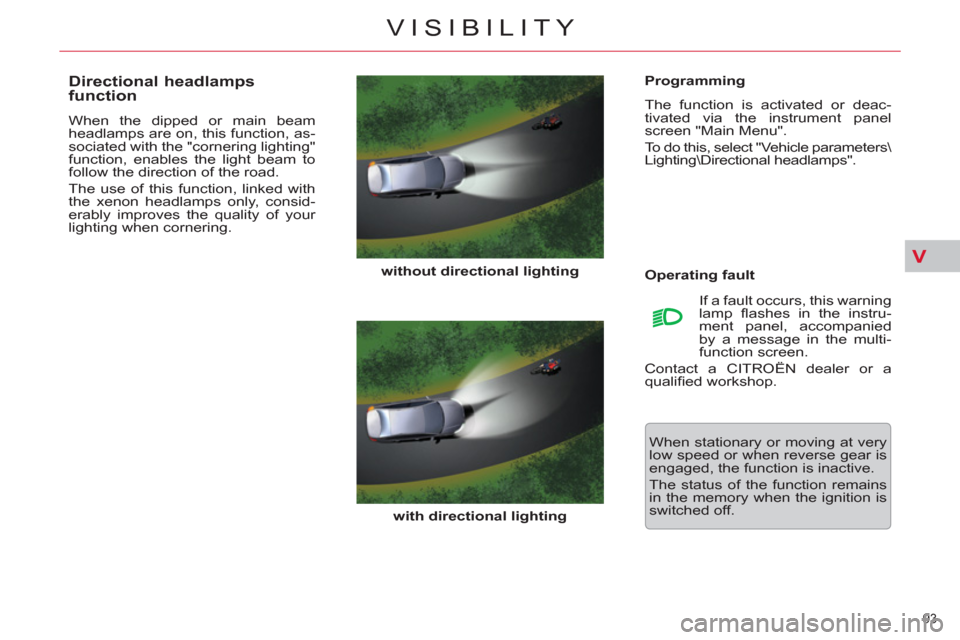

Directional headlamps
function
When the dipped or main beam
headlamps are on, this function, as-
sociated with the "cornering lighting"
function, enables the light beam to
follow the direction of the road.
The use of this function, linked with
the xenon headlamps only, consid-
erably improves the quality of your
lighting when cornering.

with directional lighting

without directional lighting

V
95
VISIBILITY

Reverse gear
When reverse gear is engaged, the
rear wiper operates if the windscreen
wipers are operating.

Programming
The function is activated or deac-
tivated via the instrument panel
screen confi guration menu.
This function is activated by default.











Windscreen and headlamp
wash


)
Pull the windscreen wiper stalk
towards you. The windscreen
wash then the windscreen wip-
ers operate for a fi xed period.
The headlamp washers only operate
when the dipped beam headlamps
are on
.













Automatic rain sensitive
windscreen wipers
The windscreen wipers operate au-
tomatically, without any action on the
part of the driver, if rain is detected
(sensor behind the rear view mirror),
adapting their speed to the intensity
of the rainfall.

Activation
This is controlled manually by the
driver by moving stalk A
to the
"AUTO"
position.
It is accompanied by a message in
the instrument panel screen.
Switching off
This is controlled manually by the
driver by moving stalk A
upwards
and returning it to position "0"
.
It is accompanied by a message in
the instrument panel screen.
The automatic wiping must be reac-
tivated if the ignition has been off for
more than one minute, by pushing
stalk A
downwards.

Operating fault
If an automatic wiping malfunction
occurs, the wipers will operate in in-
termittent mode.
Have it checked by a CITROËN
dealer or a qualifi ed workshop.
Do not cover the rain sensor, linked
with the sunshine sensor and loca-
ted in the centre of the windscreen
behind the rear view mirror.
Switch off the automatic wip-
ing when using an automatic car
wash.
In winter, it is advisable to wait until
the windscreen is completely clear
of ice before activating the auto-
matic wiping.

V
98
VISIBILITY











INTERIOR MOOD LIGHTING

Your vehicle is equipped with interior
mood lighting for the centre console
and the door handles.

Central console

The lamps are located on the roof
console, near the front interior lamp.
They illuminate the central console.

Lighting for door opening
controls

Operation
These lamps are activated with the
automatic illumination of headlamps,
when the ambient light is poor. They
are deactivated when the instrument
panel is off.
The intensity of the lighting varies
along with that of the instrument
panel.


)
Press buttons A
to increase or re-
duce the intensity of the lighting.

This is located on the front and rear
interior door opening controls.
The rear door opening controls light-
ing is deactivated if the child lock
is on.

XX














PETROL ENGINES

The various caps and covers allow
access for checking fl uid levels and
for replacing certain components.


1.
Screenwash and headlamp wash
reservoir.

2.
Power steering fl uid reservoir or
power steering and suspension
fl uid reservoir.

3.
Engine coolant header tank.

4.
Engine oil dipstick.

5.
Engine oil fi ller cap.

6.
Brake fl uid reservoir.

7.
Battery.

8.
Air fi lter.
1.6i THP


1.6i VTi

167
CHECKS

X
!
168
CHECKS
Vehicles fi tted with the 2.0i 16v

engine may be fi tted with metal
spring suspension. In this case,
a different power steering fl uid reser-
voir is fi tted.
2.0i 16V


1.
Screenwash and headlamp wash
reservoir.

2.
Power steering fl uid reservoir or
power steering and suspension
fl uid reservoir.

3.
Engine coolant header tank.

4.
Engine oil dipstick.

5.
Engine oil fi ller cap.

6.
Brake fl uid reservoir.

7.
Battery.

8.
Air fi lter.
