CONTENTS
Monochrome screen C 43
16/9 colour screen (MyWay) 45
16/9 high defi nition colour screen
(NaviDrive 3D) 47 „
„
„
II - MULTIFUNCTION
SCREENS 43 Î 48
Ventilation 49
Mono-zone digital
air conditioning 51
Dual-zone digital
air conditioning 54
Programmable heating 58
Front seats 62
Rear seats 66
Mirrors 67
Steering wheel adjustment 68 „
„
„
„
„
„
„
„
III - COMFORT 49 Î 68
Remote control key 69
Alarm 75
Electric windows 77
Doors 79
Boot 81
Sunroof (Saloon) 84
Panoramic sunroof (Tourer) 85
Fuel tank 86
Misfuel prevention (Diesel) 87 „
„
„
„
„
„
„
„
„
IV - ACCESS 69 Î 87
Lighting controls 88Automatic illumination of headlamps 90
Headlamp adjustment 91
Directional lighting 92
Wiper controls 94
Automatic rain sensitive
windscreen wipers 95
Courtesy lamps 96
Interior mood lighting 98 „
„
„
„
„
„
„
„
V - VISIBILITY 88 Î 99
Interior fi ttings 100
Mats 101
Front armrest 101
Boot fi ttings 103 „
„
„
„
VI - FITTINGS 100 Î 106
Instrument panels 26
Trip computer 29
Warning and indicator lamps 32
Adjustment buttons 42 „
„
„
„
FAMILIARISATION 4 Î 23
I - MONITORING
26 Î 42
Child seats 107
ISOFIX child seats 111
Child lock 115 „
„
„
VII - CHILD SAFETY 107 Î 11 5
ECO-DRIVING 24 Î 25
Page 10 of 340
8
FAMILIARISATION
INSTRUMENTS AND CONTROLS
1.
Electric windows/door mirrors/child safety controls.
2.
Storing driver’s seat and door mirror settings.
3.
Audio/telematic steering mounted controls.
4.
Horn.
5.
Steering mounted controls:
- Speed limiter
- Cruise control
6.
Driver’s airbag.
7.
Navigation controls for the audio/telematic and trip
computer systems.
8.
Driver’s air vent.
9.
Instrument panel.
10.
Driver’s air vent.
11 .
Stop & Start switch.
12.
Lighting/Direction indicators/Foglamp/Voice
recognition control stalk.
13.
Manual headlamp height adjustment.
14.
Steering wheel adjustment.
15.
Knee airbag.
16.
Locking/unlocking of doors and boot.
17.
Checks/Anti-intrusion alarm/Parking space sensor
controls.
18.
Ignition switch.
19.
Windscreen wiper/screenwash control stalk.
20.
Oddments tray or programmable heater controls.
21.
USB port.
Page 14 of 340
12
FAMILIARISATION
SITTING COMFORTABLY
Electro-chromatic rear view
mirror
)
Release the steering wheel by push-
ing control A
forwards.
)
Adjust the height and the reach of
the steering wheel, then lock the po-
sition by pulling the lever upwards.
Steering wheel adjustment
Electric door mirrors
1.
Selection of door mirror:
A.
Left.
B.
Right.
C.
Fold/Unfold.
2.
Adjustment control for mirror se-
lected
.
67
Automatic day/night model
1.
Automatic detection of day/night
mode.
2.
Mirror adjustment.
68
68
As a safety precaution, these opera-
tions must not be carried out while
moving.
Page 46 of 340
II
44
MULTIFUNCTION SCREENS
Adjusting the brightness and
contrast
)
Press on A
.
)
Use C
to select the "Brightness -
video adjustment" menu. Confi rm with a press on C
on the steering
wheel or D
on the audio equip-
ment.
)
Select the confi guration of the
screen using C
. Confi rm with a
press on C
on the steering wheel
or D
on the audio equipment.
)
Select the brightness setting.
Confi rm with a press on C
on the
steering wheel or D
on the audio
equipment.
)
Select the inverse or normal dis-
play mode using C
then validate
with a press on C
on the steering
wheel or D
on the audio equip-
ment. To adjust the brightness
select "+" or "-" and save your
setting with a press on C
.
)
Confi rm with "OK"
on the screen.
Adjusting the date and the
time
)
Press on A
.
)
Use C
to select the "Date and
time adjustment" menu, then
confi rm your choice with a press
on C
on the steering wheel or D
on the audio equipment.
)
Select the screen confi guration
using C
. Confi rm with a press
on C
on the steering wheel or D
on the audio equipment.
)
Select the date and the time set-
tings, using B
. Confi rm with a
press on C
on the steering wheel
or D
on the audio equipment.
)
Press C
to select the values you
wish to modify. Confi rm your
choice with a press on C
on the
steering wheel or D
on the audio
equipment.
)
Confi rm with "OK"
on the screen.
Choosing the units
)
Press on A
.
)
Use C
to select the "Choice of
units" menu, then confi rm your
choice with a press on C
on the
steering wheel or D
on the audio
equipment.
)
Using C
, select the unit then val-
idate with a press on C
on the
steering wheel or D
on the audio
equipment.
)
Confi rm with "OK"
on the screen.
Selection of the type of
information displayed (Mode)
Successive presses on the end of
the wiper stalk or on the MODE
but-
ton on the audio equipment permit
selection of the type of informa-
tion presented on the multifunction
screen (date or radio, CD, MP3 CD,
CD changer).
Page 70 of 340
III
68
COMFORT
As a safety precaution, these op-
erations must only be carried out
while the vehicle is stationary.
STEERING WHEEL ADJUSTMENT
The steering wheel can be adjusted
for height and reach to adapt the
driving position to the size of the
driver.
Adjustment
)
First, adjust the driver's seat to
the most suitable position.
)
When stationary
, pull the lever A
to unlock the steering wheel ad-
justment.
)
Adjust for height and reach.
)
Push the lever to lock the steering
wheel adjustment.
After locking, if you press fi rmly on
the steering wheel, a slight click may
be heard.
Automatic day/night model
In order to guarantee optimum visi-
bility during your manoeuvres, the
mirror lightens automatically when
reverse gear is engaged. By means of a sensor, which mea-
sures the light from the rear of the
vehicle, this system automatically
and progressively changes between
the day and night uses.
It has an anti-dazzle system which
darkens the mirror glass: this reduces
any driver discomfort caused by the
light beam of following vehicles, the
sun... In vehicles fi tted with electrochro-
matic door mirrors, the system has
an on/off button and an associated
warning lamp.
On
)
With the ignition on, press on
button 1
.
The warning lamp 2
comes on and the
mirror glass is in automatic mode.
Off
)
Press on button 1
.
The warning lamp 2
goes off and the
mirror glass remains in its lightest
defi nition.

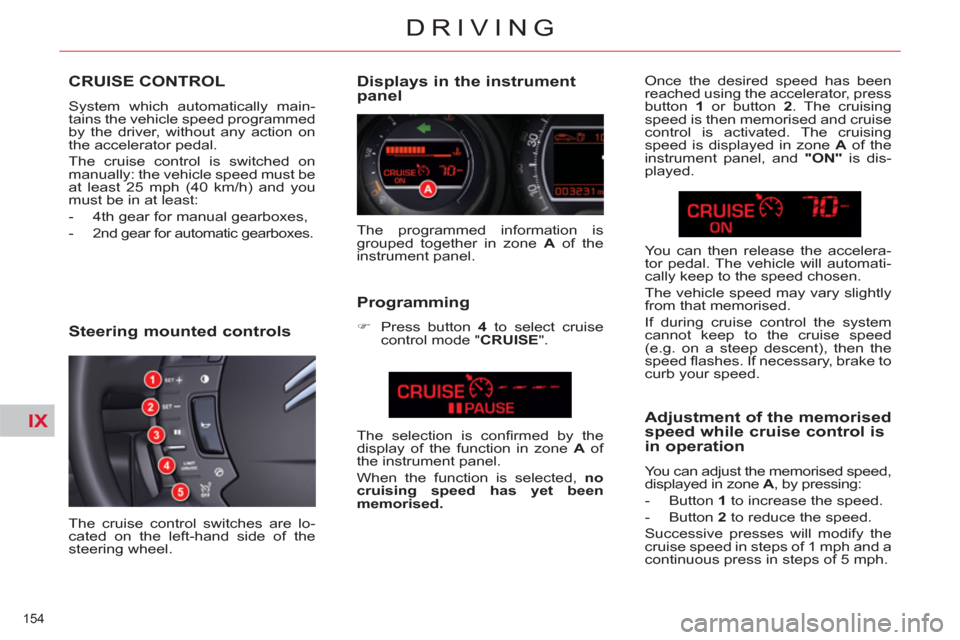

Page 156 of 340
IX
154
DRIVING
CRUISE CONTROL
System which automatically main-
tains the vehicle speed programmed
by the driver, without any action on
the accelerator pedal.
The cruise control is switched on
manually: the vehicle speed must be
at least 25 mph (40 km/h) and you
must be in at least:
- 4th gear for manual gearboxes,
- 2nd gear for automatic gearboxes.
Displays in the instrument
panel
The programmed information is
grouped together in zone A
of the
instrument panel.
Programming
)
Press button 4
to select cruise
control mode " CRUISE
".
Steering mounted controls
The cruise control switches are lo-
cated on the left-hand side of the
steering wheel. The selection is confi rmed by the
display of the function in zone A
of
the instrument panel.
When the function is selected, no
cruising speed has yet been
memorised.
Once the desired speed has been
reached using the accelerator, press
button 1
or button 2
. The cruising
speed is then memorised and cruise
control is activated. The cruising
speed is displayed in zone A
of the
instrument panel, and "ON"
is dis-
played.
Adjustment of the memorised
speed while cruise control is
in operation
You can adjust the memorised speed,
displayed in zone A
, by pressing:
- Button 1
to increase the speed.
- Button 2
to reduce the speed.
Successive presses will modify the
cruise speed in steps of 1 mph and a
continuous press in steps of 5 mph. You can then release the accelera-
tor pedal. The vehicle will automati-
cally keep to the speed chosen.
The vehicle speed may vary slightly
from that memorised.
If during cruise control the system
cannot keep to the cruise speed
(e.g. on a steep descent), then the
speed fl ashes. If necessary, brake to
curb your speed.
Page 330 of 340
328
VISUAL SEARCH
INSTRUMENTS AND CONTROLS
Instrument panels .............................. 26
Warning lamps .............................. 32-38
Indicators ...................................... 39-41
Gear effi ciency indicator .................. 138
Buttons .............................................. 42
- trip recorder
- lighting dimmer
Parking space sensors .................... 157
Windows ....................................... 77-78
Door mirrors ....................................... 67
Opening the bonnet ......................... 164 Dashboard fuses ...................... 193-195
" Hydractive III +" electronic
suspension ...................................... 160
Manual/electronic/automatic
gearboxes .......... 137, 139-142, 146-149
Hill start assist ................................. 136
Courtesy lamps............................. 96-97
Rear view mirror ........................... 67-68
Interior mood lighting ......................... 98
Sun visor.......................................... 100
Parking brake, manual..................... 128
Parking brake,
electric ...................................... 129-135 Stop & Start ..................................... 143
Multifunction screens .................... 43-48
Hazard warning lamps ......................116
Ventilation ..................................... 49-50
Mono-zone digital
air conditioning ............................. 51-53
Dual-zone digital
air conditioning ............................. 54-57
Programmable heating ................. 58-61
Emergency or
assistance call .................. 116, 225-227
NaviDrive 3D ................................... 229
Setting the date/time........................ 261
MyWay ............................................. 273
Setting the date/time........................ 295
Audio system ................................... 305
Setting the date/time........................ 317
Steering wheel adjustment ................ 68 Interior fi ttings ........................... 100-102
- glove box
- ski fl aps
- auxiliary sockets
- mats...
Page 331 of 340
329
VISUAL SEARCH
Lighting ......................................... 88-91
- sidelamps/dipped beam headlamps
- main beam headlamps
Automatic illumination of headlamps ..... 90
Daytime running lamps ...................... 90
STEERING MOUNTED CONTROLS
Speed limiter............................. 152-153
Cruise control ........................... 154-155 Automatic rain sensitive wipers ......... 95
Wash-wipe ......................................... 95
Audio system controls ..................... 151
Fixed centred controls
steering wheel .......................... 150-151
Trip computer ............................... 29-30
Headlamp adjustment........................ 91
Steering wheel adjustment ................ 68
Wipers .......................................... 94-95
Horn ..................................................116
