2011.5 Citroen C4 PICASSO engine

I
40
MONITORING


Warning lamp


is on


Cause


Action/Observations






Low fuel level


fi xed,
accompanied
by an audible
signal and a
message on the
multifunction
screen. When it fi rst comes on there
remains approximately
7 litres of

fuel
in the tank. You must refuel as soon as possible to
avoid running out of fuel.
This warning lamp will come on every time
the ignition is switched on, until suffi cient
fuel has been added.
Fuel tank capacity: 60 litres.
Never continue to drive until you run out
of fuel, this could damage the emission
control and injection systems.





Foot on the
brake pedal


fi xed. The brake pedal is not
pressed. With the 6-speed electronic gearbox
system, you must press the brake pedal to
start the engine (lever in position N
).

fl ashing. The brake pedal is not
pressed. With the automatic gearbox, with the
engine running (lever in position P
), press
the brake pedal before releasing the
parking brake, to unlock the lever and
come out of position P
.
If you wish to release the parking brake
without pressing the brake pedal, this
warning lamp will remain on.
With the electronic gearbox
system, if you hold the vehicle
on an incline using the
accelerator for too long, the
clutch overheats. Use the brake pedal and/or the electric
parking brake.

I
41
MONITORING


Warning lamp


is on


Cause


Action/Observations





Maximum
coolant
temperature


fi xed red. The temperature of the
cooling system is too high. Stop as soon as it is safe to do so.
Wait until the engine has cooled down
before topping up the level, if necessary.
If the problem persists, contact a
CITROËN dealer or qualifi ed workshop.




Battery
charge


fi xed. The battery charging circuit
has a fault (dirty or loose
terminals, slack or cut
alternator belt, ...). The warning lamp should go off when the
engine is started.
If it does not go off, contact a CITROËN
dealer or a qualifi ed workshop.





Door(s) open


fi xed if the speed
is below 6 mph
(10 km/h).
A door, the boot or the rear
screen is still open. Close the door or boot.
fi xed and
accompanied by
an audible signal
if the speed is
above 6 mph
(10 km/h).




Seat belts
not fastened/
unfastened


fi xed. The driver and/or the front/
rear passenger has not
fastened or has unfastened
their seat belt.
Pull the strap then insert the tongue in the buckle.
The illuminated dots represent the
passengers that have not fastened/
unfastened their seat belt.
They come on:


- fi xed for 30 about seconds on starting
the vehicle,

- fi xed from 0 to 12 mph (0 to 20 km/h)
when driving,

- fl ashing above 12 mph (20 km/h),
accompanied by an audible signal for
about 120 seconds.

I
43
MONITORING













Service indicator zero reset















Engine oil level indicator

After each service, the service indi-
cator must be reset to zero.
The procedure for resetting to zero
is as follows:


)
switch off the ignition,

)
press and hold the trip distance
recorder zero reset button,

)
switch on the ignition; the dis-
tance recorder display begins a
countdown,

)
when the display indicates "=0"
,
release the button; the spanner
disappears. System which informs the driver
whether the engine oil level is correct
or not.
This information is displayed for a
few seconds when the ignition is
switched on, after the service infor-
mation.
The level read will only be correct if
the vehicle is on level ground and
the engine has been off for more
than 30 minutes.

Oil level correct

Oil level low
This is indicated by the fl ashing of
"OIL"
, accompanied by an audible
signal and a message on the multi-
function screen.
If the low oil level is confi rmed by a
check using the dipstick, it is essen-
tial that the level is topped up to pre-
vent damage to the engine.
Oil level gauge fault
This is indicated by the fl ashing of
"OIL--"
. Contact a CITROËN dealer
or a qualifi ed workshop.

Dipstick
Refer to the "Checks" section to lo-
cate the dipstick and the oil fi ller cap
on your engine.
There are 2 marks on
the dipstick:


- A
= max; never ex-
ceed this level (risk
of engine damage),

- B
= min; top up the
level via the oil fi ller,
using the type of oil
suited to your en-
gine.


Following this operation, if you wish
to disconnect the battery, lock the
vehicle and wait at least fi ve minutes
for the zero reset to be taken into ac-
count.

III
57
COMFORT

Air conditioning

To ensure that your system operates
correctly, it is recommended that you
have it checked regularly.
Water arising from condensation
in the air conditioning drains away
through a hole provided for this pur-
pose. A pool of water may thus form
under the vehicle when stationary.
To preserve the sealing of the air
conditioning compressor, operate
the air conditioning at least once a
month.
Regardless of the season, the air
conditioning is useful, since it re-
moves humidity and condensation.
To be effective, the air conditioning
should only be used with the win-
dows closed.
If after a lengthy stop in bright sunlight
the interior temperature is excessive,
air the passenger compartment by
opening the windows for a few mo-
ments, then close them again.
The air conditioning operates by using
power from the engine. This results in
a slight increase in fuel consumption.


Dust filter/Odour filter (active
carbon)
There is a fi lter for excluding odours
and dust.
This fi lter has to be changed in ac-
cordance with the vehicle's servicing
schedule (see the servicing booklet).


Air circulation

Air vents on the fl oor underneath the
front seats provide enhanced heat-
ing for the rear seat positions; take
care not to obstruct them.


Air vents

The air vents to the face have grilles
and thumb wheels to adjust the air
fl ow and direction (up-down, right-
left).
The automatic regulation of the air
conditioning in the passenger com-
partment uses a number of sensors
(sunshine sensor, ambient tempera-
ture sensor...) that relieve you of the
need to make frequent adjustments to
the displayed temperature.
Take care not to obstruct the sun-
shine sensor, located on the dash-
board behind the instrument panel.


Sensors

III
58
COMFORT
MANUAL AIR CONDITIONING
The air conditioning system operates
with the engine running.
A. DRIVER'S CONTROL PANEL


1. Adjustment of the air fan
speed
The air fan adjustment only operates
when the engine is running.
To adjust the air fl ow, press button 1
:
to increase the fl ow of air,
to decrease the fl ow of air. The level of air fl ow is shown by the
progressive lighting of the warning
lamps depicting the fan blades 1
.
By reducing the fl ow to minimum,
you deactivate the air conditioning
system (OFF).
To maintain an acceptable level of
comfort in the passenger compart-
ment, you should not leave this con-
trol too long in the OFF position.


2. Adjustment of air
distribution


)
Press button 2
to make the dis-
play run through the different
types of air distribution.
The air distribution chosen
is shown by the lighting of
the corresponding warning
lamps on the display 2
.


3. Mode of adjustment
of temperature for the
passenger


)
Press button 3
to have indepen-
dent passenger control of cabin
air temperature. The warning
lamp goes off.
While the passenger is adjusting tem-
perature, the warning lamp comes on.


4. Air recirculation

This control is for isolating disagree-
able odours or fumes coming from
outside.


)
Press button 4
to cut off the intake
of outside air and to activate recir-
culation of the air in the passenger
compartment. The warning lamp
comes on.
Avoid the extended use of air re-
circulation (risk of deterioration
of air quality and misting).

)
Press button 4
again to allow the
intake of exterior air. The warning
lamp goes off.



5. Air conditioning

The air fan control (adjusting the fl ow
of air) has to be activated in order for
air conditioning to be obtained.


)
Press button 5
. The warning
lamp comes on.
To be effective,
the air condi-
tioning should be operated only

with the windows closed.
If your vehicle is not equipped with
air conditioning, you will have the
same control panel but without the
A/C
button.

III
60
COMFORT

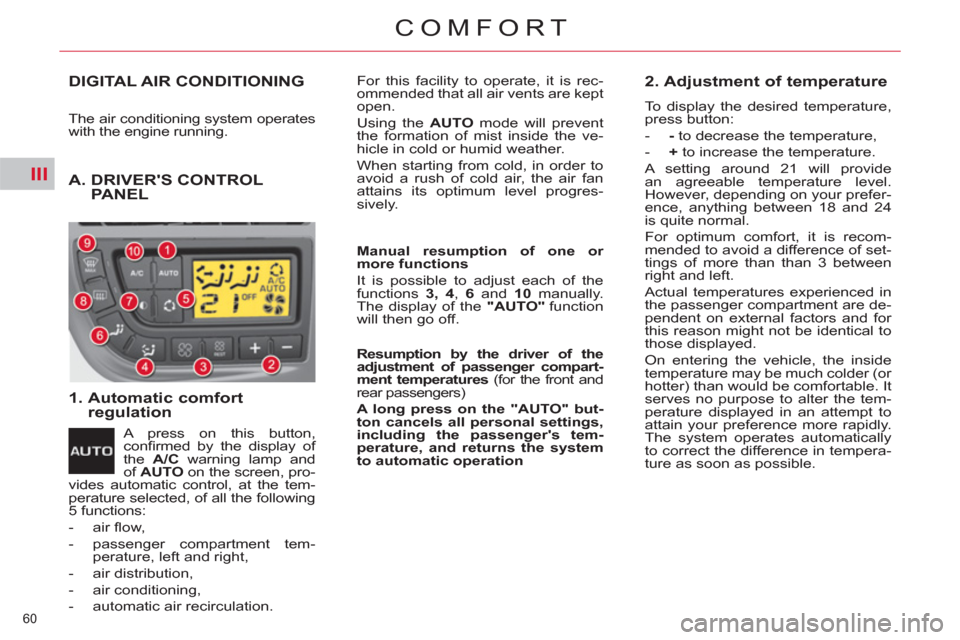

DIGITAL AIR CONDITIONING
The air conditioning system operates
with the engine running.

1. Automatic comfort
regulation
A press on this button,
confi rmed by the display of
the A/C
warning lamp and
of AUTO
on the screen, pro-
vides automatic control, at the tem-
perature selected, of all the following
5 functions:


- air fl ow,

- passenger compartment tem-
perature, left and right,

- air distribution,

- air conditioning,

- automatic air recirculation. For this facility to operate, it is rec-
ommended that all air vents are kept
open.
Using the AUTO
mode will prevent
the formation of mist inside the ve-
hicle in cold or humid weather.
When starting from cold, in order to
avoid a rush of cold air, the air fan
attains its optimum level progres-
sively.

2. Adjustment of temperature

To display the desired temperature,
press button:


- -
to decrease the temperature,

- +
to increase the temperature.
A setting around 21 will provide
an agreeable temperature level.
However, depending on your prefer-
ence, anything between 18 and 24
is quite normal.
For optimum comfort, it is recom-
mended to avoid a difference of set-
tings of more than than 3 between
right and left.
Actual temperatures experienced in
the passenger compartment are de-
pendent on external factors and for
this reason might not be identical to
those displayed.
On entering the vehicle, the inside
temperature may be much colder (or
hotter) than would be comfortable. It
serves no purpose to alter the tem-
perature displayed in an attempt to
attain your preference more rapidly.
The system operates automatically
to correct the difference in tempera-
ture as soon as possible.
Manual resumption of one or
more functions

It is possible to adjust each of the
functions 3, 4
, 6
and 10
manually.
The display of the "AUTO"
function
will then go off.

Resumption by the driver of the
adjustment of passenger compart-
ment temperatures
(for the front and
rear passengers)

A long press on the "AUTO" but-
ton cancels all personal settings,
including the passenger's tem-
perature, and returns the system
to automatic operation



A. DRIVER'S CONTROL
PANEL

III
61
COMFORT

3. Adjustment of air fan
speed/Activation of the
"REST" function
to increase the air fl ow,
to decrease the air fl ow (this
button also has the REST
function).
The level of air fl ow is indicated on
the display by the progressive fi lling
of the fan blades.
If you place the air fan on position 0
,
the system is deactivated. The air
fan display will be empty, with the in-
dication OFF.
To allow a degree of comfort
in the passenger compart-
ment while the engine is off,
you can operate the ven-
tilation for a few minutes using the
"REST" function.
When you leave the vehicle, any
passengers present can still have
the benefi t of air circulation, even
though the engine is not running.
This function is available when
you switch on the ignition as well
as when you stop the engine.

The air conditioning control screens
come on and the symbol represent-
ing the air fan is displayed while the
function is available. This button does not activate the
air conditioning, only the air fans.
While the REST function is active,
the air fl ow and distribution cannot
be modifi ed.


On switching on the ignition:


- A press on the REST button ac-
tivates the function for a period
of a few minutes. Two blades of
the fan will fi ll to indicate that the
function is active.

- The function can be deactivated
and reactivated during the timed
period.

- At the end of the timed period,
the screen will go off.


4. Adjustment of air
distribution


)
Press button 4
to scroll
through the air distribution
settings on the screen.
Adjustment of air fl ow
To adjust the fl ow of air, press the
button:

"REST" function: activation of
ventilation, engine off
On switching off the engine:


- The function can be activated
during a period of 30 seconds.

- A press on the REST button ac-
tivates the function for period of
several minutes. The duration
and availability of the function
depends on the state of charge
of the battery. Locking the vehi-
cle has no effect on the function.

- A further press before the end of
the period of operation stops the
function defi nitively. The air distribution you have chosen
is confi rmed by the corresponding
indicators in the screen.
There are 7 possible adjustments.

III
62
COMFORT

5. Air recirculation



)
Press button 5
to cut off the in-
take of air from outside and to
activate recycling of the air in
the passenger compartment. the
warning lamp comes on.
Whilst retaining the other adjust-
ments, this function prevents un-
pleasant odours or fumes entering
the vehicle. Avoid extended use of
air recirculation (risk of deterioration
of air quality and misting).


)
Press button 5
again to allow entry
of air from the outside. The warn-
ing lamp goes off.
Air recirculation can also be con-
trolled by pressing the switch locat-
ed on the lower left of the steering
wheel (see "Fixed centred controls
steering wheel").


6. Activation/deactivation of
rear passenger controls
This button allows you to
permit or not the rear pas-
sengers to use their adjust-
ment controls.
There are three possible states for
this button:

Locking of the rear
passenger controls


Authorisation of
the rear passenger
controls


Reduction of the
air fl ow for the rear
passengers

With additional air conditioning, in
cold weather you are advised to
close the supply of air to the rear
passengers (no hot air distribution
possible via these air vents). The rear passengers can use their
adjustment controls at their conve-
nience. The driver imposes his adjustment
on the rear passengers. In this case,
the rear passenger controls are de-
activated.

7. Panel display mode: black
panel function
This function turns the
screen and switch backlight-
ing on or off.


- Function activated, pressing any
button will illuminate the screen
temporarily.

- pressing button 7
deactivates
the function, the illumination of
of buttons and screen is again
permanent.
This function optimises notably the
visual comfort for driving at night.


8. Demisting/defrosting the
rear screen
This function is active only when the
engine is running.


)
Press on button 8
to activate/
deactivate the electric demist-
ing/defrosting of the rear screen
and, according to version, of the
door mirrors. The warning lamp
comes on and the symbol appears
in the screen.
It switches off automatically
to prevent excessive con-
sumption of power. This button activates the recir-
culation of air within the pas-
senger compartment and also
has an automatic function.
