Page 152 of 252
11
150
PRACTICAL INFORMATION
Rear lamps
1.
Brake/sidelamps (P21/5W).
2.
Direction indicators
(PY21W amber)
3.
Foglamp, right-hand side
(PR21W red)
Reversing lamp, left-hand side
(P21W).
These four bulbs are changed from in-
side the boot:
)
open the boot,
)
remove the access fl ap from the
corresponding side trim panel,
)
unscrew the butterfl y nut securing
the lamp unit,
)
unclip the lamp unit connector,
)
extract the lamp unit carefully pulling
in its middle towards the outside,
)
spread the four tabs and remove the
bulb holder,
)
turn the bulb a quarter of a turn and
change it.
To r efi t, carry out these operations in re-
verse order.
Take care to engage the lamp unit in its
guides, while keeping it in line with the
vehicle.
Changing bulbs
Amber or red bulbs, such as
those for the direction indica-
tors and rear foglamp, must be
replaced by bulbs of the same
rating and colour.
The lamps on the tailgate are
dummy units. They are there for
aesthetic purposes only.
Page 155 of 252
11
153
PRACTICAL INFORMATION
CHANGING A FUSE
Procedure for replacing a faulty fuse
with a new fuse to rectify a failure of the
corresponding function.
Access to the tools
The extraction tweezer and the spare
fuse storage locations are fi tted to the
back of the dashboard fusebox cover.
For access to them:
)
open the glove box lid,
)
unclip the fusebox cover by pulling
on the side,
)
remove the cover completely,
)
remove the tweezer.
Changing a fuse
Before changing a fuse, the cause of
the failure must be identifi ed and recti-
fi ed.
)
Identify the faulty fuse by checking
the condition of its fi lament.
Good
Failed
)
Use the special tweezer to extract
the fuse from its housing.
)
Always replace the failed fuse with a
fuse of the same rating.
)
Check that the number marked on
the box, the rating marked on the
fuse and the tables below all agree.
Installing electrical
accessories
Your vehicle’s electrical sys-
tem is designed to operate with
standard or optional equipment.
Before installing other electrical
equipment or accessories on
your vehicle, contact a CITROËN dealer or a qualifi ed workshop.
CITROËN will not accept re-
sponsibility for the cost incurred
in repairing your vehicle or for
rectifying malfunctions resulting
from the installation of accesso-
ries not supplied and not recom-
mended by CITROËN and not
installed in accordance with its
instructions, in particular when
the combined consumption of all
of the additional equipment con-
nected exceeds 10 milliamperes.
Page 158 of 252
11
156
PRACTICAL INFORMATION
Engine compartment fusebox
The fusebox is placed in the engine
compartment near the battery (left-hand
side).
Access to the fuses
)
Unclip the cover.
)
Change the fuse (see corresponding
paragraph).
)
When you have fi nished, close the
cover carefully to ensure the sealing
of the fusebox.
All work on the fuses in the
fusebox at the battery must be
done by a CITROËN dealer or
a qualifi ed workshop.
Page 159 of 252
11
PRACTICAL INFORMATION
Fuse N°
Rating
Functions
F1
20 A
Engine control unit supply, cooling fan unit control
relay, multifunction engine control main relay,
injection pump (Diesel).
F2
15 A
Horn.
F3
10 A
Front/rear wash-wipe.
F4
20 A
Daytime running lamps.
F5
15 A
Diesel heater (Diesel), particle fi lter additive pump
(Diesel), air fl ow sensor (Diesel), fuel pump
(1.1i and 1.4i), blow-by heater and electrovalves (VTi).
F6
10 A
ABS/ESP control unit, secondary stop switch.
F7
10 A
Electric power steering, automatic gearbox.
F8
25 A
Starter control.
F9
10 A
Switching and protection unit (Diesel).
F10
30 A
Fuel heater (Diesel), blow-by heater (1.1i, 1.4i and
Diesel), fuel pump (VTi), injectors and ignition coils
(petrol), electronic thermostat and canister purge
electrovalve (1.1i and 1.4i).
F11
40 A
Heater blower.
Page 160 of 252
11
158
PRACTICAL INFORMATION

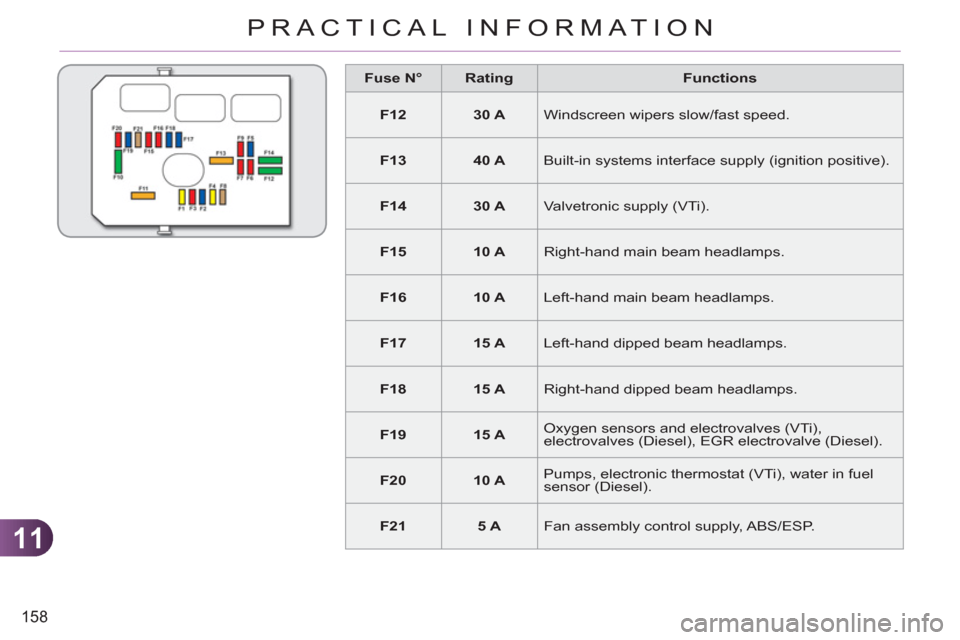

Fuse N°
Rating
Functions
F12
30 A
Windscreen wipers slow/fast speed.
F13
40 A
Built-in systems interface supply (ignition positive).
F14
30 A
Valvetronic supply (VTi).
F15
10 A
Right-hand main beam headlamps.
F16
10 A
Left-hand main beam headlamps.
F17
15 A
Left-hand dipped beam headlamps.
F18
15 A
Right-hand dipped beam headlamps.
F19
15 A
Oxygen sensors and electrovalves (VTi),
electrovalves (Diesel), EGR electrovalve (Diesel).
F20
10 A
Pumps, electronic thermostat (VTi), water in fuel
sensor (Diesel).
F21
5 A
Fan assembly control supply, ABS/ESP.
Page 161 of 252
11
PRACTICAL INFORMATION
Table of maxi-fuses
Fuse N°
Rating
Functions
MF1 *
60 A
Fan assembly.
MF2 *
30 A
ABS/ESP pump.
MF3 *
30 A
ABS/ESP electrovalves.
MF4 *
60 A
Built-in Systems Interface (BSI) supply.
MF5 *
60 A
Built-in Systems Interface (BSI) supply.
MF6 *
-
Not used.
MF7 *
80 A
Dashboard fusebox.
MF8 *
-
Not used.
*
The maxi-fuses provide additional protection for the electrical systems. All work on the maxi-fuses must be carried out by a
CITROËN dealer or a qualifi ed workshop.
Page 164 of 252
11
162
PRACTICAL INFORMATION
If the telephone is being used at
the same time on the MyWay au-
dio navigation system, it will be
interrupted after 10 minutes. A fl at battery prevents the engine
from starting (refer to the corre-
sponding paragraph).
ENERGY ECONOMY MODE
System which manages the period of
use of certain functions to conserve a
suffi cient level of charge in the battery.
After the engine has stopped, you can
still use functions such as the audio
equipment, windscreen wipers, dipped
beam headlamps, courtesy lamps, etc.
for a maximum combined period of
thirty minutes.
Switching to economy mode
Once this period has elapsed, a mes-
sage appears on the multifunction
screen indicating that the vehicle has
switched to economy mode and the ac-
tive functions are put on standby.
Exiting economy mode
These functions are reactivated auto-
matically the next time the vehicle is
driven.
)
In order to resume the use of these
functions immediately, start the en-
gine and let it run for a few minutes.
The time available to you will then be dou-
ble the period for which the engine is left
running. However, this period will always
be between fi ve and thirty minutes.
This period may be greatly re-
duced if the battery is not fully
charged.
CHANGING A FRONT OR REARWIPER BLADE
Procedure for replacing a worn wiper
blade with a new one without the use
of tools.
Before removing a front wiper
blade
)
Within one minute after switching off
the ignition, operate the wiper stalk
to position the wiper blades in the
vertical position.
This position must be used in order to
avoid damaging the wiper blade and the
bonnet.
Removal
)
Raise the corresponding wiper arm.
)
Unclip the wiper blade and remove it.
Fitting
)
At the front, check the size of the wiper
blade as the shorter blade is fi tted to
the passenger side of the vehicle.
)
Put the corresponding new wiper
blade in place and clip it.
)
Fold down the wiper arm carefully.
After fitting a front wiper blade
)
Switch on the ignition.
)
Operate the wiper stalk again to
park the wiper blades.
Page 201 of 252
199
06
3 2 1 1
SELECTING A STATION
When the current radio station isdisplayed on the screen, press thedial.
The radio source short-cuts menu appears and provides access to
the following short-cuts:
Select the function re
quired and press the dial to confi rm to gain
access to the corresponding settings.
TA
RDS, if displayed, allows you to continue listening to the same station by automatic retuning to alternative frequencies. However,
in certain conditions, coverage of an RDS station may not be
assured throughout the entire country as radio stations do notcover 100 % of the territory. This explains the loss of reception of
the station during a journey.
The external environment (hill, building, tunnel, underground car park...)may interfere with the reception, including in RDS following mode. This(g g(g
phenomenon is a normal result of the way in which radio waves are
transmitted and does not in any way indicate a failure of the audio equipment.
RDS - REGIONAL MODE
Press the RADIO button to display
the list of stations received locally sorted in alphabetical order.
Select the station required by turningthe dial and press to confi rm.
Re
gional prog.
Radiotext
RDSWhile listening to the radio, press one of the
buttons to select the previous or next station on
the list.
Press one o
f the buttons on the numeric keypad for more than
2 seconds to store the current station.
Press the button on the numeric keypad to recall the stored radio
station.
AM
A long press of one of the buttons starts theautomatic search for a station with a lower or
higher frequency.
RADIO
