2
48
MULTIFUNCTION SCREENS
16/9 COLOUR SCREEN (MYWAY)
Displays on the screen
It displays the following information au-
tomatically and directly:
- time,
- date,
- altitude,
- ambient temperature (the value dis-
played fl ashes if there is a risk of
ice),
- check of the doors,
- warning and vehicle function status
messages, displayed temporarily,
- audio functions,
- trip computer information (see the
"Monitoring" section),
-
satellite navigation system information.
Controls
MyWay To select one of the applica-
tions, at the control panel:
)
press the dedicated "RADIO"
,
"MUSIC"
, "NAV"
, "TRAFFIC"
,
"SETUP"
or "PHONE"
button for
access to the corresponding menu,
)
turn the dial to change the selection,
)
press the dial to confi rm the selection,
or
)
press the "ESC"
button to abandon
the current operation and return to
the previous display.
For more information on these applica-
tions, refer to the "Audio and Telematics"
section or to the specifi c user guide given
to you with the other owner's documents.
"SETUP" menu
)
Press the "SETUP"
button to gain ac-
cess to the "SETUP"
menu. This al-
lows you to select from the following
functions:
- "System language",
- "Date and time",
- "Display",
- "Vehicle",
- "Units",
- "System".
Page 51 of 252
2
MULTIFUNCTION SCREENS
*
According to country.
System language
This menu allows you to select the lan-
guage used by the display: Deutsch,
English, Espanol, Français, Italiano,
Nederlands, Polski, Portugues, Türkçe * .
Date and time
This menu allows you to set the date and
time, the format of the date and the for-
mat of the time (refer to the "Audio and
Telematics" section or to the specifi c
user guide given to you with the other
owner's documents).
Display
This menu allows you to set the bright-
ness of the screen, the screen colour
scheme and the colour of the map (day/
night or auto mode).
Vehicle
This menu allows you to activate or
deactivate certain driving and comfort
equipment:
- wiper linked with reverse gear (refer
to the "Visibility" section),
- guide-me-home lighting and dura-
tion (refer to the "Visibility" section),
- parking sensors (refer to the "Driving"
section).
Units
This menu allows you to select the
units: temperature (°C or °F) and fuel
consumption (km/l, l/100 or mpg).
System
This menu allows you to restore the fac-
tory confi guration, display the software
version and activate scrolling text. For safety reasons, confi gura-
tion of the multifunction screen
by the driver must only be done
when stationary.
Page 57 of 252
3
55
COMFORT
DIGITAL AIR CONDITIONING
The air conditioning operates when the
engine is running, as well as in STOP
mode with Stop & Start. For your comfort, when the en-
gine is switched off, the settings
are retained until the engine is
switched on again.
To prevent too great a distribu-
tion of cold air when the engine
is cold, the air fl ow will only reach
its optimum level gradually.
On entering the vehicle, if the
interior is very cold or hot, there
is no need to change the value
displayed in order to reach the
required level of comfort. The
system corrects the temperature
difference automatically and as
quickly as possible.
1. Automatic "comfort" programme
Press the "AUTO"
button. The
"AUTO"
symbol is displayed.
We recommend that you use this mode.
It provides optimised automatic control
of all of the following functions: passen-
ger compartment temperature, air fl ow,
air distribution and air intake, in accor-
dance with the comfort value that you
have chosen.
This system is designed to operate ef-
fectively in all seasons, with the windows
closed.
2. Temperature adjustment
The value indicated on the display cor-
responds to a level of comfort and not
to a temperature in degrees Celsius or
Fahrenheit.
Press the "
"
and "
"
but-
tons to change this value. A
setting around the value 21
en-
ables optimum comfort to be
obtained. However, depending
on your requirements, a setting
between 18 and 24 is usual.
3. Automatic "visibility" programme
The automatic comfort pro-
gramme may not be suffi cient
for rapid demisting or defrost-
ing of the windscreen and side
windows (humidity, several
passengers, ice, etc.).
In this case, select the automatic visibility
programme. The button 3
indicator lamp
comes on.
The system automatically controls the
air conditioning and the fl ow of air and
provides optimum air distribution to the
windscreen and side windows. It deacti-
vates air recirculation 5
.
To exit this programme, press button 3
again or "AUTO"
, the indicator lamp on
the button goes off and "AUTO"
is dis-
played.
Manual override
It is possible to adjust one or more func-
tions manually while leaving the other
functions in automatic mode.
The "AUTO"
symbol switches off.
To return to automatic mode, press the
"AUTO"
button.
Switching to manual mode may
not be suitable (temperature,
humidity, odour, condensation)
and does not provide optimum
comfort.
Page 63 of 252
3
COMFORT
REAR SEATS
Bench seat with fi xed one-piece cushion
and split backrest (left hand 2/3, right hand
1/3) which can be folded individually to
adapt the load space in the boot.
Rear head restraints
These have one position for use (up)
and a stowed position (down).
Folding the backrest
)
Move the corresponding front seat
forward if necessary.
)
Check that the seat belt is posi-
tioned correctly on the side of the
seat backrest.
)
Place the head restraints in the low
position.
Repositioning the seat backrest
)
Straighten the seat backrest 2
and
secure it.
)
Check that the red indicator, located
next to the control 1
, is no longer
visible. They can also be removed.
To remove a head restraint:
)
release the backrest using control 1
,
)
tilt the backrest 2
slightly forwards,
)
pull the head restraint upwards to
the stop,
)
then, press the lug A
.
When repositioning the seat
backrest, take care not to trap
the seat belts. Never drive with the head re-
straints removed; they must be
in place and correctly adjusted.
)
Pull control 1
forwards to release
the seat backrest 2
.
)
Fold the seat backrest 2
on to the
cushion.
Page 64 of 252
3
62
COMFORT
MIRRORS
Door mirrors
Each fi tted with an adjustable mirror
glass permitting the lateral rearward vi-
sion necessary for overtaking or park-
ing. They can also be folded for parking
in confi ned spaces.
)
Move control A
to the right or to the left
to select the corresponding mirror.
)
Move control B
in all four directions
to adjust.
)
Return control A
to the central posi-
tion.
Adjustment
Folding
)
From outside: lock the vehicle using
the remote control or the key.
)
From inside: with the ignition on,
with the control A
in the central po-
sition, pull it downwards.
Unfolding
)
From outside: unlock the vehicle using
the remote control or the key.
)
From inside: with the ignition on,
with the control A
in the central po-
sition, pull it downwards. If the mirrors are folded using
control A
, they will not unfold
when the vehicle is unlocked.
Pull again on control A
.
The folding and unfolding of the
door mirrors using the remote
control can be deactivated by a
CITROËN dealer or a qualifi ed
workshop.
Never fold or unfold the electric
folding mirrors manually.
The objects observed are, in re-
ality, closer than they appear.
Take this into account in order to
correctly judge the distance of
vehicles approaching from be-
hind.
Demisting - Defrosting
If your vehicle is fi tted with heated mir-
rors, the demisting-defrosting operates
with the engine running, by switching
on the heated rear screen (refer to the
"Rear screen demist-defrost" page).
Page 73 of 252
4
71
ACCESS
Deactivating the rear window and
door switches
)
For the safety of your children, press
switch 5
to prevent operation of the
rear windows irrespective of their
position.
With the lamp on, the rear controls are
deactivated.
With the lamp off, the rear controls are
activated.
This control also deactivates the
interior rear door controls (see
"Child safety - § Electric child
lock").
In the event of a malfunction you have
to reinitialise the operation of the elec-
tric windows:
)
release the switch and pull it again
until the window closes completely,
)
hold the switch for approximately
one second after closing,
)
press the switch to lower the window
automatically.
The safety anti-pinch function is not
active during these operations.
Always remove the key from the
ignition when leaving the vehicle,
even for a short time.
In the event of contact during op-
eration of the windows, reverse
the movement of the window.
To do this, press the switch con-
cerned.
When the driver operates the pas-
senger electric window switches,
they should ensure that no one is
preventing correct closing of the
windows.
The driver should ensure that
passengers use the electric win-
dows correctly.
Be aware of children when oper-
ating the windows.
Page 81 of 252
5
79
VISIBILITY

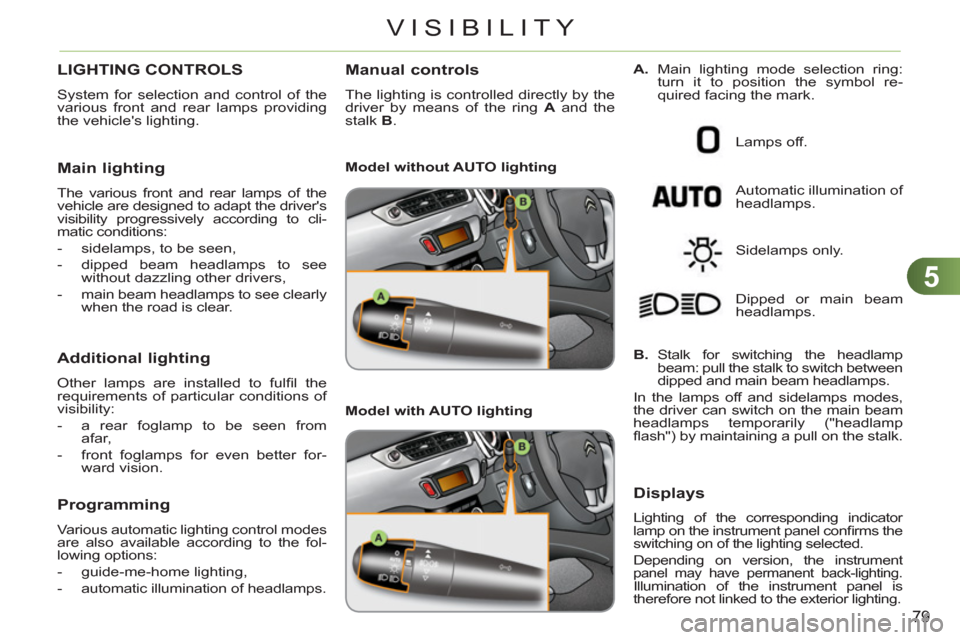

LIGHTING CONTROLS
System for selection and control of the
various front and rear lamps providing
the vehicle's lighting.
Main lighting
The various front and rear lamps of the
vehicle are designed to adapt the driver's
visibility progressively according to cli-
matic conditions:
- sidelamps, to be seen,
- dipped beam headlamps to see
without dazzling other drivers,
- main beam headlamps to see clearly
when the road is clear.
Additional lighting
Other lamps are installed to fulfi l the
requirements of particular conditions of
visibility:
- a rear foglamp to be seen from
afar,
- front foglamps for even better for-
ward vision.
Programming
Various automatic lighting control modes
are also available according to the fol-
lowing options:
- guide-me-home lighting,
- automatic illumination of headlamps.
Model without AUTO lighting
Model with AUTO lighting
Lamps off.
Automatic illumination of
headlamps.
Sidelamps only.
Dipped or main beam
headlamps.
B.
Stalk for switching the headlamp
beam: pull the stalk to switch between
dipped and main beam headlamps.
In the lamps off and sidelamps modes,
the driver can switch on the main beam
headlamps temporarily ("headlamp
fl ash") by maintaining a pull on the stalk.
Displays
Lighting of the corresponding indicator
lamp on the instrument panel confi rms the
switching on of the lighting selected.
Depending on version, the instrument
panel may have permanent back-lighting.
Illumination of the instrument panel is
therefore not linked to the exterior lighting.
Manual controls
The lighting is controlled directly by the
driver by means of the ring A
and the
stalk B
.
A.
Main lighting mode selection ring:
turn it to position the symbol re-
quired facing the mark.
Page 88 of 252
5
86

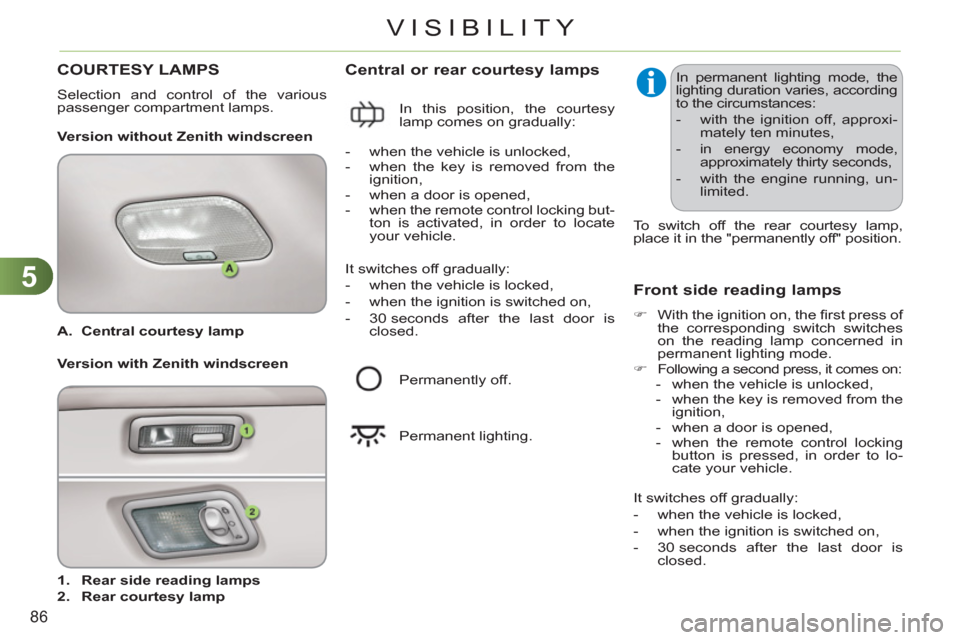

VISIBILITY
A.
Central courtesy lamp
1.
Rear side reading lamps
2.
Rear courtesy lamp
Central or rear courtesy lamps
Version without Zenith windscreen
Front side reading lamps
)
With the ignition on, the fi rst press of
the corresponding switch switches
on the reading lamp concerned in
permanent lighting mode.
)
Following a second press, it comes on:
- when the vehicle is unlocked,
- when the key is removed from the
ignition,
- when a door is opened,
- when the remote control locking
button is pressed, in order to lo-
cate your vehicle.
In permanent lighting mode, the
lighting duration varies, according
to the circumstances:
- with the ignition off, approxi-
mately ten minutes,
- in energy economy mode,
approximately thirty seconds,
- with the engine running, un-
limited.
Version with Zenith windscreen In this position, the courtesy
lamp comes on gradually:
- when the vehicle is unlocked,
- when the key is removed from the
ignition,
- when a door is opened,
- when the remote control locking but-
ton is activated, in order to locate
your vehicle.
It switches off gradually:
- when the vehicle is locked,
- when the ignition is switched on,
- 30 seconds after the last door is
closed.
Permanently off.
Permanent lighting.
It switches off gradually:
- when the vehicle is locked,
- when the ignition is switched on,
- 30 seconds after the last door is
closed.
To switch off the rear courtesy lamp,
place it in the "permanently off" position.
COURTESY LAMPS
Selection and control of the various
passenger compartment lamps.
