2010 YAMAHA YFM700R Owners Manual

8-12
8
TIPIf a torque wrench is not available when installing
a spark plug, a good estimate of the correct torque
is 1/4–1/2 turn past finger tight. However, the spark
plug should be tightened to the specified torque as
soon as possible.4. Install the spark plug cap.EBU26785Engine oil and oil filter element The engine oil level should be checked before
each ride. In addition, the oil must be changed and
the oil filter element replaced at the intervals spec-
ified in the periodic maintenance and lubrication
chart.
To check the engine oil level
1. Place the ATV on a level surface.
2. Start the engine, warm it up until the engine oil
has reached a normal temperature of 60 °C
(140 °F), let it continue to idle for ten seconds
or more, and then turn the engine off.
TIPTo achieve the proper engine oil temperature for
an accurate oil level reading, the engine must have
first completely cooled down, and then warmed up
again for several minutes to normal operating tem-
perature.3. Remove the engine oil tank filler cap, and then
wipe the engine oil dipstick off with a clean
rag.
4. Insert the dipstick in the filler hole (without
screwing it in), and then remove it again to
check the oil level.
U1AS60E0.book Page 12 Friday, February 6, 2009 1:27 PM

8-13
8
TIPThe engine oil should be between the minimum
and maximum level marks.5. If the engine oil is at or below the minimum
level mark, add sufficient oil of the recom-
mended type through the engine oil tank filler
hole to raise it to the correct level. NOTICE:Be sure the engine oil is at the correct lev-
el, otherwise engine damage may result.
[ECB00851]
TIPWhen adding oil, be careful not to overfill the en-
gine oil tank; the oil level rises faster starting from
the half-level-portion on the dipstick.6. Insert the dipstick into the engine oil tank filler
hole, and then tighten the engine oil tank filler
cap. NOTICE: Make sure that the engine oil
tank filler cap is securely tightened; other-
wise, oil may seep out when the engine is
running.
[ECB00362]
To change the engine oil (with or without oil fil-
ter element replacement)
1. Place the ATV on a level surface.
2. Start the engine, warm it up for several min-
utes, and then turn it off.
3. Place an oil pan under the engine to collect
the used oil.
4. Remove the crankcase engine oil filler cap
and the crankcase engine oil drain bolt.
1. Engine oil tank
2. Engine oil filler cap
3. Engine oil dipstick
4. Maximum level mark
5. Minimum level mark
2
3
4
5
1 2
U1AS60E0.book Page 13 Friday, February 6, 2009 1:27 PM

8-14
8 5. Remove the engine oil tank filler cap and the
engine oil tank drain bolt.
6. Check the washers for damage, and replace if
necessary.
TIPSkip steps 7–10 if the oil filter element is not being
replaced.7. Remove the oil filter element cover by remov-
ing the bolts, and then remove the oil filter el-
ement.
1. Crankcase engine oil filler cap
1. Crankcase engine oil drain bolt
1
1
1. Engine oil tank drain bolt
1
U1AS60E0.book Page 14 Friday, February 6, 2009 1:27 PM

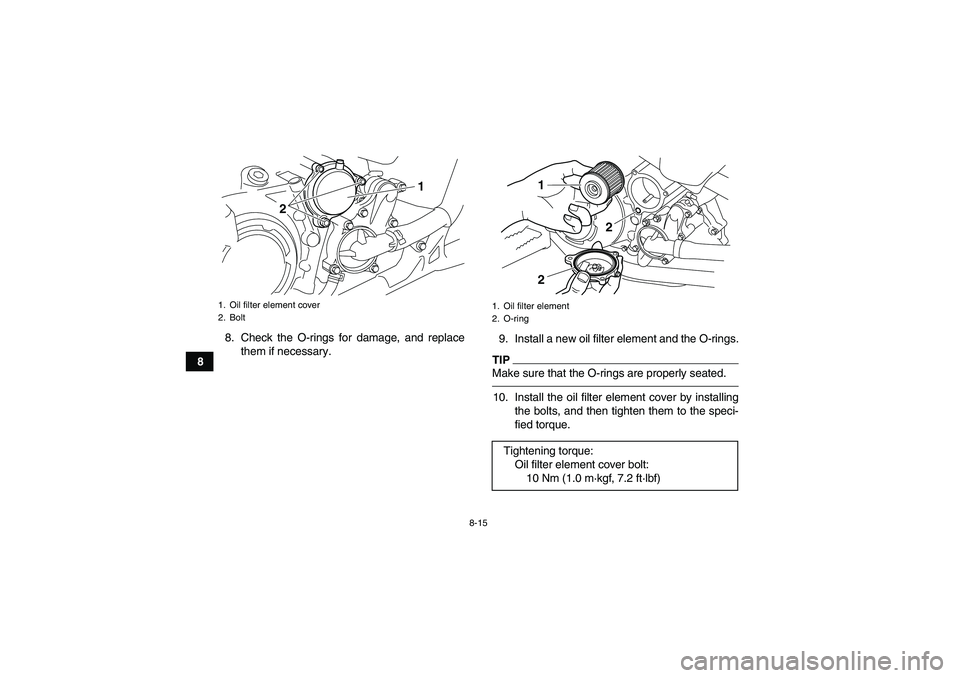

8-15
88. Check the O-rings for damage, and replace
them if necessary.9. Install a new oil filter element and the O-rings.
TIPMake sure that the O-rings are properly seated.10. Install the oil filter element cover by installing
the bolts, and then tighten them to the speci-
fied torque.
1. Oil filter element cover
2. Bolt
21
1. Oil filter element
2. O-ringTightening torque:
Oil filter element cover bolt:
10 Nm (1.0 m·kgf, 7.2 ft·lbf)
1
2
2
U1AS60E0.book Page 15 Friday, February 6, 2009 1:27 PM

8-16
8 11. Install the crankcase engine oil drain bolt and
the engine oil tank drain bolt, and then tighten
them to the specified torques.
12. Install the crankcase engine oil filler cap, and
then tighten it to the specified torque.
13. Pour only 1.3 L (1.37 US qt, 1.14 Imp.qt) of
the specified amount of the recommended en-
gine oil through the engine oil tank filler hole,
and then install and tighten the oil tank filler
cap.
14. Start the engine, rev it several times, and then
turn it off.15. Remove the engine oil tank filler cap, and then
gradually fill the oil tank with the remaining oil
quantity while regularly checking the oil level
on the dipstick.
16. Install and tighten the engine oil tank filler cap.
TIPBe sure to wipe off spilled oil on any parts after the
engine and exhaust system have cooled down.NOTICEECB00300
In order to prevent clutch slippage (since the
engine oil also lubricates the clutch), do not
mix any chemical additives. Do not use oils
with a diesel specification of “CD” or oils of Tightening torques:
Crankcase engine oil drain bolt:
23 Nm (2.3 m·kgf, 17 ft·lbf)
Engine oil tank drain bolt:
19 Nm (1.9 m·kgf, 13 ft·lbf)
Tightening torque:
Crankcase engine oil filler cap:
12 Nm (1.2 m·kgf, 8.7 ft·lbf)Recommended oil:
See page 10-1.
Oil quantity:
Without oil filter element replacement:
1.75 L (1.85 US qt, 1.54 Imp.qt)
With oil filter element replacement:
1.85 L (1.96 US qt, 1.63 Imp.qt)
U1AS60E0.book Page 16 Friday, February 6, 2009 1:27 PM

8-17
8a higher quality than specified. In addition,
do not use oils labeled “ENERGY CONSERV-
ING II” or higher.

Make sure that no foreign material enters the
crankcase.17. Start the engine, and then let it idle for several
minutes while checking it for oil leakage. If oil
is leaking, immediately turn the engine off and
check for the cause.
18. Turn the engine off, and then check the oil lev-
el and correct it if necessary.EBU23470Coolant The coolant level should be checked before each
ride. In addition, the coolant must be changed at
the intervals specified in the periodic maintenance
and lubrication chart.EBU27941To check the coolant level
1. Place the ATV on a level surface.
TIPThe coolant level must be checked on a cold en-
gine since the level varies with engine tempera-
ture.2. Check the coolant level in the coolant reser-
voir.TIPThe coolant should be between the minimum and
maximum level marks.1. Maximum level mark
2. Minimum level mark
12
U1AS60E0.book Page 17 Friday, February 6, 2009 1:27 PM

8-18
8 3. If the coolant is at or below the minimum level
mark, remove the coolant reservoir cap, add
coolant or distilled water to the maximum level
mark, and then install the reservoir cap.
NOTICE: If coolant is not available, use
distilled water or soft tap water instead. Do
not use hard water or salt water since they
are harmful to the engine. If water has
been used instead of coolant, replace it
with coolant as soon as possible, other-
wise the cooling system will not be pro-
tected against frost and corrosion. If water
has been added to the coolant, have a
Yamaha dealer check the antifreeze con-
tent of the coolant as soon as possible,
otherwise the effectiveness of the coolant
will be reduced.
[ECB01011]
TIP
The radiator fan is automatically switched on or
off according to the coolant temperature in the
radiator.

If the engine overheats, see page 8-50 for fur-
ther instructions.EBU23542To change the coolant
WARNING
EWB01890Wait for the engine and radiator to cool before
removing the radiator cap. You could be
burned by hot fluid and steam blown out under
pressure. Always place a thick rag over the cap
when opening. Allow any remaining pressure
to escape before completely removing the cap.1. Place the ATV on a level surface.
2. Remove panel A. (See page 8-9.)
3. Place a container under the engine, and then
remove the coolant drain bolt.
Coolant reservoir capacity (up to the maximum
level mark):
0.25 L (0.26 US qt, 0.22 Imp.qt)
U1AS60E0.book Page 18 Friday, February 6, 2009 1:27 PM

8-19
84. Remove the radiator cap.5. Remove the coolant reservoir cap.
6. Disconnect the hose on the coolant reservoir
side, and then drain the coolant from the cool-
ant reservoir.
7. After draining the coolant, thoroughly flush the
cooling system with clean tap water.
8. Replace the coolant drain bolt washer if it is
damaged, and then tighten the coolant drain
bolt to the specified torque.
1. Coolant drain bolt
1. Radiator cap
1
1
1. Coolant reservoir cap
2. HoseTightening torque:
Coolant drain bolt:
11 Nm (1.1 m·kgf, 8.0 ft·lbf)
1
2
