PERIODIC MAINTENANCE AND ADJUSTMENT
6-17
6
WARNING
EWA10680
After adjusting the drive chain
slack or removing and installing
the rear wheel, always check the
brake pedal free play.
If proper adjustment cannot be
obtained as described, have a
Yamaha dealer make this ad-
justment.
After adjusting the brake pedal
free play, check the operation of
the brake light.
EAU44820
Checking the shift pedal The operation of the shift pedal should
be checked before each ride. If opera-
tion is not smooth, have a Yamaha
dealer check the vehicle.
EAU22293
Brake light switches The brake light, which is activated by
the brake pedal and brake lever, should
come on just before braking takes ef-
fect. If necessary, adjust the rear brake
light switch as follows, but the front
brake light switch should be adjusted
by a Yamaha dealer.
1. Remove panel A. (See page 6-6.)
2. Turn the adjusting nut while hold-
ing the rear brake light switch in
place. To make the brake light
come on earlier, turn the adjusting
nut in direction (a). To make the
brake light come on later, turn the
adjusting nut in direction (b).
1. Brake pedal free play adjusting nut
1
(a)
(b)
1. Rear brake light switch
2. Rear brake light switch adjusting nut
U51DE0E0.book Page 17 Monday, November 2, 2009 10:34 AM
Page 50 of 80
PERIODIC MAINTENANCE AND ADJUSTMENT
6-18
63. Install the panel.
EAU22380
Checking the front brake pads
and rear brake shoes The front brake pads and the rear brake
shoes must be checked for wear at the
intervals specified in the periodic main-
tenance and lubrication chart.
EAU22430
Front brake pads
Each front brake pad is provided with
wear indicator grooves, which allow
you to check the brake pad wear with-
out having to disassemble the brake.
To check the brake pad wear, check
the wear indicator grooves. If a brake
pad has worn to the point that the wearindicator grooves have almost disap-
peared, have a Yamaha dealer replace
the brake pads as a set.
EAU43170
Rear brake shoes
The rear brake is provided with a wear
indicator, which allows you to check the
brake shoe wear without having to dis-
assemble the brake. To check the
brake shoe wear, check the position of
the wear indicator while applying the
brake. If a brake shoe has worn to the
point that the wear indicator reaches
the wear limit mark, have a Yamaha
dealer replace the brake shoes as a
set.

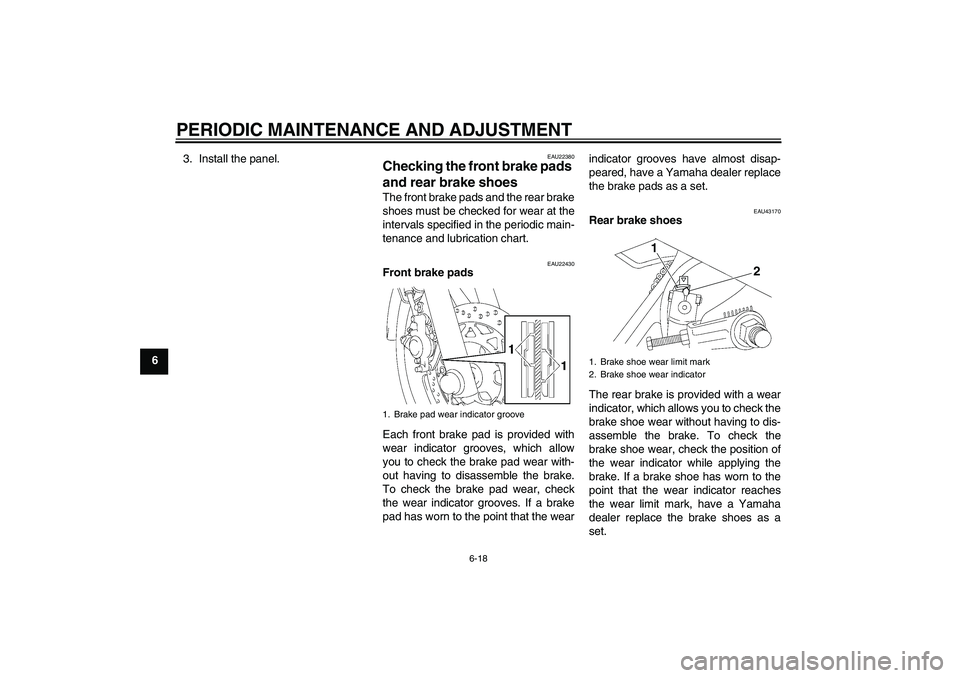

1. Brake pad wear indicator groove
1. Brake shoe wear limit mark
2. Brake shoe wear indicator
1
2
U51DE0E0.book Page 18 Monday, November 2, 2009 10:34 AM
Page 51 of 80
PERIODIC MAINTENANCE AND ADJUSTMENT
6-19
6
EAU37001
Checking the front brake fluid
level Insufficient brake fluid may allow air to
enter the brake system, possibly caus-
ing it to become ineffective.
Before riding, check that the brake fluid
is above the minimum level mark and
replenish if necessary. A low brake fluid
level may indicate worn brake pads
and/or brake system leakage. If the
brake fluid level is low, be sure to check
the brake pads for wear and the brake
system for leakage.
Observe these precautions:
When checking the fluid level,
make sure that the top of the mas-
ter cylinder is level by turning the
handlebars.
Use only the recommended quality
brake fluid, otherwise the rubber
seals may deteriorate, causing
leakage and poor braking perfor-
mance.
TIPIf DOT 4 is not available, DOT 3 can be
used.
Refill with the same type of brake
fluid. Mixing fluids may result in a
harmful chemical reaction and
lead to poor braking performance.
Be careful that water does not en-
ter the master cylinder when refill-
ing. Water will significantly lower
the boiling point of the fluid and
may result in vapor lock.
Brake fluid may deteriorate paint-
ed surfaces or plastic parts. Al-
ways clean up spilled fluid
immediately.
As the brake pads wear, it is nor-
mal for the brake fluid level to grad-
ually go down. However, if the
brake fluid level goes down sud-
denly, have a Yamaha dealer
check the cause.
1. Minimum level mark
Recommended brake fluid:
DOT 4
U51DE0E0.book Page 19 Monday, November 2, 2009 10:34 AM
Page 52 of 80
PERIODIC MAINTENANCE AND ADJUSTMENT
6-20
6
EAU22721
Changing the brake fluid Have a Yamaha dealer change the
brake fluid at the intervals specified in
the TIP after the periodic maintenance
and lubrication chart. In addition, have
the oil seals of the brake master cylin-
der and caliper as well as the brake
hose replaced at the intervals listed be-
low or whenever they are damaged or
leaking.
Oil seals: Replace every two
years.
Brake hose: Replace every four
years.
EAU22760
Drive chain slack The drive chain slack should be
checked before each ride and adjusted
if necessary.
EAU22793
To check the drive chain slack
1. Place the motorcycle on the cen-
terstand.
2. Shift the transmission into the neu-
tral position.
3. Spin the rear wheel several times
to locate the tightest portion of the
drive chain.
4. Measure the drive chain slack as
shown.5. If the drive chain slack is incorrect,
adjust it as follows.
EAUP0060
To adjust the drive chain slack
1. Remove the brake torque rod cot-
ter pin, and then loosen the brake
pedal free play adjusting nut,
brake torque rod nut, and axle nut.
2. Loosen the drive chain puller lock-
nut at each end of the swingarm.
1. Drive chain slack
Drive chain slack:
20.0–30.0 mm (0.79–1.18 in)1. Drive chain slack adjusting bolt
2. Drive chain puller locknut
3. Axle nut
4. Brake torque rod nut
5. Brake torque rod cotter pin
6. Brake pedal free play adjusting nut
1
2
34
5
6
U51DE0E0.book Page 20 Monday, November 2, 2009 10:34 AM
Page 53 of 80
PERIODIC MAINTENANCE AND ADJUSTMENT
6-21
6 3. To tighten the drive chain, turn the
drive chain slack adjusting bolt at
each end of the swingarm in direc-
tion (a). To loosen the drive chain,
turn the adjusting bolt at each end
of the swingarm in direction (b),
and then push the rear wheel for-
ward. NOTICE: Improper drive
chain slack will overload the en-
gine as well as other vital parts
of the motorcycle and can lead
to chain slippage or breakage.
To prevent this from occurring,
keep the drive chain slack with-
in the specified limits.
[ECA10571]
TIPUsing the alignment marks on each
side of the swingarm, make sure that
both drive chain pullers are in the same
position for proper wheel alignment.
4. Tighten both locknuts, and then
tighten the axle nut and brake
torque rod nut to their specified
torques.
5. Insert a new cotter pin.
6. Adjust the brake pedal free play.
(See page 6-16.)
WARNING
EWA10660
After adjusting the brake pedal free
play, check the operation of the
brake light.
1. Alignment marks
2. Drive chain puller
3. Drive chain puller locknut
4. Drive chain slack adjusting bolt
Tightening torques:
Axle nut:
80 Nm (8.0 m·kgf, 58 ft·lbf)
Brake torque rod nut:
19 Nm (1.9 m·kgf, 14 ft·lbf)
1
2
3
4
U51DE0E0.book Page 21 Monday, November 2, 2009 10:34 AM
Page 54 of 80
PERIODIC MAINTENANCE AND ADJUSTMENT
6-22
6
EAU23025
Cleaning and lubricating the
drive chain The drive chain must be cleaned and
lubricated at the intervals specified in
the periodic maintenance and lubrica-
tion chart, otherwise it will quickly wear
out, especially when riding in dusty or
wet areas. Service the drive chain as
follows.NOTICE
ECA10583
The drive chain must be lubricated
after washing the motorcycle, riding
in the rain or riding in wet areas.1. Clean the drive chain with kero-
sene and a small soft brush.
NOTICE: To prevent damaging
the O-rings, do not clean the
drive chain with steam cleaners,
high-pressure washers or inap-
propriate solvents.
[ECA11121]
2. Wipe the drive chain dry.
3. Thoroughly lubricate the drive
chain with a special O-ring chain
lubricant. NOTICE: Do not use
engine oil or any other lubri-
cants for the drive chain, as theymay contain substances that
could damage the O-rings.
[ECA11111]EAU23101
Checking and lubricating the
cables The operation of all control cables and
the condition of the cables should be
checked before each ride, and the ca-
bles and cable ends should be lubricat-
ed if necessary. If a cable is damaged
or does not move smoothly, have a
Yamaha dealer check or replace it.
WARNING! Damage to the outer
sheath may interfere with proper ca-
ble operation and will cause the in-
ner cable to rust. Replace a
damaged cable as soon as possible
to prevent unsafe conditions.
[EWA10721]
Recommended lubricant:
Engine oil
U51DE0E0.book Page 22 Monday, November 2, 2009 10:34 AM
Page 55 of 80
PERIODIC MAINTENANCE AND ADJUSTMENT
6-23
6
EAU23112
Checking and lubricating the
throttle grip and cable The operation of the throttle grip should
be checked before each ride. In addi-
tion, the cable should be lubricated by a
Yamaha dealer at the intervals speci-
fied in the periodic maintenance chart.
EAU23142
Checking and lubricating the
brake and clutch levers Brake lever
Clutch lever
The operation of the brake and clutch
levers should be checked before each
ride, and the lever pivots should be lu-
bricated if necessary.
Recommended lubricants:
Brake lever:
Silicone grease
Clutch lever:
Lithium-soap-based grease
U51DE0E0.book Page 23 Monday, November 2, 2009 10:34 AM
Page 56 of 80
PERIODIC MAINTENANCE AND ADJUSTMENT
6-24
6
EAU23182

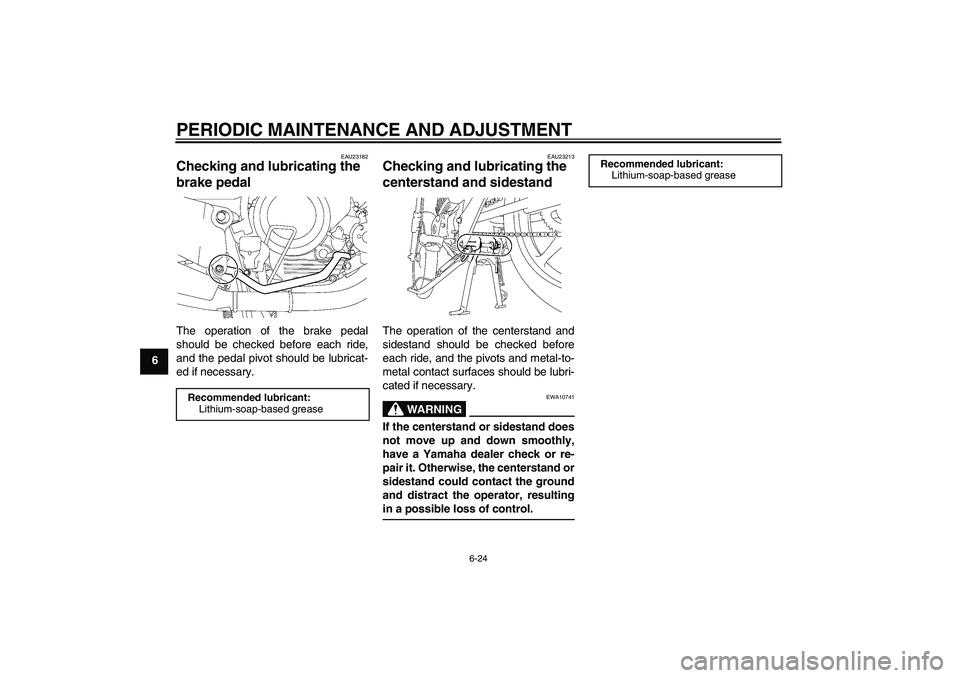

Checking and lubricating the
brake pedal The operation of the brake pedal
should be checked before each ride,
and the pedal pivot should be lubricat-
ed if necessary.
EAU23213
Checking and lubricating the
centerstand and sidestand The operation of the centerstand and
sidestand should be checked before
each ride, and the pivots and metal-to-
metal contact surfaces should be lubri-
cated if necessary.
WARNING
EWA10741
If the centerstand or sidestand does
not move up and down smoothly,
have a Yamaha dealer check or re-
pair it. Otherwise, the centerstand or
sidestand could contact the ground
and distract the operator, resulting
in a possible loss of control.
Recommended lubricant:
