PERIODIC MAINTENANCE AND ADJUSTMENT
6-1
6
EAU17241
Periodic inspection, adjustment, and lu-
brication will keep your vehicle in the
safest and most efficient condition pos-
sible. Safety is an obligation of the vehi-
cle owner/operator. The most important
points of vehicle inspection, adjust-
ment, and lubrication are explained on
the following pages.
The intervals given in the periodic
maintenance and lubrication chart
should be simply considered as a gen-
eral guide under normal riding condi-
tions. However, depending on the
weather, terrain, geographical location,
and individual use, the maintenance in-
tervals may need to be shortened.
WARNING
EWA10321
Failure to properly maintain the ve-
hicle or performing maintenance ac-
tivities incorrectly may increase
your risk of injury or death during
service or while using the vehicle. If
you are not familiar with vehicle ser-
vice, have a Yamaha dealer perform
service.
WARNING
EWA15121
Turn off the engine when performing
maintenance unless otherwise
specified.
A running engine has moving
parts that can catch on body
parts or clothing and electrical
parts that can cause shocks or
fires.
Running the engine while ser-
vicing can lead to eye injury,
burns, fire, or carbon monoxide
poisoning – possibly leading to
death. See page 1-1 for more in-
formation about carbon monox-
ide.
EAU17341
Owner’s tool kit The owner’s tool kit is located behind
panel B. (See page 6-6.)
The service information included in this
manual and the tools provided in the
owner’s tool kit are intended to assist
you in the performance of preventive
maintenance and minor repairs. How-
ever, additional tools such as a torque
wrench may be necessary to perform
certain maintenance work correctly.TIPIf you do not have the tools or experi-
ence required for a particular job, have
a Yamaha dealer perform it for you.1. Owner’s tool kit
U51DE0E0.book Page 1 Monday, November 2, 2009 10:34 AM
Page 34 of 80
PERIODIC MAINTENANCE AND ADJUSTMENT
6-2
6
EAU46871
TIP
The annual checks must be performed every year, except if a kilometer-based maintenance, or for the UK, a
mileage-based maintenance, is performed instead.
From 30000 km (17500 mi), repeat the maintenance intervals starting from 6000 km (3500 mi).
Items marked with an asterisk should be performed by a Yamaha dealer as they require special tools, data and technical
skills.
EAU46920
Periodic maintenance chart for the emission control system NO. ITEM CHECK OR MAINTENANCE JOBODOMETER READING
ANNUAL
CHECK 1000 km
(600 mi)6000 km
(3500 mi)12000 km
(7000 mi)18000 km
(10500 mi)24000 km
(14000 mi)
1*Fuel lineCheck fuel hoses for cracks or
damage.√√√√√
2 Spark plugCheck condition.
Clean and regap.√√
Replace.√√
3*ValvesCheck valve clearance.
Adjust.√√√√
4*Fuel injectionCheck engine idle speed.√√√√√√
5*Air induction sys-
temCheck the air cut-off valve, reed
valve, and hose for damage.
Replace any damaged parts if
necessary.√√√√√
U51DE0E0.book Page 2 Monday, November 2, 2009 10:34 AM
Page 35 of 80
PERIODIC MAINTENANCE AND ADJUSTMENT
6-3
6
EAU17717
General maintenance and lubrication chart NO. ITEM CHECK OR MAINTENANCE JOBODOMETER READING
ANNUAL
CHECK 1000 km
(600 mi)6000 km
(3500 mi)12000 km
(7000 mi)18000 km
(10500 mi)24000 km
(14000 mi)
1 Air filter elementClean.√√
Replace.√√
2ClutchCheck operation.
Adjust.√√√√√
3*Front brakeCheck operation, fluid level and
vehicle for fluid leakage.√√√√√√
Replace brake pads. Whenever worn to the limit
4*Rear brakeCheck operation and adjust brake
pedal free play.√√√√√√
Replace brake shoes. Whenever worn to the limit
5*Brake hoseCheck for cracks or damage.√√√√√
Replace. Every 4 years
6*WheelsCheck runout and for damage.√√√√
7*TiresCheck tread depth and for dam-
age.
Replace if necessary.
Check air pressure.
Correct if necessary.√√√√√
8*Wheel bearingsCheck bearing for looseness or
damage.√√√√
9*Swingarm pivot
bushesCheck bush assemblies for loose-
ness.√√√√
Lubricate with lithium-soap-based
grease.Every 10000 km (6000 mi)
U51DE0E0.book Page 3 Monday, November 2, 2009 10:34 AM
Page 36 of 80
PERIODIC MAINTENANCE AND ADJUSTMENT
6-4
6
10 Drive chainCheck chain slack, alignment and
condition.
Adjust and lubricate chain with a
special O-ring chain lubricant
thoroughly.Every 1000 km (600 mi) and after washing the motorcycle, riding in the rain or
riding in wet areas
11*Steering bearingsCheck bearing play and steering
for roughness.√√√√√
Lubricate with lithium-soap-based
grease.Every 24000 km (14000 mi)
12*Chassis fastenersMake sure that all nuts, bolts and
screws are properly tightened.√√√√√
13Brake lever pivot
shaftLubricate with silicone grease.√√√√√
14Brake pedal pivot
shaftLubricate with lithium-soap-based
grease.√√√√√
15Clutch lever pivot
shaftLubricate with lithium-soap-based
grease.√√√√√
16Sidestand, center-
standCheck operation.
Lubricate with lithium-soap-based
grease.√√√√√
17*Sidestand switchCheck operation.√√√√√√
18*Front forkCheck operation and for oil leak-
age.√√√√
19*Shock absorber as-
sembliesCheck operation and shock ab-
sorbers for oil leakage.√√√√ NO. ITEM CHECK OR MAINTENANCE JOBODOMETER READING
ANNUAL
CHECK 1000 km
(600 mi)6000 km
(3500 mi)12000 km
(7000 mi)18000 km
(10500 mi)24000 km
(14000 mi)U51DE0E0.book Page 4 Monday, November 2, 2009 10:34 AM
Page 37 of 80
PERIODIC MAINTENANCE AND ADJUSTMENT
6-5
6
EAU18660
TIP
The air filter needs more frequent service if you are riding in unusually wet or dusty areas.
Hydraulic brake service
Regularly check and, if necessary, correct the brake fluid level.
Every two years replace the internal components of the brake master cylinder and caliper, and change the brake fluid.
Replace the brake hoses every four years and if cracked or damaged.
20 Engine oilChange.
Check oil level and vehicle for oil
leakage.√√√√√√
21*Front and rear brake
switchesCheck operation.√√√√√√
22Moving parts and
cablesLubricate.√√√√√
23*Throttle grip hous-
ing and cableCheck operation and free play.
Adjust the throttle cable free play
if necessary.
Lubricate the throttle grip housing
and cable.√√√√√
24*Lights, signals and
switchesCheck operation.
Adjust headlight beam.√√√√√√ NO. ITEM CHECK OR MAINTENANCE JOBODOMETER READING
ANNUAL
CHECK 1000 km
(600 mi)6000 km
(3500 mi)12000 km
(7000 mi)18000 km
(10500 mi)24000 km
(14000 mi)
U51DE0E0.book Page 5 Monday, November 2, 2009 10:34 AM
Page 38 of 80
PERIODIC MAINTENANCE AND ADJUSTMENT
6-6
6
EAU18771
Removing and installing pan-
els The panels shown need to be removed
to perform some of the maintenance
jobs described in this chapter. Refer to
this section each time a panel needs to
be removed and installed.
EAU49090
Panel A
To remove the panel1. Remove the bolt.2. Pull the front of the panel out, and
then slide the panel forward to re-
lease it in the rear.
To install the panel
1. Secure the rear of the panel, and
then push the front of the panel in.
2. Install the bolt.
1. Panel A
1
1. Panel B
1. Bolt
1
1
U51DE0E0.book Page 6 Monday, November 2, 2009 10:34 AM
Page 39 of 80
PERIODIC MAINTENANCE AND ADJUSTMENT
6-7
6
EAU36961

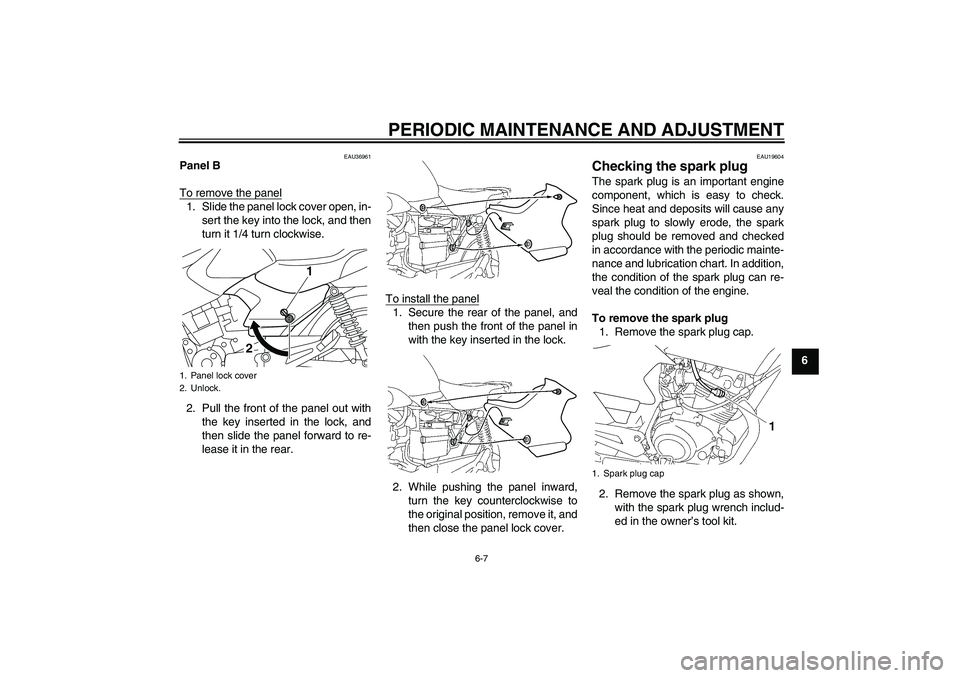

Panel B
To remove the panel1. Slide the panel lock cover open, in-
sert the key into the lock, and then
turn it 1/4 turn clockwise.
2. Pull the front of the panel out with
the key inserted in the lock, and
then slide the panel forward to re-
lease it in the rear.To install the panel
1. Secure the rear of the panel, and
then push the front of the panel in
with the key inserted in the lock.
2. While pushing the panel inward,
turn the key counterclockwise to
the original position, remove it, and
then close the panel lock cover.
EAU19604
Checking the spark plug The spark plug is an important engine
component, which is easy to check.
Since heat and deposits will cause any
spark plug to slowly erode, the spark
plug should be removed and checked
in accordance with the periodic mainte-
nance and lubrication chart. In addition,
the condition of the spark plug can re-
veal the condition of the engine.
To remove the spark plug
1. Remove the spark plug cap.
2. Remove the spark plug as shown,
with the spark plug wrench includ-
ed in the owner’s tool kit.
1. Panel lock cover
2. Unlock.
1
2
1. Spark plug cap
U51DE0E0.book Page 7 Monday, November 2, 2009 10:34 AM
Page 40 of 80
PERIODIC MAINTENANCE AND ADJUSTMENT
6-8
6To check the spark plug
1. Check that the porcelain insulator
around the center electrode of the
spark plug is a medium-to-light tan
(the ideal color when the vehicle is
ridden normally).
TIPIf the spark plug shows a distinctly dif-
ferent color, the engine could be oper-
ating improperly. Do not attempt to
diagnose such problems yourself. In-
stead, have a Yamaha dealer check
the vehicle.
2. Check the spark plug for electrode
erosion and excessive carbon or
other deposits, and replace it if
necessary.
3. Measure the spark plug gap with a
wire thickness gauge and, if nec-
essary, adjust the gap to specifica-
tion.To install the spark plug
1. Clean the surface of the spark plug
gasket and its mating surface, and
then wipe off any grime from the
spark plug threads.
2. Install the spark plug with the
spark plug wrench, and then tight-
en it to the specified torque.
TIPIf a torque wrench is not available when
installing a spark plug, a good estimate
of the correct torque is 1/4–1/2 turn
past finger tight. However, the spark
plug should be tightened to the speci-
fied torque as soon as possible.3. Install the spark plug cap.
1. Spark plug wrench
Specified spark plug:
NGK/CR6HSA1. Spark plug gapSpark plug gap:
0.6–0.7 mm (0.024–0.028 in)
Tightening torque:
Spark plug:
13 Nm (1.3 m·kgf, 9.4 ft·lbf)
