PERIODIC MAINTENANCE AND ADJUSTMENT
6-10
6
Be sure no foreign material en-
ters the crankcase.
7. Start the engine, and then let it idle
for several minutes while checking
it for oil leakage. If oil is leaking, im-
mediately turn the engine off and
check for the cause.
8. Reset the oil change indicator.
(See page 3-5.)
EAU20064

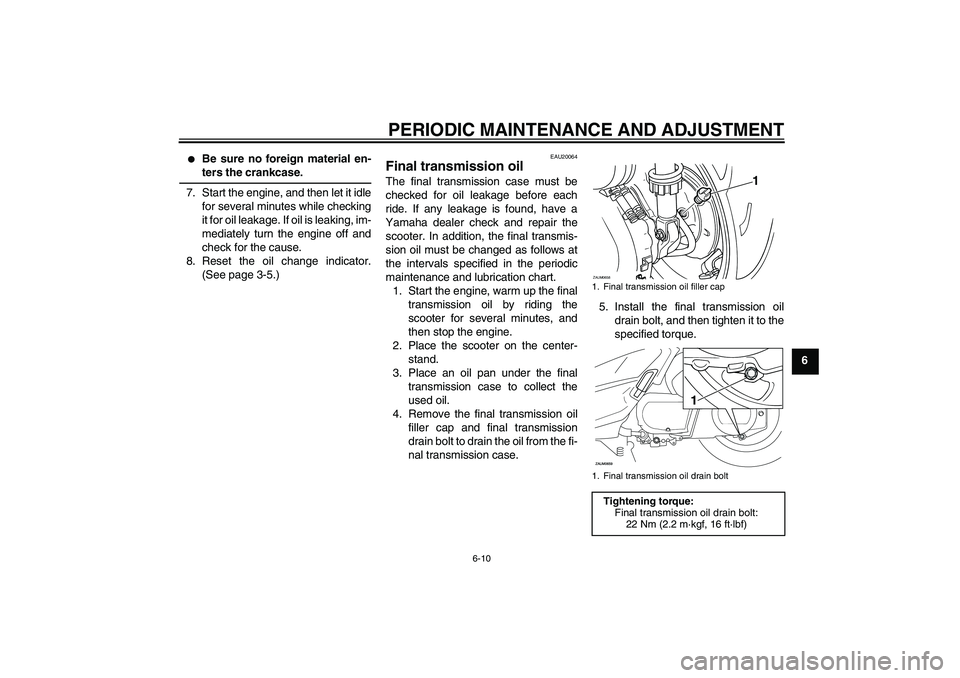

Final transmission oil The final transmission case must be
checked for oil leakage before each
ride. If any leakage is found, have a
Yamaha dealer check and repair the
scooter. In addition, the final transmis-
sion oil must be changed as follows at
the intervals specified in the periodic
maintenance and lubrication chart.
1. Start the engine, warm up the final
transmission oil by riding the
scooter for several minutes, and
then stop the engine.
2. Place the scooter on the center-
stand.
3. Place an oil pan under the final
transmission case to collect the
used oil.
4. Remove the final transmission oil
filler cap and final transmission
drain bolt to drain the oil from the fi-
nal transmission case.5. Install the final transmission oil
drain bolt, and then tighten it to the
specified torque.
1. Final transmission oil filler cap
1. Final transmission oil drain bolt
Tightening torque:
Final transmission oil drain bolt:
22 Nm (2.2 m·kgf, 16 ft·lbf)
1
ZAUM0658
U5B2E2E0.book Page 10 Friday, July 3, 2009 7:54 PM
Page 50 of 82
PERIODIC MAINTENANCE AND ADJUSTMENT
6-11
66. Refill with the specified amount of
the recommended final transmis-
sion oil, and then install and tighten
the oil filler cap. WARNING! Make
sure that no foreign material en-
ters the final transmission case.
Make sure that no oil gets on the
tire or wheel.
[EWA11311]
7. Check the final transmission case
for oil leakage. If oil is leaking,
check for the cause.
EAU20070

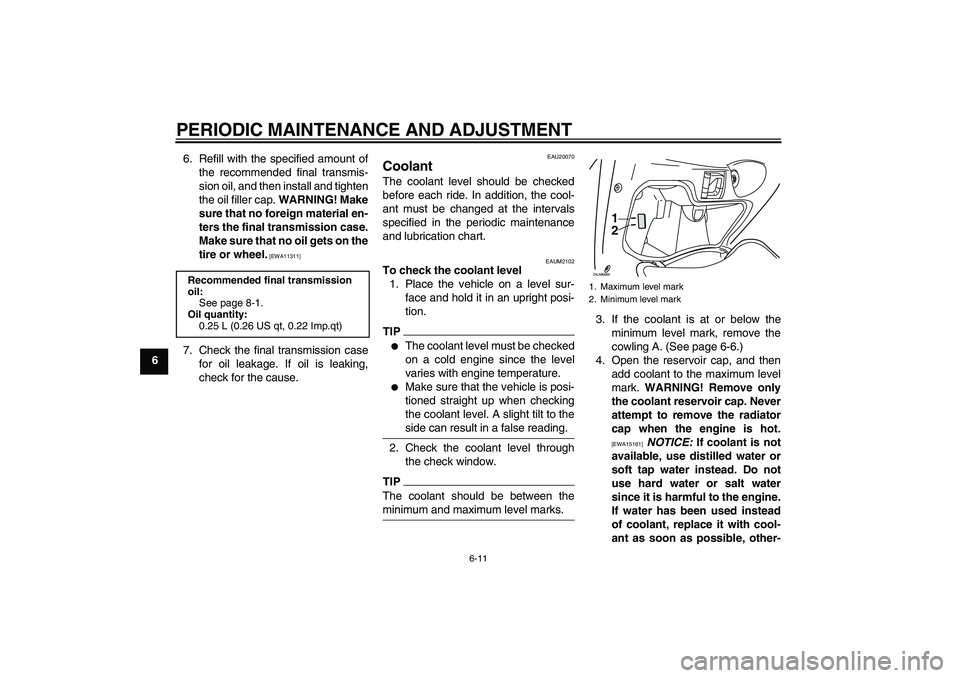

Coolant The coolant level should be checked
before each ride. In addition, the cool-
ant must be changed at the intervals
specified in the periodic maintenance
and lubrication chart.
EAUM2102
To check the coolant level
1. Place the vehicle on a level sur-
face and hold it in an upright posi-
tion.TIP
The coolant level must be checked
on a cold engine since the level
varies with engine temperature.
Make sure that the vehicle is posi-
tioned straight up when checking
the coolant level. A slight tilt to the
side can result in a false reading.
2. Check the coolant level through
the check window.TIPThe coolant should be between the
minimum and maximum level marks.
3. If the coolant is at or below the
minimum level mark, remove the
cowling A. (See page 6-6.)
4. Open the reservoir cap, and then
add coolant to the maximum level
mark. WARNING! Remove only
the coolant reservoir cap. Never
attempt to remove the radiator
cap when the engine is hot.
[EWA15161]
NOTICE: If coolant is not
available, use distilled water or
soft tap water instead. Do not
use hard water or salt water
since it is harmful to the engine.
If water has been used instead
of coolant, replace it with cool-
ant as soon as possible, other-
Recommended final transmission
oil:
See page 8-1.
Oil quantity:
0.25 L (0.26 US qt, 0.22 Imp.qt)
1. Maximum level mark
2. Minimum level mark
1
2
ZAUM0660
U5B2E2E0.book Page 11 Friday, July 3, 2009 7:54 PM
Page 51 of 82
PERIODIC MAINTENANCE AND ADJUSTMENT
6-12
6 wise the cooling system will not
be protected against frost and
corrosion. If water has been
added to the coolant, have a
Yamaha dealer check the anti-
freeze content of the coolant as
soon as possible, otherwise the
effectiveness of the coolant will
be reduced.
[ECA10472]
5. Close the reservoir cap, and then
install the cowling.
EAU33031
Changing the coolant
The coolant must be changed at the in-
tervals specified in the periodic mainte-
nance and lubrication chart. Have a
Yamaha dealer change the coolant.
WARNING! Never attempt to remove
the radiator cap when the engine is
hot.
[EWA10381]EAUS1334
Air filter and V-belt case air fil-
ter elements The air filter element should be re-
placed and the V-belt case air filter ele-
ment should be cleaned at the intervals
specified in the periodic maintenance
and lubrication chart. Service the air fil-
ter elements more frequently if you are
riding in unusually wet or dusty areas.
Replacing the air filter element
1. Place the scooter on the center-
stand.
2. Remove the air filter case cover by
removing the screws.
1. Coolant reservoir capCoolant reservoir capacity:
0.20 L (0.21 US qt, 0.18 Imp.qt)
1
ZAUM0661
1. Air filter case cover
2. Screw
3. Air filter element1
2 2ZAUM0662
3
U5B2E2E0.book Page 12 Friday, July 3, 2009 7:54 PM
Page 52 of 82
PERIODIC MAINTENANCE AND ADJUSTMENT
6-13
63. Pull the air filter element out.
4. Insert a new air filter element into
the air filter case.
5. Install the air filter case cover by in-
stalling the screws.

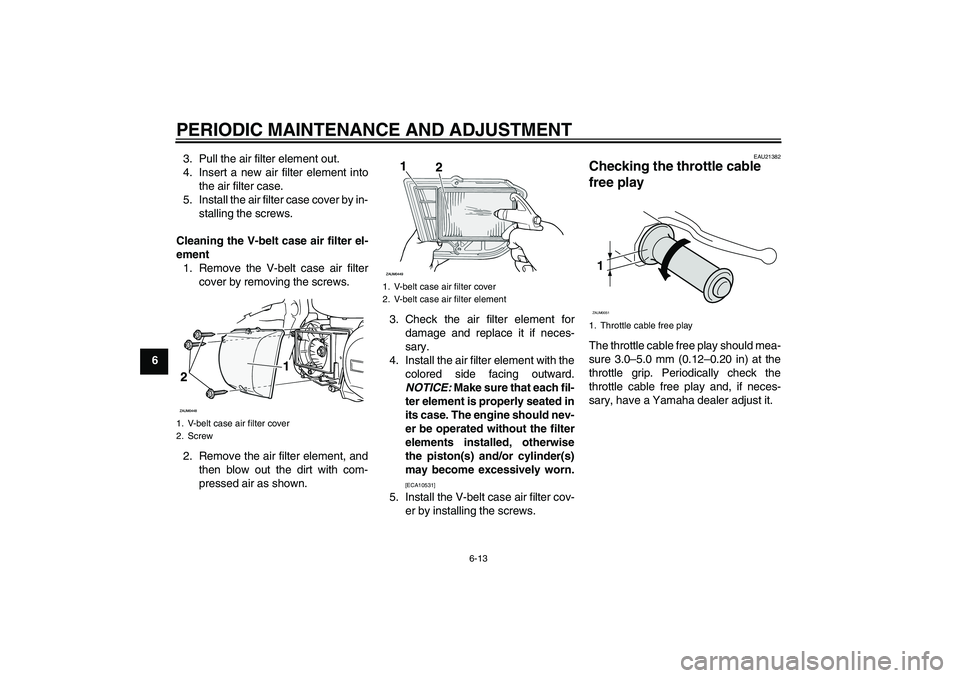

Cleaning the V-belt case air filter el-
ement
1. Remove the V-belt case air filter
cover by removing the screws.
2. Remove the air filter element, and
then blow out the dirt with com-
pressed air as shown.3. Check the air filter element for
damage and replace it if neces-
sary.
4. Install the air filter element with the
colored side facing outward.
NOTICE: Make sure that each fil-
ter element is properly seated in
its case. The engine should nev-
er be operated without the filter
elements installed, otherwise
the piston(s) and/or cylinder(s)
may become excessively worn.
[ECA10531]
5. Install the V-belt case air filter cov-
er by installing the screws.
EAU21382
Checking the throttle cable
free play The throttle cable free play should mea-
sure 3.0–5.0 mm (0.12–0.20 in) at the
throttle grip. Periodically check the
throttle cable free play and, if neces-
sary, have a Yamaha dealer adjust it.
1. V-belt case air filter cover
2. Screw
1. V-belt case air filter cover
2. V-belt case air filter element
1. Throttle cable free play1ZAUM0051
U5B2E2E0.book Page 13 Friday, July 3, 2009 7:54 PM
Page 53 of 82
PERIODIC MAINTENANCE AND ADJUSTMENT
6-14
6
EAU21401
Valve clearance The valve clearance changes with use,
resulting in improper air-fuel mixture
and/or engine noise. To prevent this
from occurring, the valve clearance
must be adjusted by a Yamaha dealer
at the intervals specified in the periodic
maintenance and lubrication chart.
EAUM2041

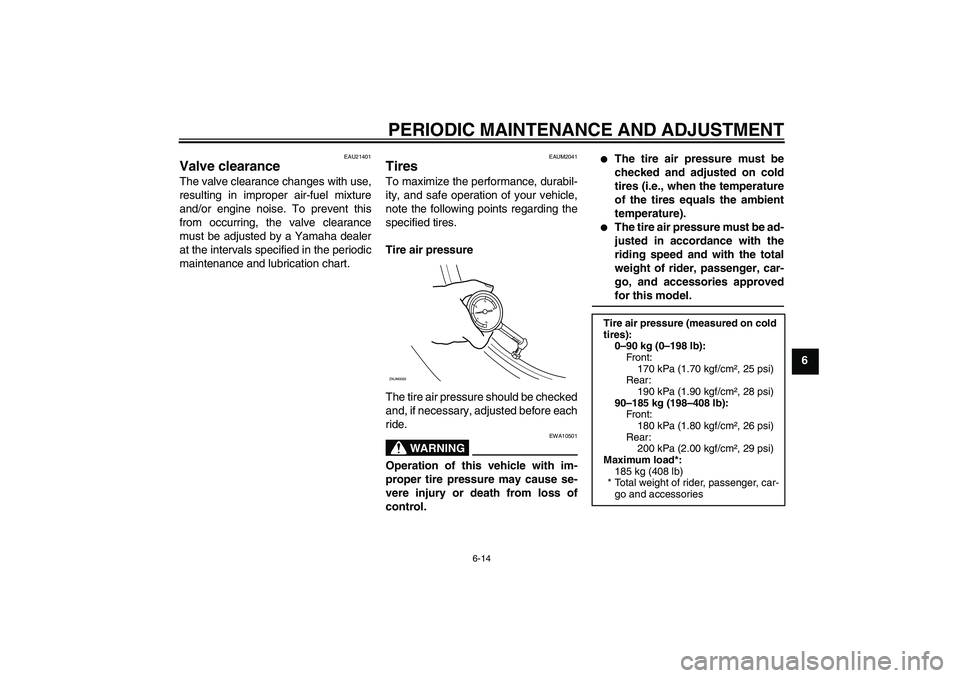

Tires To maximize the performance, durabil-
ity, and safe operation of your vehicle,
note the following points regarding the
specified tires.
Tire air pressure
The tire air pressure should be checked
and, if necessary, adjusted before each
ride.
WARNING
EWA10501
Operation of this vehicle with im-
proper tire pressure may cause se-
vere injury or death from loss of
control.
The tire air pressure must be
checked and adjusted on cold
tires (i.e., when the temperature
of the tires equals the ambient
temperature).
The tire air pressure must be ad-
justed in accordance with the
riding speed and with the total
weight of rider, passenger, car-
go, and accessories approved
for this model.
ZAUM0053
Tire air pressure (measured on cold
tires):
0–90 kg (0–198 lb):
Fr o nt :
170 kPa (1.70 kgf/cm², 25 psi)
Rear:
190 kPa (1.90 kgf/cm², 28 psi)
90–185 kg (198–408 lb):
Fr o nt :
180 kPa (1.80 kgf/cm², 26 psi)
Rear:
200 kPa (2.00 kgf/cm², 29 psi)
Maximum load*:
185 kg (408 lb)
* Total weight of rider, passenger, car-
go and accessories
U5B2E2E0.book Page 14 Friday, July 3, 2009 7:54 PM
Page 54 of 82
PERIODIC MAINTENANCE AND ADJUSTMENT
6-15
6
WARNING
EWA10511
Never overload your vehicle. Opera-
tion of an overloaded vehicle could

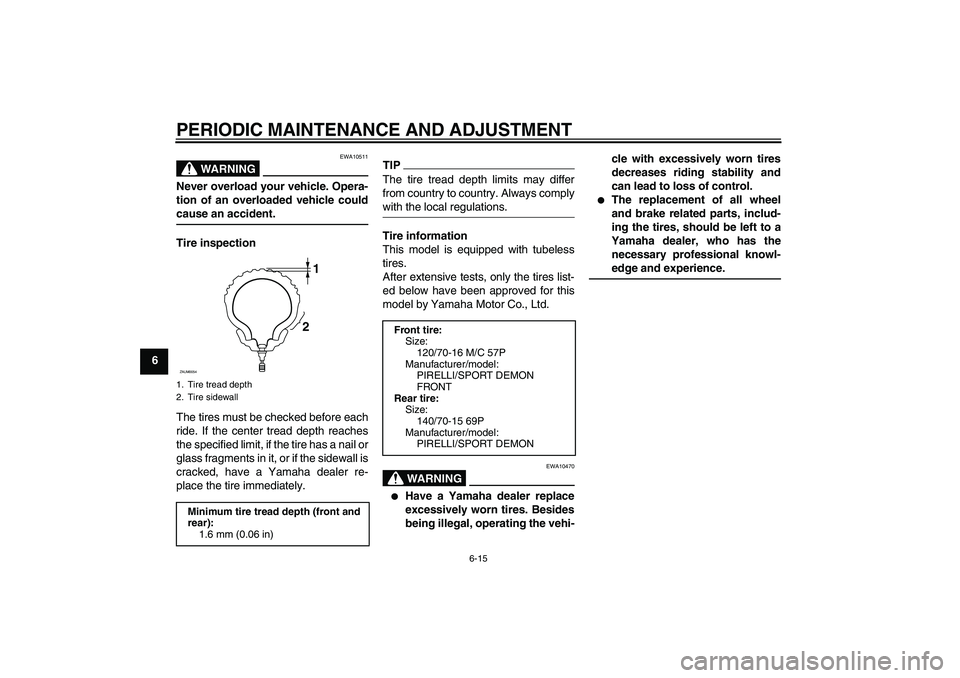

cause an accident.Tire inspection
The tires must be checked before each
ride. If the center tread depth reaches
the specified limit, if the tire has a nail or
glass fragments in it, or if the sidewall is
cracked, have a Yamaha dealer re-
place the tire immediately.
TIPThe tire tread depth limits may differ
from country to country. Always comply
with the local regulations.Tire information
This model is equipped with tubeless
tires.
After extensive tests, only the tires list-
ed below have been approved for this
model by Yamaha Motor Co., Ltd.
WARNING
EWA10470
Have a Yamaha dealer replace
excessively worn tires. Besides
being illegal, operating the vehi-cle with excessively worn tires
decreases riding stability and
can lead to loss of control.
The replacement of all wheel
and brake related parts, includ-
ing the tires, should be left to a
Yamaha dealer, who has the
necessary professional knowl-
edge and experience.
1. Tire tread depth
2. Tire sidewallMinimum tire tread depth (front and
rear):
1.6 mm (0.06 in)
1
2
ZAUM0054
Front tire:
Size:
120/70-16 M/C 57P
Manufacturer/model:
PIRELLI/SPORT DEMON
FRONT
Rear tire:
Size:
140/70-15 69P
Manufacturer/model:
PIRELLI/SPORT DEMON
U5B2E2E0.book Page 15 Friday, July 3, 2009 7:54 PM
Page 55 of 82
PERIODIC MAINTENANCE AND ADJUSTMENT
6-16
6
EAU21960

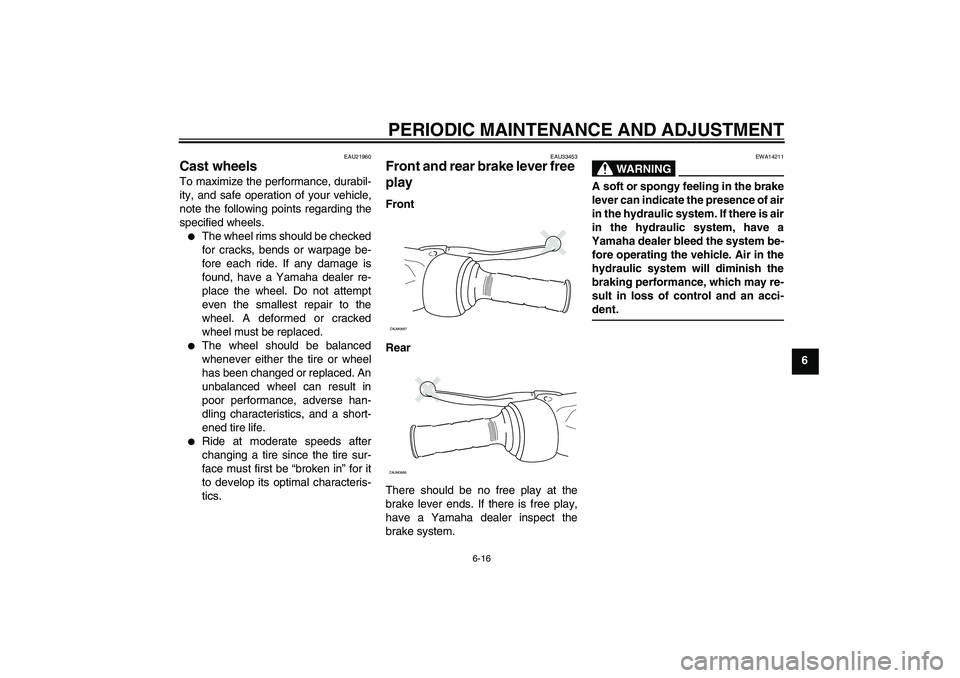

Cast wheels To maximize the performance, durabil-
ity, and safe operation of your vehicle,
note the following points regarding the
specified wheels.
The wheel rims should be checked
for cracks, bends or warpage be-
fore each ride. If any damage is
found, have a Yamaha dealer re-
place the wheel. Do not attempt
even the smallest repair to the
wheel. A deformed or cracked
wheel must be replaced.
The wheel should be balanced
whenever either the tire or wheel
has been changed or replaced. An
unbalanced wheel can result in
poor performance, adverse han-
dling characteristics, and a short-
ened tire life.
Ride at moderate speeds after
changing a tire since the tire sur-
face must first be “broken in” for it
to develop its optimal characteris-
tics.
EAU33453
Front and rear brake lever free
play Front
Rear
There should be no free play at the
brake lever ends. If there is free play,
have a Yamaha dealer inspect the
brake system.
WARNING
EWA14211
A soft or spongy feeling in the brake
lever can indicate the presence of air
in the hydraulic system. If there is air
in the hydraulic system, have a
Yamaha dealer bleed the system be-
fore operating the vehicle. Air in the
hydraulic system will diminish the
braking performance, which may re-
sult in loss of control and an acci-
dent.
ZAUM0687ZAUM0688
U5B2E2E0.book Page 16 Friday, July 3, 2009 7:54 PM
Page 56 of 82
PERIODIC MAINTENANCE AND ADJUSTMENT
6-17
6
EAU22392
Checking the front and rear
brake pads The front and rear brake pads must be
checked for wear at the intervals spec-
ified in the periodic maintenance and
lubrication chart.
EAU22420
Front brake pads
Each front brake pad is provided with a
wear indicator groove, which allows
you to check the brake pad wear with-
out having to disassemble the brake.
To check the brake pad wear, check
the wear indicator groove. If a brake
pad has worn to the point that the wearindicator groove has almost disap-
peared, have a Yamaha dealer replace
the brake pads as a set.
EAU22500
Rear brake pads
Check each rear brake pad for damage
and measure the lining thickness. If a
brake pad is damaged or if the lining
thickness is less than 0.8 mm (0.03 in),
have a Yamaha dealer replace the
brake pads as a set.
EAU22580
Checking the brake fluid level Front brake
Rear brake
Insufficient brake fluid may allow air to
enter the brake system, possibly caus-
ing it to become ineffective.
1. Brake pad wear indicator grooveZAUM0663
1
1
1. Lining thicknessZAUM0664
1
1. Minimum level mark
1. Minimum level markZAUM0665
MIN
1
ZAUM0666MIN
1
MIN
U5B2E2E0.book Page 17 Friday, July 3, 2009 7:54 PM
