2010 YAMAHA FX HO Owners Manual

First-time operation
58
EJU36665
Engine break-in
NOTICE
ECJ00431
Failure to perform the engine break-in
could result in reduced engine life or even
severe engine damage.
The engine break-in is essential to allow the
various components of the engine to wear
and polish themselves to the correct operat-
ing clearances. This ensures proper perfor-
mance and promotes longer component life.
To perform the engine break-in:
(1) Check the engine oil level. (See page 54
for information on checking the engine oil
level.)
(2) Launch the watercraft and start the en-
gine. (See page 70 for information on
starting the engine.)
(3) For the first 5 minutes, operate with the
engine speed at 2000 r/min.
(4) For the next 30 minutes, operate with the
engine speed below 5000 r/min.
(5) For the next 1 hour, operate with the en-
gine speed below 6000 r/min.
After the engine break-in is complete, the wa-
tercraft can be operated normally.
UF2H71E0.book Page 58 Thursday, July 2, 2009 10:05 AM

Pre-operation checks
59
EJU31981
WARNING
EWJ00411
Failure to inspect or maintain the watercraft properly increases the possibility of an ac-
cident or damage to the watercraft. Do not operate the watercraft if you find any prob-
lem. If a problem cannot be corrected by the procedures provided in this manual, have
the watercraft inspected by a Yamaha dealer.
EJU41232Pre-operation checklist
Before using this watercraft, be sure to perform the checks in the following checklist.
ITEM ROUTINE PAGE
PRE-LAUNCH CHECKS
Engine compartmentVentilate the engine compartment.
Check inside the engine compartment for damage.61
Fuel systemCheck the fuel system for leakage.
Check the fuel level in the fuel tank.61
Water separatorCheck the water separator for water. 61
Engine unitCheck the exterior of the engine unit for damage. 62
Engine oil levelCheck the engine oil level. 62
Bilge waterCheck the engine compartment for bilge water. 62
BatteryCheck the battery connections and electrolyte level. 62
Steering systemCheck the steering system for proper operation. 63
Adjustable tilt steering sys-
temCheck the adjustable tilt steering system for proper
operation and check that the handlebars are secure-
ly locked in place.63
Q.S.T.S.Check the Q.S.T.S. for proper operation and check
that the Q.S.T.S. selector is securely locked in place.64
Reverse systemCheck the reverse system for proper operation. 64
Throttle leverCheck the throttle lever for proper operation.
Check the throttle lever free play.65
Remote control transmitterCheck the remote control transmitter for proper op-
eration.65
Engine shut-off cord (lan-
yard)Check the engine shut-off cord (lanyard) for dam-
age.65
SwitchesCheck the start switch, engine stop switch, and en-
gine shut-off switch for proper operation.66
Storage compartmentsCheck the storage compartments for damage and
water.66
Fire extinguisher containerCheck the fire extinguisher container for damage. 66
Fire extinguisherCheck the condition of the fire extinguisher. 66
Safety equipmentCheck that safety equipment meeting the applicable
regulations is on board.67
Hull and deckCheck the hull and deck for damage. 67
UF2H71E0.book Page 59 Thursday, July 2, 2009 10:05 AM

Pre-operation checks
60
TIP:
To ensure safety and reliability, pre-operation checks should be made each time the watercraft
is used.
Jet intakeCheck the jet intake for damage and clogging. 67
Stern drain plugsCheck the stern drain plugs for damage and foreign
material and check that they are securely installed.67
HoodCheck that the hood is securely closed. 67
Front and rear seatsCheck that the seats are securely installed. 45
POST-LAUNCH CHECKS
Cooling water pilot outletCheck that water is discharged from the cooling wa-
ter pilot outlet while the engine is running.68
Multifunction information
centerCheck the multifunction information center for proper
operation.68
Engine idling speedCheck the engine idling speed. 68 ITEM ROUTINE PAGE
UF2H71E0.book Page 60 Thursday, July 2, 2009 10:05 AM

Pre-operation checks
61
EJU32281
Pre-operation check points EJU40096Pre-launch checks
Perform the pre-launch checks in the pre-op-
eration checklist while the watercraft is on
land.
To perform the pre-launch checks:
(1) Remove the seats and seat storage com-
partment. (See page 45 for seat removal
and installation procedures and page 50
for information on the seat storage com-
partment.)
(2) Perform the checks and make sure that
there are no malfunctioning items or oth-
er problems.
(3) After completing these checks, securely
install the seat storage compartment and
seats in their original positions.
EJU32333Engine compartment check
WARNING
EWJ00461
Failure to ventilate the engine compart-
ment could result in a fire or explosion. Do
not start the engine if there is a fuel leak.
Ventilate the engine compartment. Leave the
engine compartment open for a few minutes
to allow any fuel vapors to escape.
Make sure that there is no damage inside the
engine compartment.
EJU34214Fuel system checks
WARNING
EWJ00381
Leaking fuel can result in fire or explosion.

Check for fuel leakage regularly.

If any fuel leakage is found, the fuel sys-
tem must be repaired by a qualified me-
chanic. Improper repairs can make the
watercraft unsafe to operate.
Make sure that there is no damage, leakage,
or other problem in the fuel system.
Check:

Fuel filler cap and seal for damage

Fuel tank for damage and leakage

Fuel hoses and joints for damage and leak-
age

Fuel tank breather hose for damage and
leakage
EJU36874Fuel level check
Check the fuel level in the fuel tank.
Add fuel if necessary. (See page 52 for infor-
mation on filling the fuel tank.)
EJU32423Water separator check
Make sure that no water has collected in the
water separator. If water has collected in the
water separator, drain it. (See page 31 for in-
formation on draining the water separator.)
1Water separator
1
UF2H71E0.book Page 61 Thursday, July 2, 2009 10:05 AM

Pre-operation checks
62
EJU40181Engine unit check
Check the exterior of the engine unit for dam-
age or other problem.
EJU36885Engine oil level check
Make sure that the engine oil level is between
the minimum and maximum level marks on
the dipstick. (See page 54 for information on
checking the engine oil level.)
EJU32455Bilge water check
Make sure that no bilge water has collected in
the engine compartment. If bilge water has
collected in the engine compartment, drain it.
(See page 55 for information on draining the
bilge water.)
EJU32484Battery checks
Make sure that the battery terminals and
breather hose are not damaged and that the
battery leads and breather hose are connect-
ed properly. WARNING! Fire or explosion
could result if the breather hose is dam-
aged, obstructed, or not connected prop-
erly.
[EWJ00451]
Make sure that the electrolyte level is be-
tween the minimum and maximum level
marks. WARNING! Never operate the wa-
tercraft if the battery does not have suffi-
cient power to start the engine or if it
shows any other signs of decreased pow-
er. Loss of battery power may leave you
stranded.
[EWJ01240]
1Dipstick
1Maximum level mark
2Minimum level mark
1
21
1Breather hose
2Negative (–) battery terminal: Black lead
3Positive (+) battery terminal: Red lead
1Maximum level mark
2Minimum level mark
23
1
UF2H71E0.book Page 62 Thursday, July 2, 2009 10:05 AM

Pre-operation checks
63
Make sure that the battery is securely held in
place.
EJU32613Steering system checks
Turn the handlebars to the right and left sev-
eral times to make sure that operation is
smooth and unrestricted throughout the
whole range, and that the free play is not ex-
cessive.
Turn the handlebars as far as possible to the
right and left to make sure that the jet thrust
nozzle moves as the handlebars are turned,
and that there is no difference between theright and left fully turned positions of the jet
thrust nozzle.
EJU40362Adjustable tilt steering system checks
Operate the adjustable tilt steering system
several times to make sure that operation is
smooth throughout the whole range. Also,
make sure that the handlebars are securely
Difference between fully turned positions
of jet thrust nozzle (distances A and B):
Maximum 5 mm (0.20 in)
UF2H71E0.book Page 63 Thursday, July 2, 2009 10:05 AM

Pre-operation checks

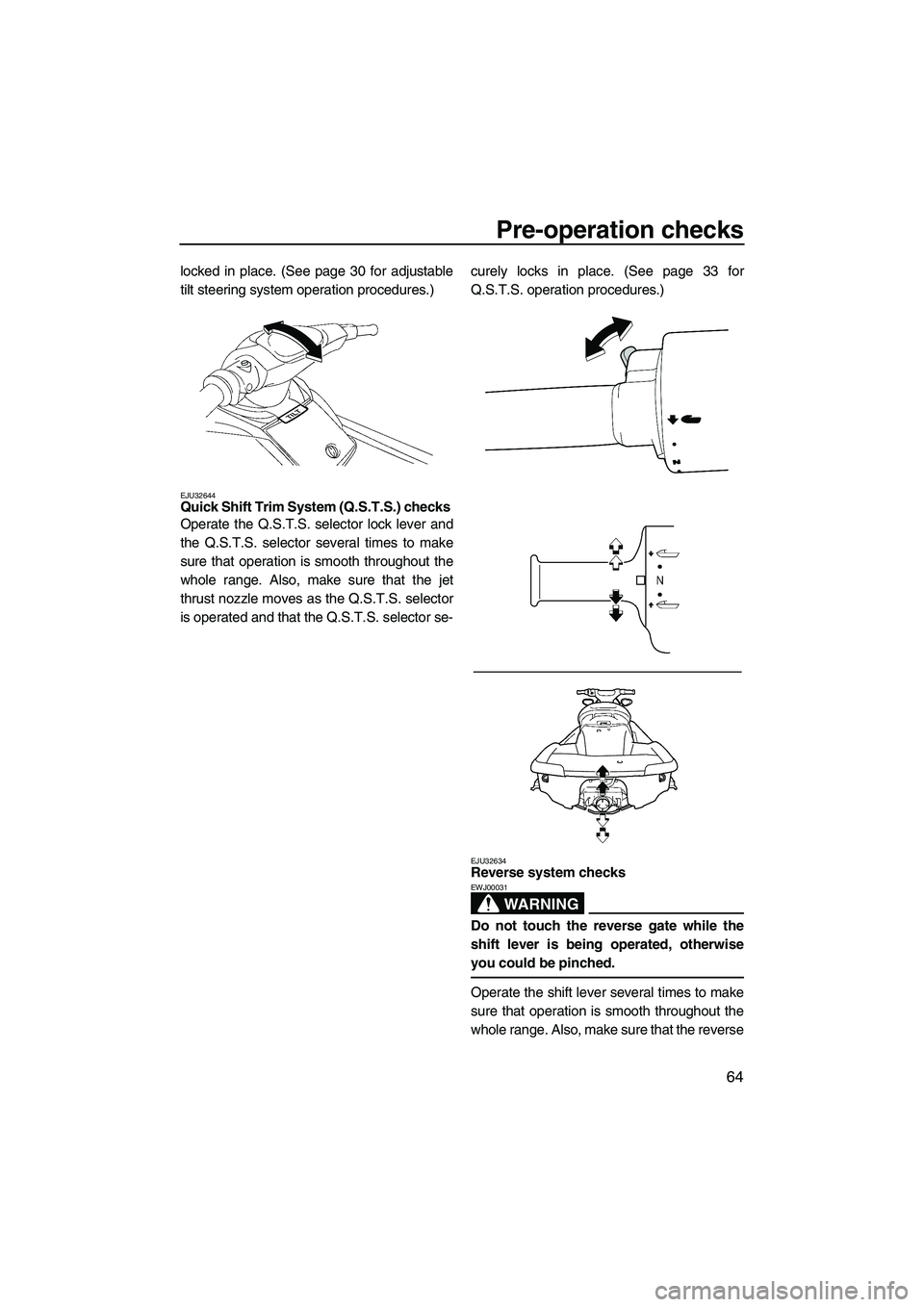

64
locked in place. (See page 30 for adjustable
tilt steering system operation procedures.)
EJU32644Quick Shift Trim System (Q.S.T.S.) checks
Operate the Q.S.T.S. selector lock lever and
the Q.S.T.S. selector several times to make
sure that operation is smooth throughout the
whole range. Also, make sure that the jet
thrust nozzle moves as the Q.S.T.S. selector
is operated and that the Q.S.T.S. selector se-curely locks in place. (See page 33 for
Q.S.T.S. operation procedures.)
EJU32634Reverse system checks
WARNING
EWJ00031
Do not touch the reverse gate while the
shift lever is being operated, otherwise
you could be pinched.
Operate the shift lever several times to make
sure that operation is smooth throughout the
whole range. Also, make sure that the reverse
UF2H71E0.book Page 64 Thursday, July 2, 2009 10:05 AM

Pre-operation checks
65
gate moves up and down according to the op-
eration of the shift lever and that the gate
makes contact with the stoppers. (See page
32 for reverse system operation.)
EJU41220Throttle lever checks
Operate the throttle lever several times to
make sure that operation is smooth through-
out the whole range. Also, make sure that the
throttle lever returns automatically to its fully
closed (idle) position when released.Face the handlebars straight ahead with the
throttle lever in the fully closed (idle) position,
and then make sure that there is the proper
amount of throttle lever free play when the
throttle lever is in the fully closed (idle) posi-
tion.
EJU40112Remote control transmitter check
Make sure that the remote control transmitter
operates properly. (See page 27 for Yamaha
Security System setting procedures and page
34 for Low RPM Mode activation procedures.)
EJU32663Engine shut-off cord (lanyard) check
Make sure that the engine shut-off cord (lan-
yard) is not damaged. If the cord is damaged,
replace it. WARNING! Never try to repair
the engine shut-off cord (lanyard) or tie it
together. The engine shut-off cord (lan-
1Stopper
1
1Throttle lever free play
Throttle lever free play:
2.0–5.0 mm (0.08–0.20 in)
1
UF2H71E0.book Page 65 Thursday, July 2, 2009 10:05 AM
