Please carry out each step only in the order specified:
4. Pull the cover ⇒ fig. 202 forward out of the bumper in the di-
rection indicated by the arrow.
5. Remove the screws (3) using the screwdriver from the vehicle
tool kit.
6. Pull the light downward and then forward out of the bumper.
7. Release the connector ⇒ fig. 203 (4) and disconnect it.
8. Turn the bulb (5) counterclockwise until it stops and then re-
move.
9. Replace burned out bulbs with new bulbs that are identical to
the ones being replaced.
10. Insert the bulb (5) in the housing and turn clockwise until it
reaches the original position.
11. Check if the bulb is installed securely.
12. Connect the connector (4) on the bulb so that it clicks into
place.
13. Insert the light into the bumper.
14. Install the screws ⇒ fig. 202 (3).
15. Insert the cover in the bumper opposite the direction indicated
by the arrow ⇒ fig. 202. The tab (2) must lock in place.
16. Install the screw (1).
The illustrations show the left fog light. The right fog light is ar-
ranged as a mirror image of the left.
Page 554 of 578
Different models may have different lights, and the location and
design of covers, bulb holders, and bulbs may be in a different loca-
tion than shown in the illustrations.
Replacing light bulbs in the front bumper (CC R-Line)
Fig. 204 In the right front bumper: Fog light.
Fig. 205 In the removed light: Replacing the bulb.

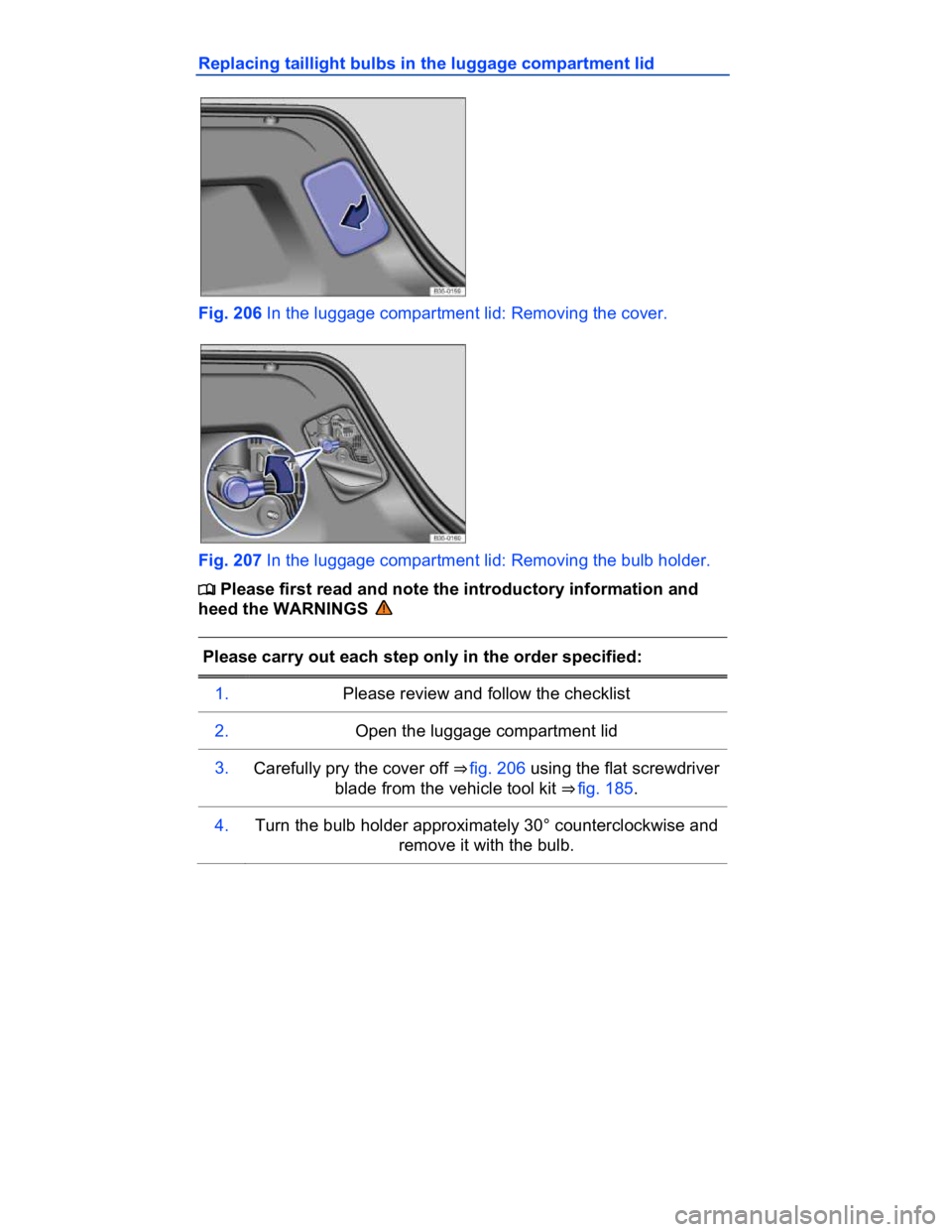

Page 555 of 578

Please carry out each step only in the order specified:
3.
Insert the wire bracket into the opening ⇒ fig. 204 (1) on the
cover and pull it forward in the direction of the arrow with the
cover and remove.
4. Remove the screws (2) with the screwdriver.
6. Pull the light out slightly.
7. Release the connector ⇒ fig. 205 (1) and disconnect it.
8. Turn the bulb holder (2) counterclockwise until it stops and
then it remove it toward the rear with the bulb.
9. Replace burned out bulbs with new bulbs that are identical to
the ones being replaced.
10. Insert the bulb holder in the headlight and turn it clockwise
until it stops.
11. Check if the bulb is installed securely.
12. Connect the connector (1) on the bulb so that it clicks into
place.
13. Insert the light into the bumper.
14. Install the screws ⇒ fig. 204 (2).
15.
Insert the cover in the bumper opposite the direction indicated
by the arrow ⇒ fig. 204. The cover must click into place
securely.
16. Make sure the cover is installed securely.
The illustrations show the right fog light. The left fog light is ar-
ranged as a mirror image of the right.
