2010 TOYOTA YARIS SEDAN Owners Manual

278 4-3. Do-it-yourself maintenance
Turn the bulb base counterclock-
wise.
Remove the light bulb.
n Front turn signal/parking lights
Remove the bolts and clips.
Partly remove the fender liner.

279
4-3. Do-it-yourself maintenance
4
Maintenance and care
Turn the bulb base counterclock-
wise.
Remove the light bulb.
n Back-up lights, stop/tail and rear side marker lights and rear
turn signal lights
Open the trunk lid and remove
the clip.

280 4-3. Do-it-yourself maintenance
Partly remove the cover and turn
the bulb bases counterclock-
wise.Stop/tail and rear side marker
lights
Rear turn signal light
Back-up light
Remove the light bulb.
Stop/tail and rear side marker
lights
Rear turn signal light
Back-up light
n High mounted stoplight (vehicle s without the rear spoiler)
Disengage the claws.
Pull and remove the high
mounted stoplight.

281
4-3. Do-it-yourself maintenance
4
Maintenance and care
Unplug the connector.
Turn the bulb base counterclock-
wise.
Remove the light bulb.
n License plate lights
Open the trunk lid.
If equipped:
Remove the clips and partly
remove the cover.

282 4-3. Do-it-yourself maintenance
Turn the bulb base counterclock-
wise.
Remove the light bulb.
n LED high mounted stoplight (veh icles with the rear spoiler)
If the high mounted stoplight has burnt out, have it replaced by
your Toyota dealer.
n Condensation build-up on th e inside of the lens
Contact your Toyota dealer for more information in the following situations.
Temporary condensation build-up on the inside of the headlight lens does
not indicate a malfunction.
l Large drops of water are built up on the inside of the lens.
l Water has built up inside the headlight.
n LED high mounted stoplight
The high mounted stoplight consists of a number of LEDs. If any of the LEDs
burn out, take your vehicle to your Toyota dealer to have the light replaced.

283
4-3. Do-it-yourself maintenance
4
Maintenance and care
n
Installing the clips
CAUTION
nReplacing light bulbs
Turn off the headlights. Do not attempt to replace the bulb immediately after
turning off the headlights.
The bulbs become very hot and may cause burns.
n To prevent damage or fire
Make sure bulbs are fully seated and locked.
NOTICE
lHalogen bulbs have pressurized gas inside and require special handling. \
Do
not touch the glass portion of the light bulb with bare hands. Hold the bulb by
the plastic or metal portion.
If the bulb is scratched or dropped it may blow out or crack.
l Fully install light bulbs and any parts used to secure them. Failing to do so
may result in heat damage, fire, or water entering the headlight unit. This
may damage the headlights or cause condensation to build up on the lens.
Insert the clips.

284 4-3. Do-it-yourself maintenance

286
5-1. Essential information

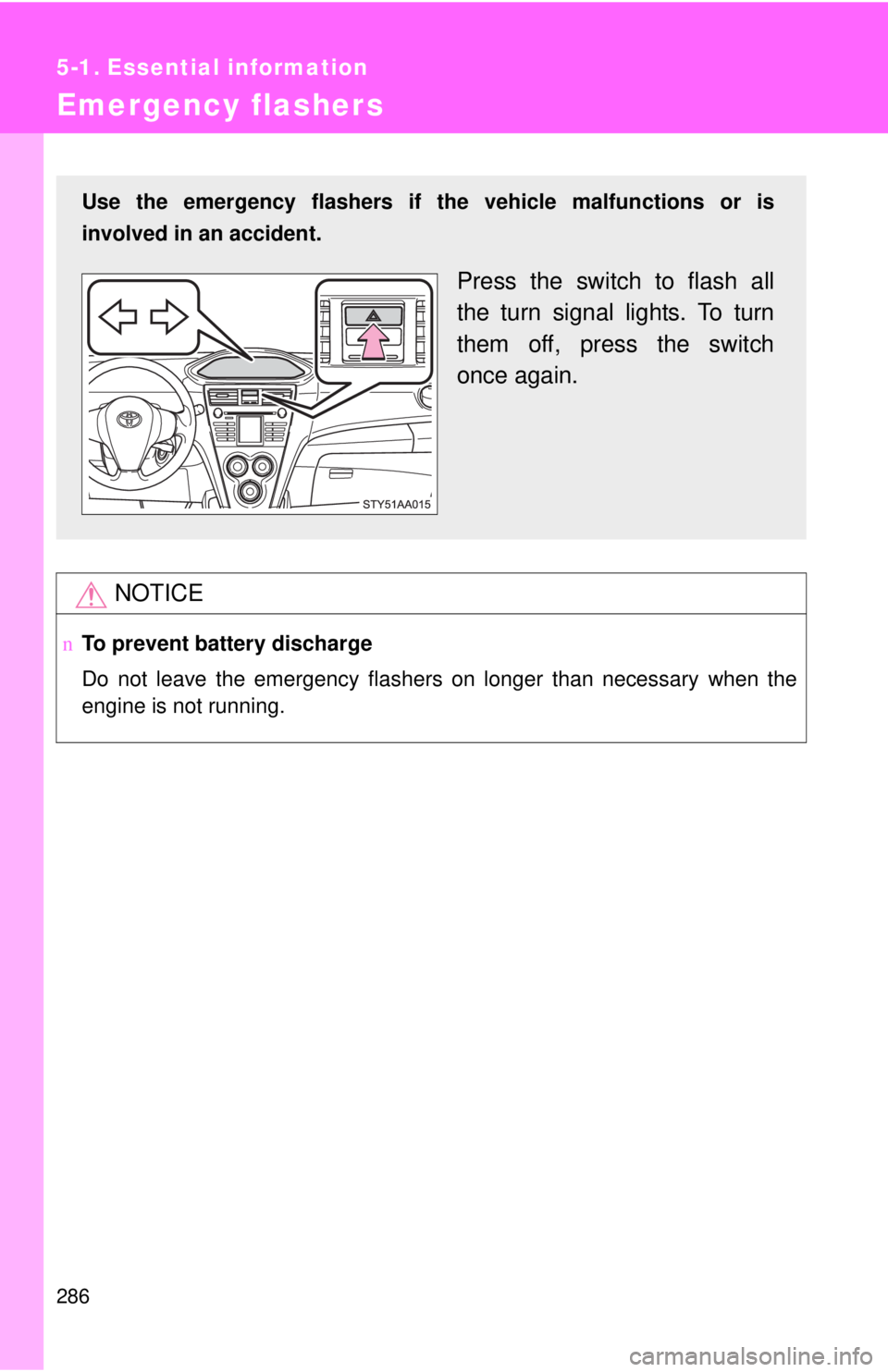

Emergency flashers
NOTICE
nTo prevent battery discharge
Do not leave the emergency flashers on longer than necessary when the
engine is not running.
Use the emergency flashers if th e vehicle malfunctions or is
involved in an accident.
Press the switch to flash all
the turn signal lights. To turn
them off, press the switch
once again.
