2010 TOYOTA YARIS HATCHBACK Owners Manual

7
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
Hood release
Engine maintenance
Windshield washer and rear window washer fluid tank
Engine oil filler cap
Engine oil level dipstick
Engine coolant reservoir
NOTE: Regularly scheduled maintenance, including oil changes, will help extend the life of your vehicle and maintain performance.
Please refer to the “Warranty Maintenance Guide.”
Pull Pull up latch
and raise hood
Engage
support rod

8
FEATURES/OPERATIONS
Automatic Transmission (if equipped)
* The ignition switch must be “ON” and the brake pedal depressed to shiftfrom Park.
Downshifting increases power going uphill, or provides engine braking
downhill. For best fuel economy during normal driving conditions, always
drive with the shift lever in the “D” position.
Park*
Reverse
Neutral
Drive
Third gear
Second gear
First gear
P
R
N
D
3
2
L
Tilt steering wheel
Angle
Hold wheel, push lever down, set angle and return lever.
NOTE: Do not attempt to adjust while the vehicle is in motion.
Lock release lever
Parking brake
Pull (2) Push
Set
Release
(1) Pull slightly
(3) Lower

9
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES

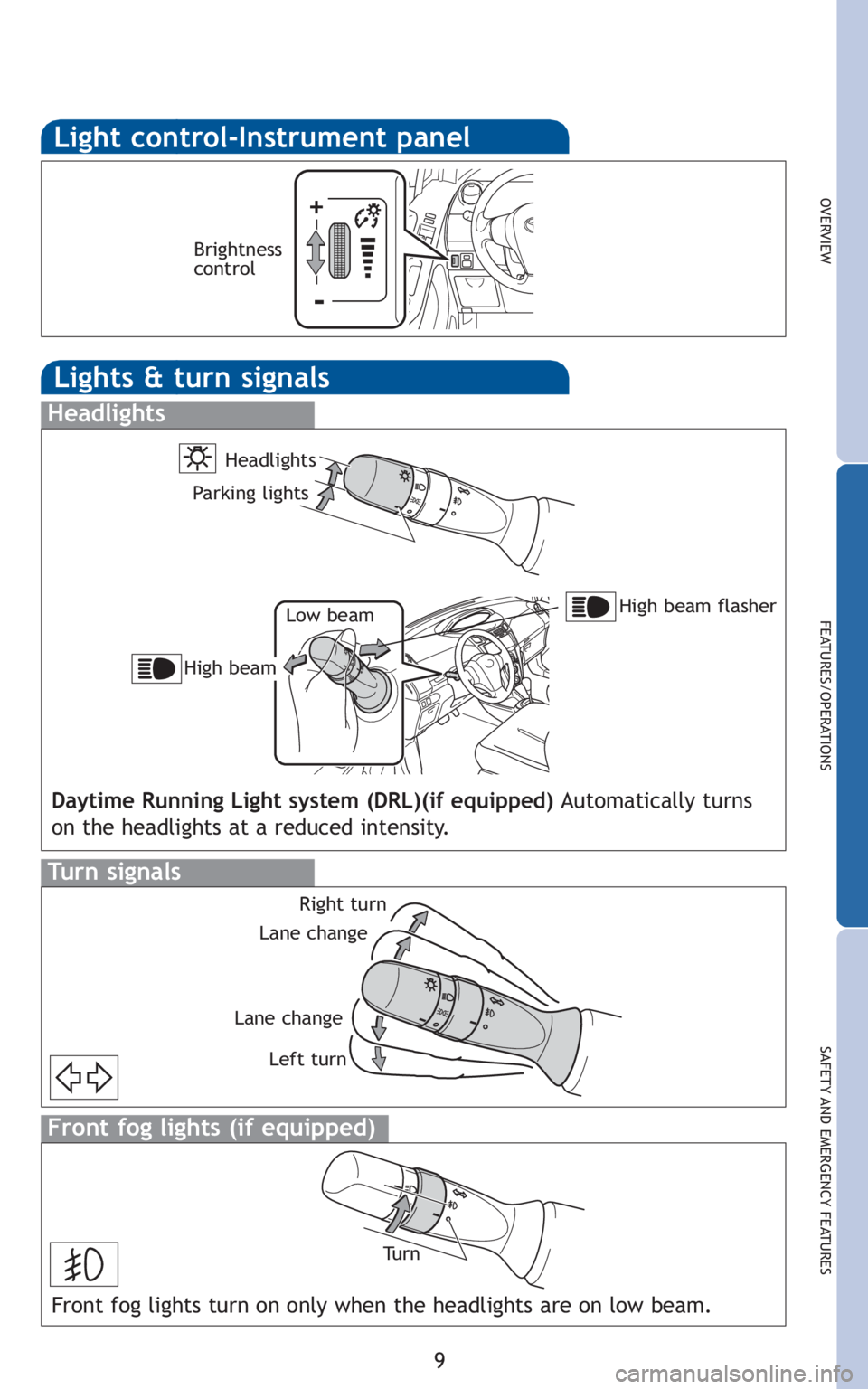

Light control-Instrument panel
Brightness
control
+
-
Lights&turnsignals
Headlights
High beam flasher
Low beam
Headlights
Parking lights
High beam
Daytime Running Light system (DRL)(if equipped) Automatically turns
on the headlights at a reduced intensity.
Turn signals
Right turn
Lane change
Lane change Left turn
Front fog lights (if equipped)
Tu r n
Front fog lights turn on only when the headlights are on low beam.

10
FEATURES/OPERATIONS

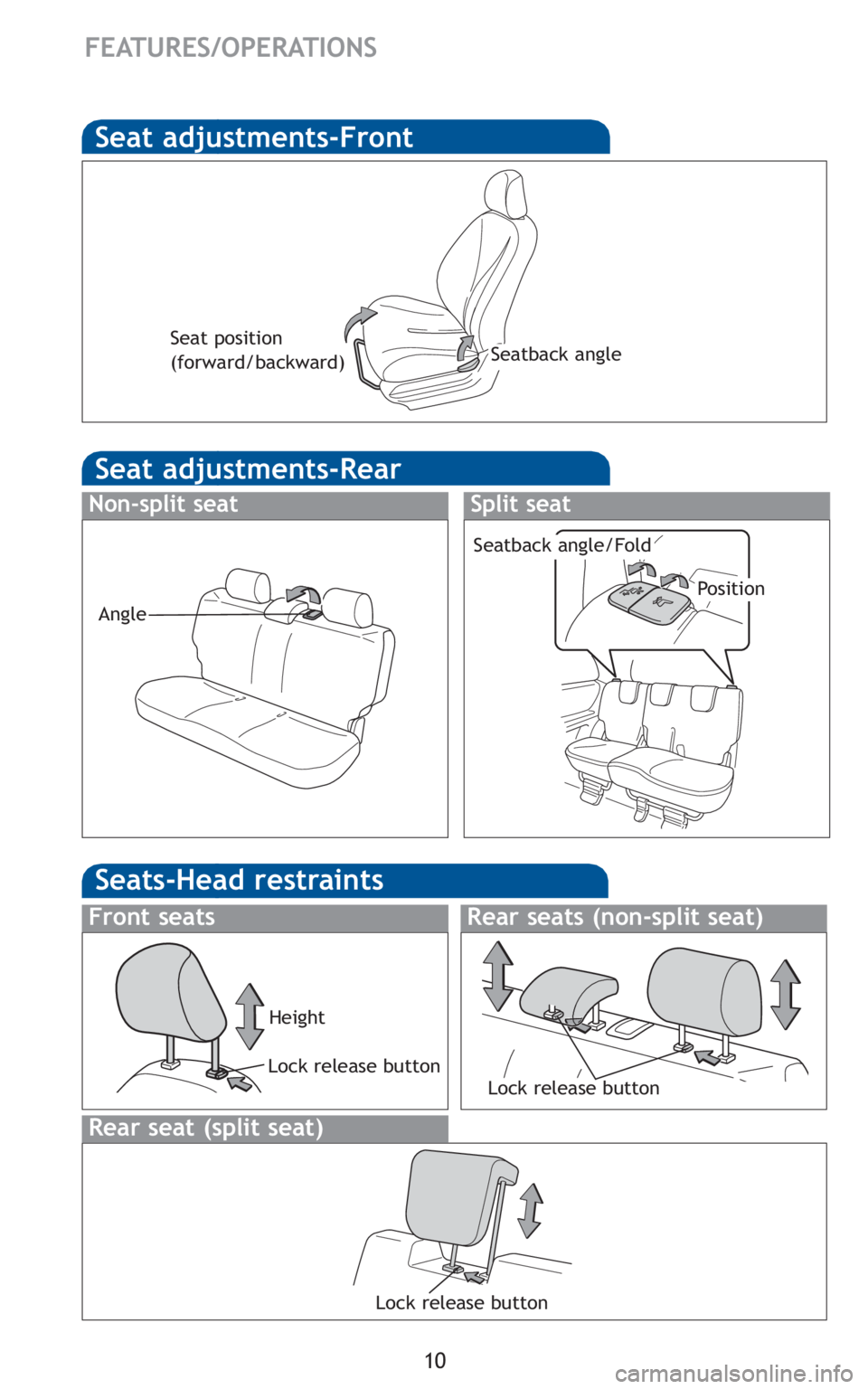

Seat adjustments-Front
Seat adjustments-Rear
Non-split seat
Seatback angle
Seat position
(forward/backward)
Angle
Split seat
Position
Seatback angle/Fold
Lock release button
Lock release button Height
Rear seat (split seat)
Front seats
Seats-Head restraints
Rear seats (non-split seat)
Lock release button

11
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES

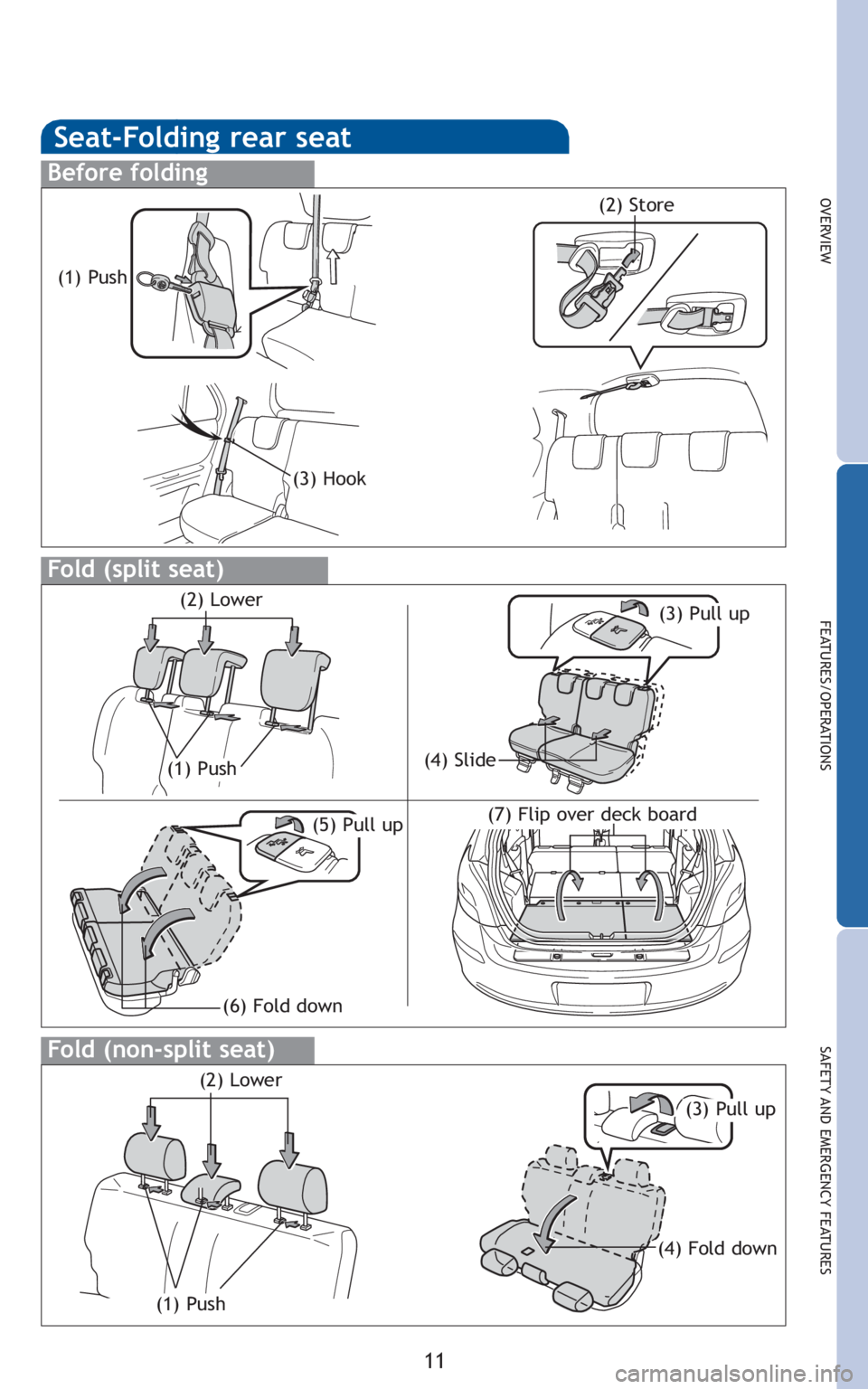

Seat-Folding rear seat
Before folding
(1) Push
(3) Hook
(2) Store
Fold (split seat)
(1) Push
(3) Pull up(2) Lower
(4) Slide
(5) Pull up(7) Flip over deck board
(6) Fold down
Fold (non-split seat)
(1) Push
(3) Pull up
(2) Lower
(4) Fold down

12
FEATURES/OPERATIONS

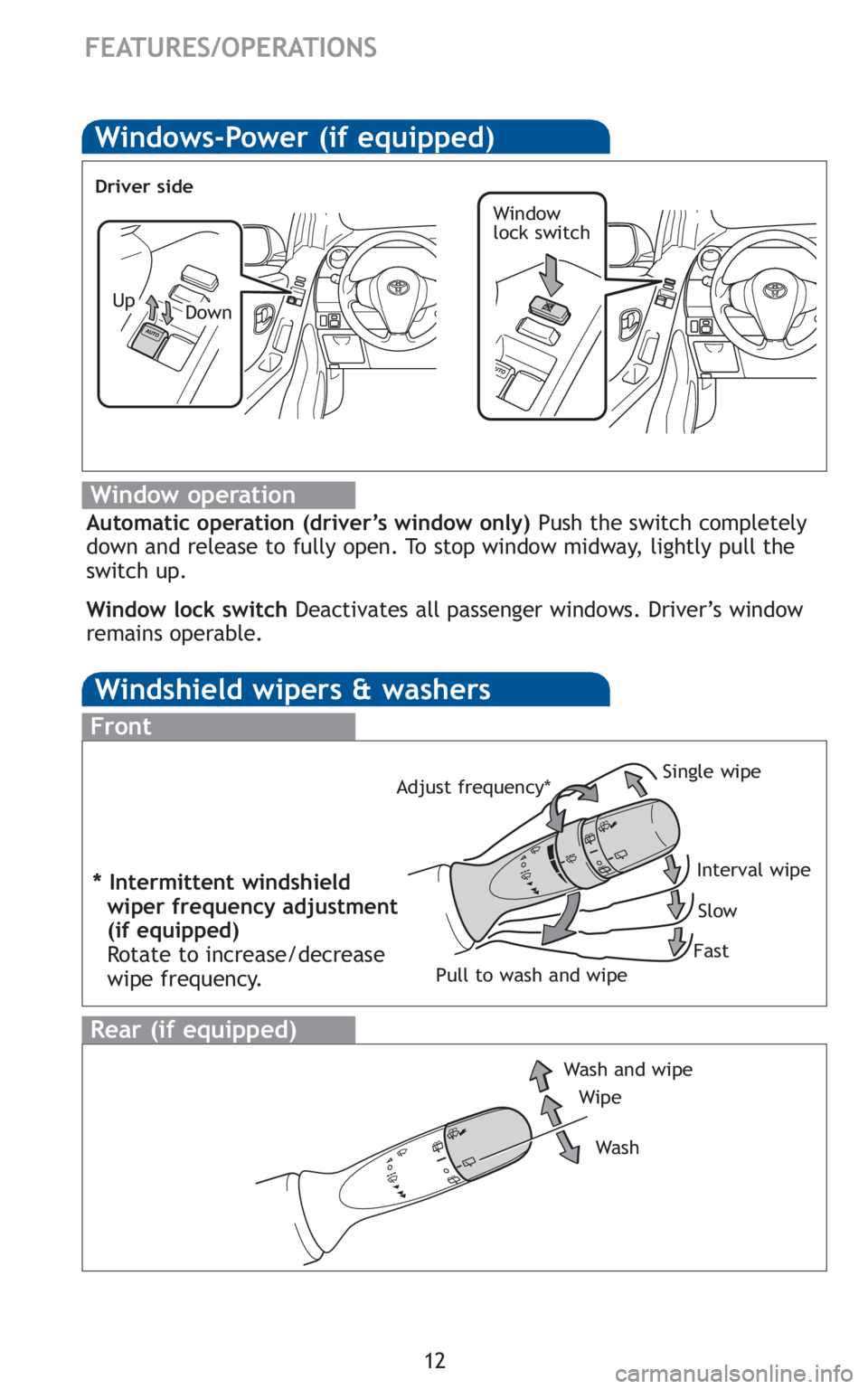

Windows-Power (if equipped)
Window operation
Automatic operation (driver’s window only)Push the switch completely
down and release to fully open. To stop window midway, lightly pull the
switch up.
Window lock switch Deactivates all passenger windows. Driver’s window
remains operable.
Window
lock switch
Up
Driver side
Down
Windshield wipers & washers
Wipe
Wash and wipe
Wa s h
Rear (if equipped)
Front
Single wipe
Interval wipeSlow
Fast
Pull to wash and wipe
Adjust frequency*
* Intermittent windshield
wiper frequency adjustment
(if equipped)
Rotate to increase/decrease
wipe frequency.

13
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES

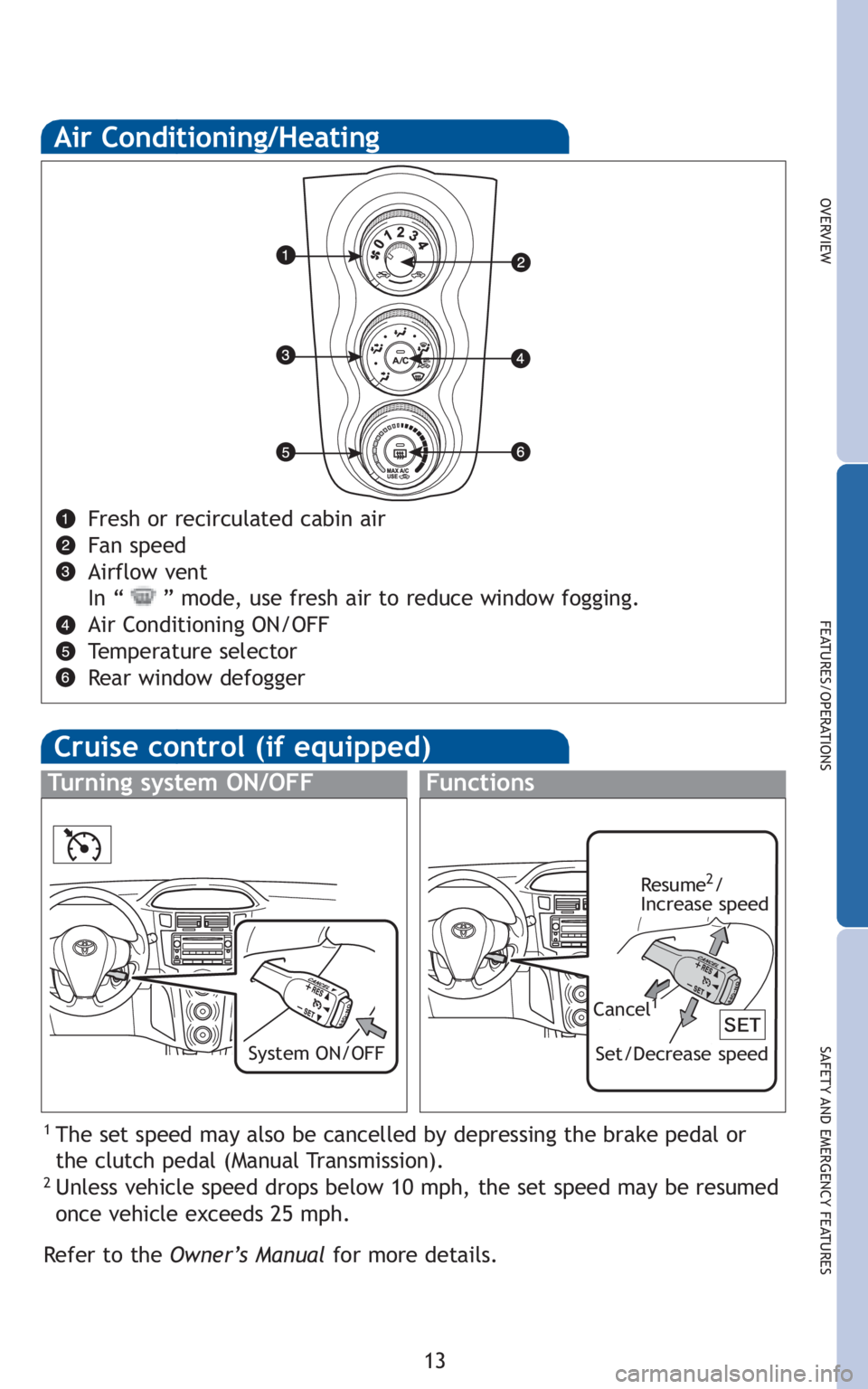

Fresh or recirculated cabin air
Fan speed
Airflow vent
In “ ” mode, use fresh air to reduce window fogging.
Air Conditioning ON/OFF
Temperature selector
Rear window defogger
Air Conditioning/Heating
Cruise control (if equipped)
1The set speed may also be cancelled by depressing the brake pedal or
the clutch pedal (Manual Transmission).
2Unless vehicle speed drops below 10 mph, the set speed may be resumed
once vehicle exceeds 25 mph.
Refertothe Owner’s Manual for more details.
Turning system ON/OFFFunctions
Resume2/
Increase speed
Set/Decrease speed
Cancel1
System ON/OFF

14
FEATURES/OPERATIONS

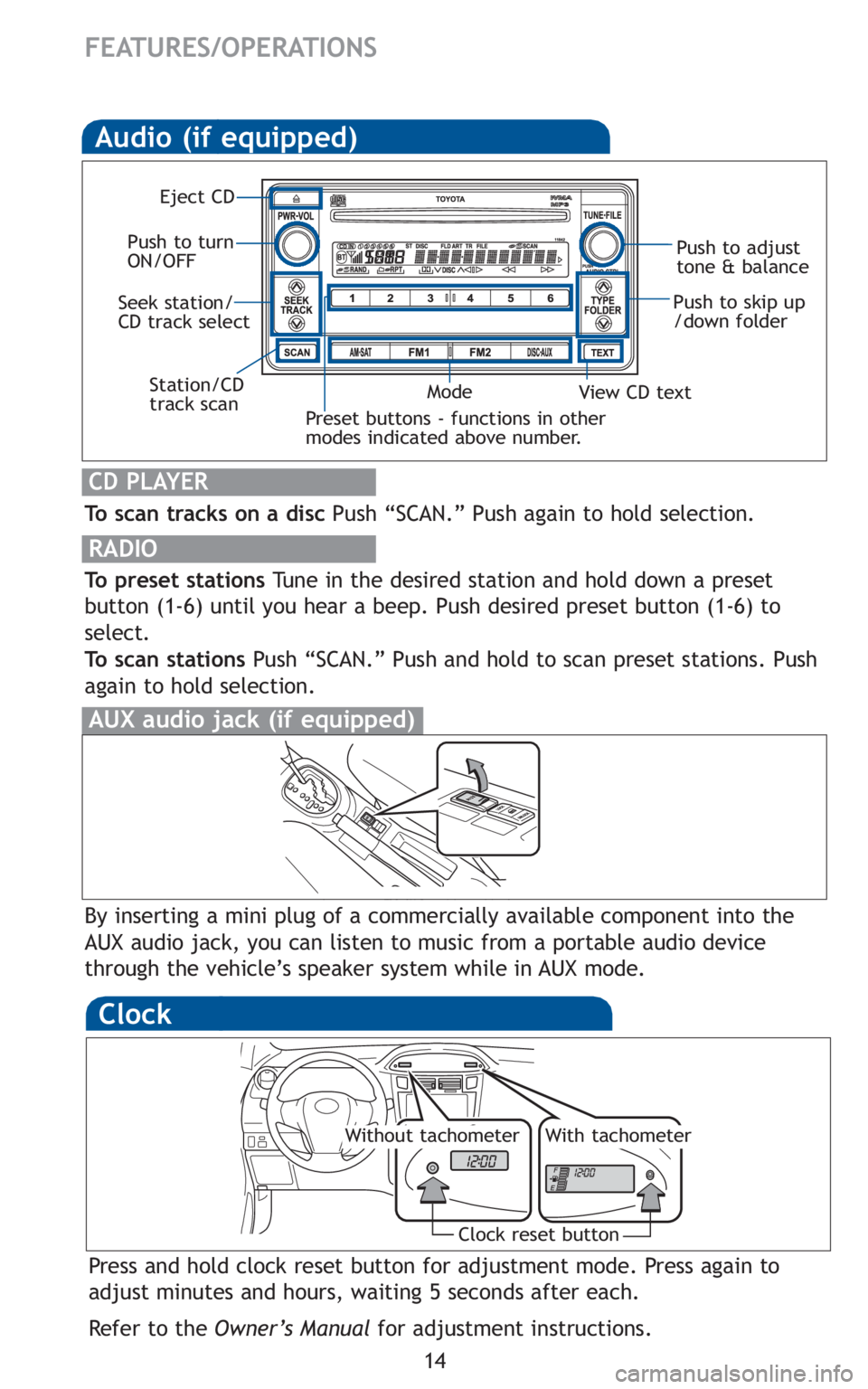

Audio (if equipped)
To scan tracks on a discPush “SCAN.” Push again to hold selection.
RADIO
To preset stationsTune in the desired station and hold down a preset
button (1-6) until you hear a beep. Push desired preset button (1-6) to
select.
To scan stations Push “SCAN.” Push and hold to scan preset stations. Push
again to hold selection.
CD PLAYER
Preset buttons - functions in other
modes indicated above number.
View CD text
Push to skip up
/down folder
Eject CD
Push to turn
ON/OFF Push to adjust
tone & balance
Mode
Seek station/
CD track select
Station/CD
track scan
By inserting a mini plug of a commercially available component into the
AUX audio jack, you can listen to music from a portable audio device
through the vehicle’s speaker system while in AUX mode.
AUX audio jack (if equipped)
Clock
Press and hold clock reset button for adjustment mode. Press again to
adjust minutes and hours, waiting 5 seconds after each.
Refer to the Owner’s Manual for adjustment instructions.
Clock reset button
Without tachometerWith tachometer
