2010 TOYOTA TACOMA Warranties & Maintenance Guides (in English)

20,000 miles or 24 months
Replace cabin air filterReplace engine oil and oil filter1
Rotate tiresVisually inspect brake linings/drums and
brake pads/discs
Additional Maintenance Items for
Special Operating Conditions
2
Driving on dirt roads or dusty roads:Inspect ball joints and dust coversInspect drive shaft boots (4WD)Inspect engine air filterInspect steering linkage and bootsLubricate propeller shaft (4WD)3
Re-torque propeller shaft bolt3
Tighten nuts and bolts on chassis and
body
Driving while towing:Lubricate propeller shaft (4WD)3
Re-torque propeller shaft bolt3
Tighten nuts and bolts on chassis and
body
DEALERSERVICEVERIFICATION:
D
ATE:
M
ILEAGE:
25,000 miles or 30 months
Replace engine oil and oil filter1
Rotate tiresVisually inspect brake linings/drums and
brake pads/discs
Additional Maintenance Items for
Special Operating Conditions
2
Driving on dirt roads or dusty roads:Inspect ball joints and dust coversInspect drive shaft boots (4WD)Inspect engine air filterInspect steering linkage and bootsLubricate propeller shaft (4WD)3
Re-torque propeller shaft bolt3
Tighten nuts and bolts on chassis and
body
Driving while towing:Lubricate propeller shaft (4WD)3
Re-torque propeller shaft bolt3
Tighten nuts and bolts on chassis and
body
DEALERSERVICEVERIFICATION:
D
ATE:
M
ILEAGE:
Maintenance Log
MAINTENANCE
40Maintenance Log

30,000 miles or 36 months
Lubricate propeller shaft (4WD)Re-torque propeller shaft boltReplace engine air filterReplace engine oil and oil filter1
Replace rear differential oil (Prerunner and 4WD vehicles with optional limited slip
differential only)
Replace spark plugs (1GR-FE engine only)4
Rotate tires
Inspect the following:
Ball joints and dust coversBrake lines and hosesBrake linings/drums and brake pads/discs5
Drive shaft boots (4WD)Engine coolant6
Exhaust pipes and mountingsFront differential oil (4WD)Fuel lines and connections, fuel tank band
and fuel tank vapor vent system hoses
Fuel tank cap gasketRadiator and condenserRear differential oil (except Prerunner and
4WD vehicles with optional limited slip
differential only)
Steering gear boxSteering linkage and bootsTransfer case oil (4WD)Transmission fluid or oil
Note:Driving in heavy traffic, on dirt roads or in urban, dusty or desert areas may
shorten the life of the cabin air filter. Replacement may be needed if you notice reduced
air flow from the air conditioner and heater or if the windows fog easily when you use
theFreshmode. Consult your dealer if any of these conditions occur.
Additional Maintenance Items for Special Operating Conditions
2
Driving on dirt roads or dusty roads:Tighten nuts and bolts on chassis and body
Driving while towing:Replace front differential oil (4WD)Replace manual transmission oilReplace rear differential oil
Replace transfer case oil (4WD)Tighten nuts and bolts on chassis and
body
DEALERSERVICEVERIFICATION:
D
ATE:
M
ILEAGE:
1Reset the oil replacement reminder light (“MAINT REQD”) or the message “OIL MAINTENANCE REQUIRED” on the
multi-information display after engine oil replacement.
2Perform these service items only if you drive primarily under the conditions indicated.3Includes operating on roads which road salt has been applied.4Maintenance services of spark plugs are required under the terms of the Emissions Control Warranty.5Inspect thickness measurement and disc runout.6Refer to “Engine Coolant” in the “Explanation of Maintenance Items” section in the back of this guide for more
information.
Maintenance Log
MAINTENANCE
Maintenance Log41

35,000 miles or 42 months
Replace engine oil and oil filter1
Rotate tiresVisually inspect brake linings/drums and
brake pads/discs
Additional Maintenance Items for
Special Operating Conditions
2
Driving on dirt roads or dusty roads:Inspect ball joints and dust coversInspect drive shaft boots (4WD)Inspect engine air filterInspect steering linkage and bootsLubricate propeller shaft (4WD)3
Re-torque propeller shaft bolt3
Tighten nuts and bolts on chassis and
body
Driving while towing:Lubricate propeller shaft (4WD)3
Re-torque propeller shaft bolt3
Tighten nuts and bolts on chassis and
body
DEALERSERVICEVERIFICATION:
D
ATE:
M
ILEAGE:
40,000 miles or 48 months
Replace cabin air filterReplace engine oil and oil filter1
Rotate tiresVisually inspect brake linings/drums and
brake pads/discs
Additional Maintenance Items for
Special Operating Conditions
2
Driving on dirt roads or dusty roads:Inspect ball joints and dust coversInspect drive shaft boots (4WD)Inspect engine air filterInspect steering linkage and bootsLubricate propeller shaft (4WD)3
Re-torque propeller shaft bolt3
Tighten nuts and bolts on chassis and
body
Driving while towing:Lubricate propeller shaft (4WD)3
Re-torque propeller shaft bolt3
Tighten nuts and bolts on chassis and
body
DEALERSERVICEVERIFICATION:
D
ATE:
M
ILEAGE:
Maintenance Log
MAINTENANCE
42Maintenance Log

45,000 miles or 54 months
Lubricate propeller shaft (4WD)Re-torque propeller shaft boltReplace engine oil and oil filter1
Rotate tiresVisually inspect brake linings/drums and brake pads/discs
Inspect the following:
Ball joints and dust coversBrake lines and hosesDrive shaft boots (4WD)Engine coolant4
Exhaust pipes and mountings
Front differential oil (4WD)Radiator and condenserRear differential oilSteering gear boxSteering linkage and boots
Additional Maintenance Items for Special Operating Conditions
2
Driving on dirt roads or dusty roads:Inspect engine air filterTighten nuts and bolts on chassis and body
Driving while towing:Replace front differential oil (4WD)Replace rear differential oilTighten nuts and bolts on chassis and body
DEALERSERVICEVERIFICATION:
D
ATE:
M
ILEAGE:
1Reset the oil replacement reminder light (“MAINT REQD”) or the message “OIL MAINTENANCE REQUIRED” on the
multi-information display after engine oil replacement.
2Perform these service items only if you drive primarily under the conditions indicated.3Includes operating on roads which road salt has been applied.4Refer to “Engine Coolant” in the “Explanation of Maintenance Items” section in the back of this guide for more
information.
Maintenance Log
MAINTENANCE
Maintenance Log43

50,000 miles or 60 months
Replace engine oil and oil filter1
Rotate tiresVisually inspect brake linings/drums and
brake pads/discs
Note:Driving in heavy traffic, on dirt
roads or in urban, dusty or desert areas
may shorten the life of the cabin air
filter. Replacement may be needed if you
notice reduced air flow from the air
conditioner and heater or if the windows
fog easily when you use theFresh
mode. Consult your dealer if any of
these conditions occur.
Additional Maintenance Items for
Special Operating Conditions
2
Driving on dirt roads or dusty roads:Inspect ball joints and dust coversInspect drive shaft boots (4WD)Inspect engine air filterInspect steering linkage and bootsLubricate propeller shaft (4WD)3
Re-torque propeller shaft bolt3
Tighten nuts and bolts on chassis and
body
Driving while towing:Lubricate propeller shaft (4WD)3
Re-torque propeller shaft bolt3
Tighten nuts and bolts on chassis and
body
DEALERSERVICEVERIFICATION:
D
ATE:
M
ILEAGE:
55,000 miles or 66 months
Replace engine oil and oil filter1
Rotate tiresVisually inspect brake linings/drums and
brake pads/discs
Additional Maintenance Items for
Special Operating Conditions
2
Driving on dirt roads or dusty roads:Inspect ball joints and dust coversInspect drive shaft boots (4WD)Inspect engine air filterInspect steering linkage and bootsLubricate propeller shaft (4WD)3
Re-torque propeller shaft bolt3
Tighten nuts and bolts on chassis and
body
Driving while towing:Lubricate propeller shaft (4WD)3
Re-torque propeller shaft bolt3
Tighten nuts and bolts on chassis and
body
DEALERSERVICEVERIFICATION:
D
ATE:
M
ILEAGE:
Maintenance Log
MAINTENANCE
44Maintenance Log

60,000 miles or 72 months
Lubricate propeller shaft (4WD)Re-torque propeller shaft boltReplace cabin air filterReplace engine air filterReplace engine oil and oil filter1
Replace rear differential oil (Prerunner and 4WD vehicles with optional limited slip
differential only)
Replace spark plugs (1GR-FE engine oil)4
Rotate tires
Inspect the following:
Ball joints and dust coversBrake lines and hosesBrake linings/drums and brake pads/discs5
Drive belts6
Drive shaft boots (4WD)Engine coolant7
Engine valve clearance8
Exhaust pipes and mountingsFront differential oil (4WD)Fuel lines and connections, fuel tank band
and fuel tank vapor vent system hoses
Fuel tank cap gasketRadiator and condenserRear differential oil (except Prerunner and
4WD vehicles with optional limited slip
differential only)
Steering gear boxSteering linkage and bootsTransfer case oil (4WD)Transmission fluid or oil
Additional Maintenance Items for Special Operating Conditions
2
Driving on dirt roads or dusty roads:Tighten nuts and bolts on chassis and body
Driving while towing:Replace front differential oil (4WD)Replace rear differential oilReplace transfer case oil (4WD)Replace transmission fluid or oilTighten nuts and bolts on chassis and body
DEALERSERVICEVERIFICATION:
D
ATE:
M
ILEAGE:
1Reset the oil replacement reminder light (“MAINT REQD”) or the message “OIL MAINTENANCE REQUIRED” on the
multi-information display after engine oil replacement.
2Perform these service items only if you drive primarily under the conditions indicated.3Includes operating on roads which road salt has been applied.4Maintenance services of spark plugs are required under the terms of the Emissions Control Warranty.5Inspect thickness measurement and disc runout.6Initial inspection at 60,000 miles/72 months. Inspect every 15,000 miles/18 months thereafter.7Refer to “Engine Coolant” in the “Explanation of Maintenance Items” section in the back of this guide for more
information.
8Check for tappet noise and engine vibration and adjust if necessary, 1GR-FE engine only.
Maintenance Log
MAINTENANCE
Maintenance Log45

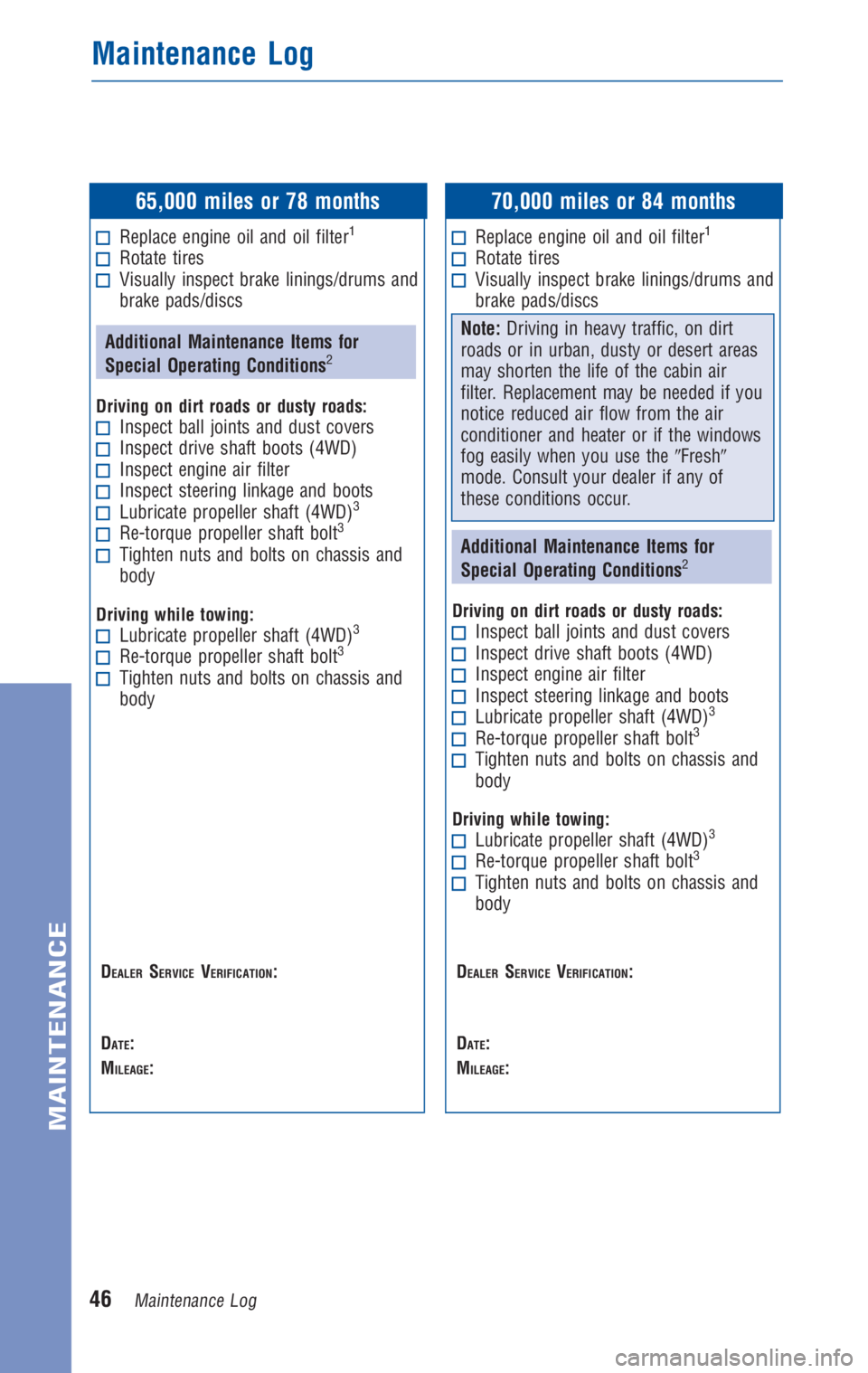

65,000 miles or 78 months
Replace engine oil and oil filter1
Rotate tiresVisually inspect brake linings/drums and
brake pads/discs
Additional Maintenance Items for
Special Operating Conditions
2
Driving on dirt roads or dusty roads:Inspect ball joints and dust coversInspect drive shaft boots (4WD)Inspect engine air filterInspect steering linkage and bootsLubricate propeller shaft (4WD)3
Re-torque propeller shaft bolt3
Tighten nuts and bolts on chassis and
body
Driving while towing:Lubricate propeller shaft (4WD)3
Re-torque propeller shaft bolt3
Tighten nuts and bolts on chassis and
body
DEALERSERVICEVERIFICATION:
D
ATE:
M
ILEAGE:
70,000 miles or 84 months
Replace engine oil and oil filter1
Rotate tiresVisually inspect brake linings/drums and
brake pads/discs
Note:Driving in heavy traffic, on dirt
roads or in urban, dusty or desert areas
may shorten the life of the cabin air
filter. Replacement may be needed if you
notice reduced air flow from the air
conditioner and heater or if the windows
fog easily when you use theFresh
mode. Consult your dealer if any of
these conditions occur.
Additional Maintenance Items for
Special Operating Conditions
2
Driving on dirt roads or dusty roads:Inspect ball joints and dust coversInspect drive shaft boots (4WD)Inspect engine air filterInspect steering linkage and bootsLubricate propeller shaft (4WD)3
Re-torque propeller shaft bolt3
Tighten nuts and bolts on chassis and
body
Driving while towing:Lubricate propeller shaft (4WD)3
Re-torque propeller shaft bolt3
Tighten nuts and bolts on chassis and
body
DEALERSERVICEVERIFICATION:
D
ATE:
M
ILEAGE:
Maintenance Log
MAINTENANCE
46Maintenance Log

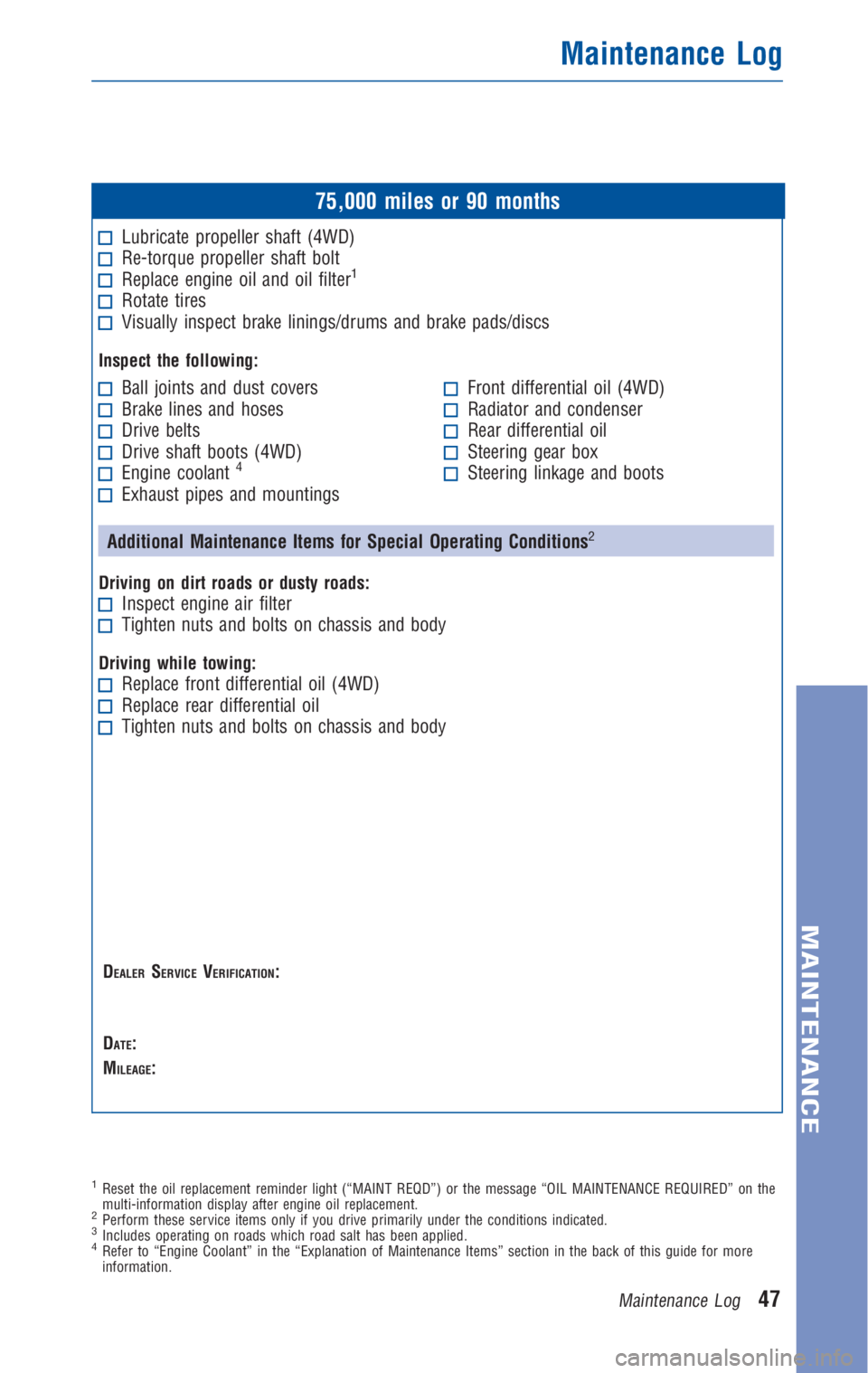

75,000 miles or 90 months
Lubricate propeller shaft (4WD)Re-torque propeller shaft boltReplace engine oil and oil filter1
Rotate tiresVisually inspect brake linings/drums and brake pads/discs
Inspect the following:
Ball joints and dust coversBrake lines and hosesDrive beltsDrive shaft boots (4WD)Engine coolant4
Exhaust pipes and mountings
Front differential oil (4WD)Radiator and condenserRear differential oilSteering gear boxSteering linkage and boots
Additional Maintenance Items for Special Operating Conditions
2
Driving on dirt roads or dusty roads:Inspect engine air filterTighten nuts and bolts on chassis and body
Driving while towing:Replace front differential oil (4WD)Replace rear differential oilTighten nuts and bolts on chassis and body
DEALERSERVICEVERIFICATION:
D
ATE:
M
ILEAGE:
1Reset the oil replacement reminder light (“MAINT REQD”) or the message “OIL MAINTENANCE REQUIRED” on the
multi-information display after engine oil replacement.
2Perform these service items only if you drive primarily under the conditions indicated.3Includes operating on roads which road salt has been applied.4Refer to “Engine Coolant” in the “Explanation of Maintenance Items” section in the back of this guide for more
information.
Maintenance Log
MAINTENANCE
Maintenance Log47
