2010 TOYOTA SIENNA child lock

TABLE OF CONTENTSIndex
2
1-1. Key informationKeys ..................................... 26
1-2. Opening, closing
and
locking the

doors
Wireless remote control ....... 27
Front doors ........................... 33
Sliding doors ........................ 37
Back door ............................. 47
1-3.
Adjustable components
(seats, mirrors,
steering wheel)
Front seats

........................... 56
Second seats ....................... 59
Third seats ........................... 61
Seating configurations.......... 63
Driving position memory....... 80
Head restraints ..................... 82
Seat belts ............................. 85
Steering wheel ..................... 94
Anti-glare inside rear view mirror .................................. 95
Outside rear view mirrors ..... 97
1-4. Opening a
nd closing the
windo

ws
Power windows .................. 100
Quarter windows ................ 102
Moon roof ........................... 104
1-5. Refueling Opening the fuel tank cap ................................... 107 1-6. Theft deterrent system
Engine immobilizer system .............................. 111
Alarm .................................. 113
Theft prevention labels (for U.S.A.) ....................... 115
1-7. Safety information Correct driving posture ....... 116
SRS airbags ....................... 118
Front passenger occupant classification system ......... 130
Child restraint systems ....... 136
Installing child restraints ..... 140
2-1. Driving procedures Driving the vehicle .............. 158
Engine (ignition) switch....... 167
Automatic transmission ...... 170
Turn signal lever ................. 172
Parking brake ..................... 173
2-2. Instrument c
luster and
information display
Gauges and meters

............ 174
Indicators and warning lights ................................. 177
Trip information display ...... 181
2-3. Operating the li
ghts and
wipers
Headlight switch

................. 185
Fog light switch ................... 190
1Before driving
2When driving

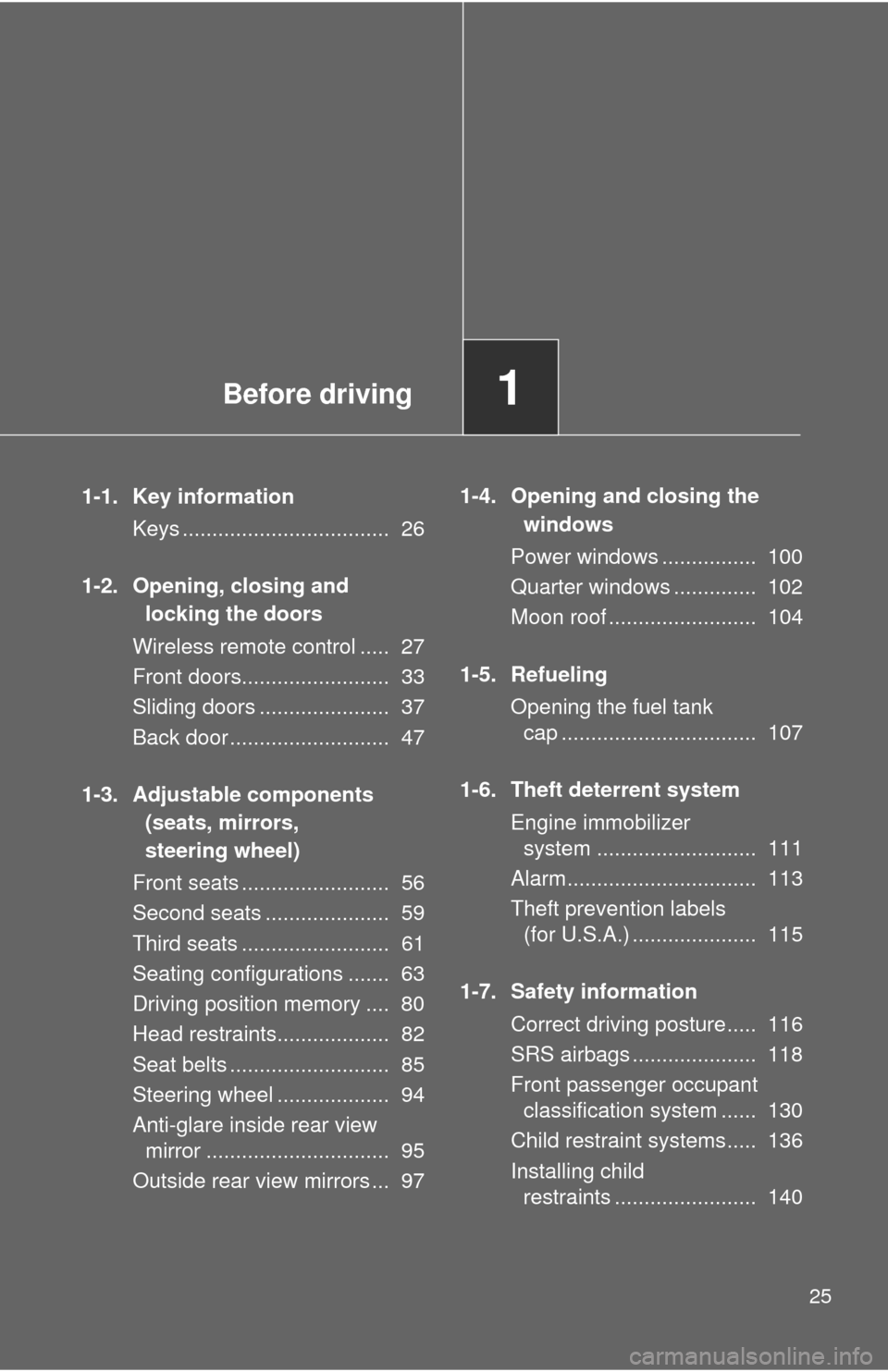

Before driving1
25
1-1. Key informationKeys ................................... 26
1-2. Opening, closing and locking the doors
Wireless remote control ..... 27
Front doors......................... 33
Sliding doors ...................... 37
Back door ........................... 47
1-3. Adjustable components (seats, mirrors,
steering wheel)
Front seats ......................... 56
Second seats ..................... 59
Third seats ......................... 61
Seating configurations ....... 63
Driving position memory .... 80
Head restraints................... 82
Seat belts ........................... 85
Steering wheel ................... 94
Anti-glare inside rear view mirror ............................... 95
Outside rear view mirrors ... 97 1-4. Opening and closing the
windows
Power windows ................ 100
Quarter windows .............. 102
Moon roof ......................... 104
1-5. Refueling Opening the fuel tank cap ................................. 107
1-6. Theft deterrent system Engine immobilizer system ........................... 111
Alarm................................ 113
Theft prevention labels (for U.S.A.) ..................... 115
1-7. Safety information Correct driving posture..... 116
SRS airbags ..................... 118
Front passenger occupant classification system ...... 130
Child restraint systems..... 136
Installing child restraints ........................ 140

39
1-2. Opening, closing and locking the doors
1
Before driving
Canceling the power slidi
ng door system (if equipped)
Turn the main switch off to dis-
able the power sliding door sys-
tem.Off
The sliding doors can be opened
and closed manually.
On
The power sliding door can be
opened and closed with the
power sliding door switches for
the front occupants or wireless
remote control even if the sliding
door child-protectors are locked.
Locking the sliding doors from the outside without the wireless remote control
Move the inside lock knob to the lock position.
Close the sliding door.
From rear seats
Push the switch to open and
close each sliding door.
STEP1
STEP2

40 1-2. Opening, closing and locking the doors
Sliding door child-protector locksThe sliding door cannot be
opened from inside the vehicle
when the child-protector lock is
set.
These locks can be set to prevent
children from opening the sliding
doors. Push down on each sliding
door switch to lock both sliding
doors.
■The power sliding door can be op erated when (vehicles with power
sliding doors)
● The engine switch is in the “ON” position and the shift lever is in P.
● The power sliding door is unlocked.
● The sliding door child-protector lock is not set. (However, the switch for
the front occupants still operates the power sliding door.)
■ The situations in which the slid ing door does not open completely
The left side sliding door (if equipped)
does not open when the fuel filler door is
opened.
The sliding door will stop at half-opened
position when the sliding door window is
opened more than approximately 6 in. (15
cm).

42 1-2. Opening, closing and locking the doors
CAUTION
■Caution while driving
Observe the following precautions while driving.
Failure to do so may cause a door to open unexpectedly and an occupant to
fall out of the vehicle, resulting in death or serious injury.
●Always use a seat belt.
● Always lock the doors.
● Ensure that all doors are properly closed.
● Do not slide the inside handle of the doors while driving.
● Set the sliding door child protector locks when children are seated in the
vehicle.
■ When children are in the vehicle
Observe the following precautions.
Failure to do so may result in death or serious injury.
●Do not leave children alone in the vehicle.
If a child is accidentally locked in the vehicle, they could overheat.
● Do not allow a child to open or close the sliding door.
Doing so may cause the sliding door to operate unexpectedly, or cause the
child’s hands, head, or neck to be caught by the closing sliding door.

45
1-2. Opening, closing and locking the doors
1
Before driving
CAUTION
●
In the following situations, the power sliding door may detect an abnormal-
ity and automatic operation may be stopped. In this case, the sliding door
has to be operated manually. Take extra care in this situation, as the
stopped sliding door may suddenly close, causing an accident.
• When the sliding door contacts an obstacle
• When the battery voltage suddenly drops, such as when the engine
switch is turned to the “ON” position or the engine is started during
automatic operation
● Do not attach any accessories other than genuine Toyota parts to the
power sliding door. The power sliding door may not operate, causing itself
to malfunction, or the power sliding door may close again after it is
opened.
● In cases such as when replacing tires, make sure to turn off the power slid-
ing door main switch. Failure to do so may cause the sliding door to oper-
ate unintentionally if the power sliding door switch is accidentally touched,
resulting in hands and fingers being caught and injured.
● When the child-protector locks are set, make sure to turn off the power
sliding door system with the main switch in order to totally disable the sys-
tem.
■ Jam protection function (vehicles with power sliding doors)
Observe the following precautions.
Failure to do so may cause serious injury.
●Never use any part of your body to intentionally activate the jam protection
function.
● The jam protection function may not work if something gets caught just
before the power sliding door fully closes. Be careful not to catch fingers or
anything else.

51
1-2. Opening, closing and locking the doors
1
Before driving
CAUTION
■
Caution while driving
●Keep the back door closed while driving.
If the back door is left open, it may hit near-by objects while driving or lug-
gage may be unexpectedly thrown out, causing an accident.
In addition, exhaust gases may enter the vehicle, causing death or a seri-
ous health hazard. Make sure to close the back door before driving.
● Before driving the vehicle, make sure that the back door is fully closed. If
the back door is not fully closed, it may open unexpectedly while driving,
causing an accident.
● Never let anyone sit in the luggage compartment. In the event of sudden
braking or a collision, they are susceptible to death or serious injury.
■ When children are in the vehicle
Observe the following precautions.
Failure to do so may result in death or serious injury.
●Do not leave children alone in the luggage compartment.
If a child is accidentally locked in the luggage compartment, they could
overheat.
● Do not allow a child to open or close the back door.
Doing so may cause the back door to operate unexpectedly, or cause the
child’s hands, head, or neck to be caught by the closing back door.

88 1-3. Adjustable components (seats, mirrors, steering wheel)
Seat belt comfort guide (outer third seat)
If the shoulder belt sits close to a
person's neck, use the seat belt
comfort guide.
Seat belt pretensioners (front seats)
The pretensioner helps the seat
belt to quickly restrain the occu-
pant by retracting the seat belt
when the vehicle is subjected to
certain types of severe frontal
collision.
The pretensioner may not acti-
vate in the event of a minor frontal
impact, a side impact or a rear
impact.
■Emergency locking retractor (ELR)
The retractor will lock the belt during a sudden stop or on impact. It may also
lock if you lean forward too quickly. A slow, easy motion will allow the belt to
extend so that you can move around fully.
■ Automatic locking retractor (ALR)
When a passenger's shoulder belt is completely extended and then
retracted even slightly, the belt is locked in that position and cannot be
extended. This feature is used to hold the child restraint system (CRS) firmly.
To free the belt again, fully retract the belt and then pull the belt out once
more. ( P. 140)
