2010 TOYOTA RAV4 Owners Manual

488
6-2. Customization
Customizable features
ItemFunctionDefault settingCustomizedsetting
Smart key
system
(if equipped)
(
P. 26) Smart key system On Off
Operation signal
(Emergency flashers)
On Off
Operation signal
(Buzzer) On Off
Wireless
remote con-
trol
(
P. 38) Wireless remote control On Off
Unlocking operation
Driver's door
unlocked in one step, all doors
unlocked in two steps All doors
unlocked in one step
Automatic door lock
function to be activated
if door is not opened
after being unlocked On Off
Time elapsed before
automatic door lock
function is activated if
door is not opened after
being unlocked 60 seconds
30 seconds
120 seconds
Operation signal
(Emergency flashers) On Off
Door lock buzzer On Off
Your vehicle includes a variety of electronic features that can be
personalized to your preferen ces. Programming these preferences
requires specialized equipment and may be performed by your
Toyota dealer.
Some function settings are changed simultaneously with other functions
being customized. Contact your Toyota dealer.

489
6-2. Customization
6
Vehicle specifications
Wireless
remote con-
trol
(
P. 3 8 )
Operation signal
(Buzzer)
On Off
Panic function On Off
Door lock
(
P. 42,
451) Unlocking using a key Driver's door
unlocked in one step, all doors
unlocked in two steps All doors
unlocked in one step
Automatic
light control
system
( P. 165) Light sensor sensitivity Level 3 Level 1 to 5
Time elapsed before
headlights automati-
cally turn off after doors
are closed
30 seconds0 second
60 seconds
90 seconds
Lights
(
P. 165) Daytime running light
system (U.S.A. only)
On Off
Illumination
(
P. 300) Time elapsed before
lights turn off
15 seconds7.5 seconds
30 seconds
Operation when the
doors are unlocked On Off
Vehicles with smart key
system: Operation after
the “ENGINE START
STOP” switch is turned
OFF
Vehicles without smart
key system: Operation
after the engine switch
is turned to the “LOCK”
position On Off
Front foot lights On Off
ItemFunctionDefault settingCustomized setting

490 6-2. Customization
Seat belt
reminder
(
P. 421)Vehicle speed linked
seat belt reminder
buzzer
On Off
ItemFunctionDefault settingCustomized
setting

491
6
Vehicle specifications
6-3. Initialization
Items to initialize
ItemWhen to initializeReference
Power window After reconnecting or changing the
battery P. 8 1
Moon roof
(if equipped) After reconnecting or changing the
battery
P. 8 4
Engine oil mainte-
nance data (U.S.A.
only) After changing engine oil P. 421
The following items must be initia
lized for normal system operation
in cases such as after the battery is reconnected, or maintenance is
performed on the vehicle.

492 6-3. Initialization

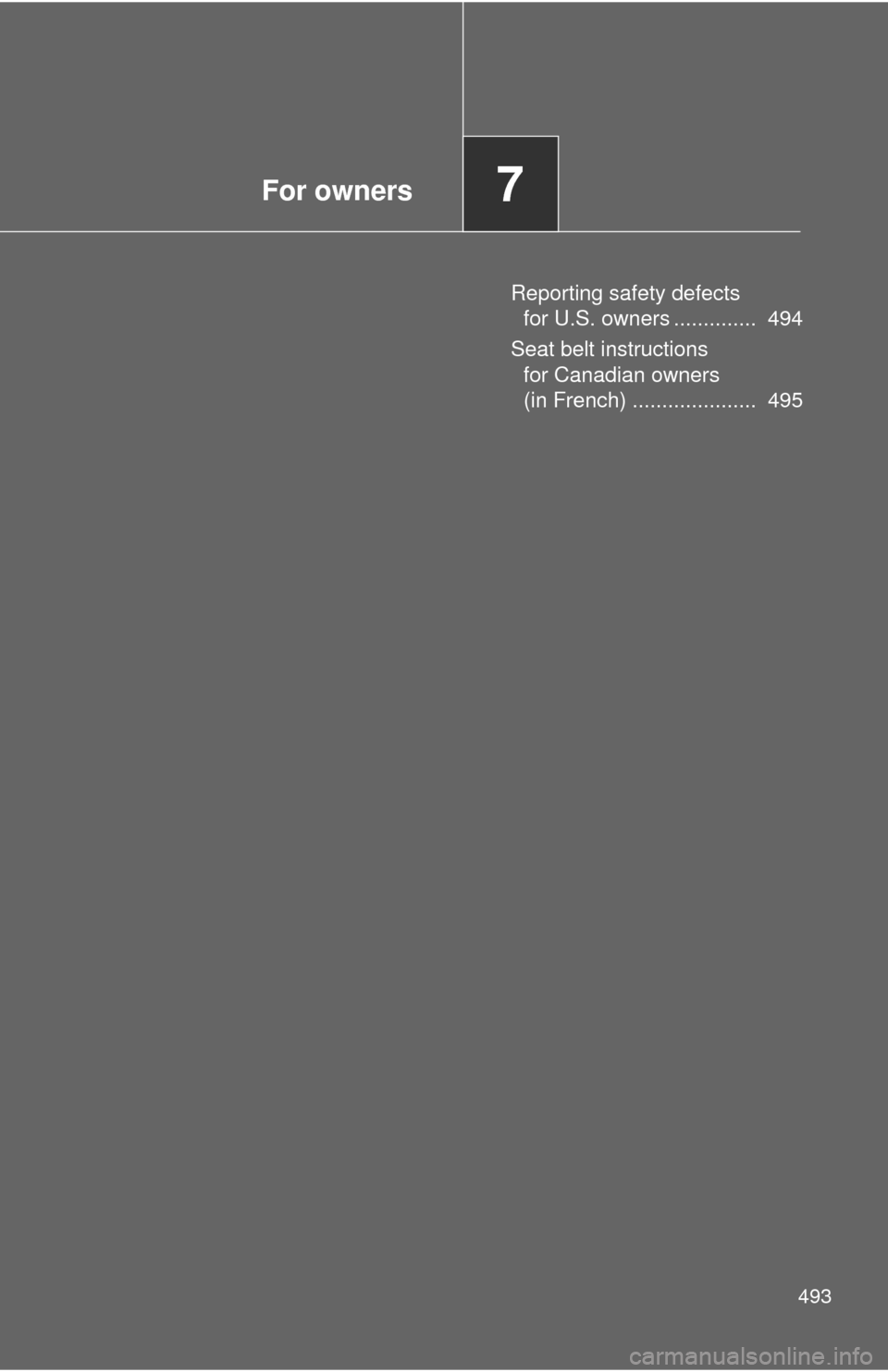

For owners7
493
Reporting safety defects for U.S. owners .............. 494
Seat belt instructions for Canadian owners
(in French) ..................... 495

494

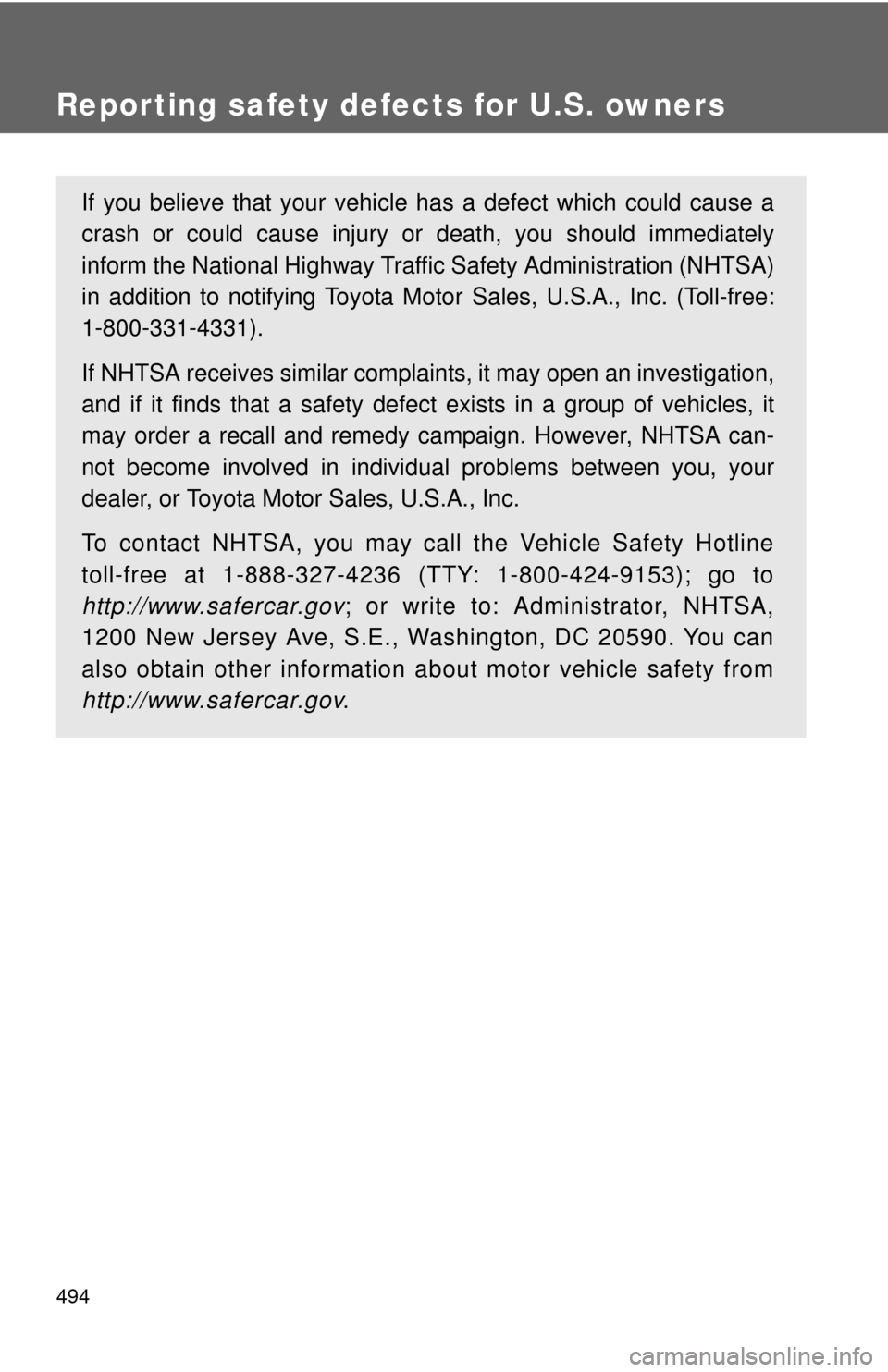

Reporting safety defects for U.S. owners
If you believe that your vehicle has a defect which could cause a
crash or could cause injury or death, you should immediately
inform the National Highway Traffi c Safety Administration (NHTSA)
in addition to notifying Toyota Motor Sales, U.S.A., Inc. (Toll-free:
1-800-331-4331).
If NHTSA receives similar complaints, it may open an investigation,
and if it finds that a safety defec t exists in a group of vehicles, it
may order a recall and remedy campaign. However, NHTSA can-
not become involved in individ ual problems between you, your
dealer, or Toyota Motor Sales, U.S.A., Inc.
To contact NHTSA, you may call the Vehicle Safety Hotline
toll-free at 1-888-327-4236 (TTY: 1-800-424-9153); go to
http://www.safercar.gov ; or write to: Administrator, NHTSA,
1200 New Jersey Ave, S.E., Washington, DC 20590. You can
also obtain other information about motor vehicle safety from
http://www.safercar.gov .

495
7
For owners

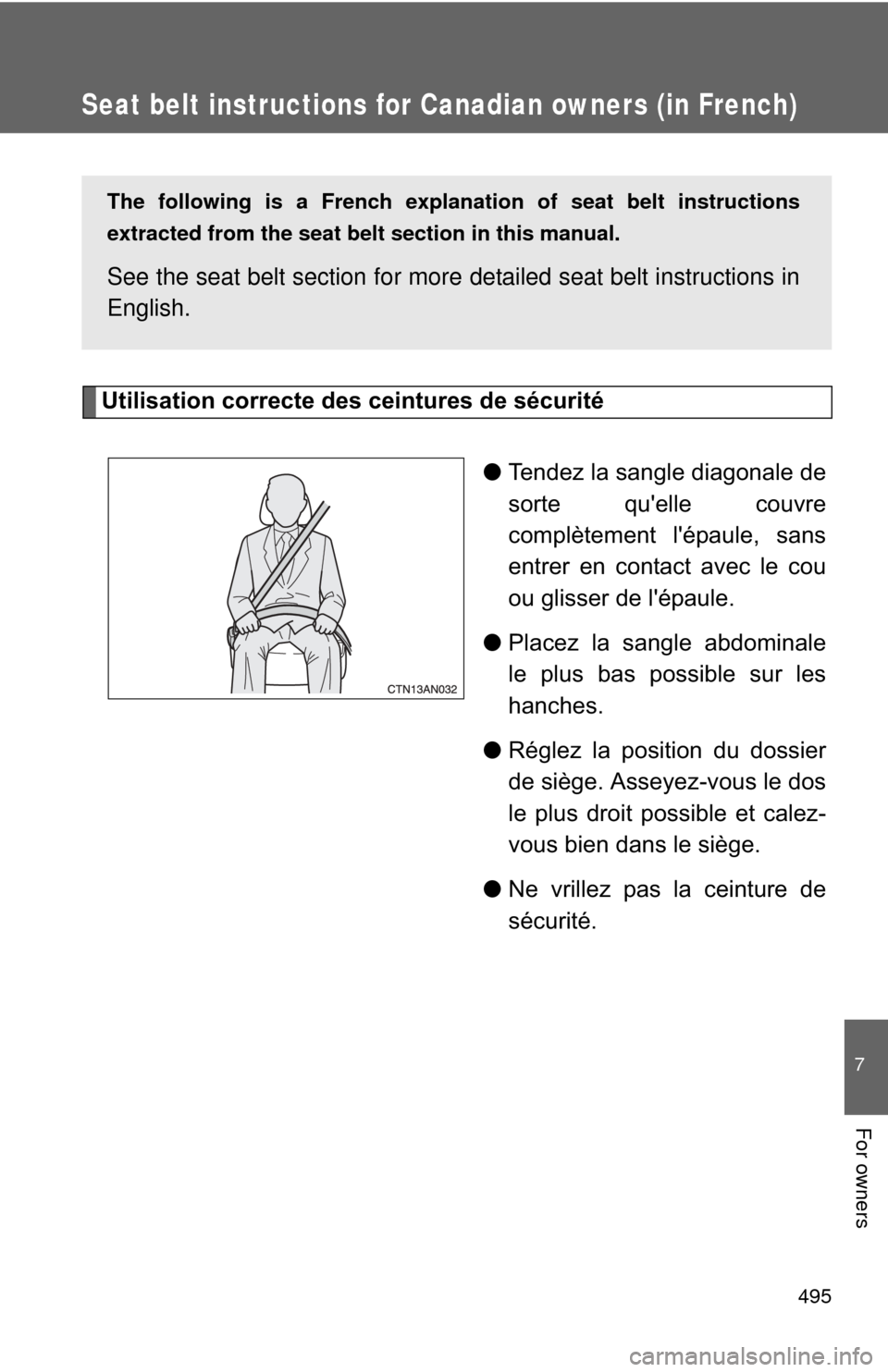

Seat belt instructions for Canadian owners (in French)
The following is a French explanation of seat belt instructions
extracted from the seat belt section in this manual.
See the seat belt section for more detailed seat belt instructions in
English.
Utilisation correcte des ceintures de sécurité
●Tendez la sangle diagonale de
sorte qu'elle couvre
complètement l'épaule, sans
entrer en contact avec le cou
ou glisser de l'épaule.
● Placez la sangle abdominale
le plus bas possible sur les
hanches.
● Réglez la position du dossier
de siège. Asseyez-vous le dos
le plus droit possible et calez-
vous bien dans le siège.
● Ne vrillez pas la ceinture de
sécurité.
