2010 TOYOTA COROLLA Owners Manual

473

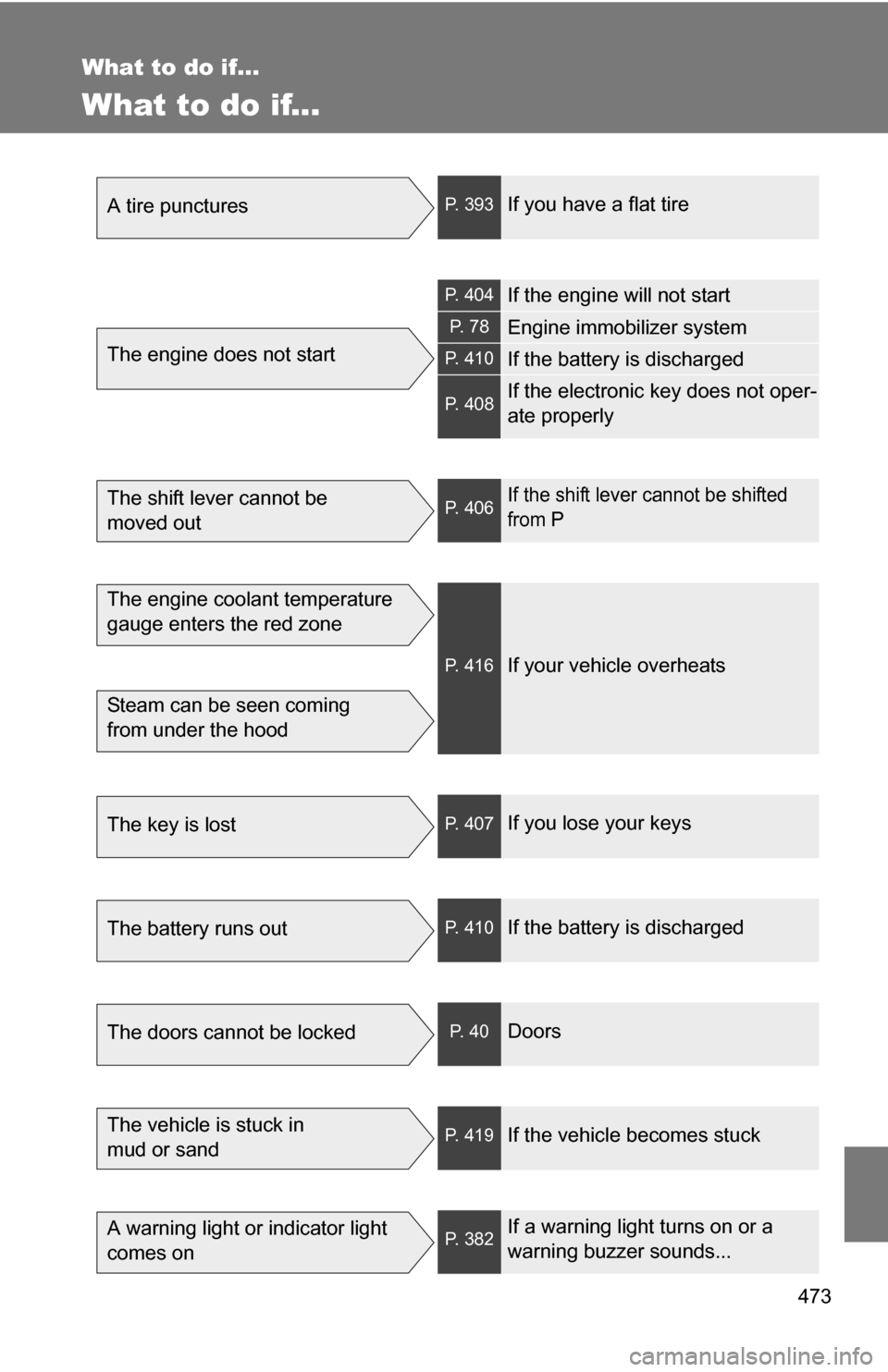

What to do if...
What to do if...
A tire puncturesP. 393If you have a flat tire
The engine does not start
P. 404If the engine will not start
P. 7 8Engine immobilizer system
P. 410If the battery is discharged
P. 408If the electronic key does not oper-
ate properly
The shift lever cannot be
moved outP. 406If the shift lever cannot be shifted
from P
The engine coolant temperature
gauge enters the red zone
Steam can be seen coming
from under the hood
P. 416If your vehicle overheats
The key is lostP. 407If you lose your keys
The battery runs outP. 410If the battery is discharged
The doors cannot be lockedP. 4 0Doors
The vehicle is stuck in
mud or sandP. 419If the vehicle becomes stuck
A warning light or indicator light
comes onP. 382If a warning light turns on or a
warning buzzer sounds...

474 What to do if...

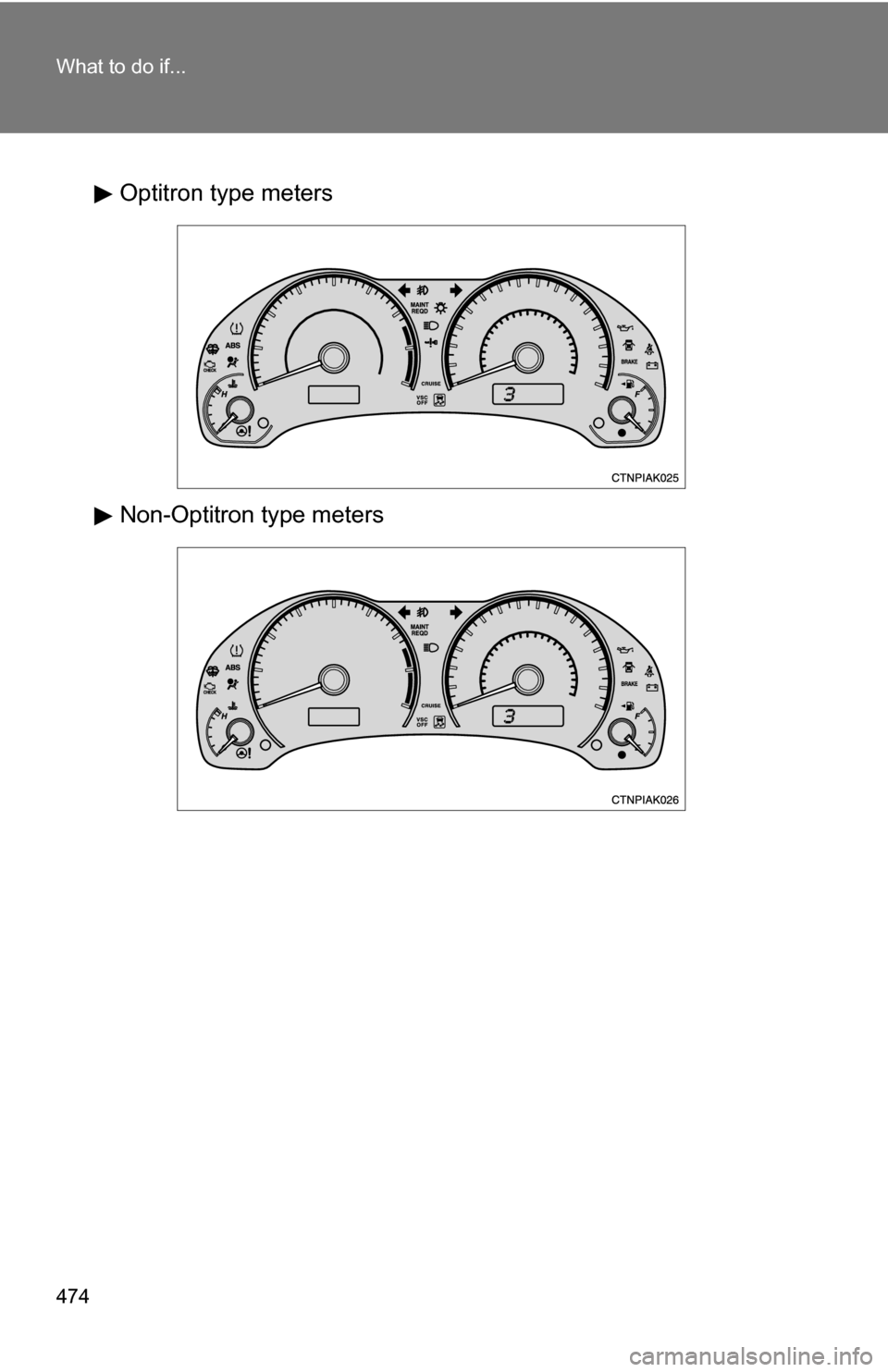

Optitron type meters
Non-Optitron type meters

475
What to do if...
■

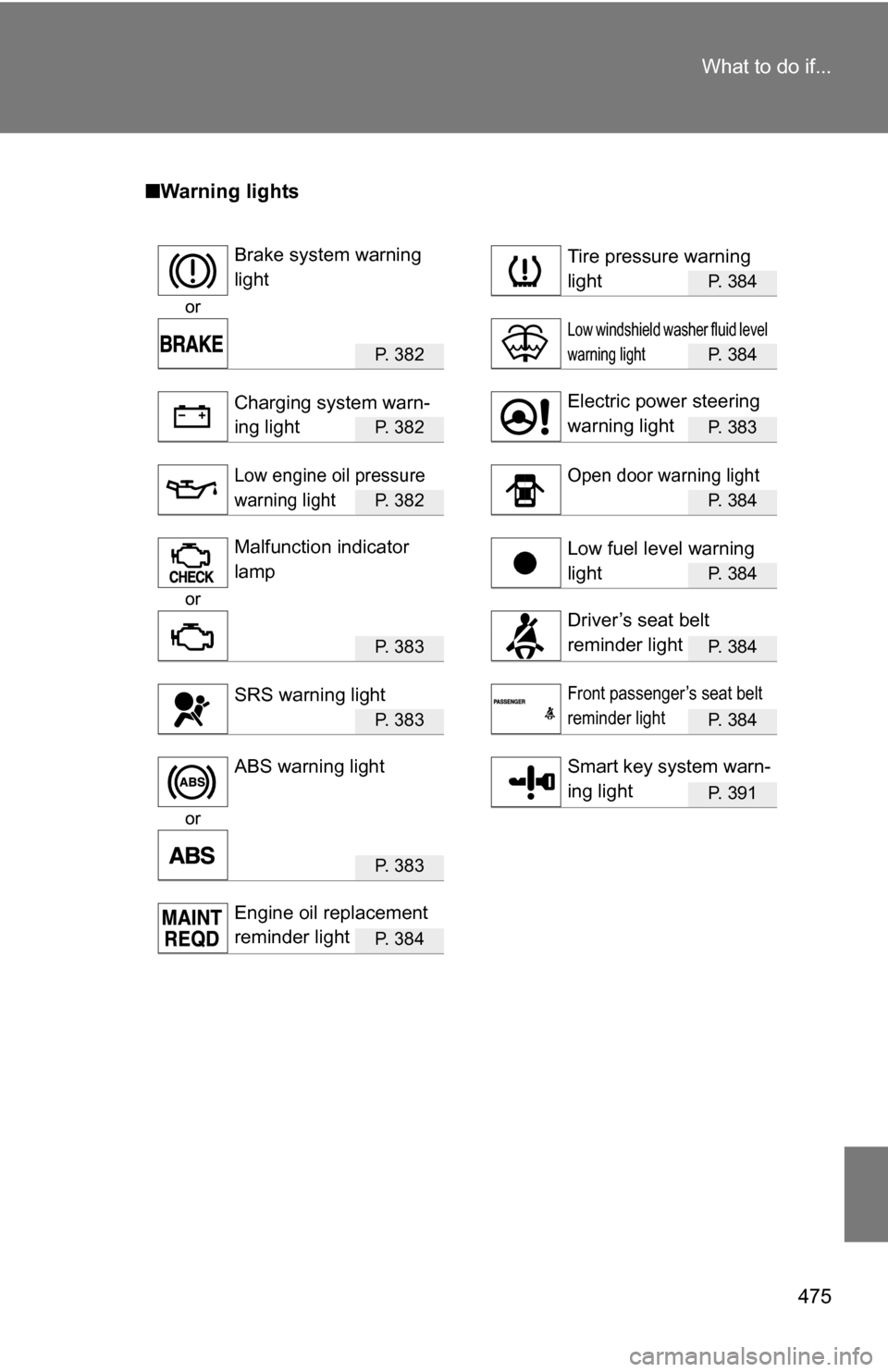

Warning lights
P. 384
or
P. 3 8 2P. 384
P. 3 8 2P. 383
P. 3 8 2P. 384
P. 384
or
P. 3 8 3P. 384
P. 3 8 3P. 384
P. 391
or
P. 3 8 3
P. 3 8 4
Brake system warning
lightTire pressure warning
light
Low windshield washer fluid level
warning light
Charging system warn-
ing lightElectric power steering
warning light
Low engine oil pressure
warning lightOpen door warning light
Malfunction indicator
lampLow fuel level warning
light
Driver’s seat belt
reminder light
SRS warning lightFront passenger’s seat belt
reminder light
ABS warning lightSmart key system warn-
ing light
Engine oil replacement
reminder light

476

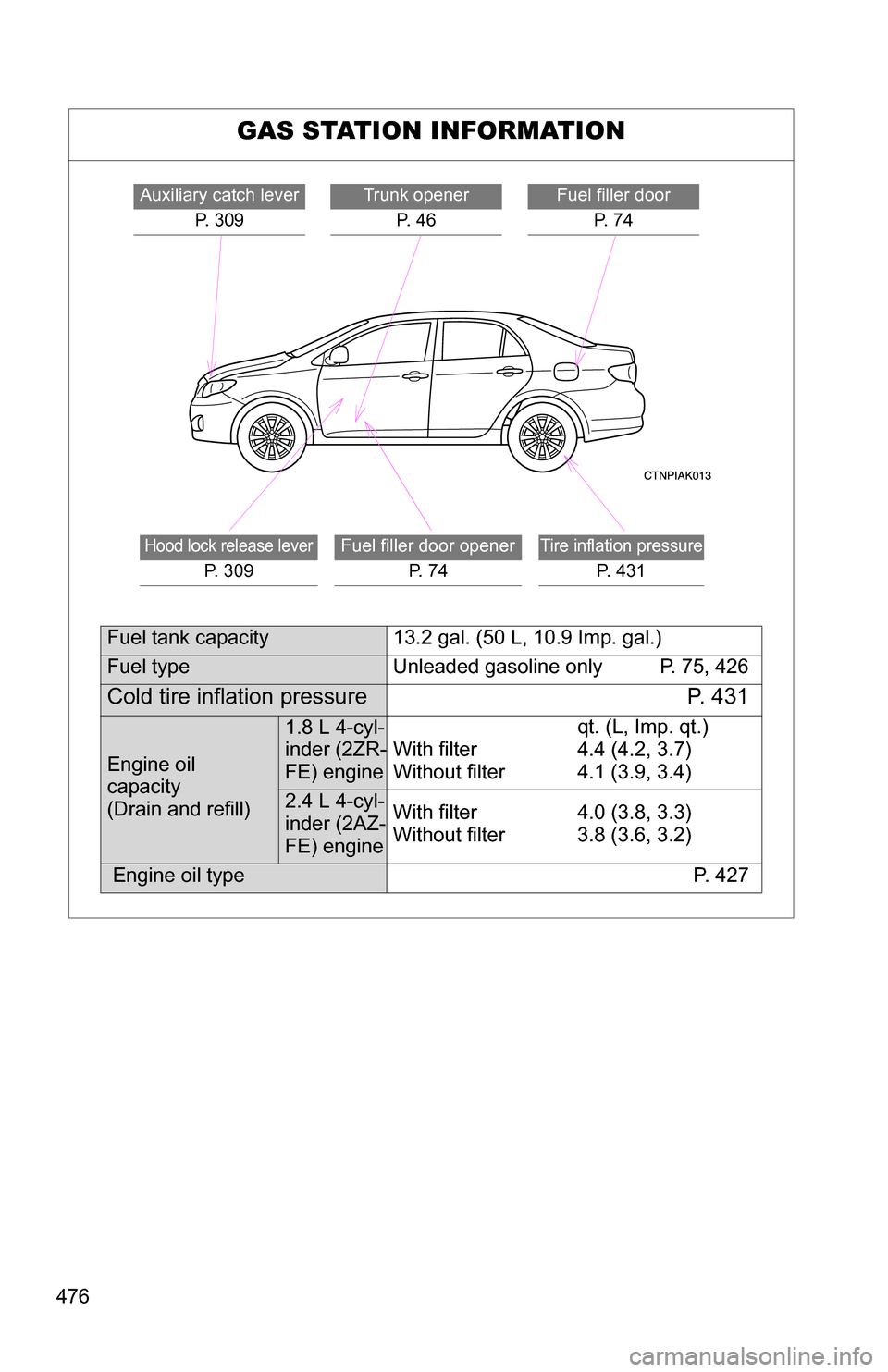

GAS STATION INFORMATION
Auxiliary catch leverP. 309Trunk openerP. 4 6Fuel filler door P. 7 4
Hood lock release lever
P. 3 0 9
Fuel filler door opener P. 7 4Tire inflation pressure
P. 431
Fuel tank capacity 13.2 gal. (50 L, 10.9 Imp. gal.)
Fuel typeUnleaded gasoline only P. 75, 426
Cold tire inflation pressure P. 431
Engine oil
capacity
(Drain and refill)
1.8 L 4-cyl-
inder (2ZR-
FE) engineqt. (L, Imp. qt.)
With filter 4.4 (4.2, 3.7)
Without filter 4.1 (3.9, 3.4)
2.4 L 4-cyl-
inder (2AZ-
FE) engine With filter 4.0 (3.8, 3.3)
Without filter 3.8 (3.6, 3.2)
Engine oil type
P. 427
