4-3. Do-it-yourself maintenance
4
Maintenance and care
■

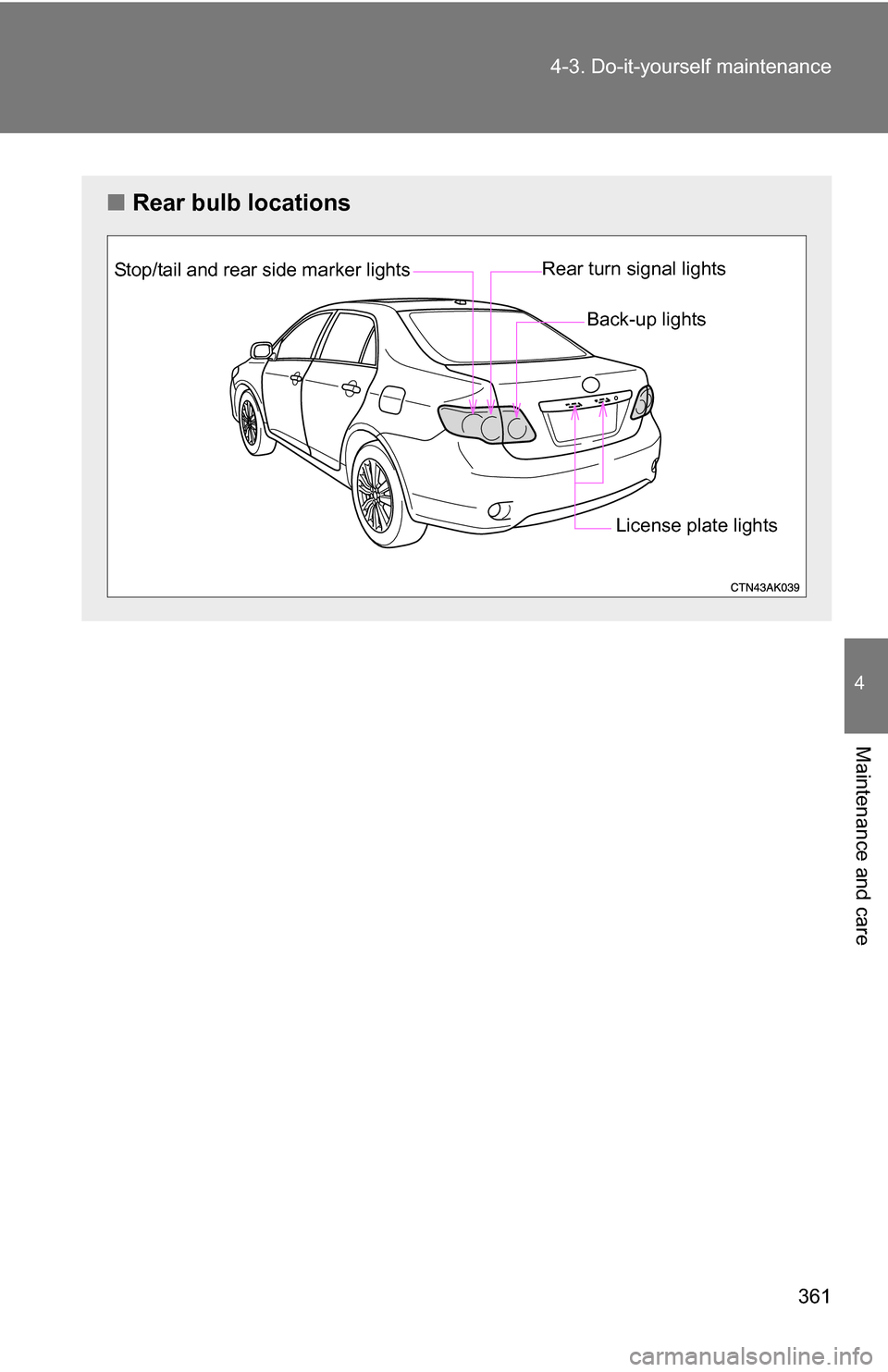

Rear bulb locations
Stop/tail and rear side marker lights Rear turn signal lights
Back-up lights
License plate lights

362 4-3. Do-it-yourself maintenance

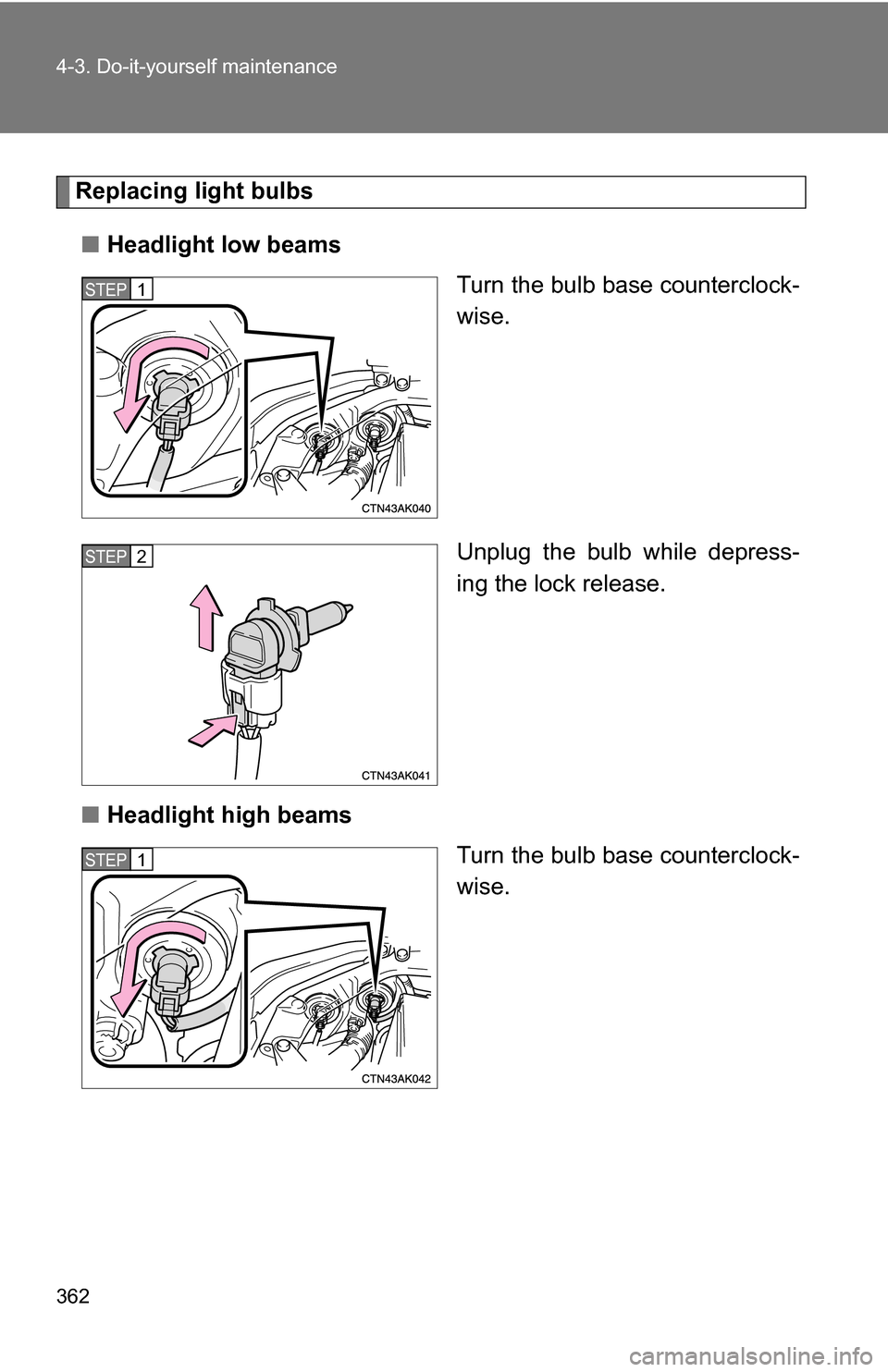

Replacing light bulbs■ Headlight low beams
Turn the bulb base counterclock-
wise.
Unplug the bulb while depress-
ing the lock release.
■ Headlight high beams
Turn the bulb base counterclock-
wise.
STEP 1
STEP 2
STEP 1

363
4-3. Do-it-yourself maintenance
4
Maintenance and care
Unplug the bulb while depress-
ing the lock release.
■ Front fog lights (if equipped)
Remove the fender liner bolts
and clip.
Partly remove the fender liner.
Turn the bulb base counterclock-
wise.STEP 2
STEP 1
STEP 2
STEP 3

364 4-3. Do-it-yourself maintenance

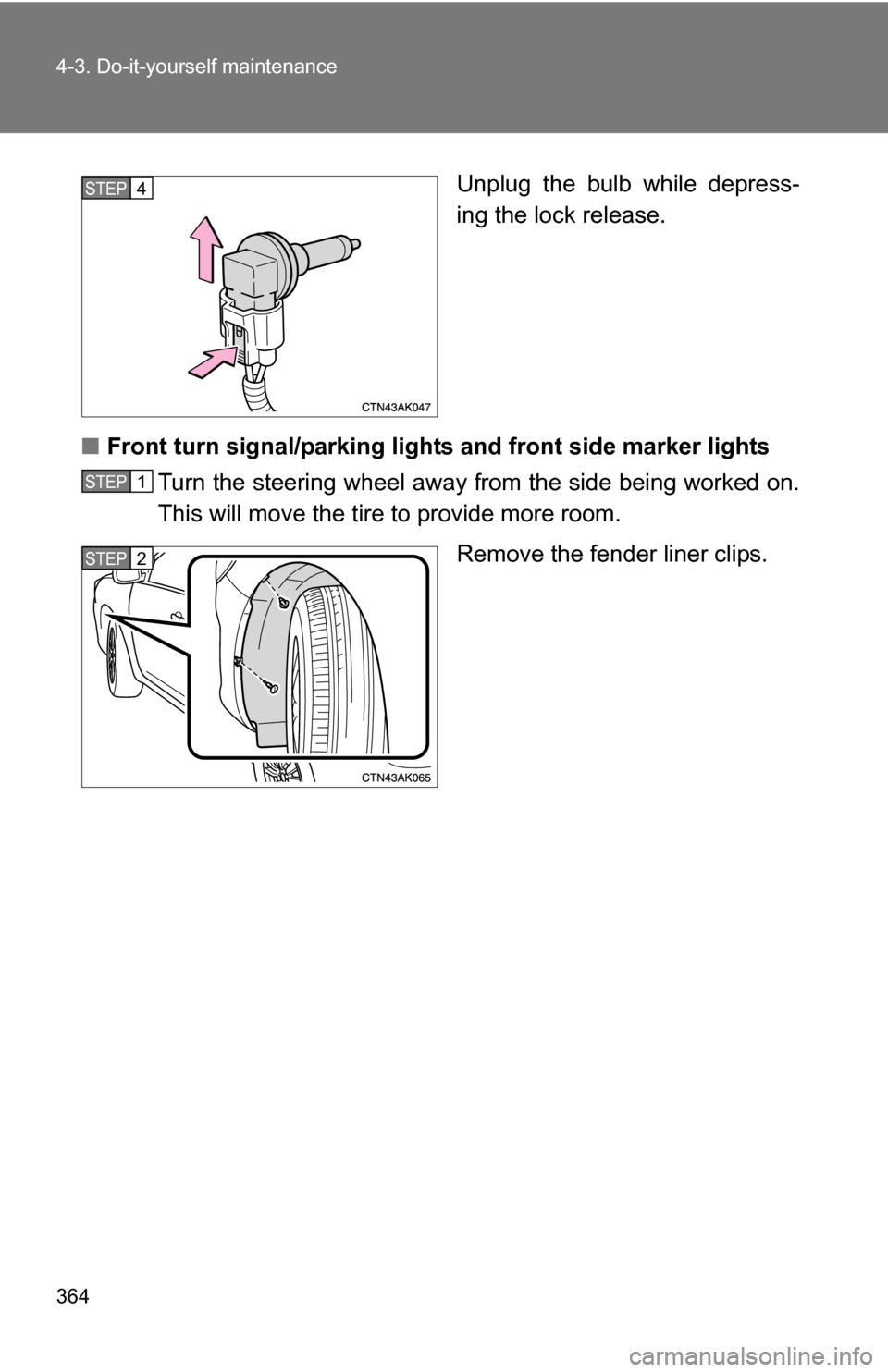

Unplug the bulb while depress-
ing the lock release.
■ Front turn signal/parking lights and front side marker lights
Turn the steering wheel away from the side being worked on.
This will move the tire to provide more room.
Remove the fender liner clips.STEP 4
STEP 1
STEP 2

365
4-3. Do-it-yourself maintenance
4
Maintenance and care

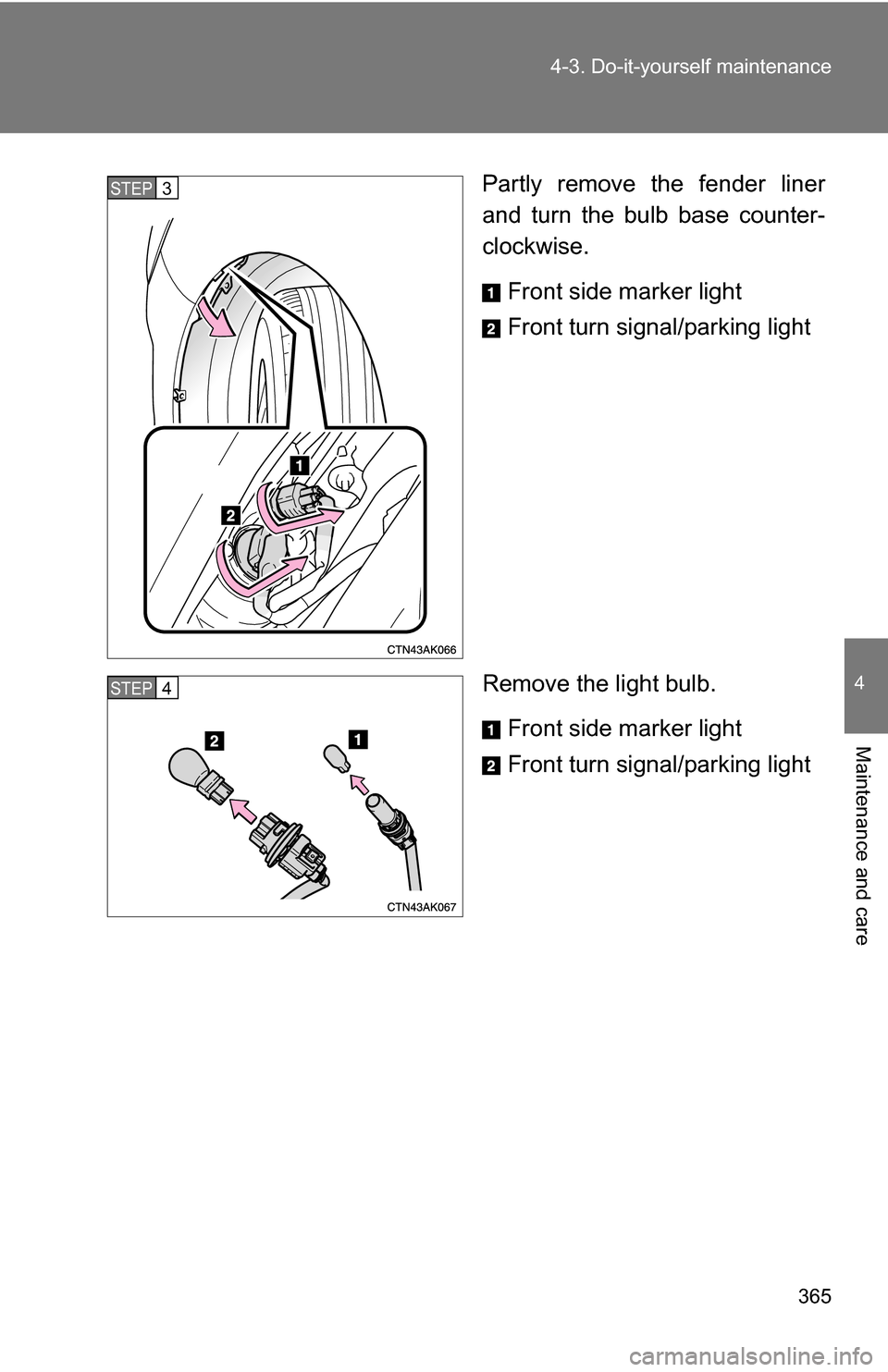

Partly remove the fender liner
and turn the bulb base counter-
clockwise.
Front side marker light
Front turn signal/parking light
Remove the light bulb. Front side marker light
Front turn signal/parking lightSTEP 3
STEP 4

366 4-3. Do-it-yourself maintenance

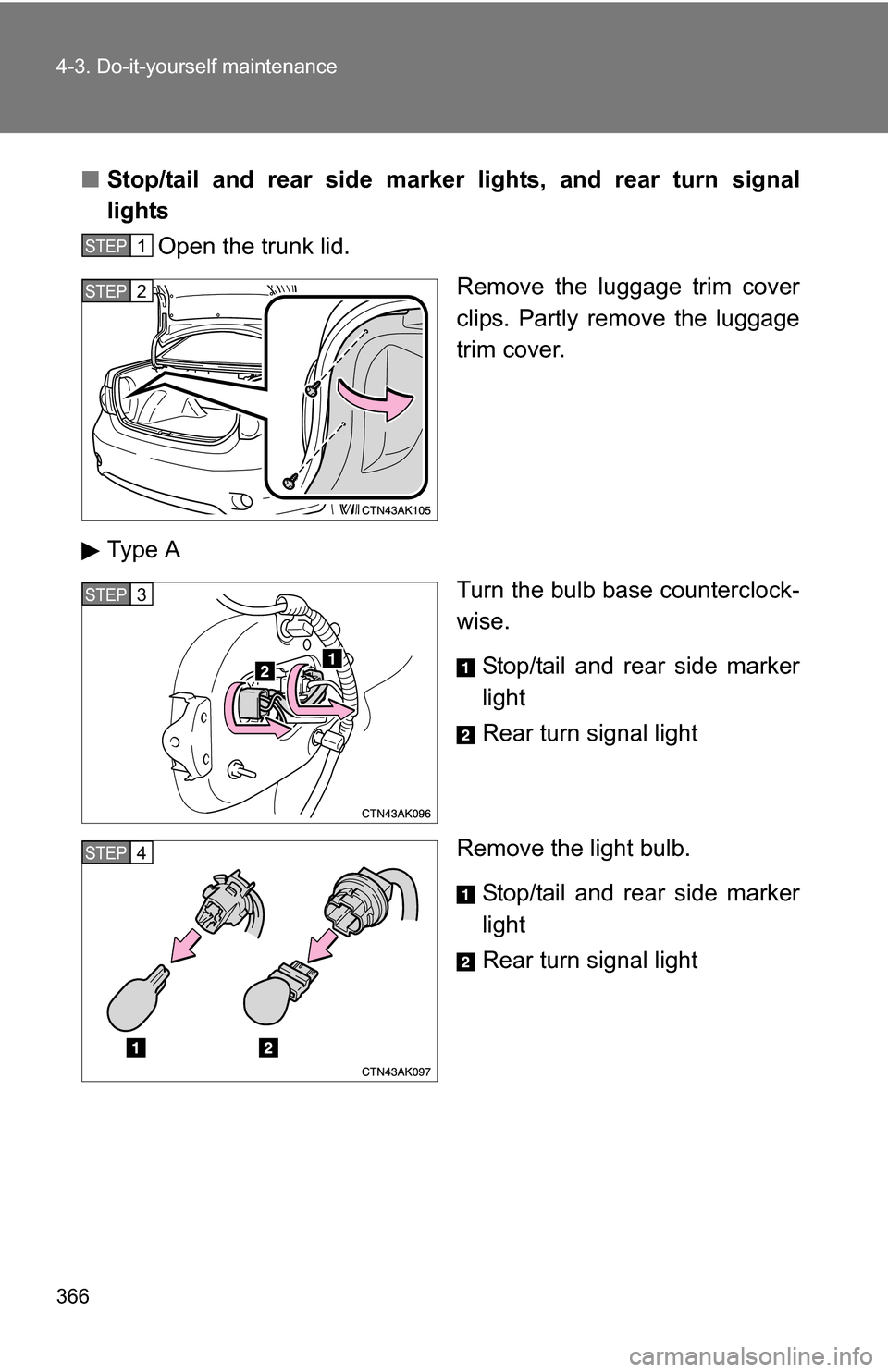

■Stop/tail and rear side marker lights, and rear turn signal
lights
Open the trunk lid.
Remove the luggage trim cover
clips. Partly remove the luggage
trim cover.
Type A Turn the bulb base counterclock-
wise.
Stop/tail and rear side marker
light
Rear turn signal light
Remove the light bulb. Stop/tail and rear side marker
light
Rear turn signal light
STEP 1
STEP 2
STEP 3
STEP 4

367
4-3. Do-it-yourself maintenance
4
Maintenance and care

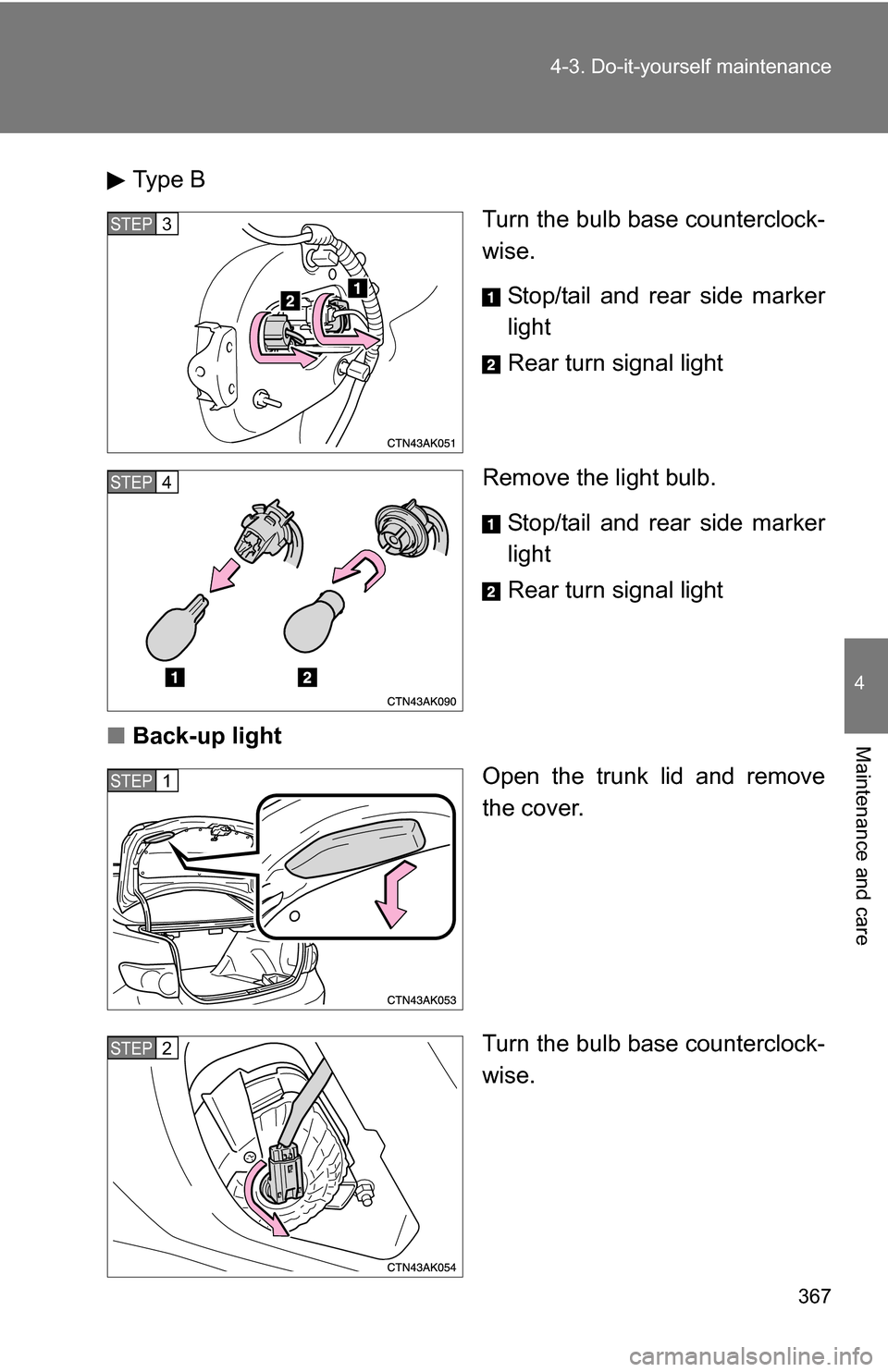

Type B
Turn the bulb base counterclock-
wise.
Stop/tail and rear side marker
light
Rear turn signal light
Remove the light bulb. Stop/tail and rear side marker
light
Rear turn signal light
■ Back-up light
Open the trunk lid and remove
the cover.
Turn the bulb base counterclock-
wise.
STEP 3
STEP 4
STEP 1
STEP 2

368 4-3. Do-it-yourself maintenance

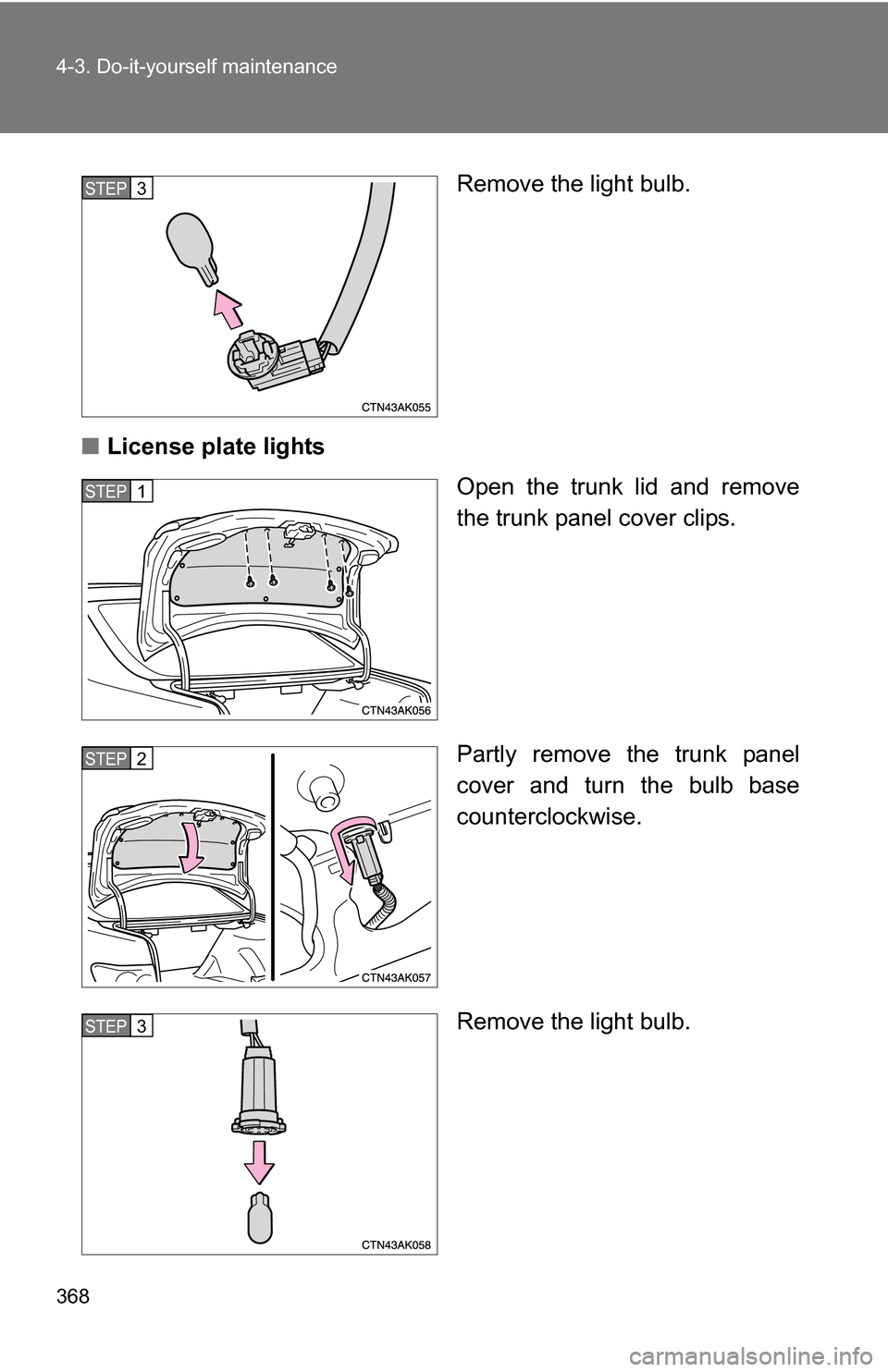

Remove the light bulb.
■ License plate lights
Open the trunk lid and remove
the trunk panel cover clips.
Partly remove the trunk panel
cover and turn the bulb base
counterclockwise.
Remove the light bulb.STEP 3
STEP 1
STEP 2
STEP 3
