2010 TOYOTA CAMRY Owners Manual

319
3-6. Using the
storage features
3
Interior features
Cup holders
Manual transmission Lift the lid.
Automatic transmission (type A) Lift the lid.
Automatic transmission (type B) Push the lid.
Cup holders

320 3-6. Using the storage features
Rear (type A)Pull the armrest down.
Rear (type B) Pull the armrest down and lift the
lid.
■Using the cup holder (front) to stor e small items (automatic transmis-
sion)
Remove the holder.
Cup holders

321
3-6. Using the
storage features
3
Interior features
Auxiliary boxes
Driver's side instrument panel Pull the handle.
Overhead console Push the lid.
CAUTION
■Items unsuitable for the cup holder
Do not place anything other than cups or aluminum cans in the cup holders.
Other items may be thrown out of the holders in the event of an accident or
sudden braking and cause injury. If possible, cover hot drinks to prevent
burns.
■ When not in use
Keep the cup holders closed.
Injuries may result in the event of an accident or sudden braking.
Cup holders and auxiliary boxes

322 3-6. Using the storage features
Front consolePush the lid.
Center console (type A) Push the lid.
Center console (type B) Lift the lid.
Auxiliary boxes

323
3-6. Using the
storage features
3
Interior features
■Cable pass-through
CAUTION
■Caution while driving
Keep the auxiliary boxes closed.
Injuries may result in the event of an accident or sudden braking.
■ Items that should not be le ft in the overhead console
Do not leave glasses or lighters in the console.
If the interior of the vehicle becomes hot, lighters may explode and glasses
may warp or become cracked.
The auxiliary box of the front console is
provided with a hole that allows cables to
be passed into the cabin from the power
outlet and AUX or USB/AUX adapter
inside.
Remove the lid.
Push out and remove the outer lid.
Auxiliary boxes

324
3-7. Other interior features

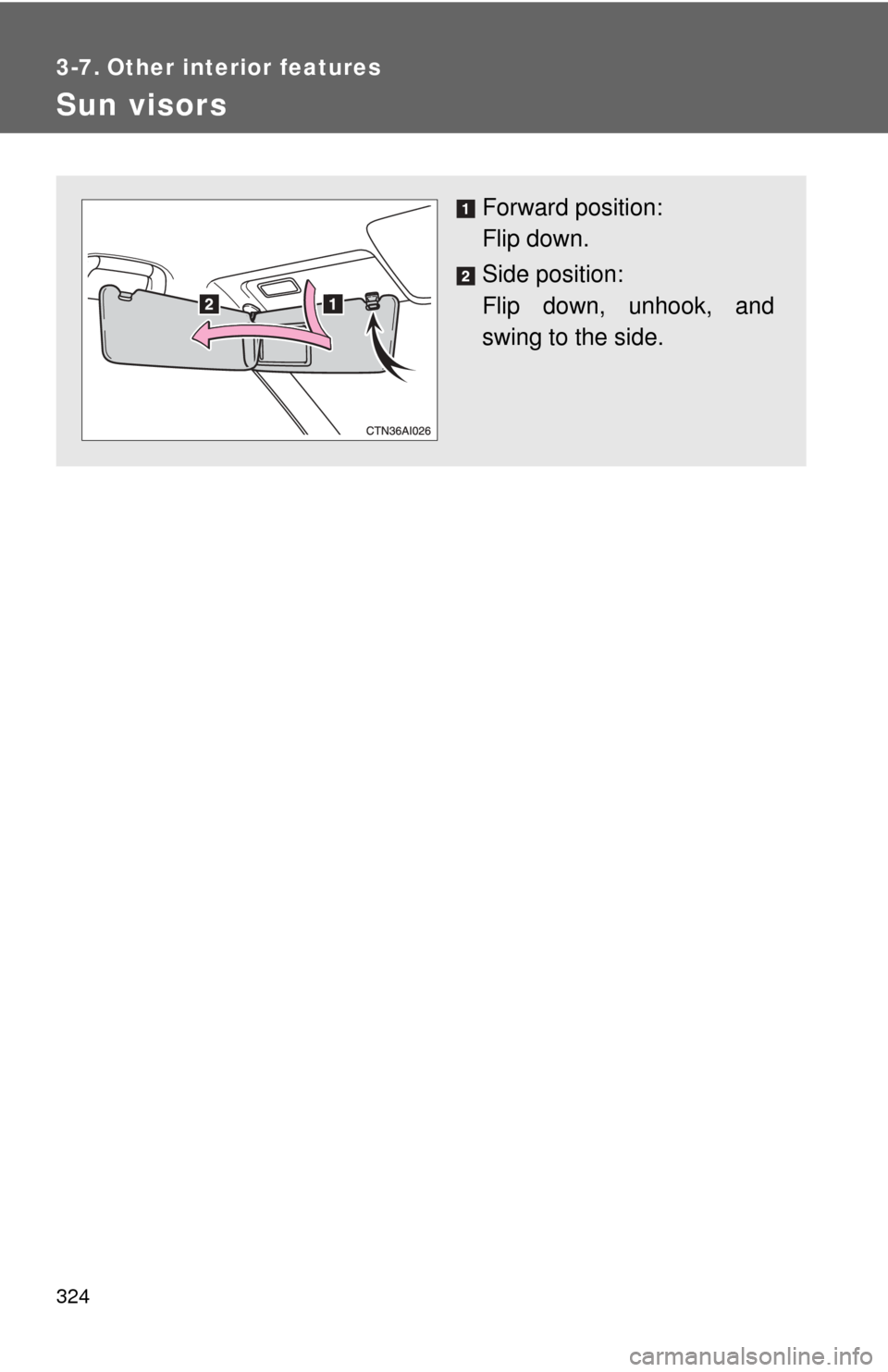

Sun visors
Forward position:
Flip down.
Side position:
Flip down, unhook, and
swing to the side.

325
3-7. Other interior features
3
Interior features

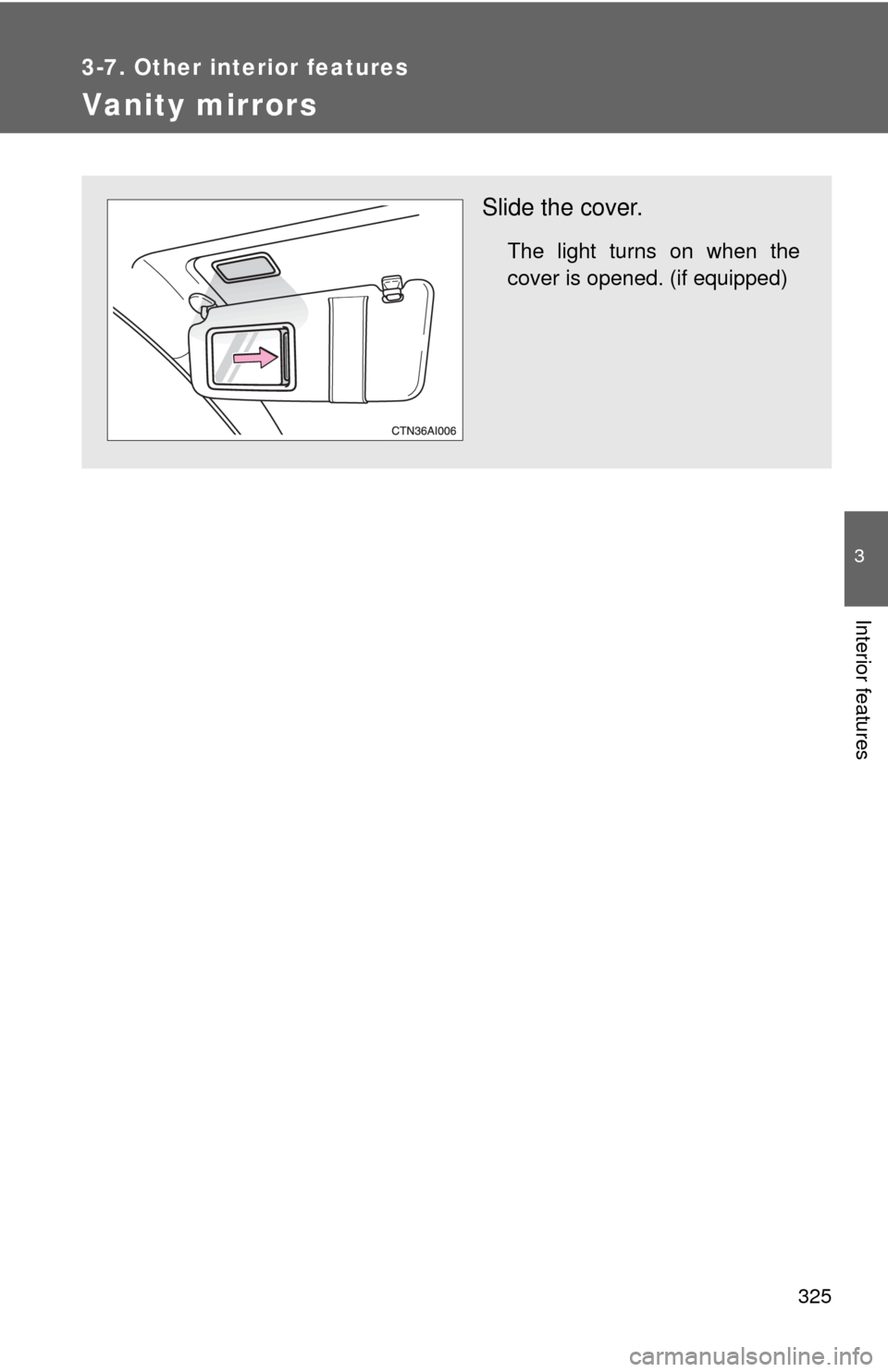

Vanity mirrors
Slide the cover.
The light turns on when the
cover is opened. (if equipped)

326
3-7. Other interior features
Clock
■The clock is displayed when
Vehicles with smart key system
The “ENGINE START STOP” switch is in ACCESSORY or IGNITION ON
mode. Vehicles without smart key system
The engine switch is in the “ACC” or “ON” position.
Adjusts the hour.
Adjusts the minutes.
