Contents
1
ContentsRadio
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Radio - Overview
. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Important information
. . . . . . . . . . . . . . . . . . . . . . . .
Anti-theft protection
. . . . . . . . . . . . . . . . . . . . . . . . . .
Basic setting
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Radio mode
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
CD player
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Using the system
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
2 2 2335 8 8
s1tk.book Page 1 Thursday, March 20, 2008 1:56 PM

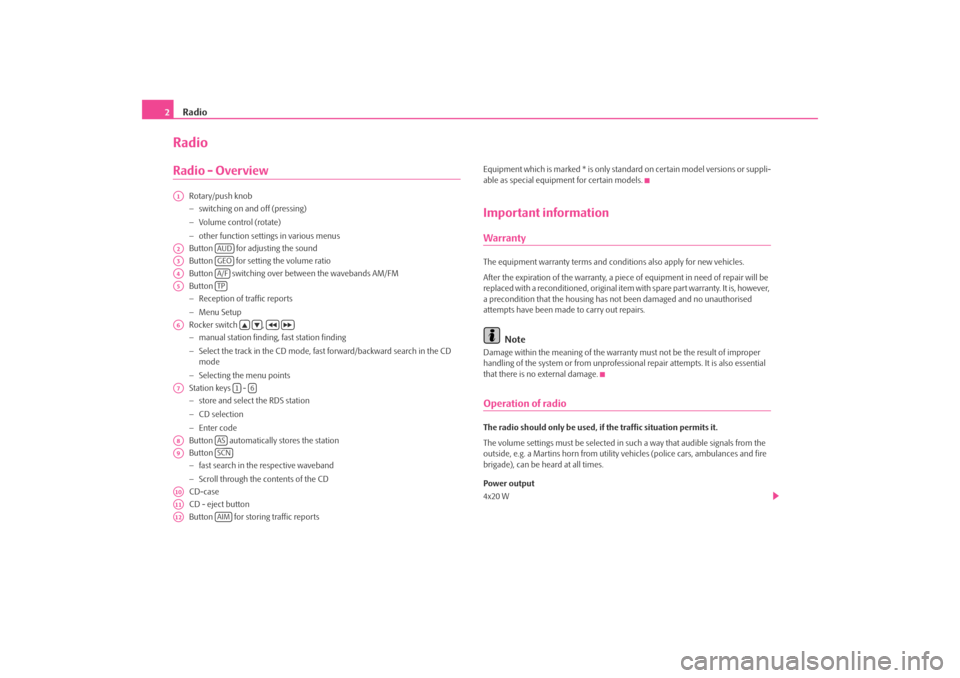

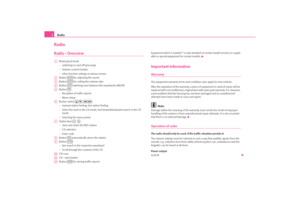

Radio
2RadioRadio - Overview
Rotary/push knob − switching on and off (pressing) − Volume control (rotate) − other function settin
gs in various menus
Button for adjusting the sound Button for setting the volume ratio Button switching over between the wavebands AM/FMButton − Reception of traffic reports − Menu Setup Rocker switch , − manual station finding, fast station finding − Select the track in the CD mode, fast forward/backward search in the CD mode − Selecting the menu points Station keys - − store and select the RDS station − CD selection − Enter code Button automatically stores the stationButton − fast search in the respective waveband − Scroll through the contents of the CD CD-caseCD - eject button Button for storing traffic reports
Equipment which is marked * is only stan
dard on certain model versions or suppli-
able as special equipment for certain models.Important informationWarrantyThe equipment warranty terms and conditions also apply for new vehicles. After the expiration of the warranty, a piec
e of equipment in need of repair will be
replaced with a reconditioned, original item with spare part warranty. It is, however, a precondition that the housing has
not been damaged and no unauthorised
attempts have been made
to carry out repairs.
Note
Damage within the meaning of the warranty must not be the result of improper handling of the system or from unprofession
al repair attempts. It is also essential
that there is no external damage.Operation of radioThe radio should only be used, if the traffic situation permits it. The volume settings must be selected in
such a way that audible signals from the
outside, e.g. a Martins horn from utility
vehicles (police cars,
ambulances and fire
brigade), can be heard at all times. Power output 4x20 W
A1A2
AUD
A3
GEO
A4
A/F
A5
TP
A6




A7
1
6
A8
AS
A9
SCN
A10A11A12
AIM
s1tk.book Page 2 Thursday, March 20, 2008 1:56 PM

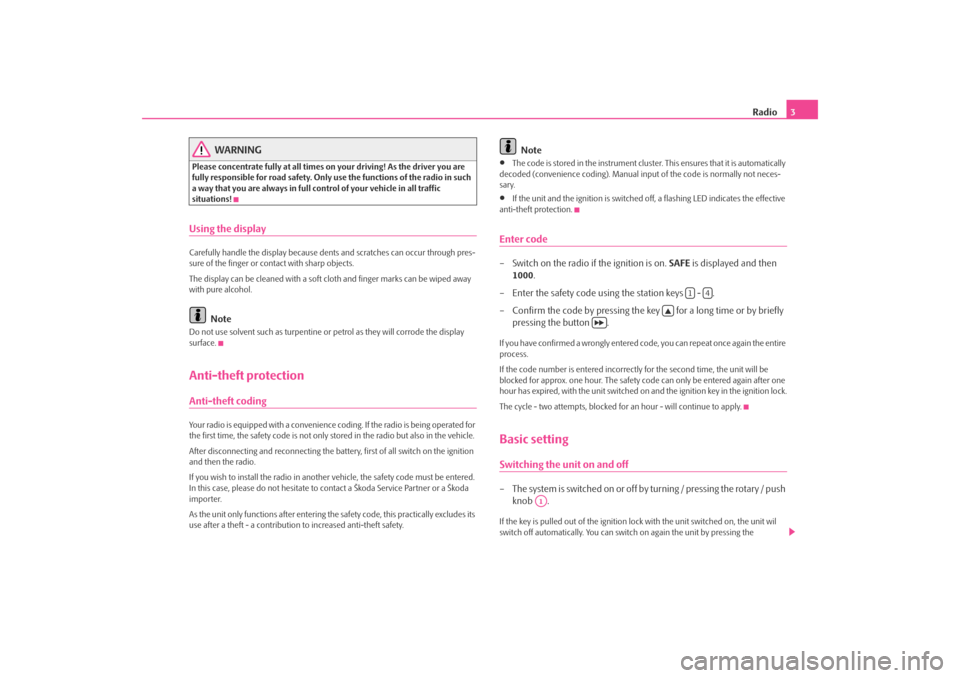

Radio

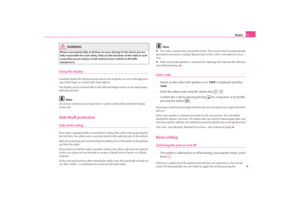

3
WARNING
Please concentrate fully at
all times on your driving! As the driver you are
fully responsible for road safety. Only use the functions of the radio in such a way that you are always in full co
ntrol of your vehicle in all traffic
situations!Using the displayCarefully handle the display because dent
s and scratches can occur through pres-
sure of the finger or contact with sharp objects. The display can be cleaned with a soft cl
oth and finger marks can be wiped away
with pure alcohol.
Note
Do not use solvent such as turpentine or
petrol as they will corrode the display
surface.Anti-theft protectionAnti-theft codingYour radio is equipped with a convenience co
ding. If the radio is being operated for
the first time, the safety code is not only
stored in the radio but also in the vehicle.
After disconnecting and reconnecting the batte
ry, first of all switch on the ignition
and then the radio. If you wish to install the radio in another vehicle, the safety code must be entered. In this case, please do not hesitate to
contact a Škoda Service Partner or a Škoda
importer. As the unit only functions after entering the
safety code, this practically excludes its
use after a theft - a contribution to increased anti-theft safety.
Note
•
The code is stored in the instrument cluster. This ensures that it is automatically
decoded (convenience coding). Manual inpu
t of the code is normally not neces-
sary.•
If the unit and the ignition is switched of
f, a flashing LED indicates the effective
anti-theft protection.Enter code– Switch on the radio if the ignition is on.
SAFE
is displayed and then
1000
.
– Enter the safety code using the station keys - . – Confirm the code by pressing the ke
y for a long time or by briefly
pressing the button .
If you have confirmed a wrongly entered co
de, you can repeat once again the entire
process. If the code number is entered incorrectl
y for the second time, the unit will be
blocked for approx. one hour. The safety co
de can only be entered again after one
hour has expired, with the uni
t switched on and the ignition key in the ignition lock.
The cycle - two attempts, blocked for
an hour - will continue to apply.
Basic settingSwitching the unit on and off– The system is switched on or off by turning / pressing the rotary / push
knob .
If the key is pulled out of the ignition lo
ck with the unit swit
ched on, the unit wil
switch off automatically. You can switch
on again the unit by pressing the
1
4


A1
s1tk.book Page 3 Thursday, March 20, 2008 1:56 PM

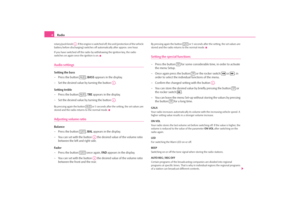

Radio
4rotary/push knob . If the engine is switch
ed off, the unit (protection of the vehicle
battery before discharging) switches of
f automatically after approx. one hour.
If you have switched off the radio by withdrawing the ignition key, the radio switches on again once the ignition is on.Audio settingsSetting the bass – Press the button ,
BASS
appears in the display.
– Set the desired value by turning the button . Setting treble – Press the button ,
TRE
appears in the display.
– Set the desired value by turning the button .By pressing again the button or 5 seconds after the setting, the set values are stored and the radio returns to the normal mode.Adjusting volume ratioBalance – Press the button ,
BAL
appears in the display.
– You can set with the button the desired value of the volume ratio
between the left and right side.
Fa d er – Press the button once again,
FA D
appears in the display.
– You can set with the button the desired value of the volume ratio
between the front and the rear.
By pressing again the button or 5 seconds after the setting, the set values are stored and the radio returns to the normal mode.Setting the special functions– Press the button for some considerable time, in order to activate
the menu Setup.
– Once again press the button or the rocker switch or , in
order to select the individual functions of the menu.
– Confirm the changed setting with the button .– You can store the desired value by briefly pressing the button or
the rocker switch .
– You can leave the menu Set-up without storing the values by pressing
the button for a long time.
GALA Your radio increases automatically its volume with the increasing vehicle speed. A higher setting value results in a stronger volume increase. ON VOL Your radio stores the last volume set before switching off. If the value is higher, the volume is reduced to the value of the parameter
ON VOL
after switching on the
radio again. LED For switching the Warn LED on or off. BEEP Switching on or off the tone signal when storing the radio stations. AUTO REG / REG OFF Certain programs of the broadcasting
companies are divided into regional
programs at specific times. That is why in individual regions the regional programs of a station can broadcast different contents.
A1
AUD
A1
AUD
A1
AUD
GEO
A1
GEO
A1
GEO
TP
TP


A1
TP

TP
s1tk.book Page 4 Thursday, March 20, 2008 1:56 PM

Radio

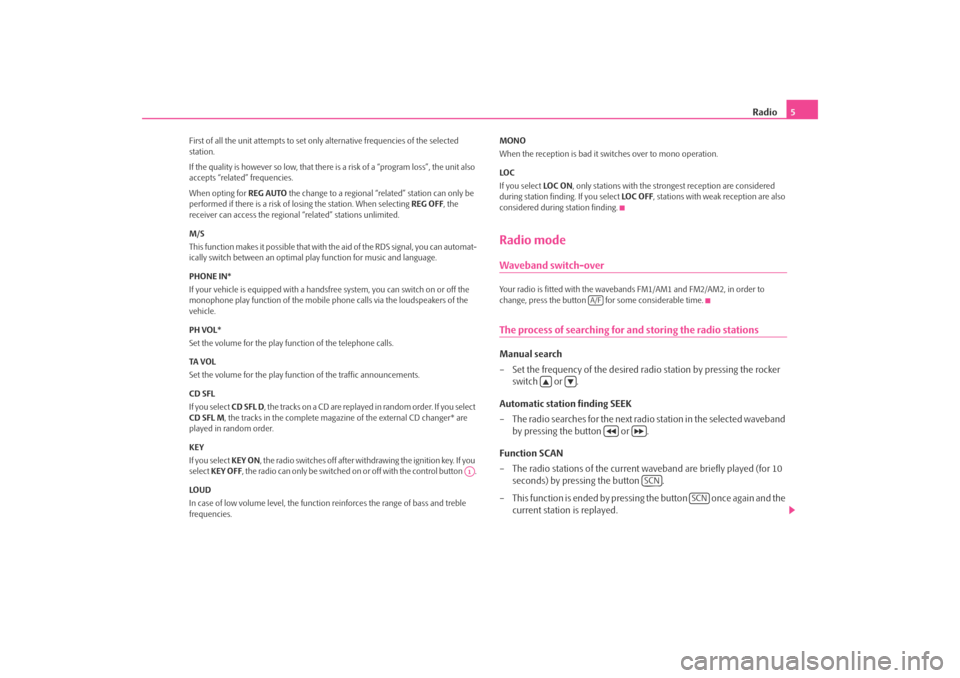

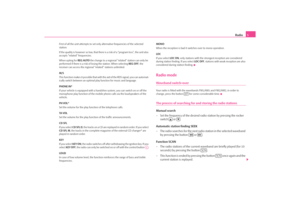

5
First of all the unit attempts to set only alternative frequencies of the selected station. If the quality is however so low, that there is a risk of a “program loss”, the unit also accepts “related” frequencies. When opting for
REG AUTO
the change to a regional “related” station can only be
performed if there is a risk of losing the station. When selecting
REG OFF
, the
receiver can access the regional
“related” stations unlimited.
M/S This function makes it possible that with the aid of the RDS signal, you can automat- ically switch between an optimal pl
ay function for music and language.
PHONE IN* If your vehicle is equipped
with a handsfree system, you
can switch on or off the
monophone play function of the mobile phone calls via the loudspeakers of the vehicle. PH VOL* Set the volume for the play function of the telephone calls. TA VOL Set the volume for the play functi
on of the traffic announcements.
CD SFL If you select
CD SFL D
, the tracks on a CD are replayed in random order. If you select
CD SFL M
, the tracks in the complete magazine
of the external CD changer* are
played in random order. KEY If you select
KEY ON
, the radio switches off after withdrawing the ignition key. If you
select
KEY OFF
, the radio can only be switched on or off with the control button .
LO U D In case of low volume level, the function
reinforces the range of bass and treble
frequencies.
MONO When the reception is bad it switches over to mono operation. LO C If you select
LO C O N
, only stations with the stro
ngest reception are considered
during station finding. If you select
LO C O F F
, stations with weak reception are also
considered during station finding.Radio modeWaveband switch-overYour radio is fitted with the wavebands FM1/AM1 and FM2/AM2, in order to change, press the button for some considerable time.The process of searching for and storing the radio stationsManual search – Set the frequency of the desired radio station by pressing the rocker
switch or .
Automatic station finding SEEK – The radio searches for the next radi
o station in the selected waveband
by pressing the button or .
Function SCAN – The radio stations of the current
waveband are briefl
y played (for 10
seconds) by pressing the button .
– This function is ended by pressing the button once again and the
current station is replayed.
A1
A/F



SCN
SCN
s1tk.book Page 5 Thursday, March 20, 2008 1:56 PM

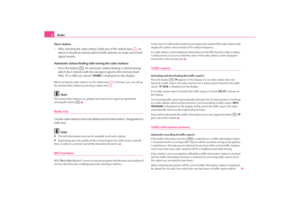

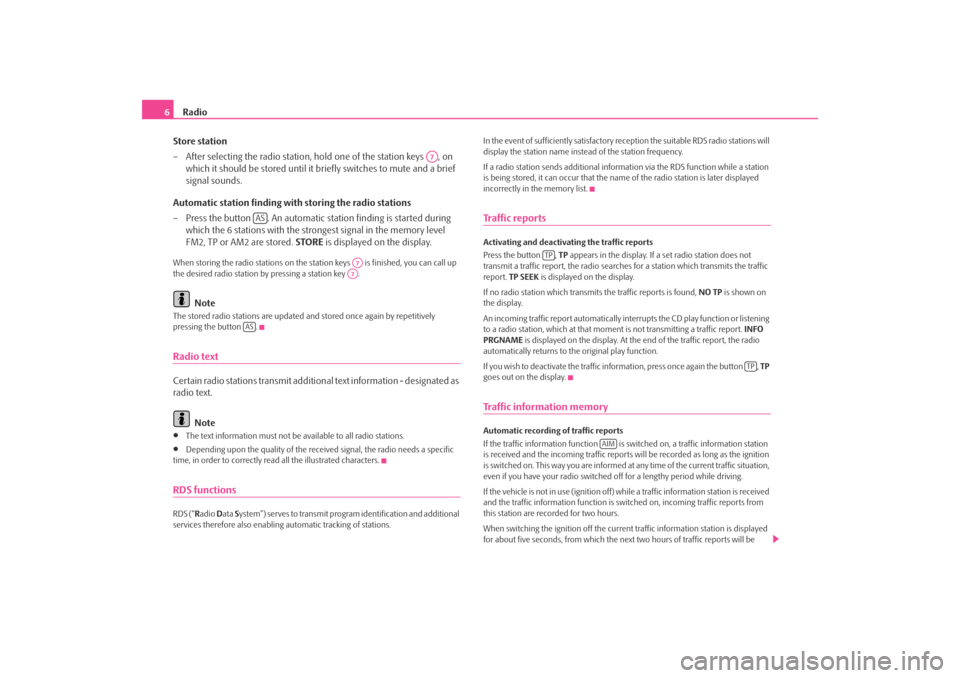

Radio
6 Store station – After selecting the radio station,
hold one of the st
ation keys , on
which it should be stored until it briefly switches to mute and a brief signal sounds.
Automatic station finding with storing the radio stations – Press the button . An automatic station finding is started during
which the 6 stations with the strongest signal in the memory level FM2, TP or AM2 are stored.
STORE
is displayed on the display.
When storing the radio stations on the st
ation keys is finished, you can call up
the desired radio station by pressing a station key .
Note
The stored radio stations are updated and stored once again by repetitively pressing the button .Radio textCertain radio stations transmit addition
al text information - designated as
radio text.
Note
•
The text information must not be available to all radio stations.
•
Depending upon the quality of the received signal, the radio needs a specific
time, in order to correctly read all the illustrated characters.RDS functionsRDS (“
Radio
Data
System”) serves to transmit program identification and additional
services therefore also enabling automatic tracking of stations.
In the event of sufficiently satisfactory reception the suitable RDS radio stations will display the station name instead of the station frequency. If a radio station sends additional inform
ation via the RDS function while a station
is being stored, it can occur that the name
of the radio station is later displayed
incorrectly in the memory list.Tr a f f i c r e p o r t sActivating and deactivating the traffic reports Press the button ,
TP appears in the display. If a set radio station does not
transmit a traffic report, the radio searches
for a station which transmits the traffic
report.
TP SEEK
is displayed on the display.
If no radio station which transmits the traffic reports is found,
NO TP
is shown on
the display. An incoming traffic report automatically inte
rrupts the CD play function or listening
to a radio station, which at that moment
is not transmitting a traffic report.
INFO
PRGNAME
is displayed on the display. At th
e end of the traffic report, the radio
automatically returns to the original play function. If you wish to deactivate the traffic information, press once again the button ,
TP
goes out on the display.Traffic information memory Automatic recording of traffic reports If the traffic information function is switched on, a traffic information station is received and the incoming traffic reports
will be recorded as
long as the ignition
is switched on. This way you are informed at
any time of the current traffic situation,
even if you have your radio switched off for a lengthy period while driving. If the vehicle is not in use (ignition off) while a traffic information station is received and the traffic information function is sw
itched on, incoming traffic reports from
this station are recorded for two hours. When switching the ignition off the current traffic information station is displayed for about five seconds, from which the ne
xt two hours of traffic reports will be
A7
AS
A7A7
AS
TP
TP
AIM
