The turn signal
  and main beam lever

The parking lights and headlight flas her are also switched on and off
using the turn signal and main beam lever.The turn signal and main beam le ver perform the following functions:Right
 and left
 turn signal light
– Push the lever upwards or downwards fig. 45 .
– Turn signal for changing lanes - in order to only flash briefly, move the lever up or
down to the pressure point and hold it in this position.Main beam

– Switch on the low beam.
– Push the lever forwards.
– Pull the lever back into the initial positi on in order to switch the main beam off
again.Headlight flasher

– Pull the lever towards the steering wheel (spring-tensioned position) - the main
beam and warning light in the instrument cluster come on.
Parking light

– Switch off the ignition.
– Push the lever up or down - the right-hand or left-hand parking light is switched
on.
Information concerning the function of the lights.
The turn signal system only operates when the ignition is switched on. The corre-
sponding warning light
 or  in the instrument cluster also flashes.

The turn signal is automatically cancelled after negotiating a curve.

The indicator light flashes at twice its normal rate if a bulb of the turn signal light
fails.

The side light and rear light on the appropriate side of the vehicle are switched on
when the parking light is selected. The parking light function only operates if the igni-
tion is switched off.

An acoustic warning signal will sound when the driver's door is opened if the lever
is not in the middle position after removi ng the ignition key. The acoustic warning
signal will stop just as soon as the driver's door is closed.Caution
Use main beam or the headlight flasher only if this does not risk dazzling other road
users.
Note
Use only in accordance with the legal requ irements the described lighting and signal
systems.Coming Home Function*This function makes it possible to switch on low beam for a short time after leaving the
car, e.g. to illuminate the path to your front door, etc.Selecting function– Switch off the light.
Fig. 45 Turn signal and main
beam lever
s2rc.book Page 49 Thursd ay, April 22, 2010 10:58 AM

Lights and Visibility51
Using the system
Safety
Driving Tips
General Maintenance
Breakdown assistance
Technical Data
The rear interior lighting
page 50, fig. 47 is switched on and off by pressing the glass
on the indented point.
The same principles apply for the interior ligh ting at the rear as for the for the interior
lighting at the front page 50.
Note
We recommend having the bulb replaced by a specialist garage.Luggage compartment light*The light is located at the left top side of the (right - Combi) luggage compartment.
The lighting comes on automatically when th e boot lid is opened. If the lid remains
open for more than about 30 minutes, the luggage compartment lighting switches off
automatically.VisibilityRear window heater– You can switch the rear window heater on or off by pressing the switch
  fig. 48
- the indicator light in the switch comes on or goes out.
You can only activate the rear window he ater when the ignition is switched on. On vehicles with electrically operated power windows, the exterior mirror heater is
also switched on at the same time when
the rear window heater is activated.
For the sake of the environment
As soon as the window is de-iced or free from mist, the heating should be switched off.
The reduced current consumption will have a favourable effect on fuel economy
page 132, “Saving electricity”.Sun visorsThe sun visors can be pulled out of the fixtures and swiveled towards the side window.
The visor above the interior mirr or* can only be folded down. fig. 49 .
Sun visors with lighting*
After folding down the visor, the lighting for the vanity mirror is switched on.
Fig. 48 Switch for rear window
heater
Fig. 49 Sun visor: swivelling out
s2rc.book Page 51 Thursd ay, April 22, 2010 10:58 AM

Lights and Visibility53
Using the system
Safety
Driving Tips
General Maintenance
Breakdown assistance
Technical Data
The windscreen washer nozzles for the windscreen are heated* when the ignition is
switched on.
Top up with wash liquid
page 159.
WARNING

Properly maintained wind screen wiper blades are essential for clear visi-
bility and safe driving page 53, “Replacing wiper blades for the windscreen
wipers”.

Do not use the windscreen washer sy stem at low temperatures, without
heating the windscreen beforehand. Otherwise the window cleaner could
freeze on the windscreen and re strict the view to the front.

The rain sensor only operates as a support. The driver is not released from
the responsibility to set the function of the windscreen wipers manually
depending on the visibility conditions.Caution
In frosty weather, please firs t of all check whether the windscreen wiper blades are not
frozen to the windscreen before switching them on. Switching on windscreen wipers
when the blades are frozen to the windscreen may result in damage both to the blades
and the motor of the windscreen wipers!Replacing wiper blades for the windscreen wipers
Taking off the wiper blade– Fold windscreen wiper arm out from the windscreen and position the wiper blade at right angles to the wiper arm .
– Press the securing spring in the directio n of arrow and press the wiper blade at
the same time to the windscreen - Wa rning, danger of breaking the wind-
screen. fig. 51  .Attaching a wiper blade– Clip the securing spring until it is heard to lock in the windscreen wiper arm.
– Check whether the wiper blade is correctly attached.
Wiper blades in proper condition are essentia l to obtain good visibility. Wiper blades
should not be allowed to become dirtied by dust, insect remains and preserving wax.
Juddering or smearing of the wiper blades co uld then be due to wax residues left on
the windscreen by vehicle wash ing in automatic vehicle wash systems. It is therefore
important to degrease the lips of the wiper blades after every pass through an auto-
matic vehicle wash system .
WARNING

If the windscreen wipers are handled ca relessly, there is a risk of damage to
the windscreen.

You should clean the wiper blades regularly with a windscreen cleaner in
order to avoid any smears. Clean a wiper blad e with a sponge or cloth if it is very
dirty, for example fr om insect residues.

Replace the wiper blades once or twice a year for safety reasons. The wiper
blades are available fr om specialist garages.
Fig. 51 Wiper blade for the
windscreen wiper
AA
AB
s2rc.book Page 53 Thursd ay, April 22, 2010 10:58 AM

Lights and Visibility55
Using the system
Safety
Driving Tips
General Maintenance
Breakdown assistance
Technical Data

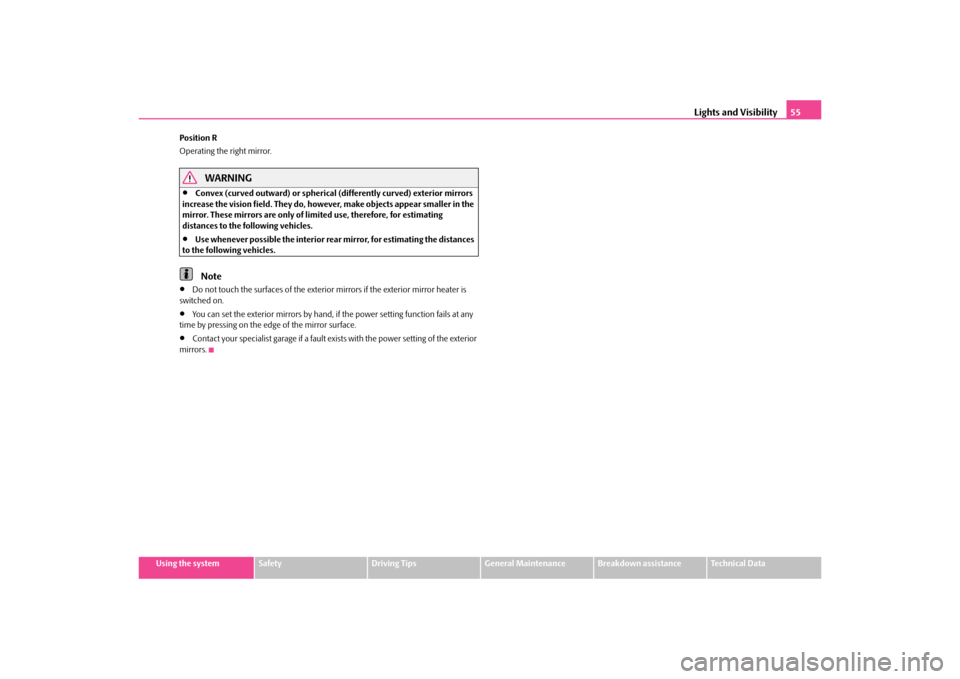

Position R
Operating the right mirror.
WARNING

Convex (curved outward) or spherical (differently curved) exterior mirrors
increase the vision field. They do, howe ver, make objects appear smaller in the
mirror. These mirrors are only of limi ted use, therefore, for estimating
distances to the following vehicles.

Use whenever possible the interior rear mirror, for estimating the distances
to the following vehicles.Note

Do not touch the surfaces of the exterior mirrors if the exterior mirror heater is
switched on.

You can set the exterior mirr ors by hand, if the power setting function fails at any
time by pressing on the edge of the mirror surface.

Contact your specialist garage if a fault ex ists with the power setting of the exterior
mirrors.
s2rc.book Page 55 Thursd ay, April 22, 2010 10:58 AM

Seats and Storage57
Using the system
Safety
Driving Tips
General Maintenance
Breakdown assistance
Technical Data
Adjusting lumbar support*– Turn the wheel until you have set the most comfortable curvature of the seat
upholstery in the area of your spine.
The driver's seat should be adjusted in such a way that the pedals can be fully pressed
to the floor with slightly bent legs.
The seat backrest on the driver's seat should be adjusted in such a way that the upper
point of the steering wheel can be easi ly reached with slightly bent arms.
WARNING

Only adjust the driver seat when the vehicle is stationary - risk of injury!

Take care when adjusting the seat! Adjusting the seat without care can lead
to bruises or injuries.

The seat backrests must not be angled too far back when driving otherwise
this will affect proper operation of the se at belts and of the airbag system - risk
of injury!
Adjusting front seats electrically*Adjusting seats
Adjusting seat– Adopt the correct seated position page 56.
– Press the switch or in the direction of the desired setting fig. 55 .Adjusting lumbar support– Adjust the lumbar support mechanic ally by turning the rotary knob .
Switch is operated in order to move the seat up/down and forward/back, while
switch is operated in order to move the seat backrest forward or back.
WARNING

Only adjust the driver seat when the vehicle is stationary - risk of injury!

Caution when adjusting the seat! You ma y suffer injuries or bruises as a
result of adjusting the seat without paying proper attention.

In view of the fact that the seats can also be adjusted when the ignition is
switched off (even when ignition key withdrawn), you should never leave chil-
dren unattended in the vehicle.

The seat backrests must not be angled too far back when driving otherwise
this will affect proper operation of the se at belts and of the airbag system - risk
of injury!Note
If the movement of the seat is inadvertently interrupted during an adjustment, once
again press the switch in the appropriate di rection and continue with the adjustment
of the seat to the end.
A4
Fig. 55 Side view: Controls for
adjusting the seat
AA
AB
AC
AAAB
s2rc.book Page 57 Thursd ay, April 22, 2010 10:58 AM

Seats and Storage59
Using the system
Safety
Driving Tips
General Maintenance
Breakdown assistance
Technical Data

If you assign the radio remote control to a memory button which has already been
assigned to a radio remote control, the ol d assignment is also replaced by a new
assignment in this case.

The assignment of the radio remote co ntrol to a memory button is retained,
however, after reassigning the seats and exterior mirrors.
Retrieving seat and exterior mirror settings for driving forward
You can retrieve the stored settings either with the memory button
or also with the radio remote control*.Retrieving the settings of the seat and mirrors can only be carried out when the igni-
tion is switched off for safety reasons. Retrieving the settings can be carried out in two
different ways:Retrieving settings with memory buttons– By pressing briefly: with the door open, operate the desired memory button
 page 58, fig. 56 with one-touch. The seat and the exterior mirrors now move
automatically into the stored position.
– By pressing for a long period of time: with the driver door open or closed, press
and hold the desired memory button until the seat and the exterior mirrors
have moved into the stored position.Retrieving settings with remote control*– If the driver door is closed and the ignition is switched off, briefly press the unlock button of the radio remote control page 39 and then open the driver door.
– The seat and exterior mirrors now move automatically into the stored positions.Retrieving setting of exterior mirror for reversing*– Turn the rotary knob for the exterior mirror setting into the position
  page 54
before engaging the reverse gear.
Emergency Off– Press any button on the driver seat.
Note
If the memory button is pressed once agai n during the automatic setting of the seat
and the exterior mirrors, the setting operation is interrupted. After repeated pressing
of the same button, the setting operation is continued to the end. If one of the two
remaining memory buttons is pressed, the stored setting of this button is retrieved.Information concerning the off switch of the memory systemAfter pressing the off switch page 58, fig. 56 of the memory system, the memory
system is deactivated. You can only adjust the seat and the exterior mirrors manually.
You can switch on the memory system again by once again pressing the off switch
of the memory system. The setting is not ca rried out to the end if a retrieved setting
operation is interrupted.
We recommend that you switch off the memo ry system with the off switch if the
vehicle is used for a short period by a driver and you do not wish to store any particular
settings of the seat and mirrors in this case.Head restraints
ADAD
AD
AE
AE
AE
AE
Fig. 57 Head restraint: adjusting
s2rc.book Page 59 Thursd ay, April 22, 2010 10:58 AM

Seats and Storage61
Using the system
Safety
Driving Tips
General Maintenance
Breakdown assistance
Technical Data
seats and the armrest in such a way that no mutual deformation or damage can occur
to the seats.
Folding seats forwards– Before folding the rear seats forwards, yo
u must adapt the position of the front
seats in such a way that they are not damaged when the rear seats are folded
forwards.
– Pull up the seat cushion in direction of arrow and fold forwards in direction of arrow page 60, fig. 59 .
– Unlock the seat backrests by pulling the securing knob page 60, fig. 60 and fold
them forwards.
– Remove the head restraints from the seat backrests and fold the backrests
completely forwards.
– The head restraints can be inserted into the relevant holes of the folded forward
seat cushions.
If the front seats are too far back, we recomm end that you have the rear head restraints
removed before the seat backrests are folded forward. Store the removed head
restraints in such a way that they cannot be damaged or soiled. Please refer to the
guidelines page 63, “luggage compartment”.Move seats into the initial position
Move seats into the initial position– Install the head restraints in the slightly lifted seat backrest.
– Place the rear lateral seat belt fig. 61 behind the edge of the side trim panel.
– Then push the seat backrest back into th e upright position until the securing knob
clicks into place - check by pulling on the seat backrest.
– Move the seat cushion into its original position.
WARNING

The belts and the belt locks must be in their original position after folding
back the seat cushions and the seat backrests - they must be ready to use.

The seat backrests must be securely interlocked in position so that no
objects in the luggage compartment can slide into the passenger compartment
if there is sudden braking - risk of injury!

Pay attention that the seat backrests are correctly interlocked. It is only then
that the three-point seat belt for the middle seat can reliably fulfil its function.

Before folding the seat backrest back into the secure position, place the rear
lateral seat belt behind the edge of the si de trim panel. Take suitable measures
to prevent that the seat belt is jammed between the seat backrest and the side
trim panel and is thus damaged.
Removing the seat cushion
A1
A2
Fig. 61 Lock the seat backrest
AA
Fig. 62 Removing seat cushions
s2rc.book Page 61 Thursd ay, April 22, 2010 10:58 AM

Seats and Storage63
Using the system
Safety
Driving Tips
General Maintenance
Breakdown assistance
Technical Data

There must be no objects on the floor which could roll under the pedals. You
would then no longer be able to apply the brakes, operate the clutch or accel-
erator - risk of accident!
luggage compartmentLoading the luggage compartmentPlease observe the following in the interest of having good handling characteristics of
your vehicle:
– Distribute the items of luggage as evenly as possible.
– Place heavy objects as far forward as possible.
– Attach the items of luggage to the lashing eyes or the fixing net* page 64.
In the event of an accident, there is such a high kinetic energy which is produced by
small and light objects that th ey can cause severe injuries. The magnitude of the kinetic
energy depends on the speed at which the vehi cle is travelling and on the weight of the
object. The speed at which the vehicle is travelling is in this case the more significant
factor.
Example: In the event of a frontal collision at a speed of 50 km/h, an unsecured object
with a weight of 4.5 kg produces an ener gy, which corresponds to 20 times its own
weight. This means that it results in a weight of approx. 90 kg. You can imagine the inju-
ries that can occur, if this “bullet” is fl ying through the interior compartment and hits
an occupant.
WARNING

Stow the objects in the luggage compartm ent and attach them to the lashing
eyes.

Loose objects in the passenger compartment can be thrown forward during
a sudden manoeuvre or in case of an accident and can injure the occupants or
other oncoming traffic. This risk is still increased, if the objects which are flying around are hit by a deployed airbag. In this case, the objects which are thrown
back can injure the occupants - hazard.

Please note that the handling properties of your vehicle may be affected
when transporting heavy objects as a result of the displacement of the centre of
gravity. The speed and style of driv ing must be adjusted accordingly.

The items carried in the luggage compartment should be stowed in such a
way that no objects are able to slip fo rward if there are any sudden driving or
braking manoeuvres underta ken - risk of injury!

Never drive with the boot lid fully open ed or slightly ajar otherwise exhaust
gases may get into the interior of the vehicle - risk of poisoning!

On no account exceed the permissible axle loads and the permissible gross
weight of the vehicle - risk of accident!

Never transport occupants in the luggage compartment!Caution
Please ensure that the heating elements of the rear window heater are not damaged
as a result of objects sliding in this area.
Note
Tyre pressure must be adjusted to the load page 160, fig. 153 .
WARNING (continued)
WARNING (continued)
s2rc.book Page 63 Thursd ay, April 22, 2010 10:58 AM
